Senville AURA Mini Split 33K BTU Mini Split with 19.5 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handler and 16 Ft. Line Set (SENA-33HF)

Senville SENA-33HF is a high-efficiency 33,000 BTU ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

Features

• 19.5 SEER2 ENERGY STAR - Save up to 50% on energy costs annually.
• Heating down to -30°C (-22°F) - Reliable performance in extreme cold.

• Alexa Enabled Smart Control - Control via voice or app anywhere.
• Ultra-Quiet Operation - Whisper-quiet for bedrooms & offices.

• Recommended for 1,500–1,750 sq. ft. - Great for large rooms or open spaces.
• Professional Installation - Required to maintain warranty coverage.
• Smart Home Integration with Alexa - Control your Senville system with Alexa or the app from anywhere. Create schedules, adjust settings, and enjoy convenience and energy savings remotely.
• ENERGY STAR Certified - Save up to 50% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
• Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
• Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
• 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
• Installation Kit + Accessories Included - Includes a complimentary 16ft. Installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

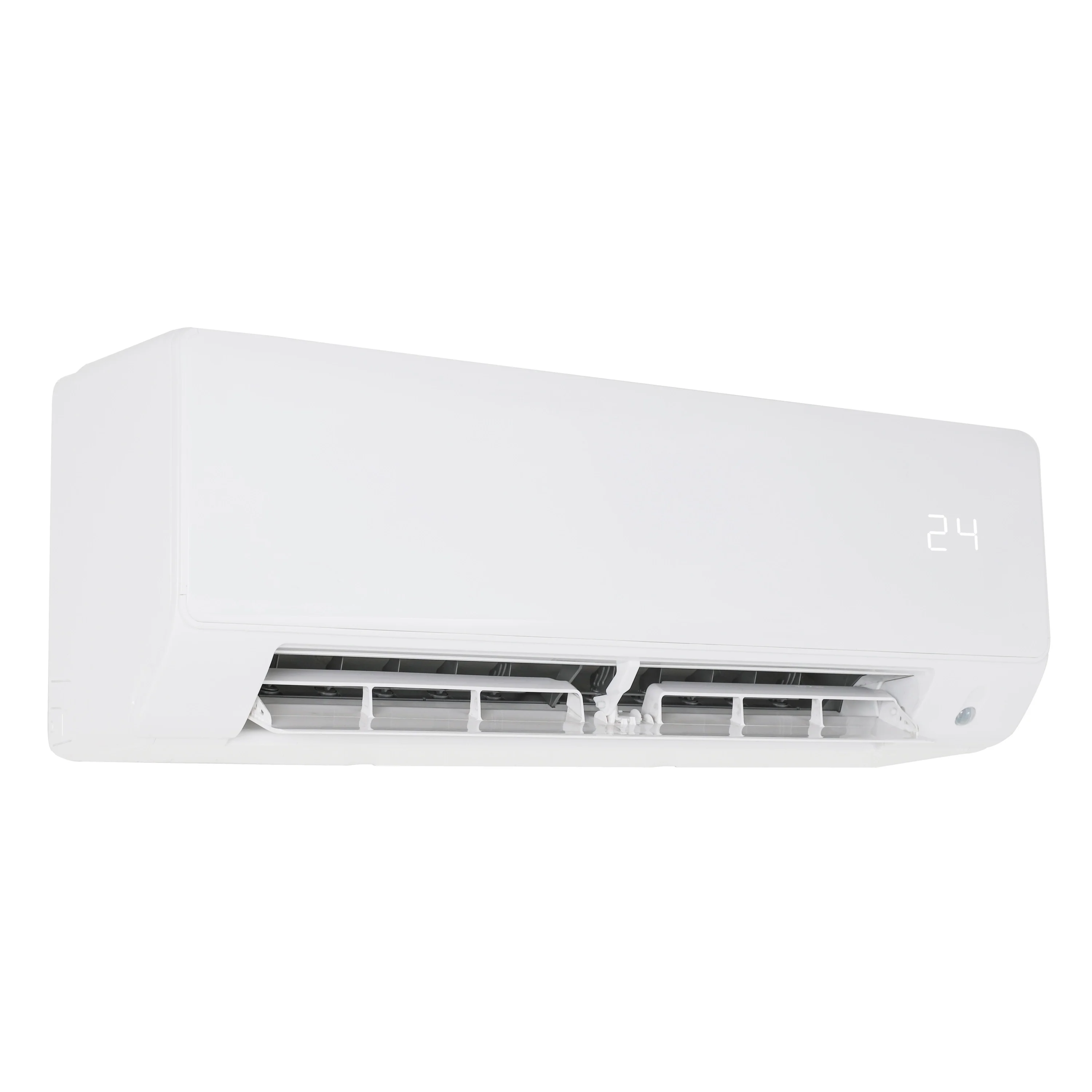

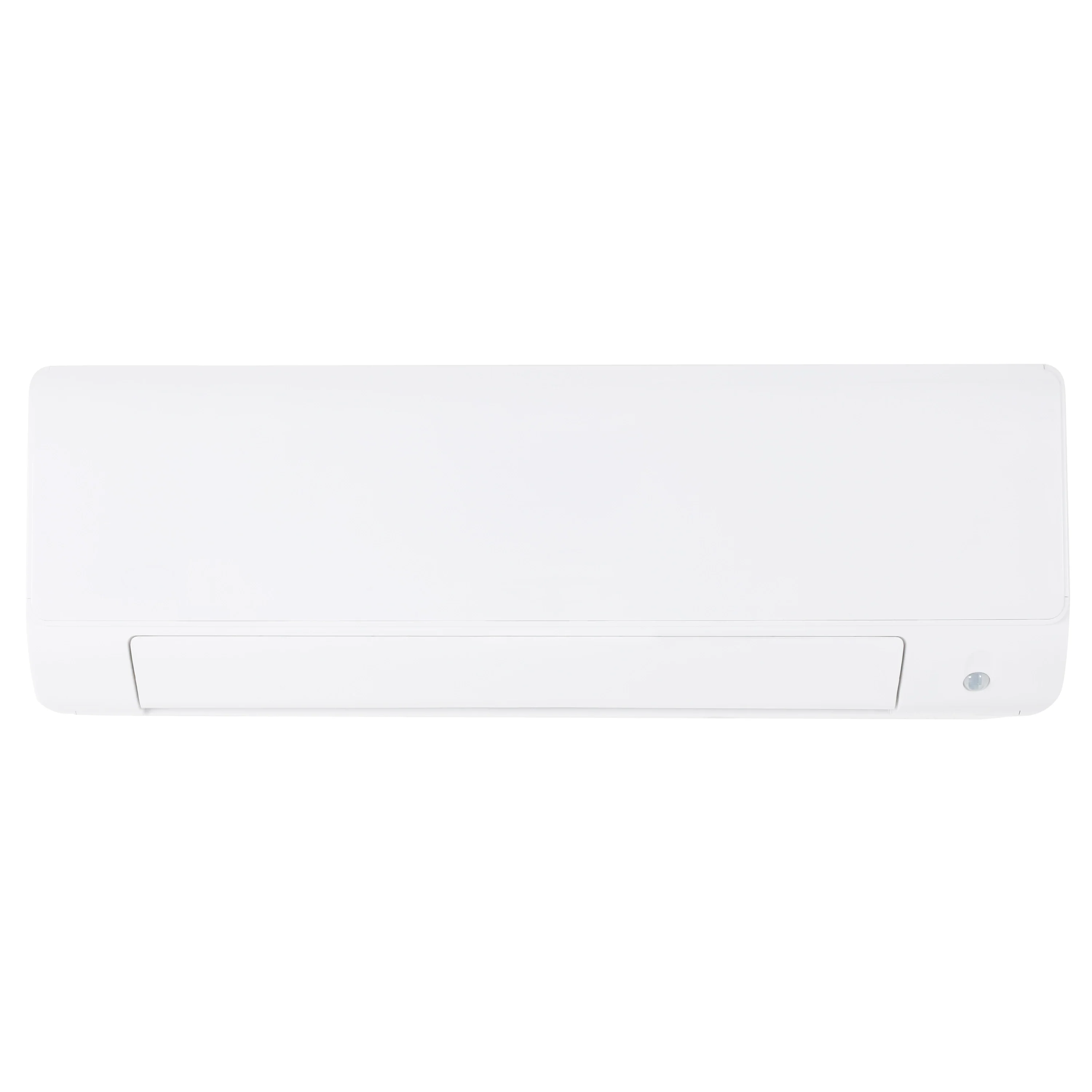

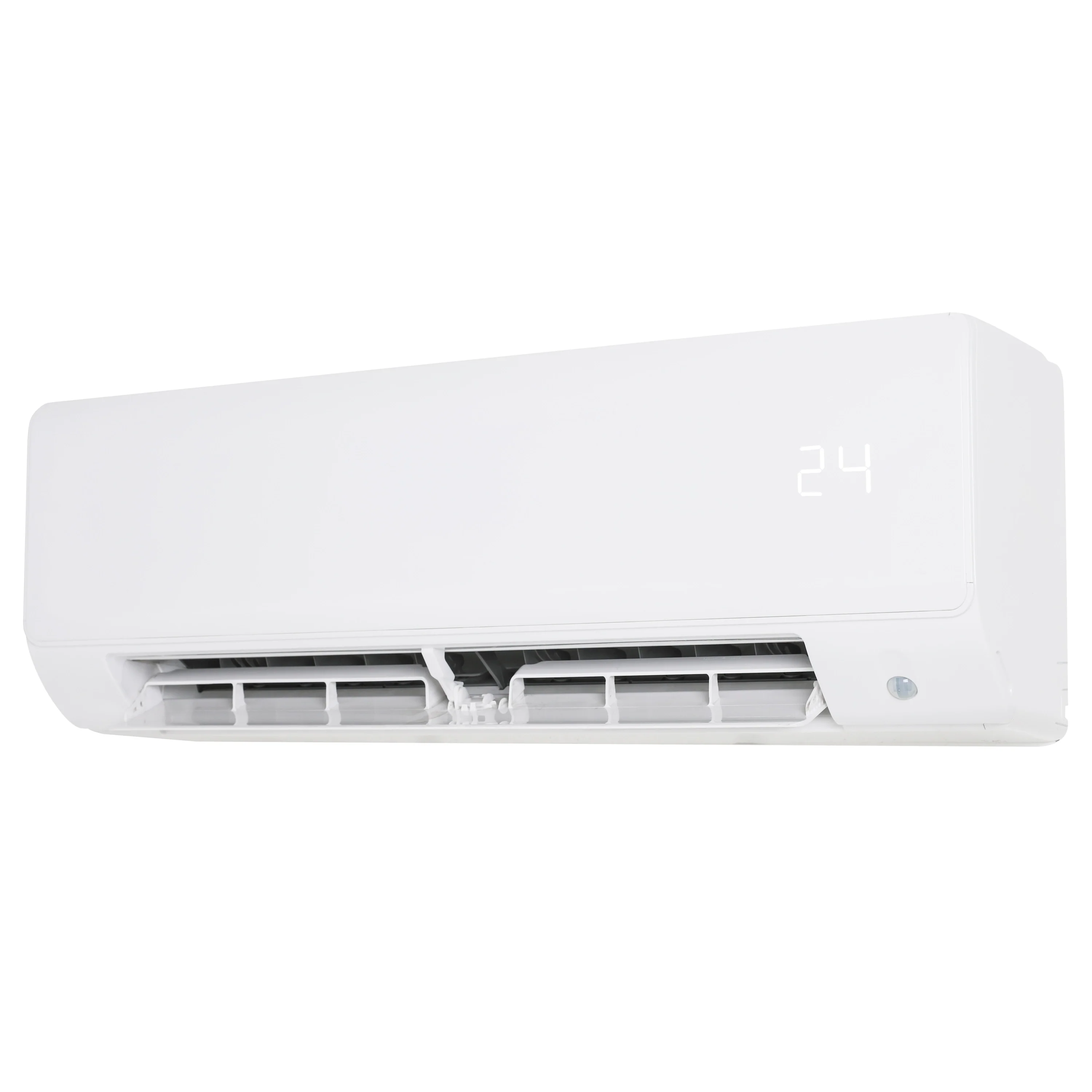

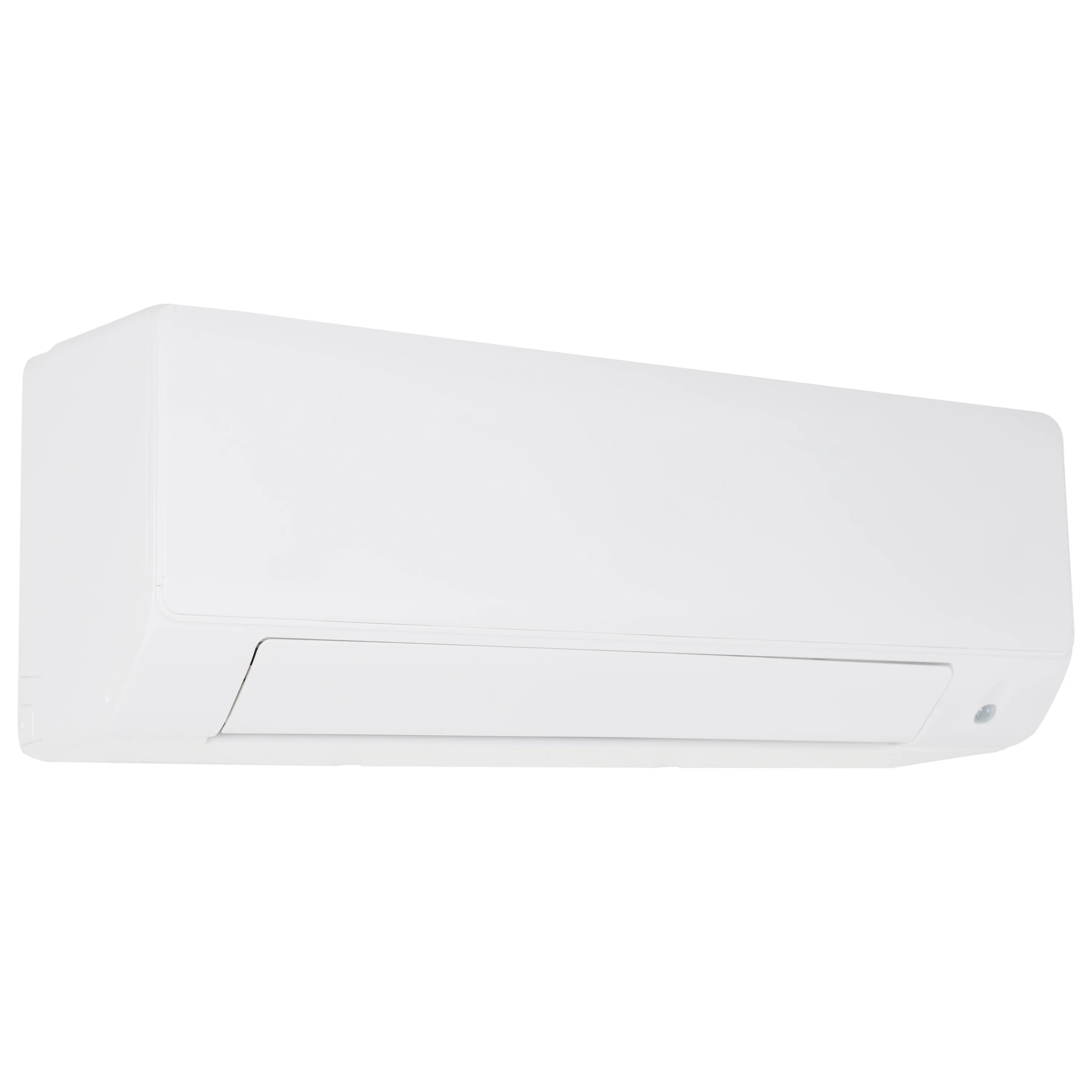

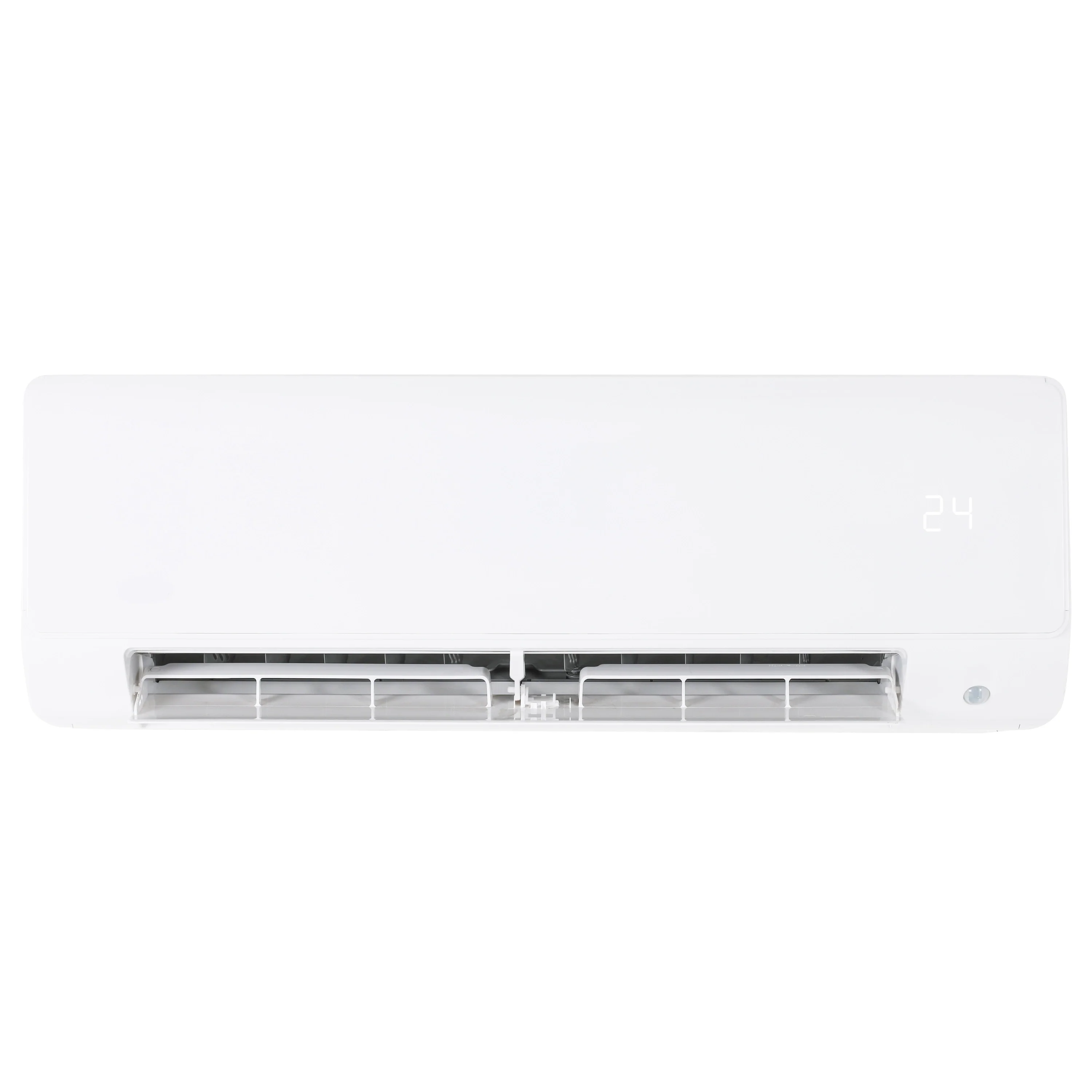

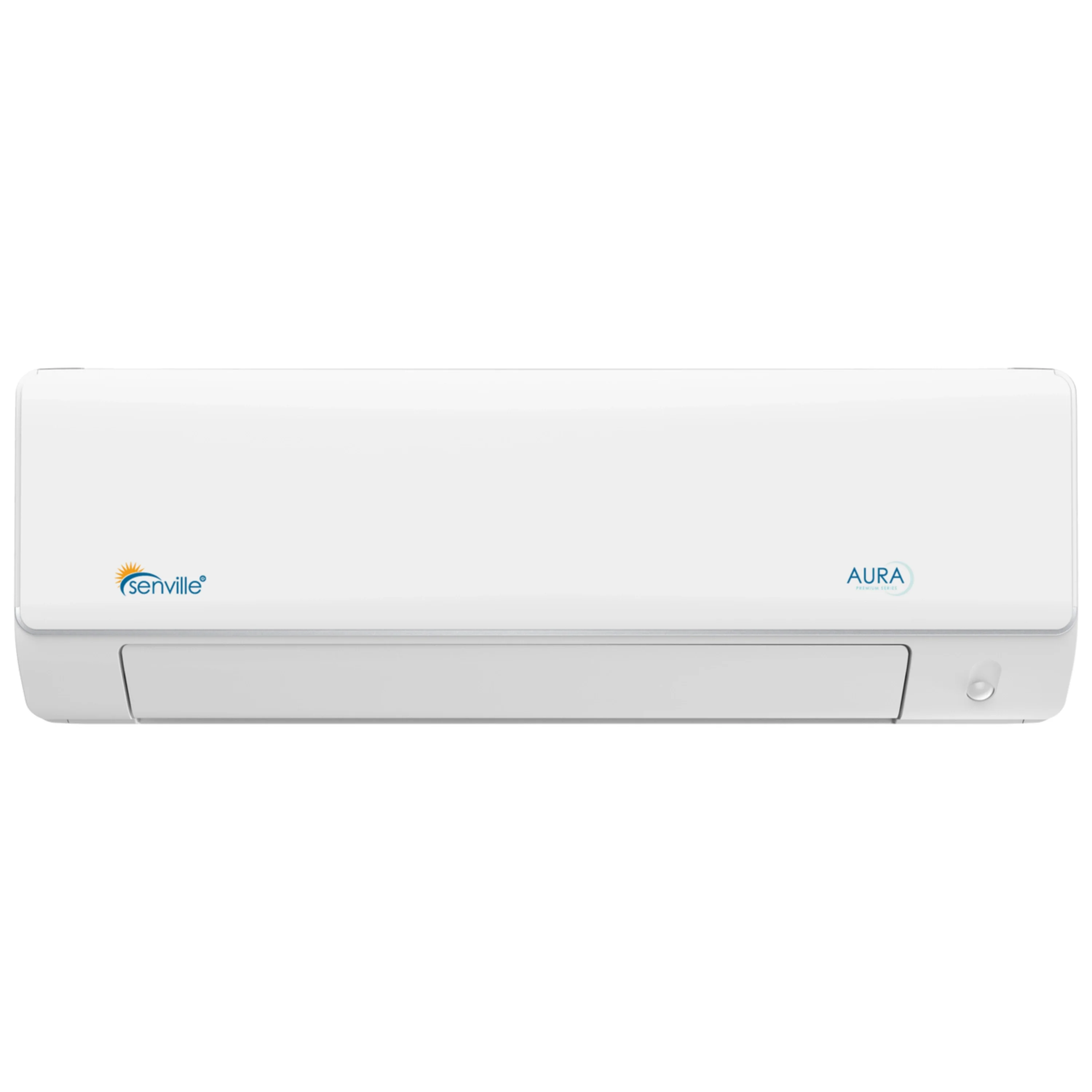

• Indoor Unit

• Outdoor Unit

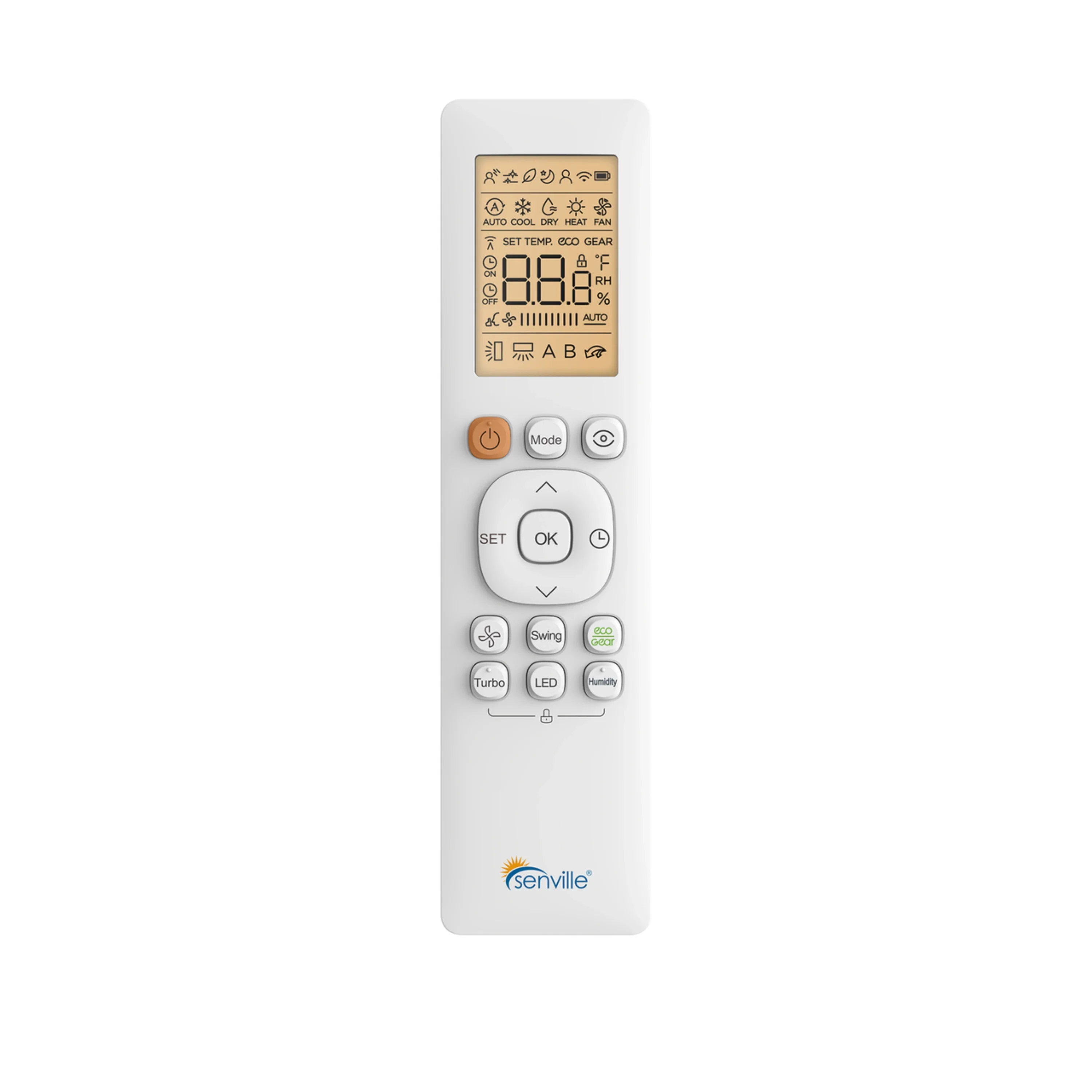

• Wireless Remote Control

• Alexa USB Kit

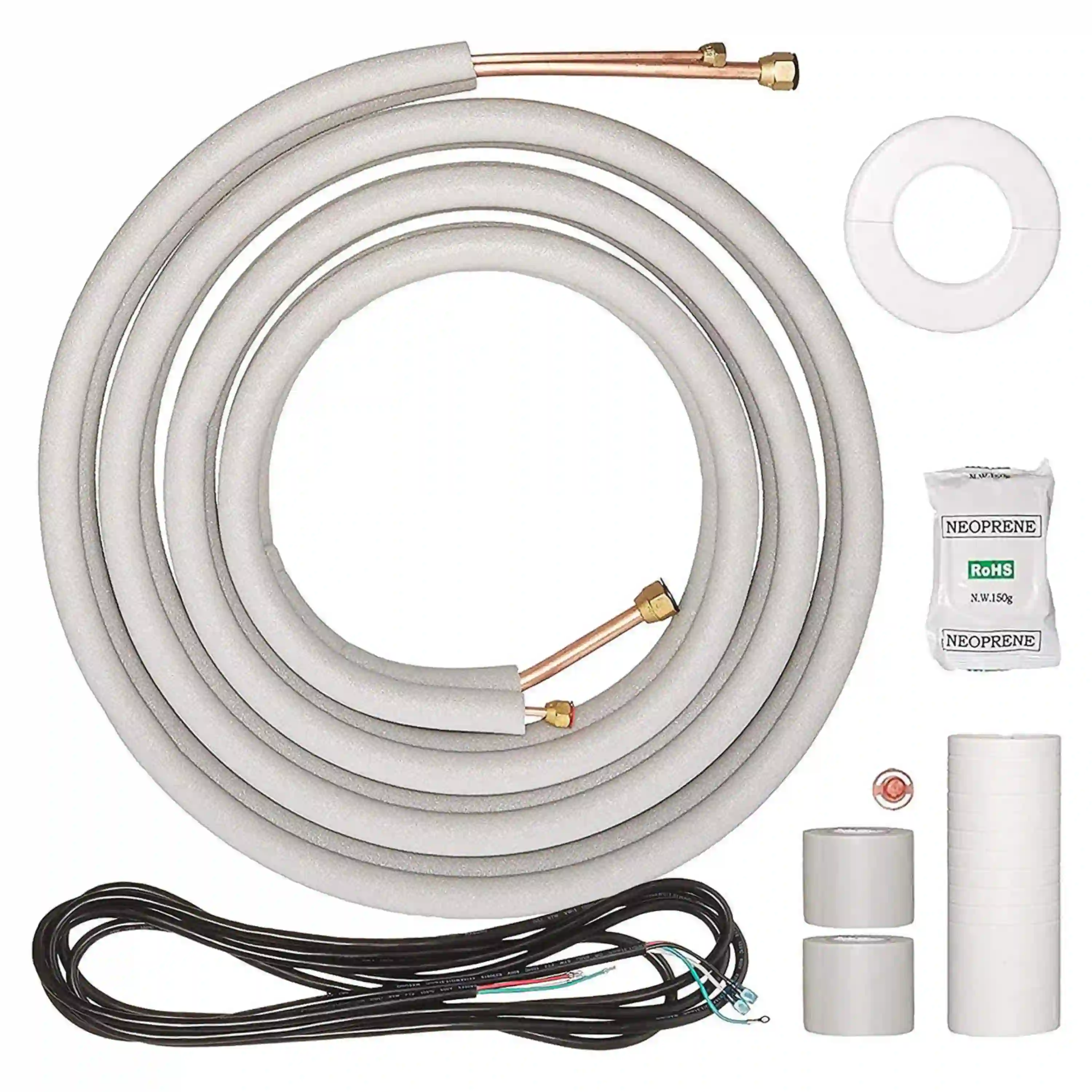

• Installation Kit

• Indoor-Outdoor Wiring Harness

• Installation Manual

• User’s Manual

• 10-Year Manufacturer Warranty

Condenser
Outdoor Dimensions (WxDxH)	38.6 x 16.1 x 33.1 in
Outdoor Weight	140 lbs
Outdoor Air Flow (Max) CFM	2500
Outdoor Noise Level dB	63
Minimum Outdoor Heating Temperature	-22°F / -30°C
Air Handler
Indoor Dimensions (WxDxH)	48.8 x 11.2 x 14.6 in
Indoor Weight	44.1 lbs
Indoor Air Flow (Turbo/H/M/L) CFM	890 / 720 / 540 / 410
Indoor Noise Level (Turbo/H/M/L) dB	53 / 45 / 38 / 30
Tehnical Specification
Style	Ductless Mini Split AC With Heat Pump
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187–253
SEER2	19.5
EER2	11.5
Cooling Capacity (BTU)	33,000
Cooling Range (BTU)	12,000~36,000
Cooling Input (W)	750~2900
Cooling Current (A)	4.5~13.0
Heating Capacity (BTU)	34,500
Heating Range (BTU)	13,000~38,000
Heating Input (W)	850~3200
Heating Current (A)	4.8~14.2
HSPF2-4	10.5
HSPF2-5	8.5
COP W/W	3.3
Minimum Circuit Ampacity (A)	22
Max. Fuse (A)	25
Moisture Removal (L/H)	3.5
Refrigerant Type / Charge	R454B / 68.4 oz
Refrigerant Pre-charge	25 ft
Connection Wiring	14×4 AWG
Thermostat Type	Remote Control
Alexa	Enabled
Warranty	10 Years Compressor / 5 Years Parts
