Senville Mini Split - 4-Zone 36,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-36HF-Q)

Senville SENA-36HF/Q is a high-efficiency 36,000 BTU quad-zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It provides reliable heating and cooling performance even in extreme climates and is ideal for larger multi-room applications.

Features

• 23 SEER2 ENERGY STAR - Save on heating and cooling bills year-round.
• Smart Control with Alexa - App and voice control with automation.
• Covers Up to 1350 sq. ft. - Ideal for larger quad-zone coverage.
• Heating down to -30°C (-22°F) - Cold climate optimized performance.
• Whisper-Quiet Operation - Perfect for bedrooms, offices, and common areas.
• Professional Installation - Required for full warranty protection.
• Smart Home Integration with Alexa - Connect to Alexa or use the app for complete control. Set schedules and manage comfort from anywhere.
• ENERGY STAR Certified - Maximize efficiency while reducing your carbon footprint with this ENERGY STAR rated system.
• Cold Climate Ready - Maintains heating at -22°F (-30°C) with high-efficiency compressor and inverter technology.
• Diagnostics & Leak Detection - Built-in smart monitoring alerts you of any system issues including refrigerant leaks.
• 10-Year Warranty - Includes a 10-year compressor warranty and 5-year parts warranty with support across North America.
• Installation Kit + Accessories Included - Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 100 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

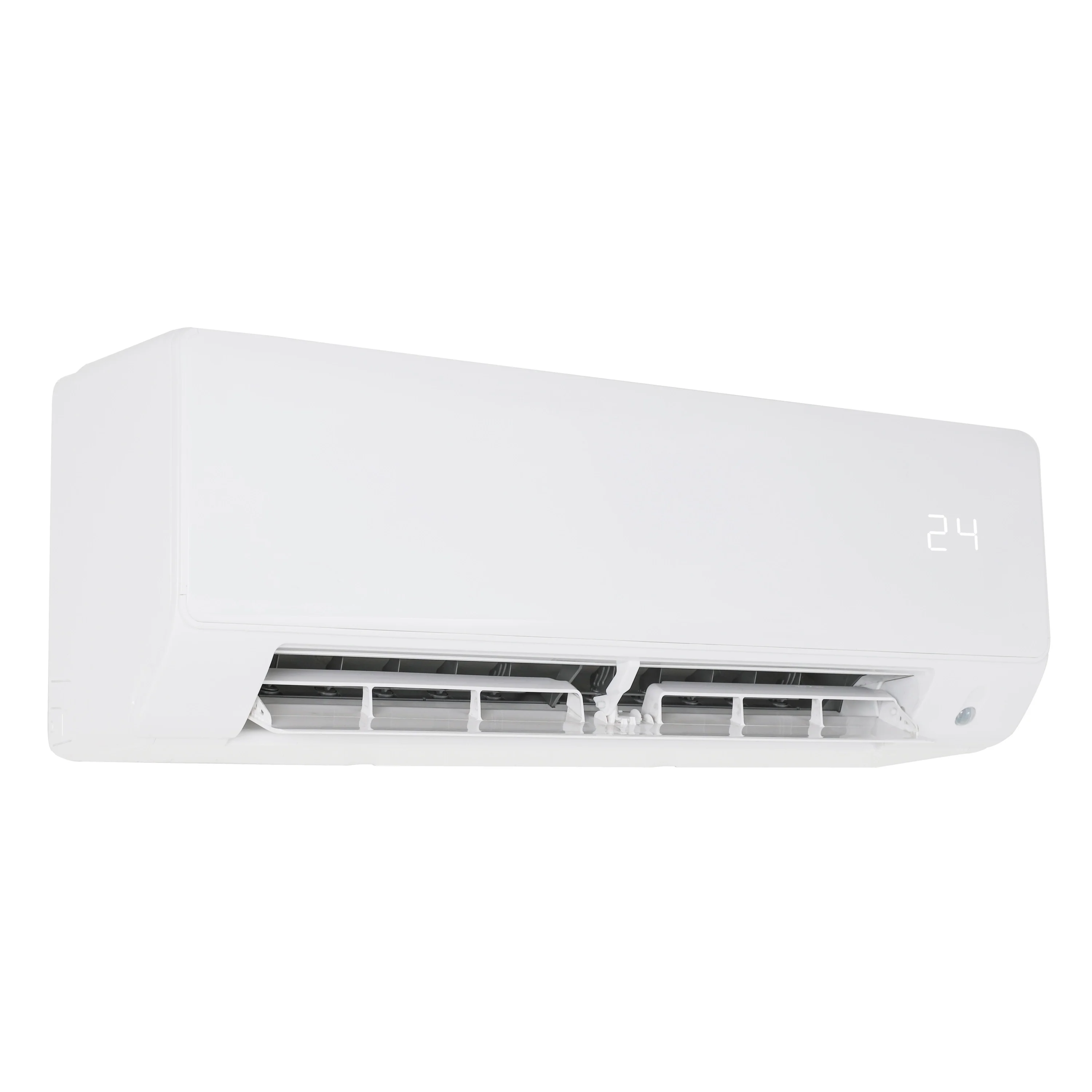

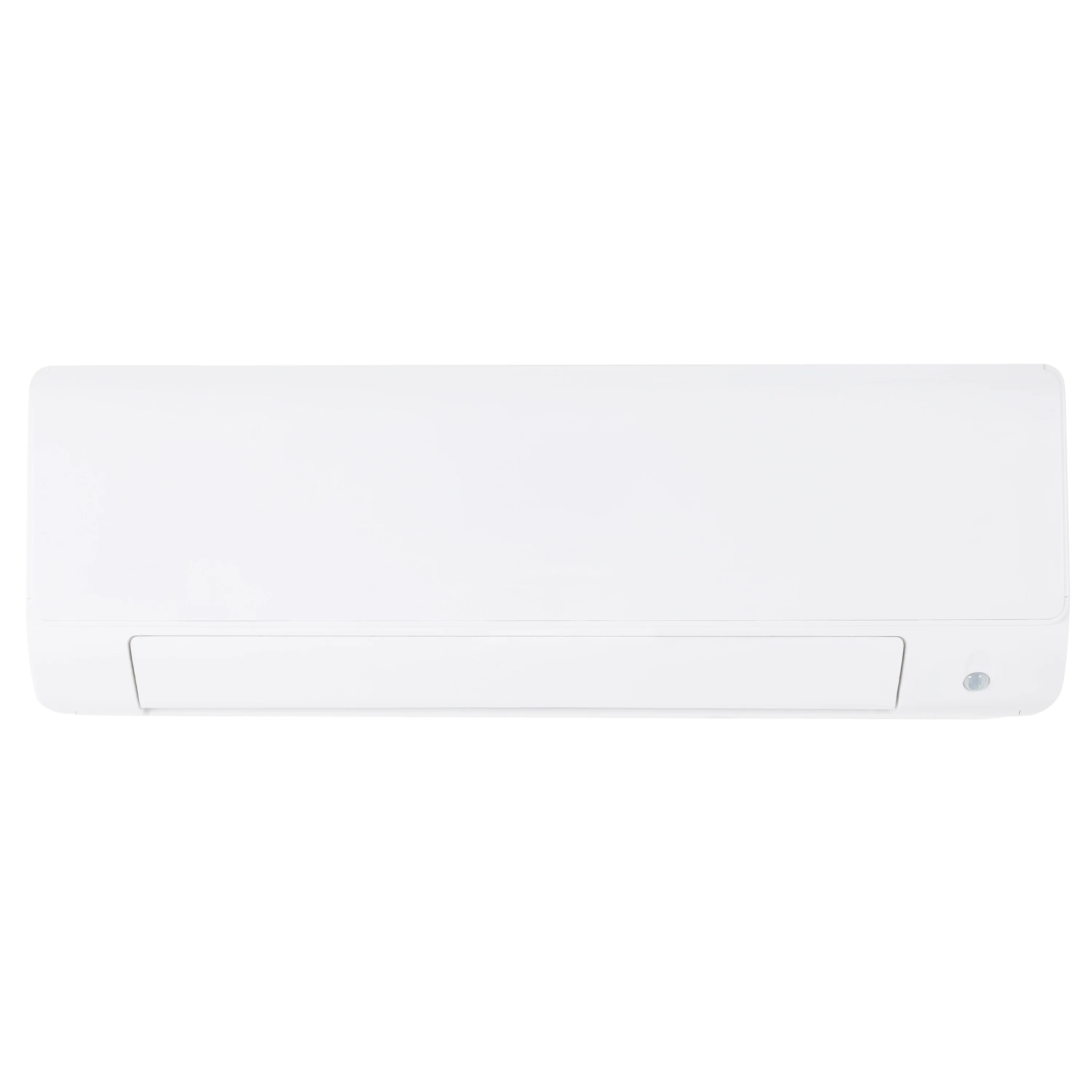

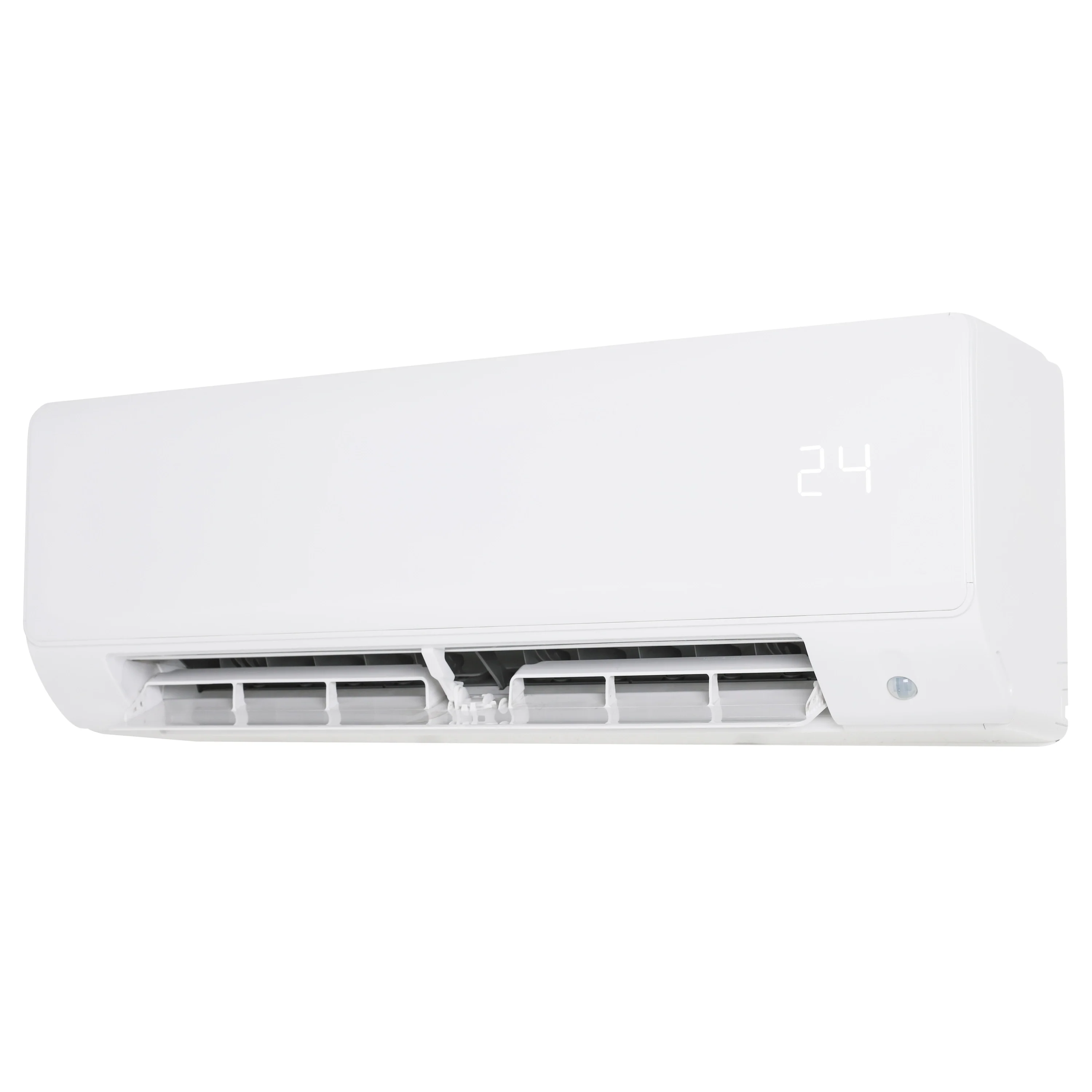

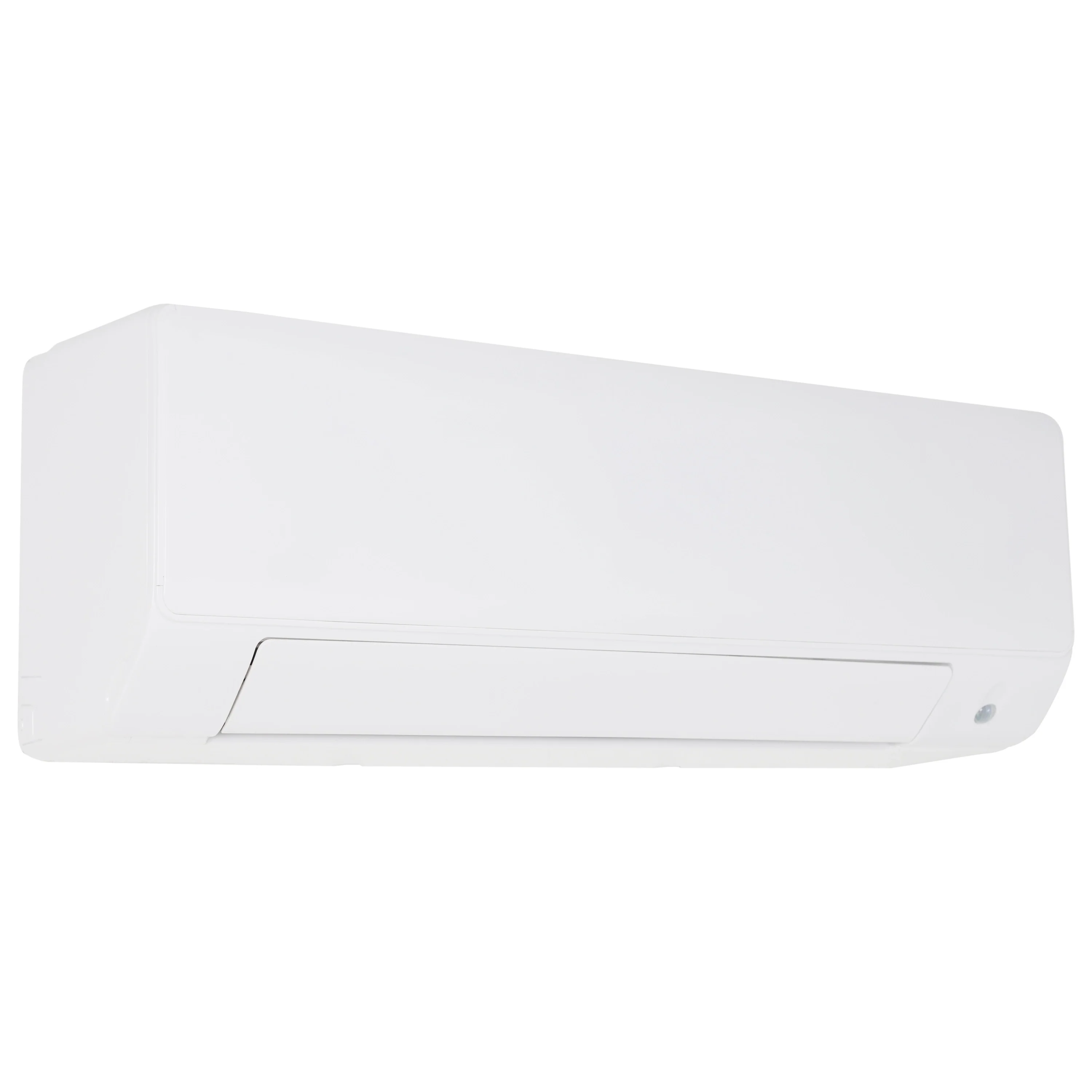

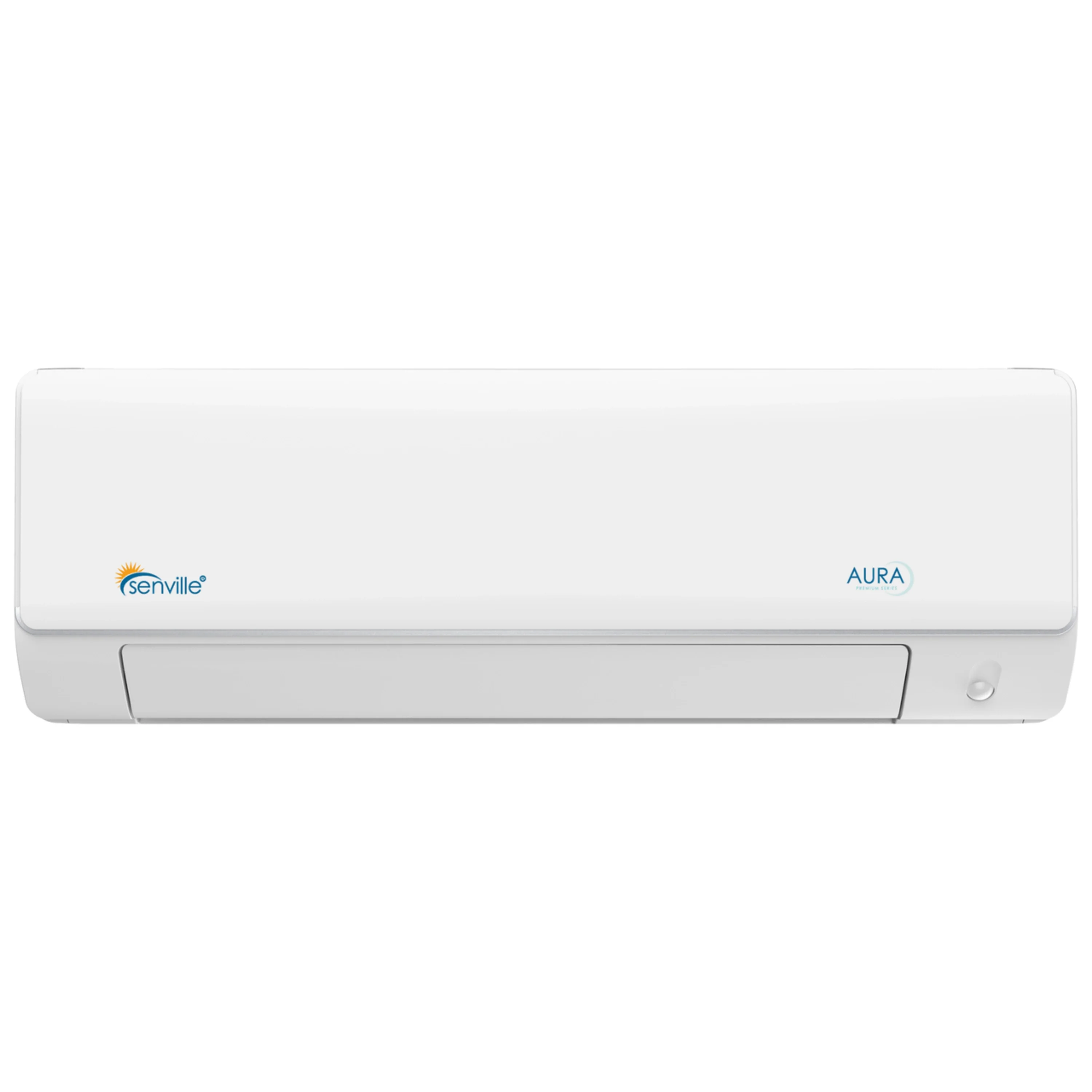

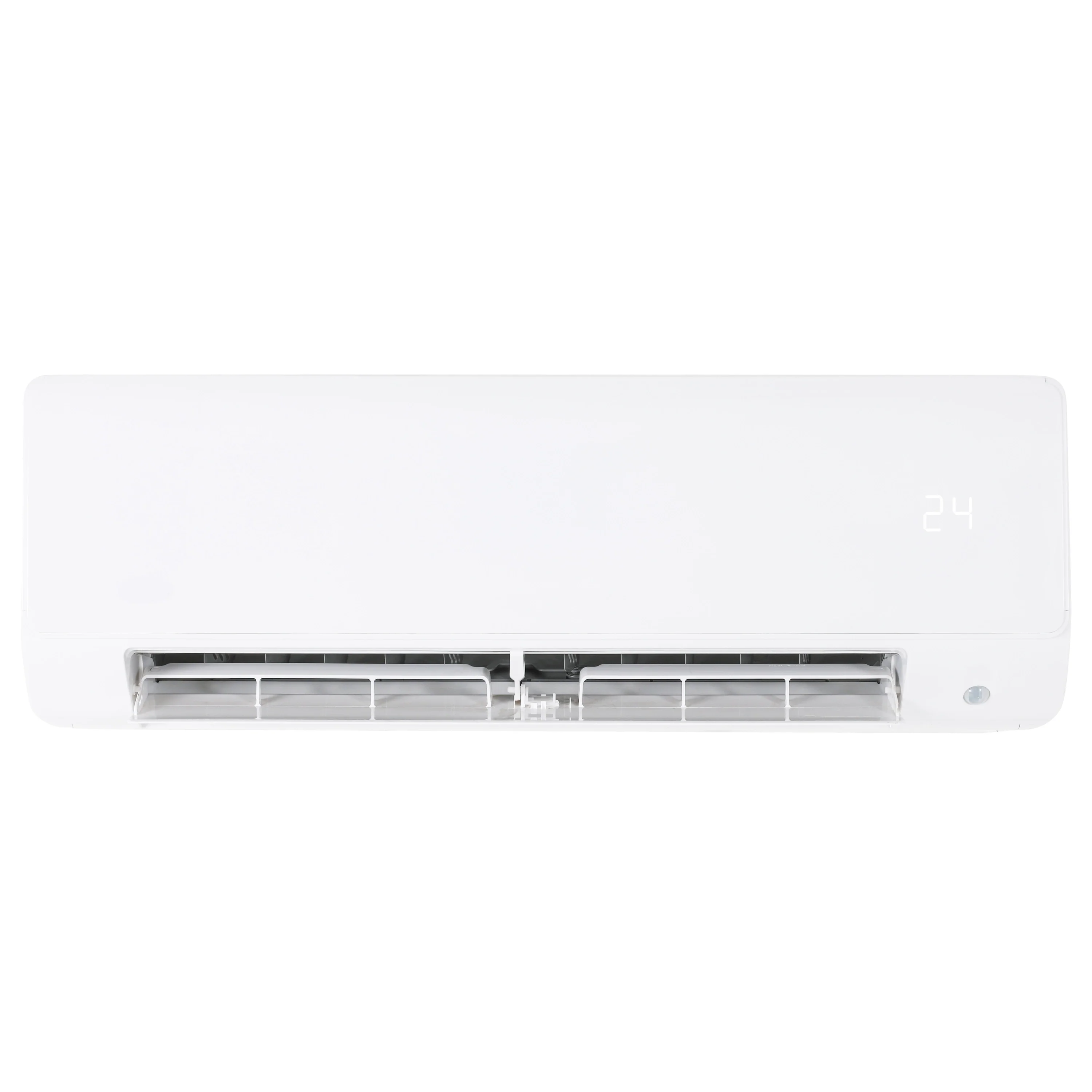

• 4 Indoor Units (various BTU combinations)

• Outdoor Unit

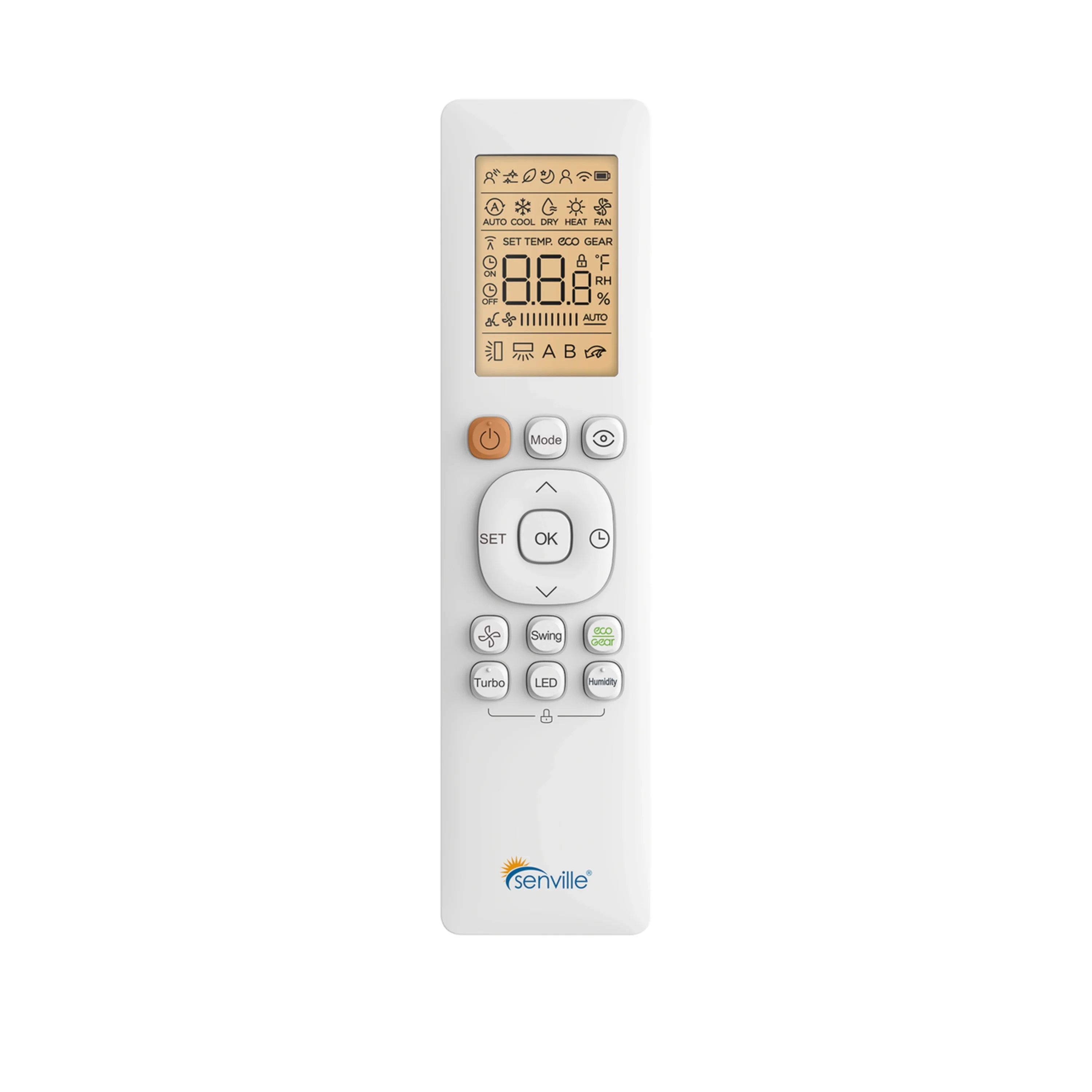

• Wireless Remote Controls

• Alexa USB Kit

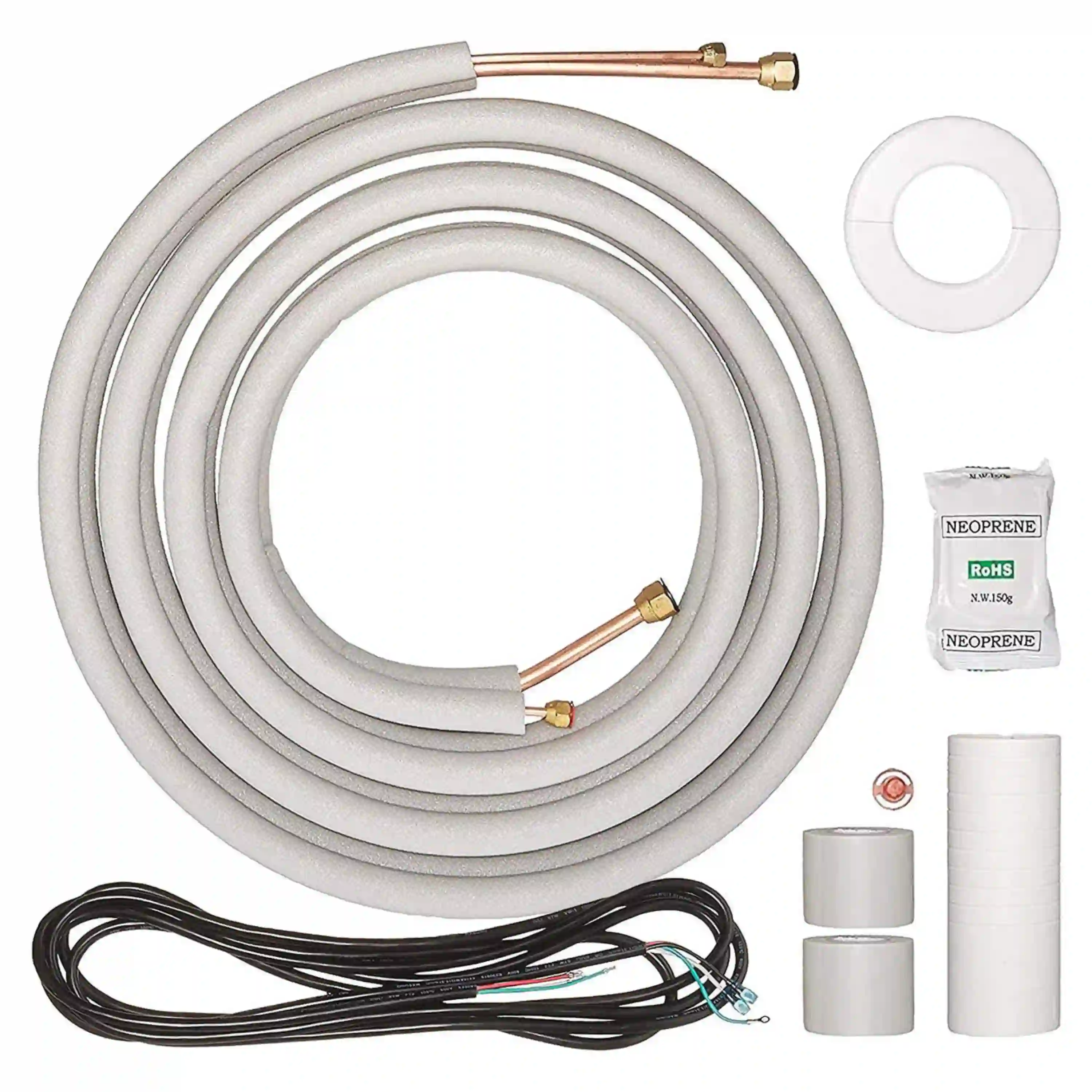

• 16 ft. Installation Kits (x4)

• Indoor-Outdoor Wiring Harness

• Installation Manual

• User’s Manual

Condenser
Dimensions (WxDxH) (in.)	38.58 x 16.34 x 38.39
Weight	211.86 Lbs
Air Flow (Max) CFM	3037.2
Noise Level dB	65
Technical Specifications
Style	Ductless Mini Split AC With Heat Pump
Number of Zones	4
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187–253
SEER2	23
EER2	13
Cooling Capacity (BTU)	36,000
Cooling Range (BTU)	9,000~43,000
Cooling Input Range (W)	600~4000
Cooling Current Range (A)	5.2~17.8
Heating Capacity (BTU)	36,000
Heating Range (BTU)	10,000~44,000
Heating Input Range (W)	600~3750
Heating Current Range (A)	5.2~16.6
HSPF2-4	10.7
HSPF2-5	8.5
COP W/W	4
Minimum Circuit Ampacity (A)	37
Max. Fuse (A)	40
Minimum Outdoor Heating Temperature	-22°F / -30°C
Refrigerant Type / Charge	R454B / 134.04 oz
Refrigerant Pre-charge	100 Ft.
Warranty	10 Years Compressor / 5 Years Parts
