Senville Mini Split - 4-Zone 48,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-48HF-D)

Senville SENA-48HF/Q is a high-efficiency 48000 BTU quad zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

Features

• 23 SEER2 ENERGY STAR - Save up to 50% on energy costs annually.
• Heating down to -30°C (-22°F) - Reliable performance in extreme cold.

• WiFi Enabled Smart Control - Control via app anywhere.
• Ultra-Quiet Operation - Whisper-quiet for bedrooms & offices.

• Recommended for 2000–2500 sq. ft. - Great for multiple zones or large spaces.
• Professional Installation - Required to maintain warranty coverage.
• WiFi Enabled Smart Control - Control your Senville system remotely via the app from anywhere. Create schedules, adjust settings, and enjoy convenience and energy savings remotely.
• ENERGY STAR Certified - Save up to 50% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.

• Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates

• Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
• 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
• Installation Kit + Accessories Included - Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 125 ft. Professional installation is required to maintain warranty coverage and optimal performance.

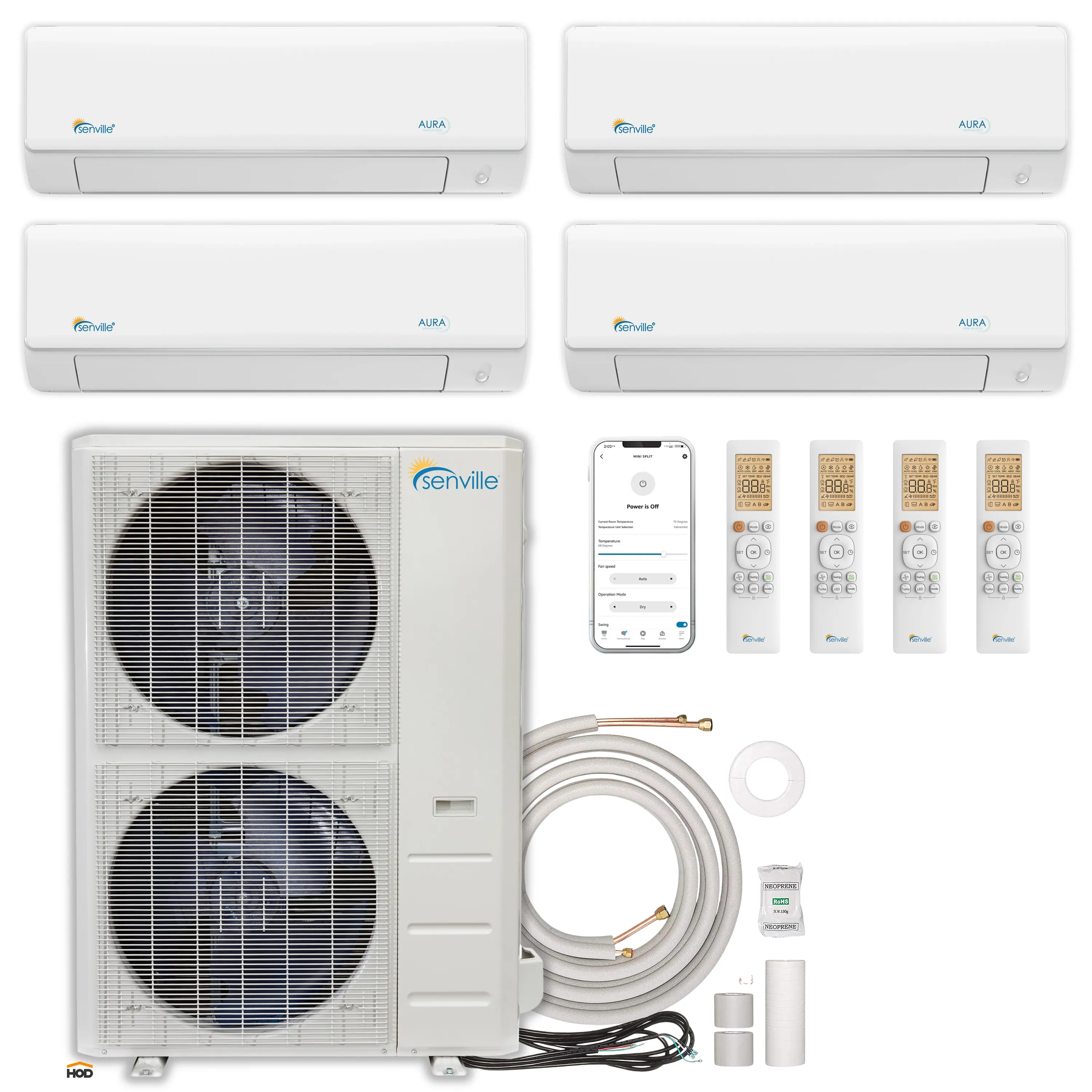

What's Included

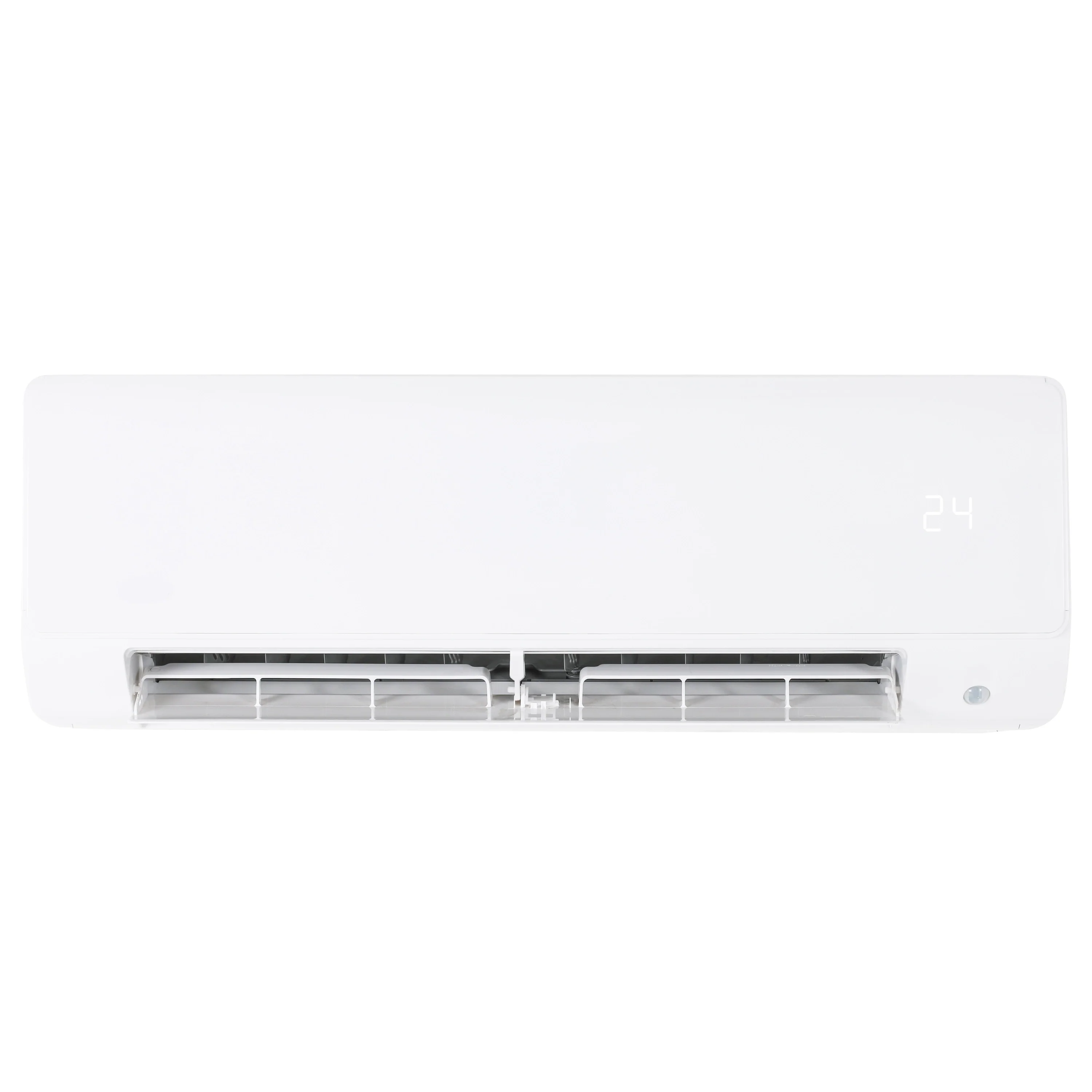

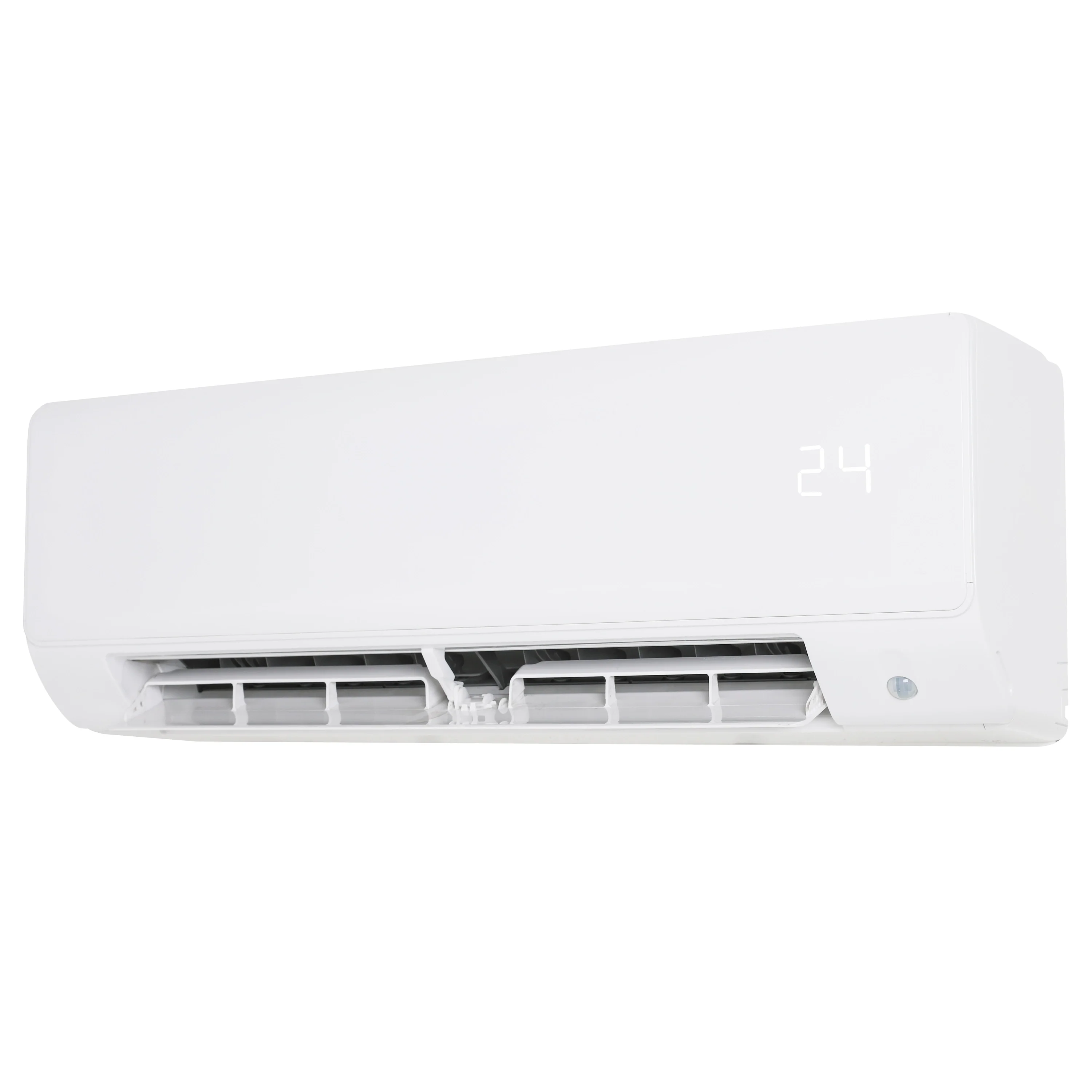

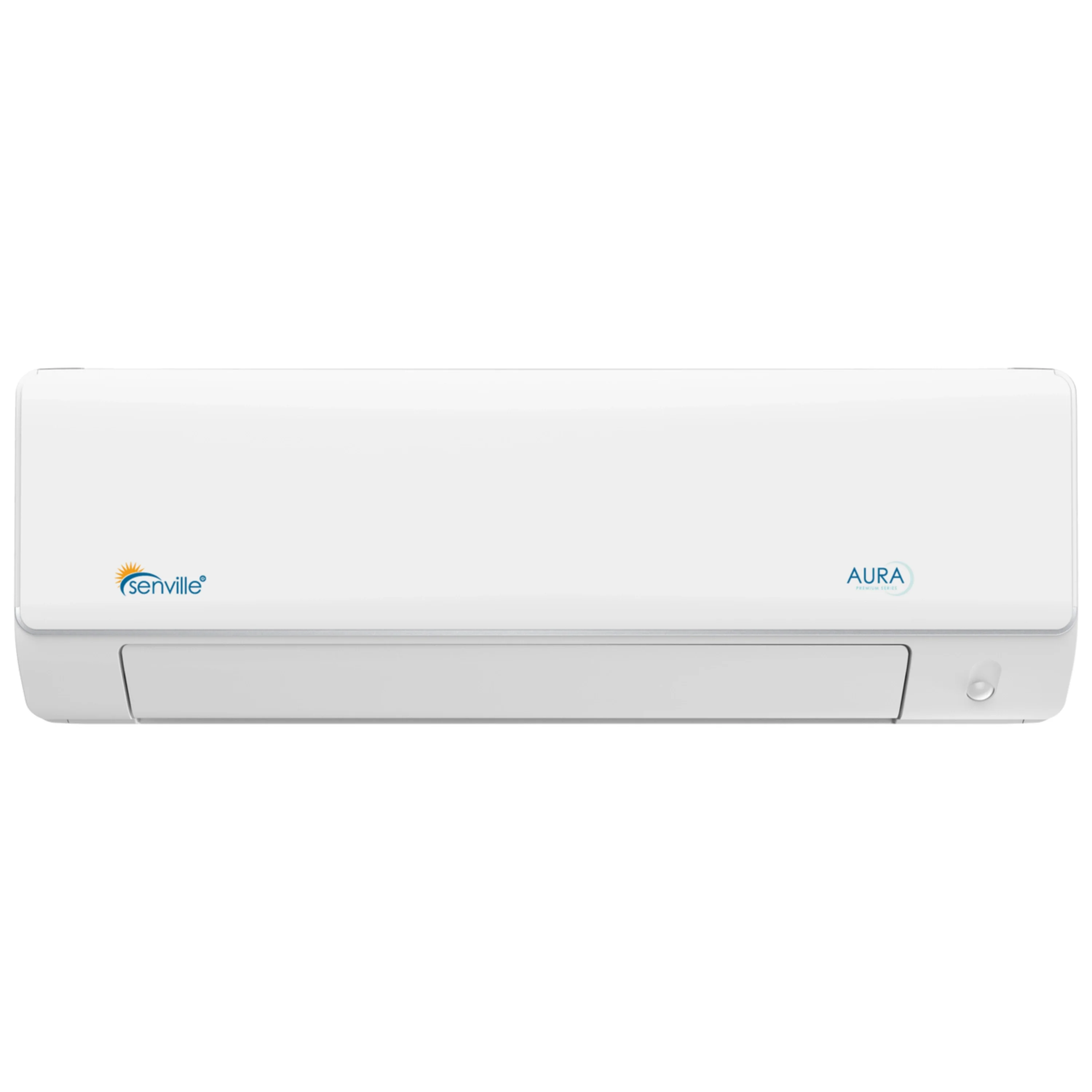

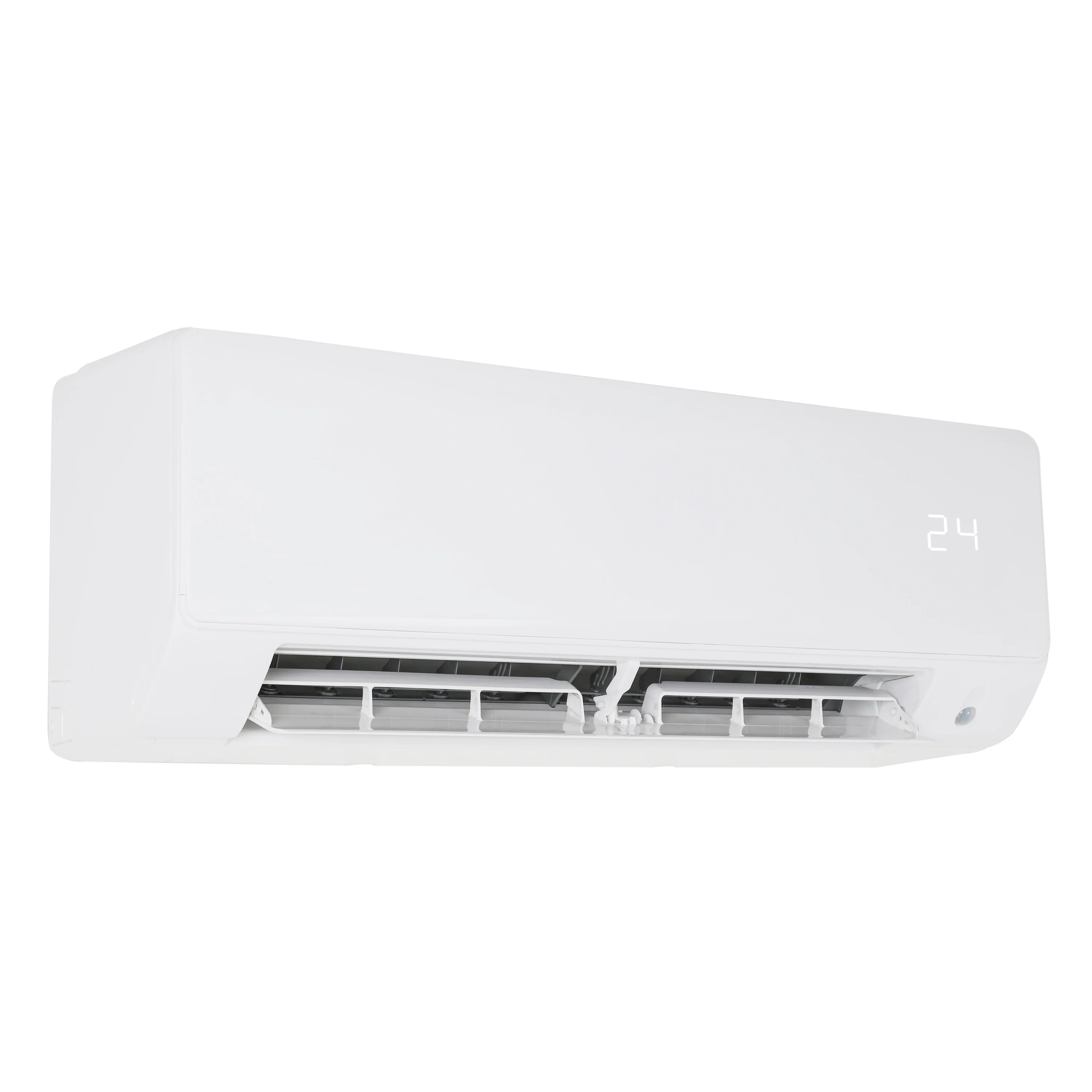

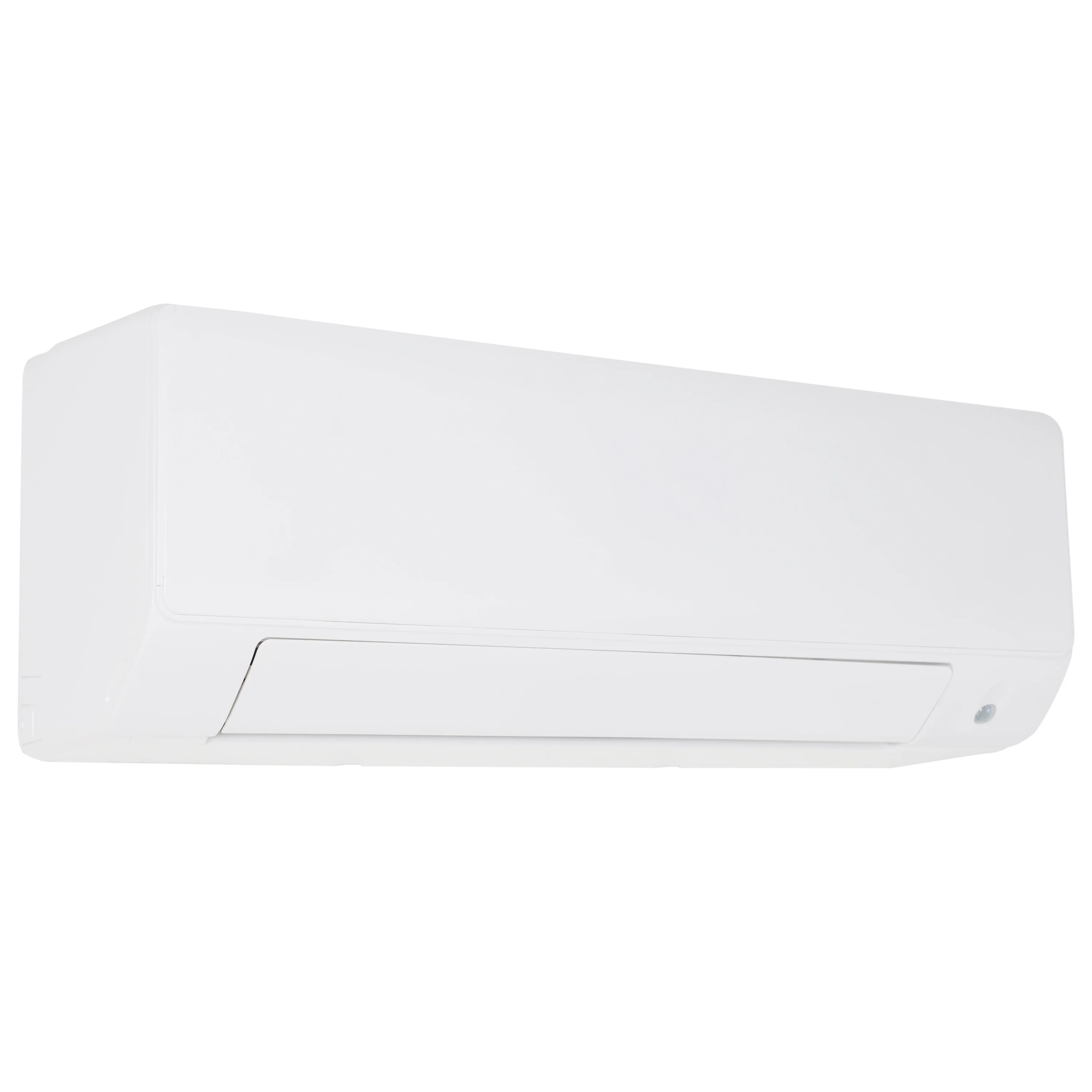

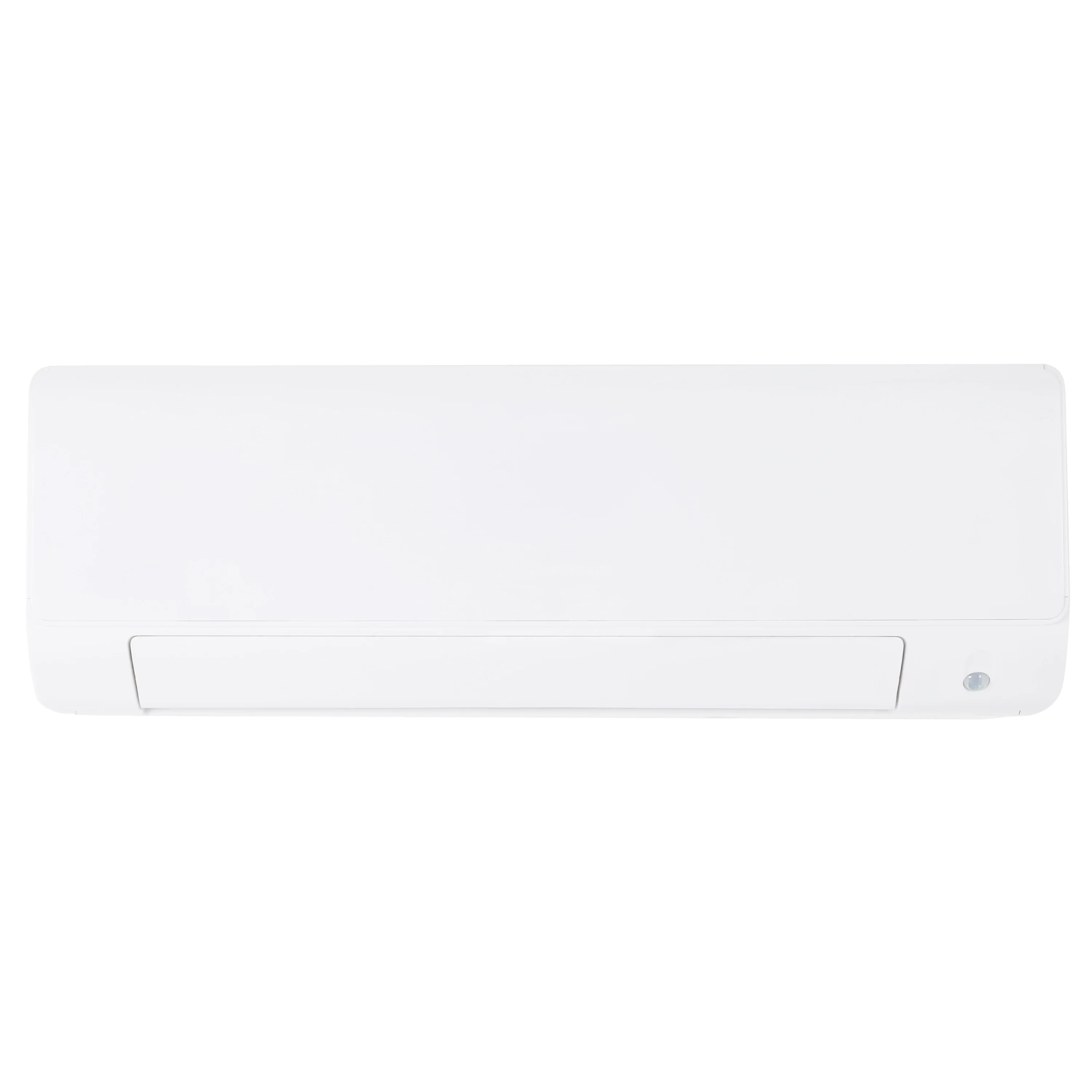

• 4 Indoor Units (12,000 BTU each)

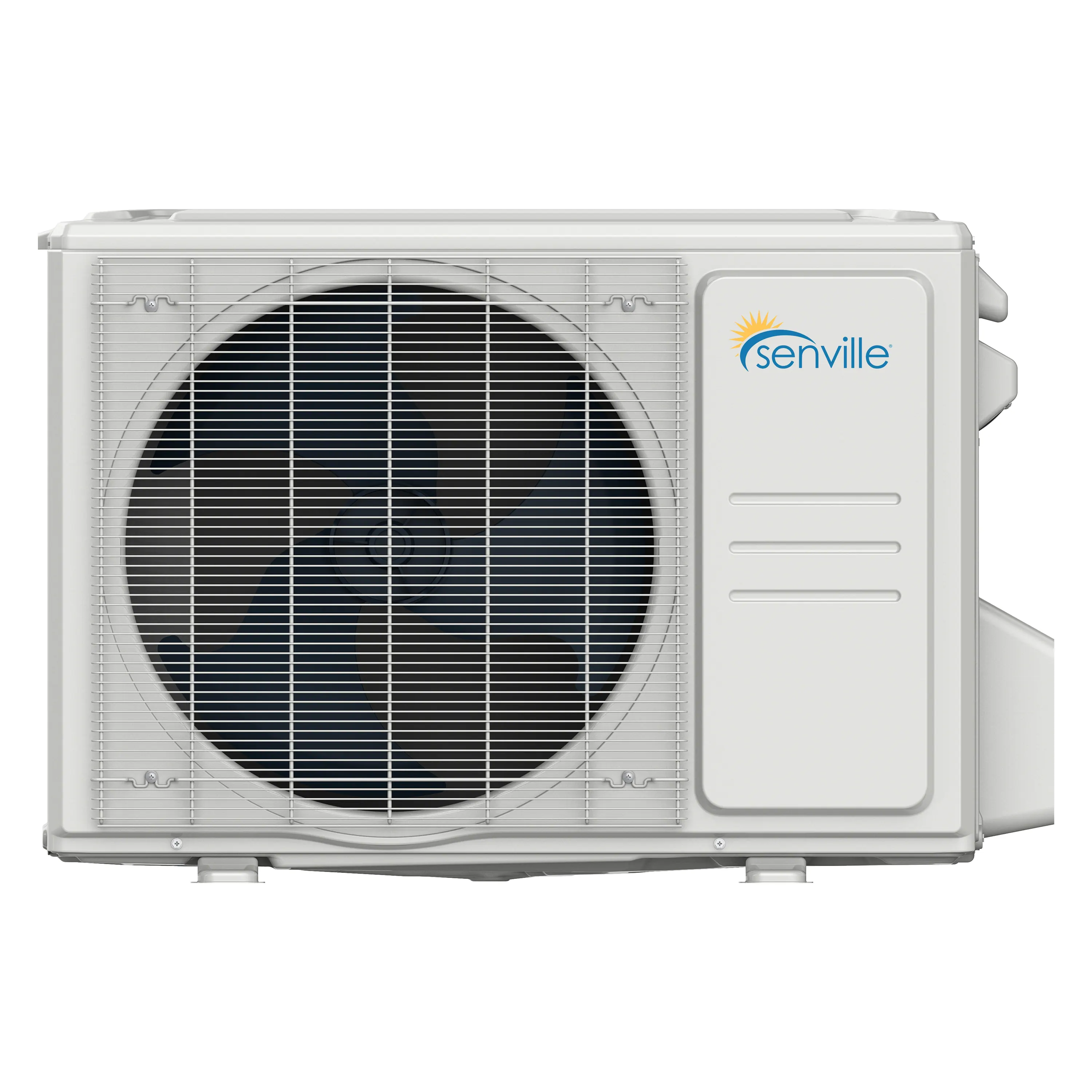

• Outdoor Unit

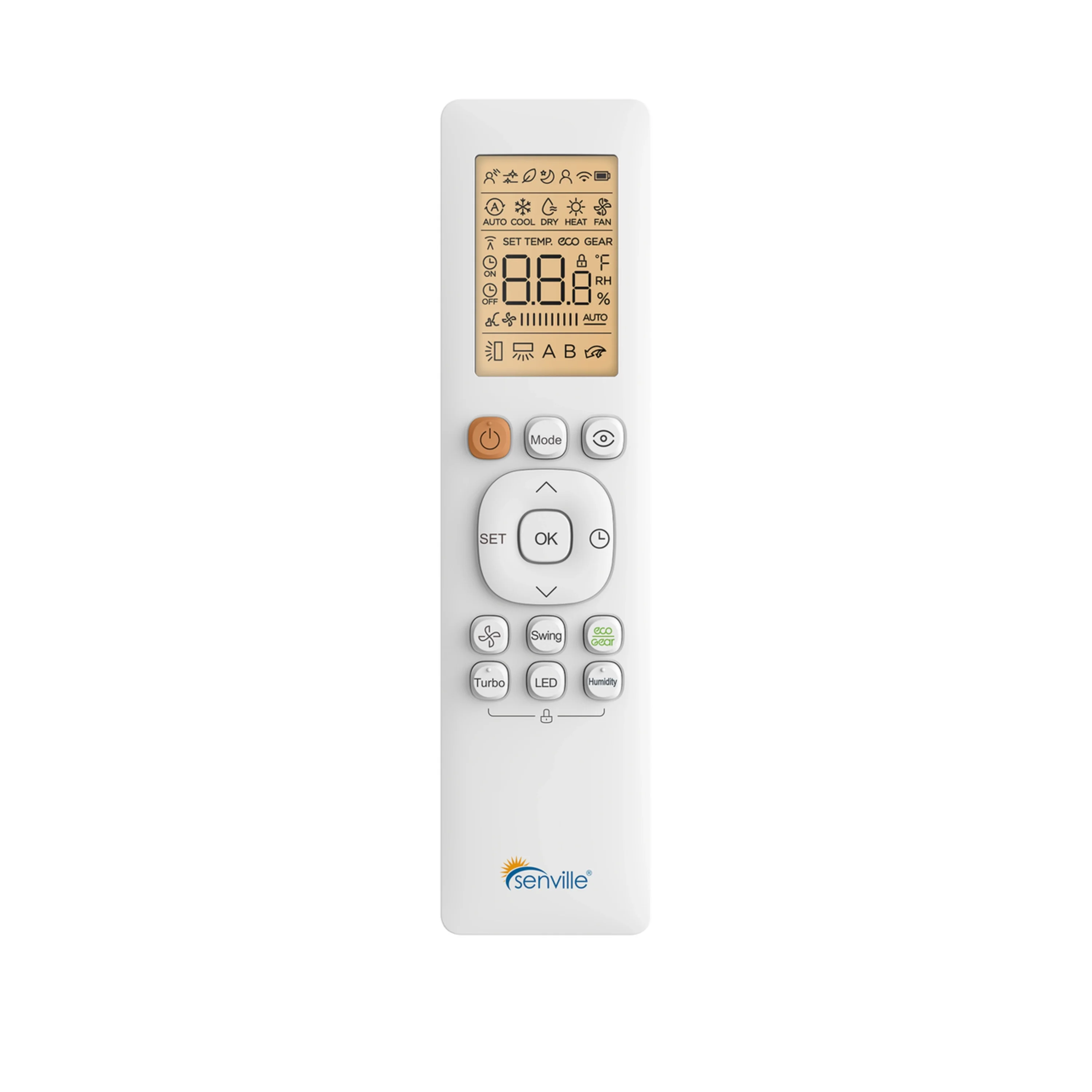

• Wireless Remote Controls

• WiFi USB Kit

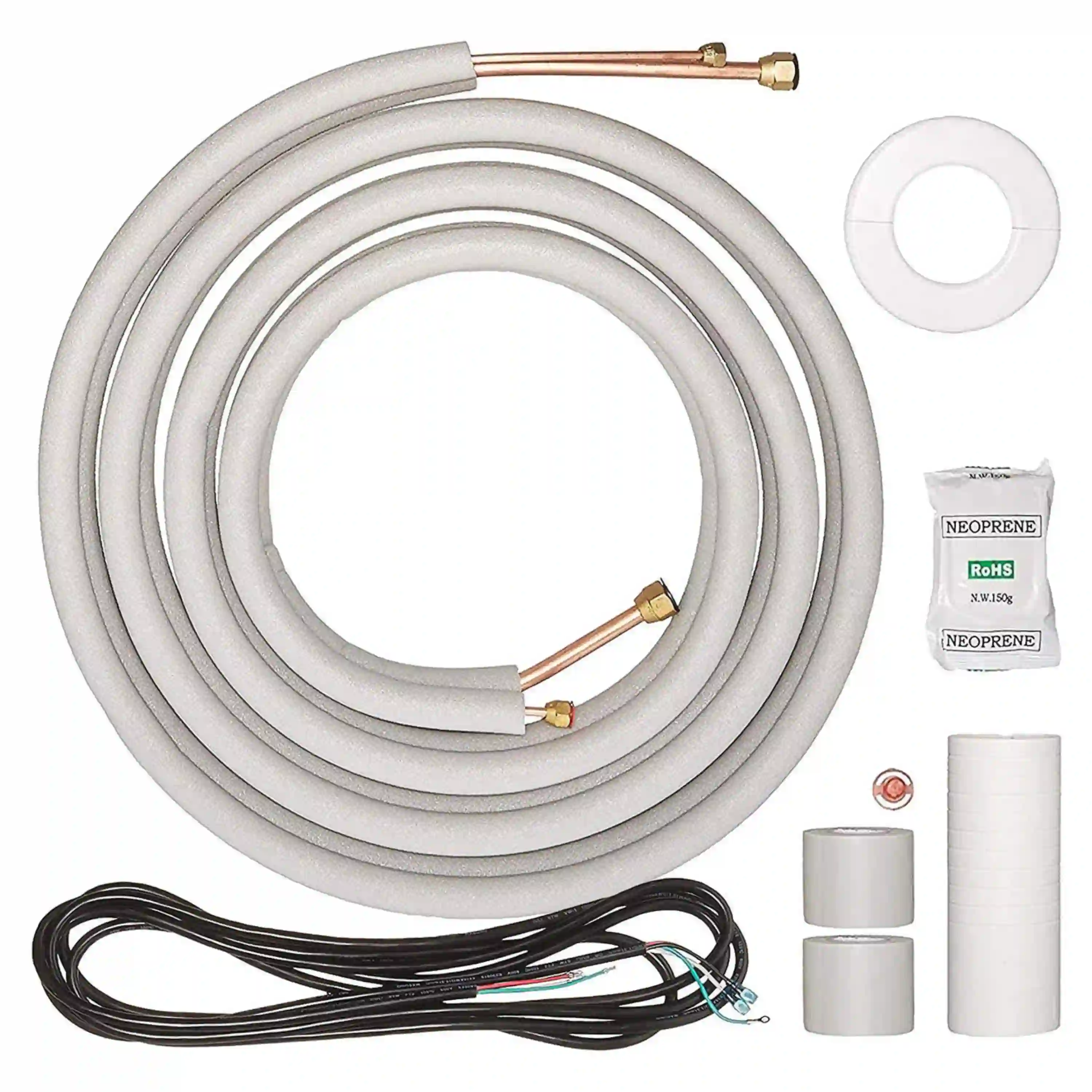

• 16 ft. Installation Kits (x4)

• Indoor-Outdoor Wiring Harness

• Installation Manual

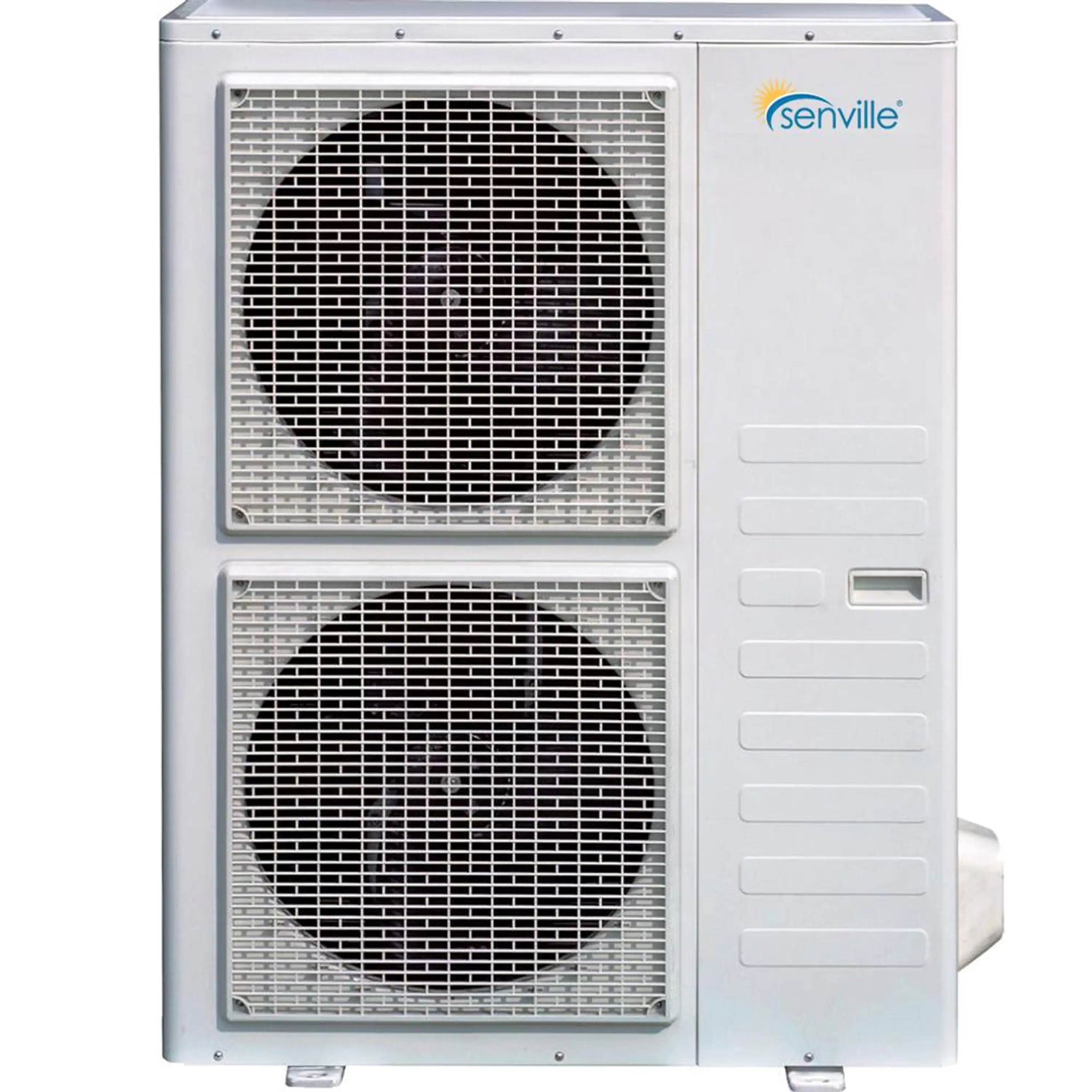

Condenser
Dimensions (WxDxH) (in.)	37.48 x 16.34 x 52.48
Weight	246.47 LbsLbs
Air Flow (Max) CFM	4502.8
Noise Level dB	65
Technical Specification
Style	Ductless Mini Split AC With Heat Pump
Number of Zones	2-5
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
SEER2	23
EER2	12
Cooling Capacity (BTU)	47000
Cooling Range (BTU)	12000~57000
Cooling Input Range (W)	800~5400
Cooling Current Range (A)	7~24
Heating Capacity (BTU)	49000
Heating Range (BTU)	13000~57000
Heating Input Range (W)	800~5200
Heating Current Range (A)	7~23
HSPF2-4	11
HSPF2-5	9
COP W/W	3.7
Minimum Circuit Ampacity (A)	37
Max. Fuse (A)	40
Minimum Outdoor Heating Temperature	-22°F / -30°C
Refrigerant Type / Charge	R454B / 151.68
Refrigerant Pre-charge	125 Ft.
Warranty	10 Years Compressor / 5 Years Parts
