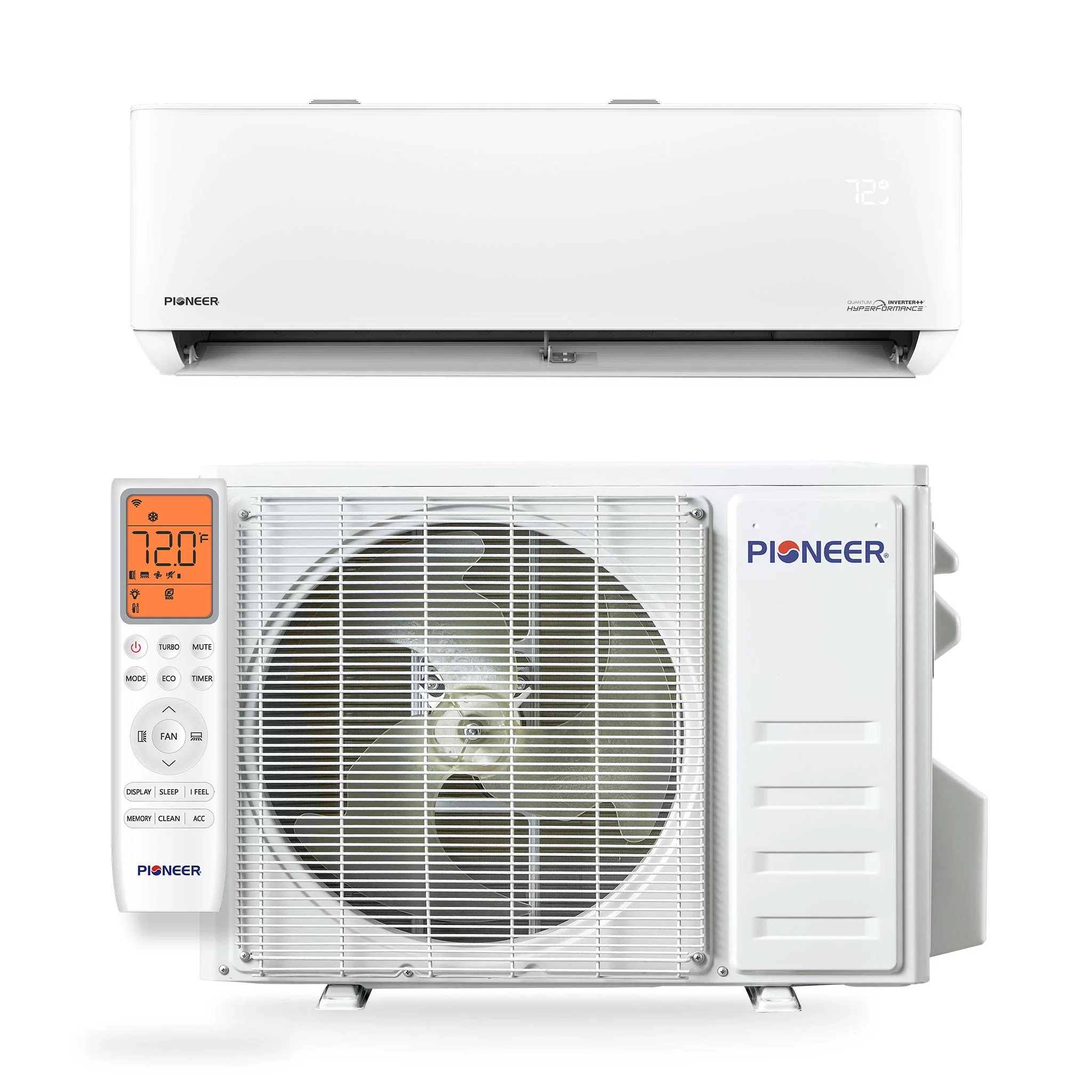

Pioneer® Quantum Hyperformance™ 12,000 BTU 25 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set (WYT012GLSI25RH)
Pioneer® Quantum Hyperformance™ 12,000 BTU 25 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Hyper Heat Pump Full Set (WYT012GLSI25RH)
Original: $1,288.00
-65%$1,288.00
$450.80The Story
Summary
- Ultimate Efficiency Quantum Hyperformance™ Ductless Mini Split Heat Pump System
- Cooling capacity: 12,000 BTU/H with 25.0 SEER2 / 14.0 EER2 efficiency
- Heating capacity: 12,000 BTU/H with 10.5 HSPF2 / 4.0 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System

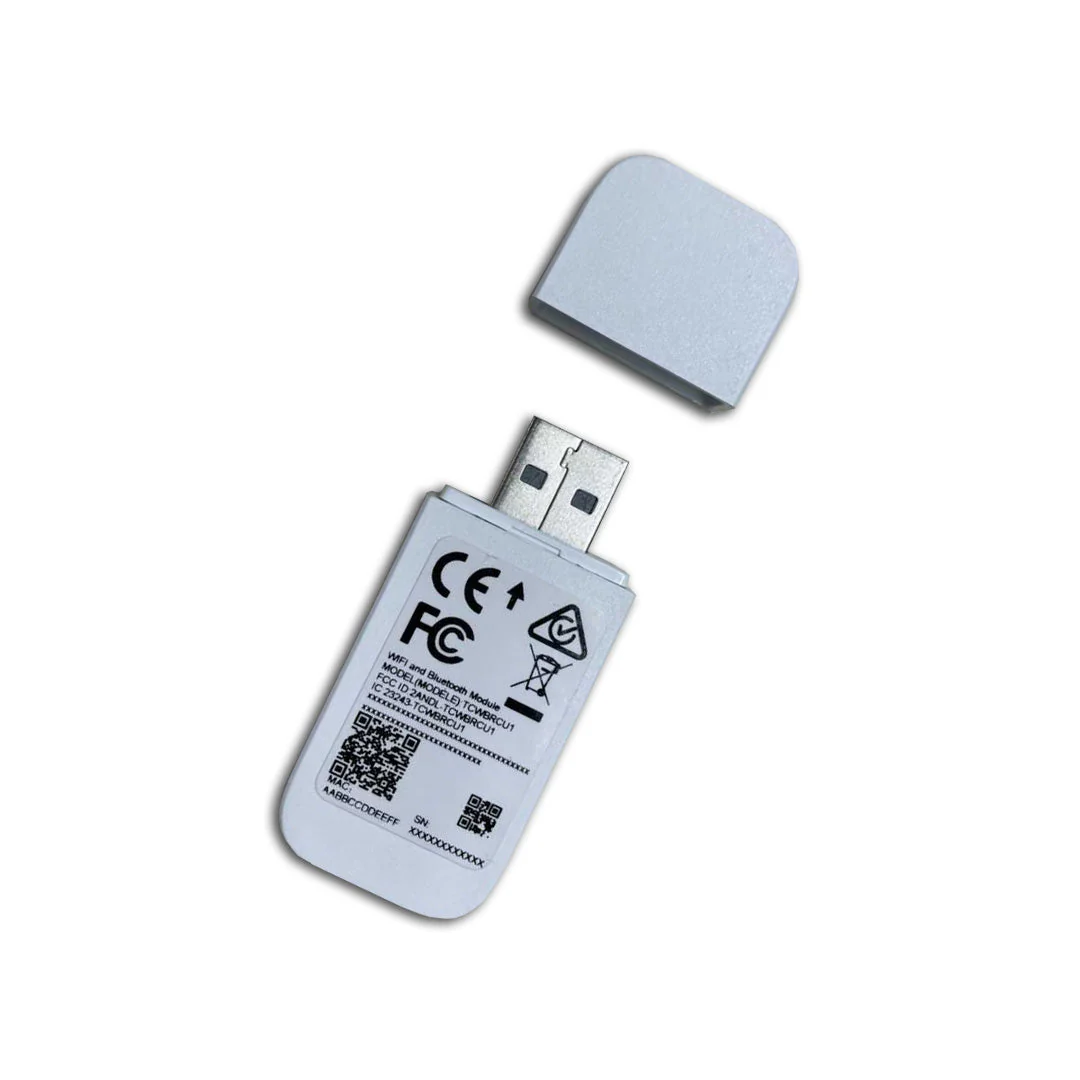

- Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Extreme Climate Operation (As low as -22°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

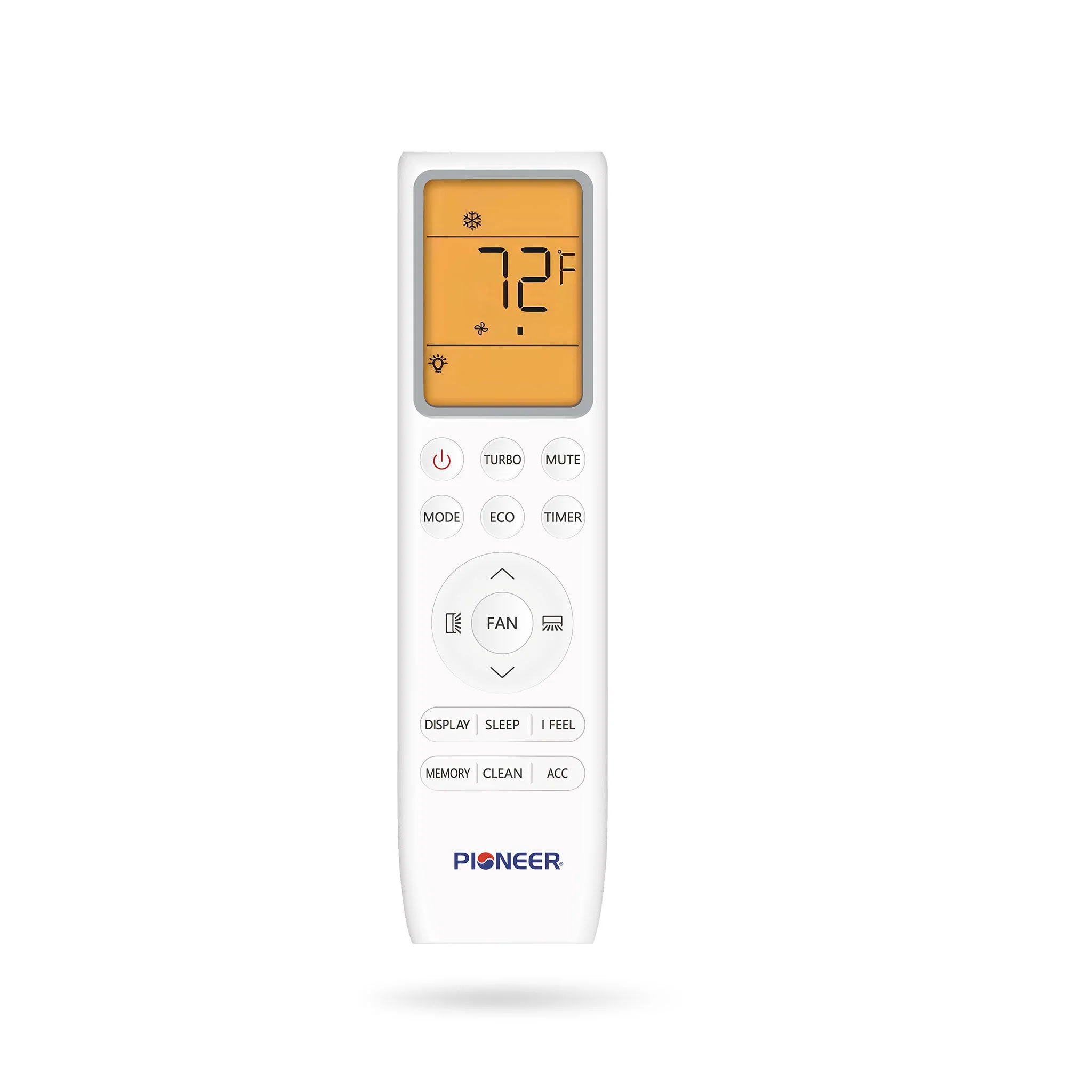

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Quantum Hyperformance™ High-Wall Series
At Pioneer Mini Split, we offer ductless wall-mounted mini split systems in various capacities and efficiency ratings, making them easy to install and providing reliable single-zone comfort. Each unit features a remote control for cooling, heating, dehumidification, and ventilation, while automatic louvers and variable airflow ensure ideal conditions with minimal energy consumption.
Important
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

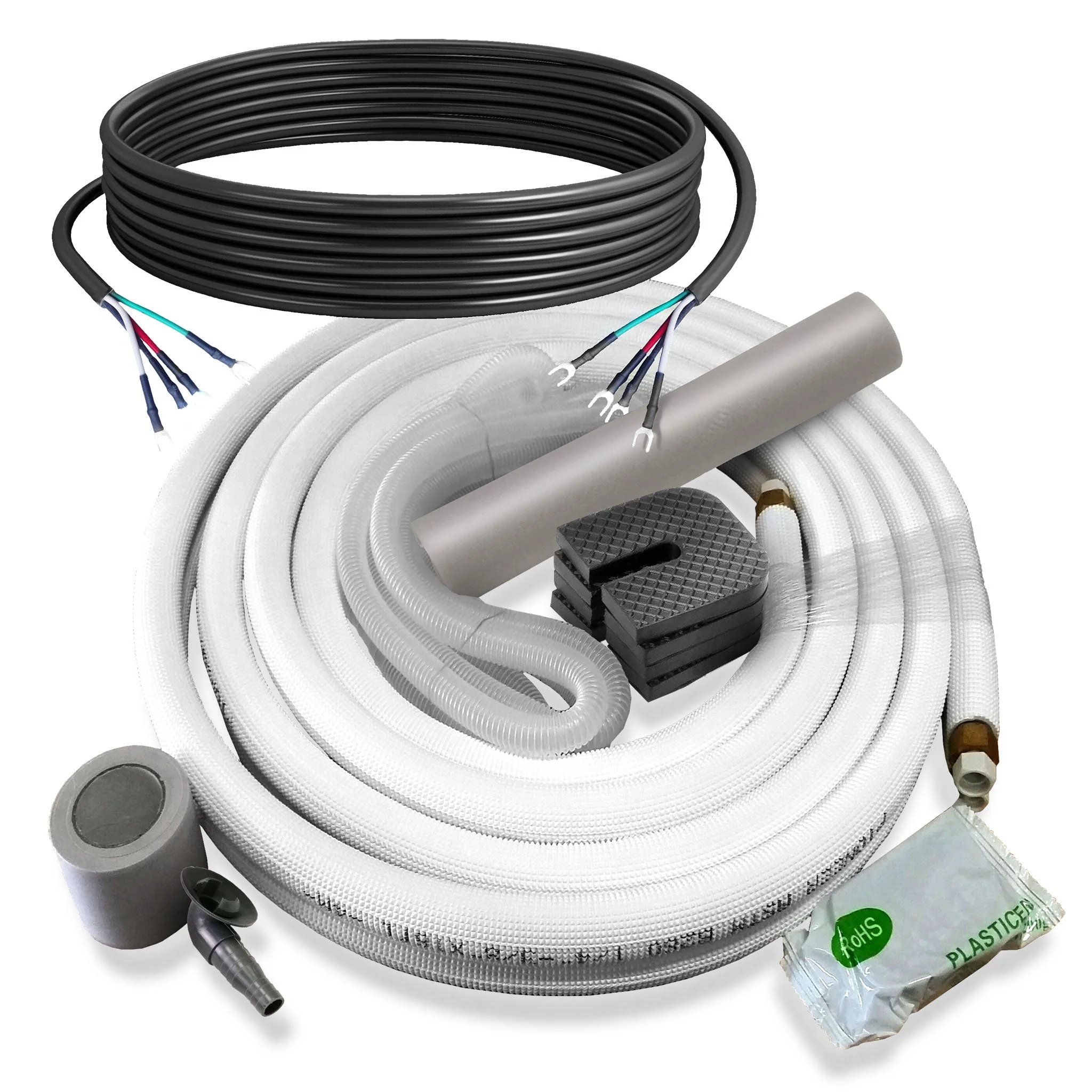

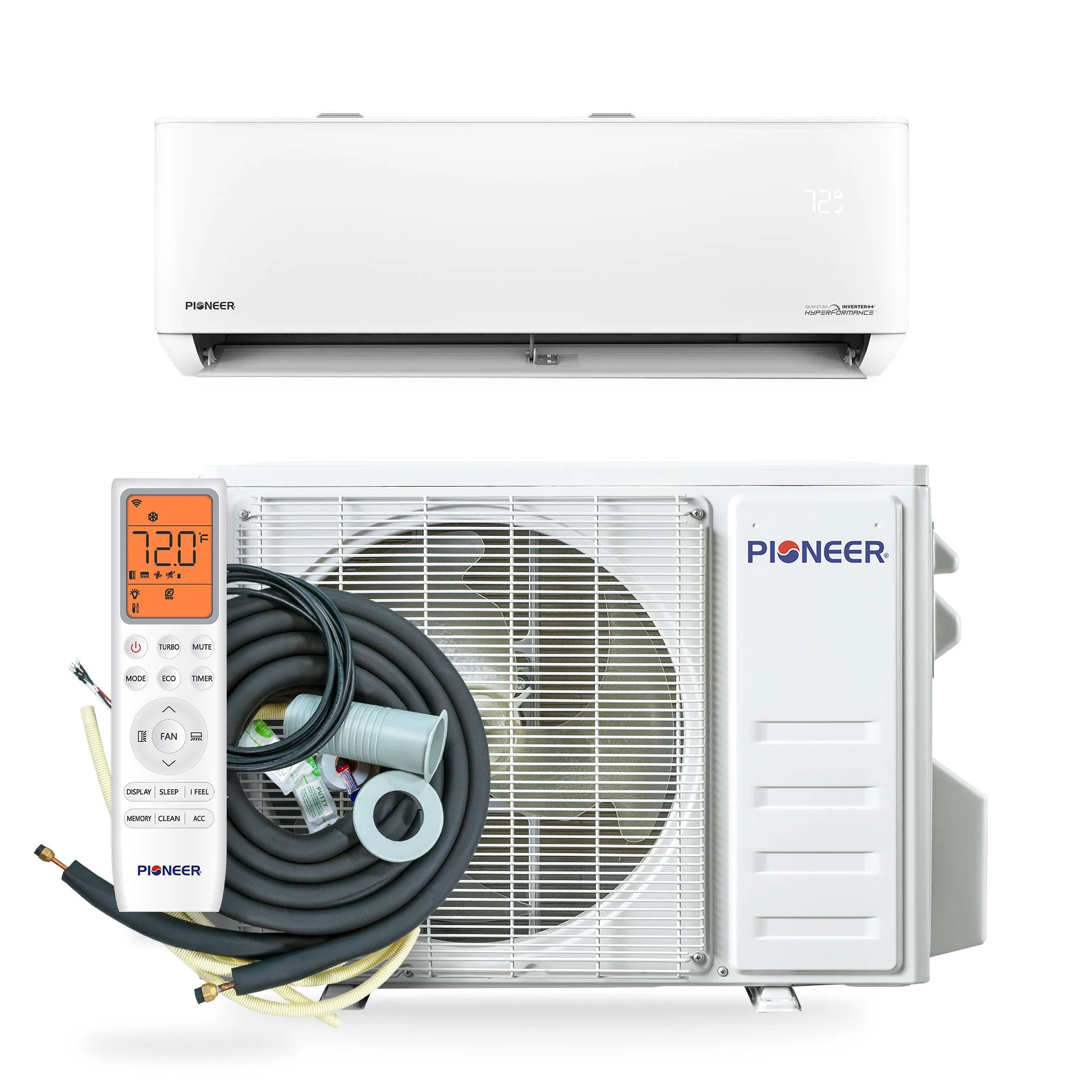

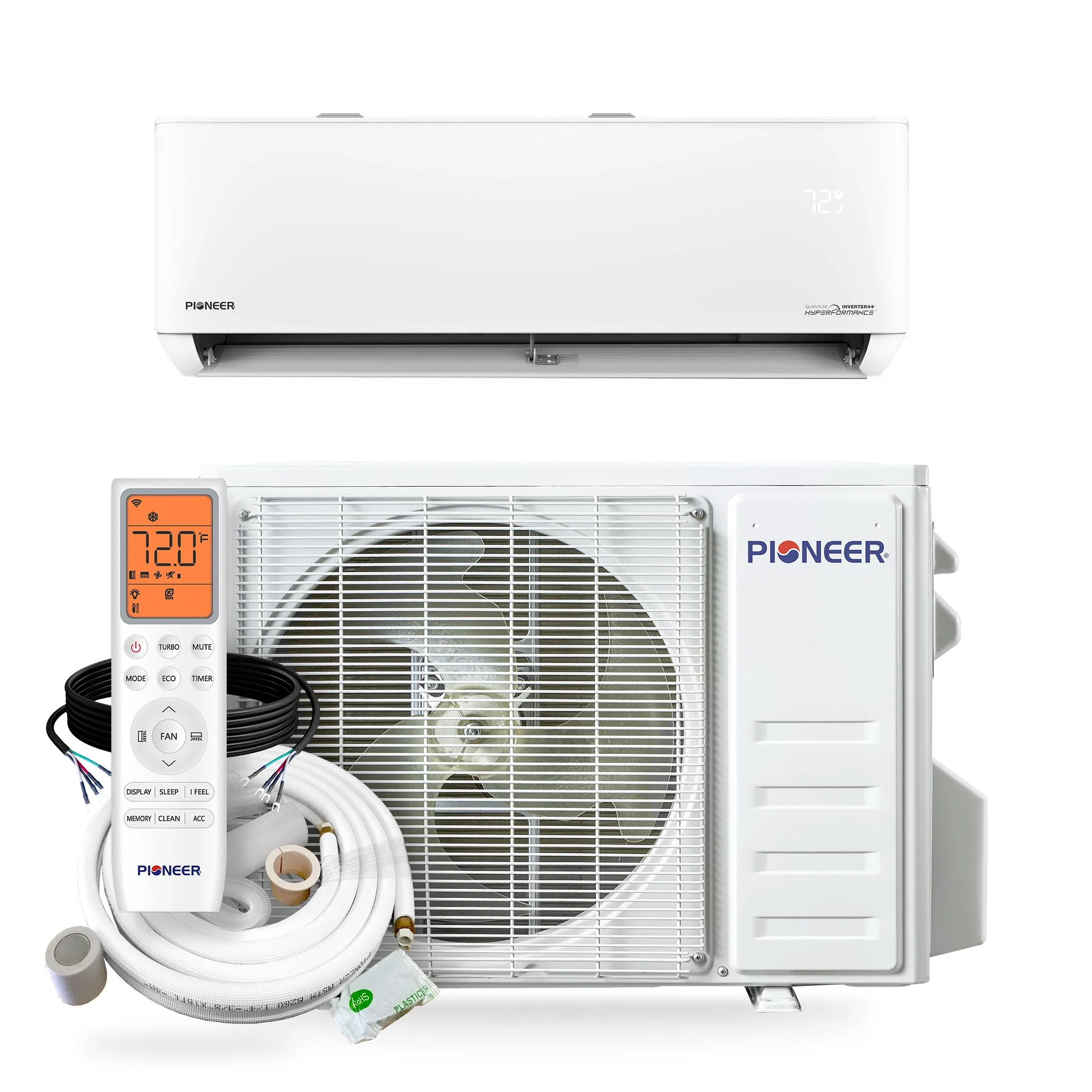

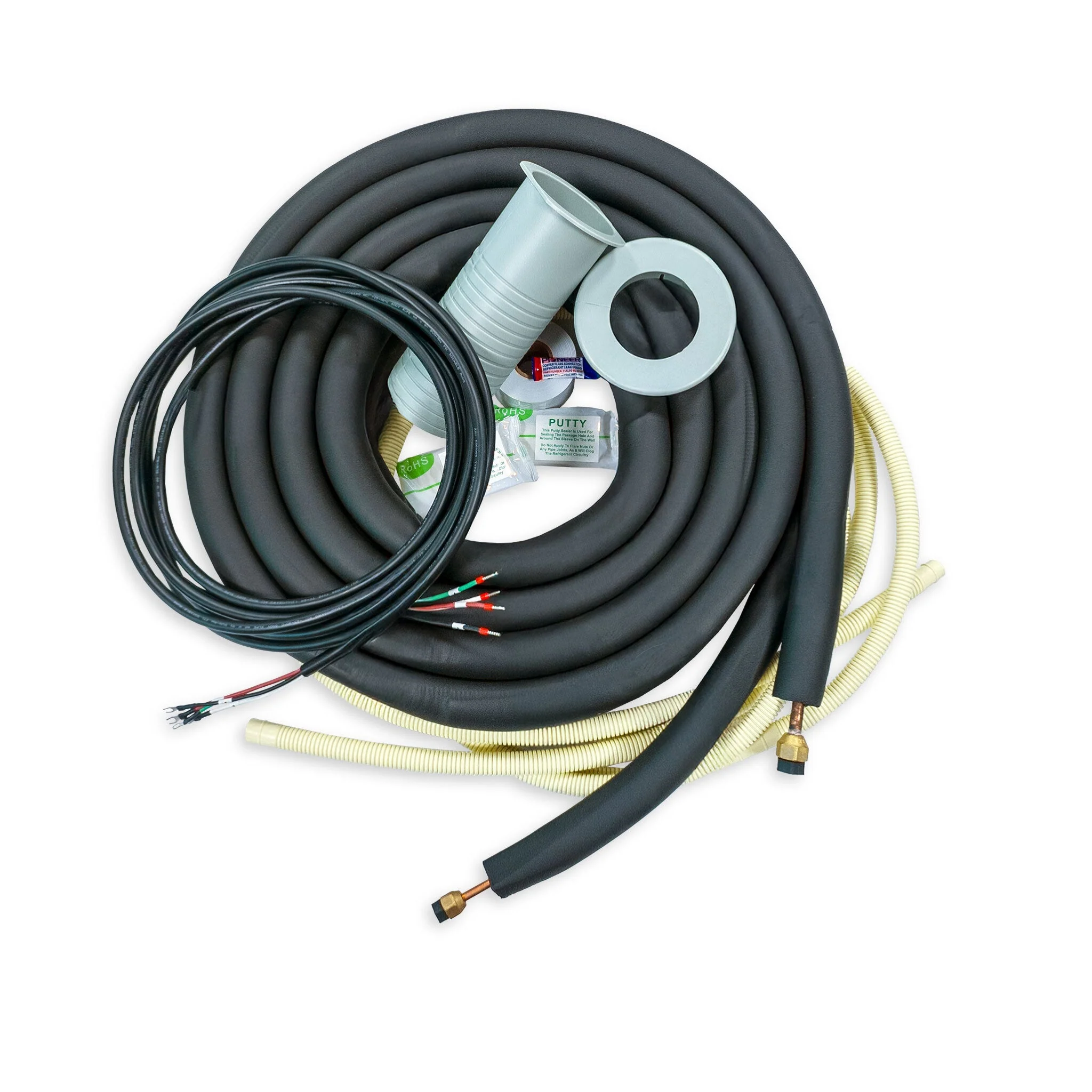

What's Included in Your Purchase
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Remote Control Wall Holder
- Remote Control Batteries
- Customizable Length Copper Lines
- Customizable Length Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Product Warranty
Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy
- Up to 5 years Warranty for Parts
- Up to 5 years Warranty for Compressor
System Kit |
|
| Power Supply | 208~230V, 60Hz, 1Ph |
| Cooling Rated Capacity | 12,000 BTU/h |
| Cooling Capacity Range | 2,500~15,600 BTU/h |
| Cooling SEER2 | 25.0 BTU/W.h |
| Cooling EER2 | 14.0 BTU/W.h |
| Heating Rated Capacity | 12,000 BTU/h |
| Heating Capacity Range | 2,500~19,700 BTU/h |
| Heating HSPF2 (Region IV) | 10.5 / 9.0 BTU/W.h |
| Heating C.O.P.2 (47°F/5°F) | 4.0 / 1.8 W/W |
| Refrigerant Type | R454b |
| Recommended Room Size | 250~500 Sq.F |
| Minimum Room Size | 40 sq ft |
| Minimum Installation Height | 6 ft |
| Piping Diameter | 1/4 x 3/8" |
| AHRI Reference | 217048755 |

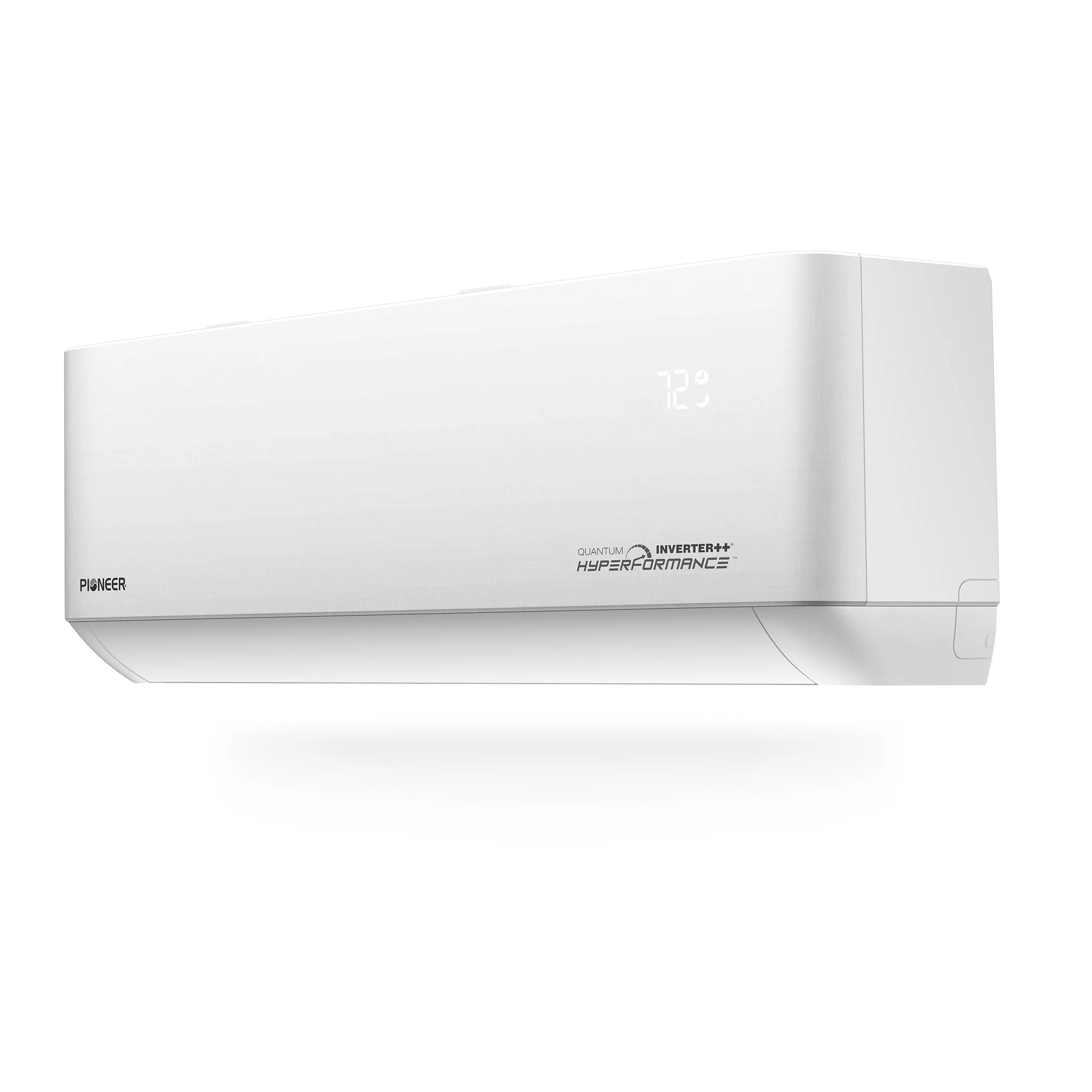

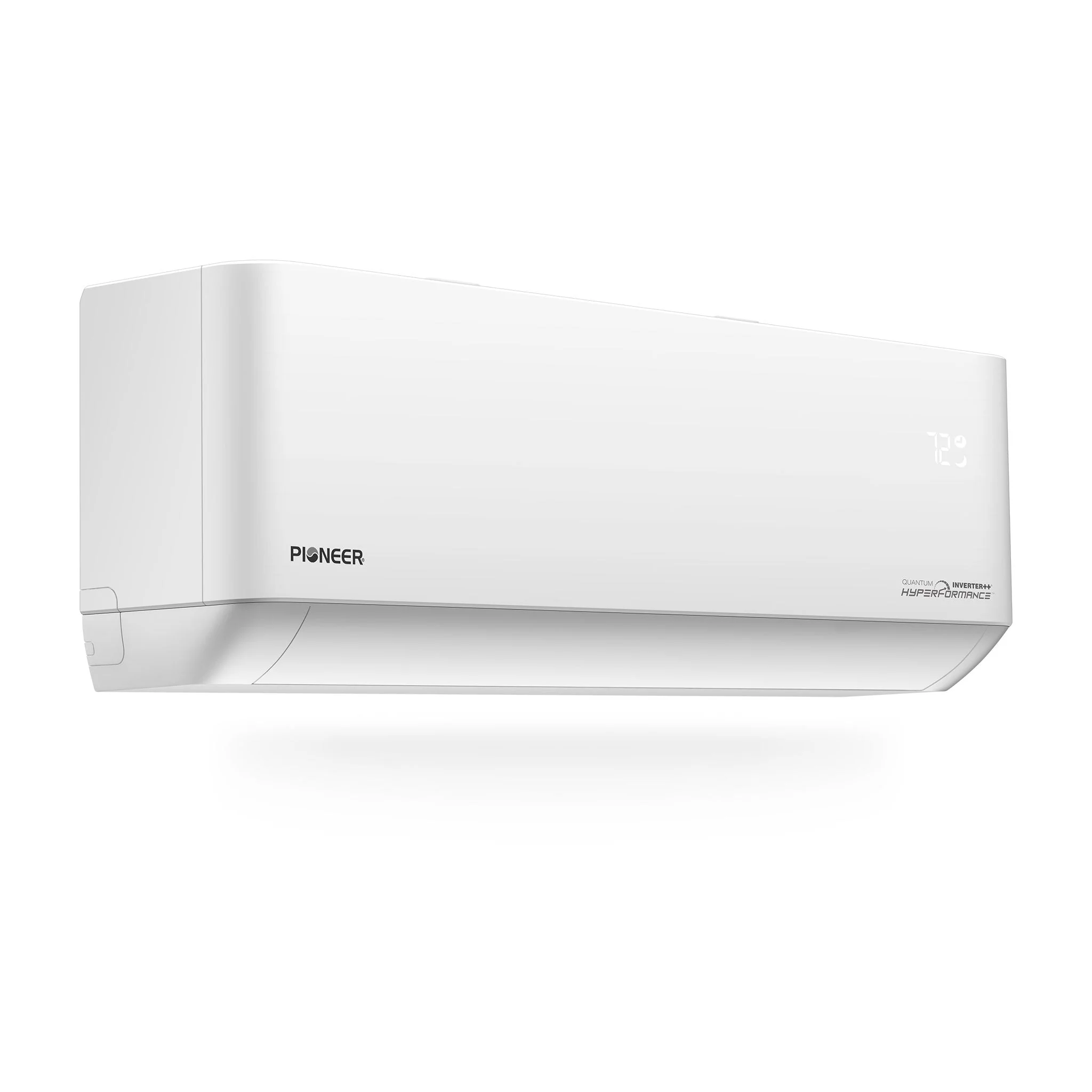

Indoor Unit |
|
| Part Number | WT012GLSI25HLH |
| Air Flow (Turbo/Hi/Med/Lo/Mute) | 500/470/411/323/205 CFM |
| Sound Level (Turbo/Hi/Med/Lo/Mute) | 46/44/36/32/30 dB(A) |
| Product Dimensions (WDH) | 36"-1/4 x 7"-5/8 x 12" Inches |
| Carton Dimensions (WDH) | 39" x 10"-1/2 x 15" Inches |
| Net / Gross Weight | 23.1 / 30.9 lbs. |

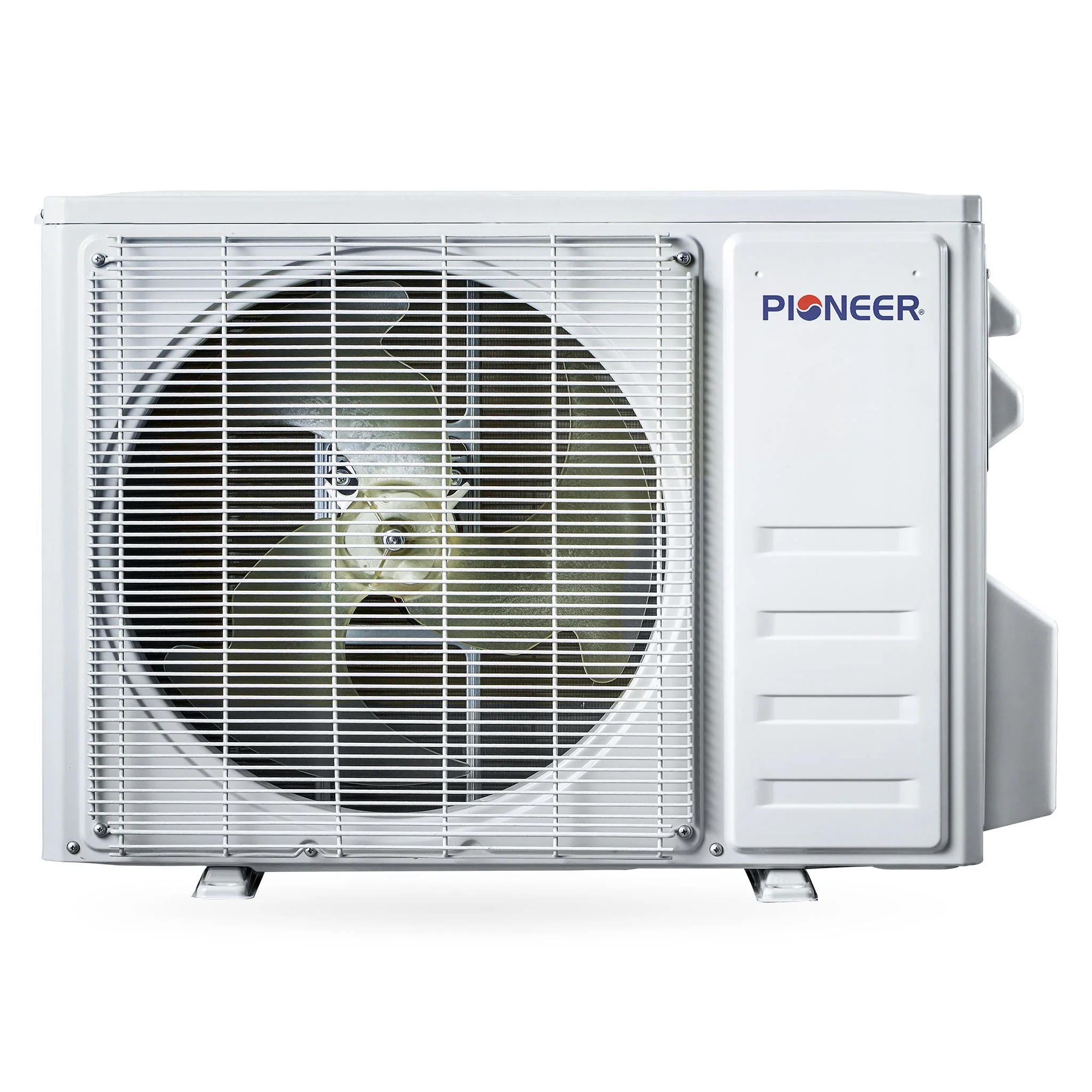

Outdoor Unit |
|
| Part Number | YN012GLSI25RPH |
| Breaker Needed | 20A (double-pole) |
| Sound Level | 57 dB(A) |
| Net Dimensions (WDH) | 34" x 13"-3/4 x 23"-3/4 Inches |
| Carton Dimensions (WDH) | 35" x 15"-1/8 x 24"-3/4 Inches |
| Net / Gross Weight | 69.4 / 73.9 lbs. |
Dimension Chart
| Technical Brochure |
| User & Installation Manual |
| Service Manual |
| Disassembly Manual |
| AHRI Certificate |
| Energy Guide |
