Pioneer® Quantum Ultra™ 24,000 BTU 22.5 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set (CYT024GLSI24RL)

Summary

• High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
• Cooling capacity: 23,000 BTU/H with 22.5 SEER2 / 11.7 EER2 efficiency
• Heating capacity: 25,000 BTU/H with 10.4 HSPF2 / 3.6 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)


Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

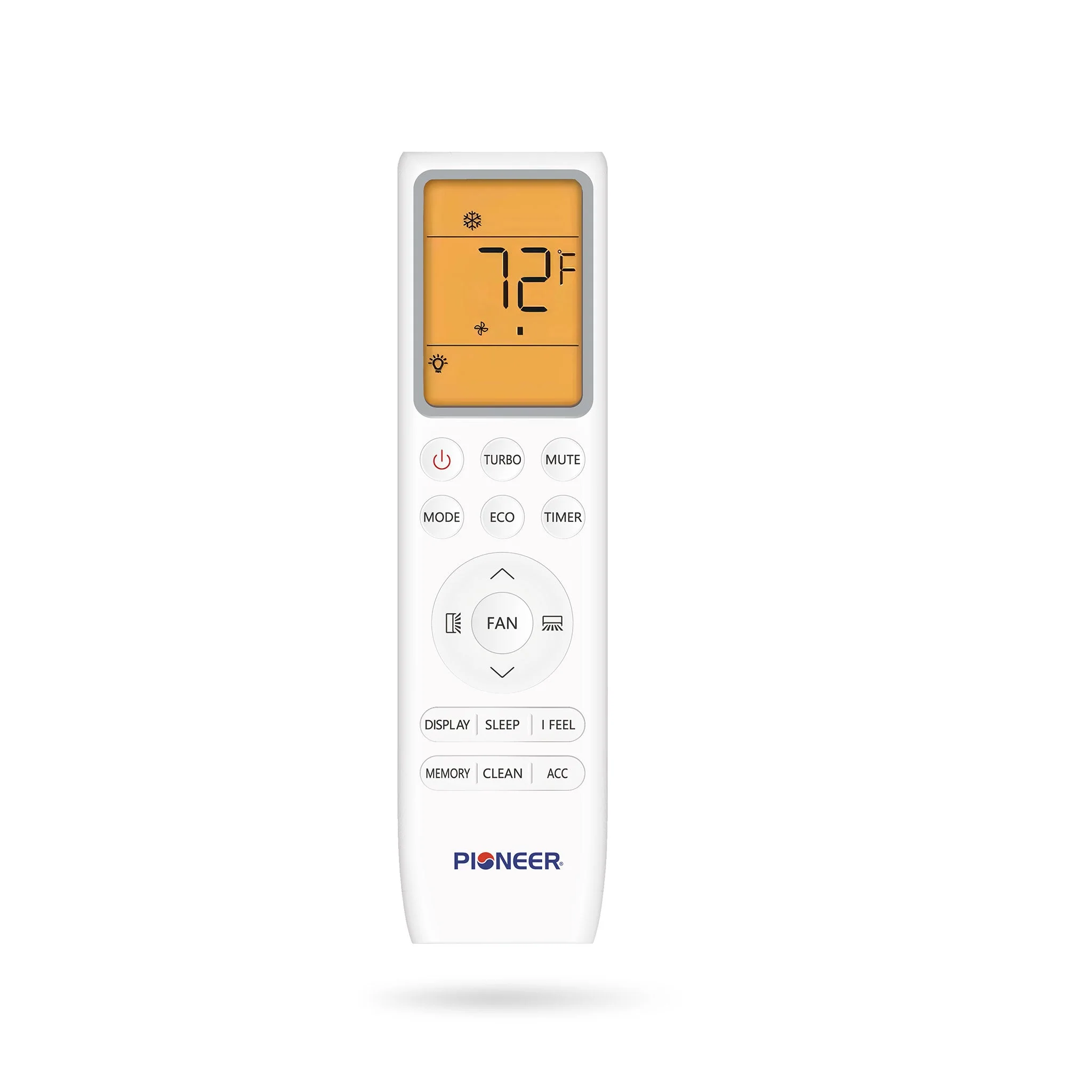

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

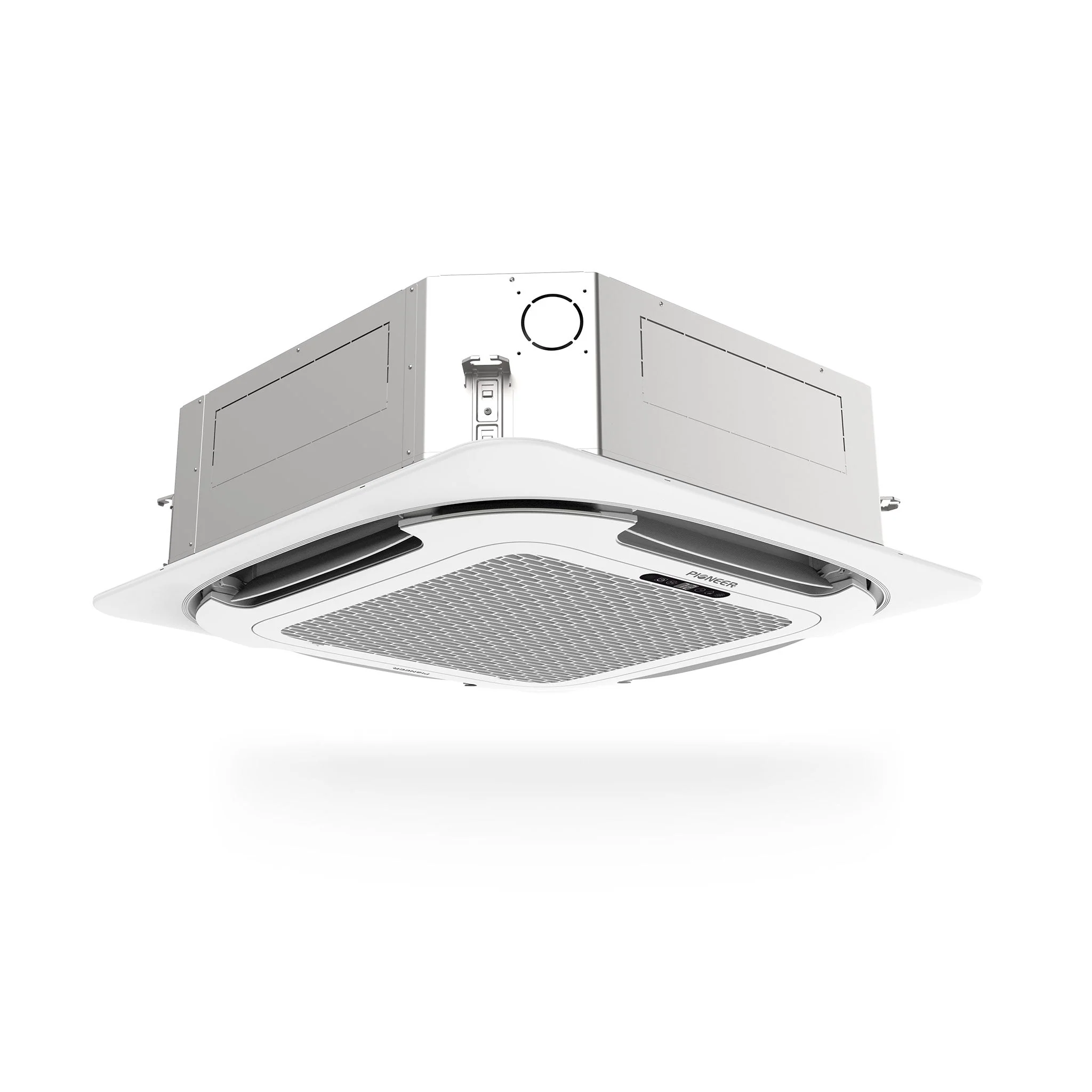

Quantum Ultra™ Ceiling Cassette

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

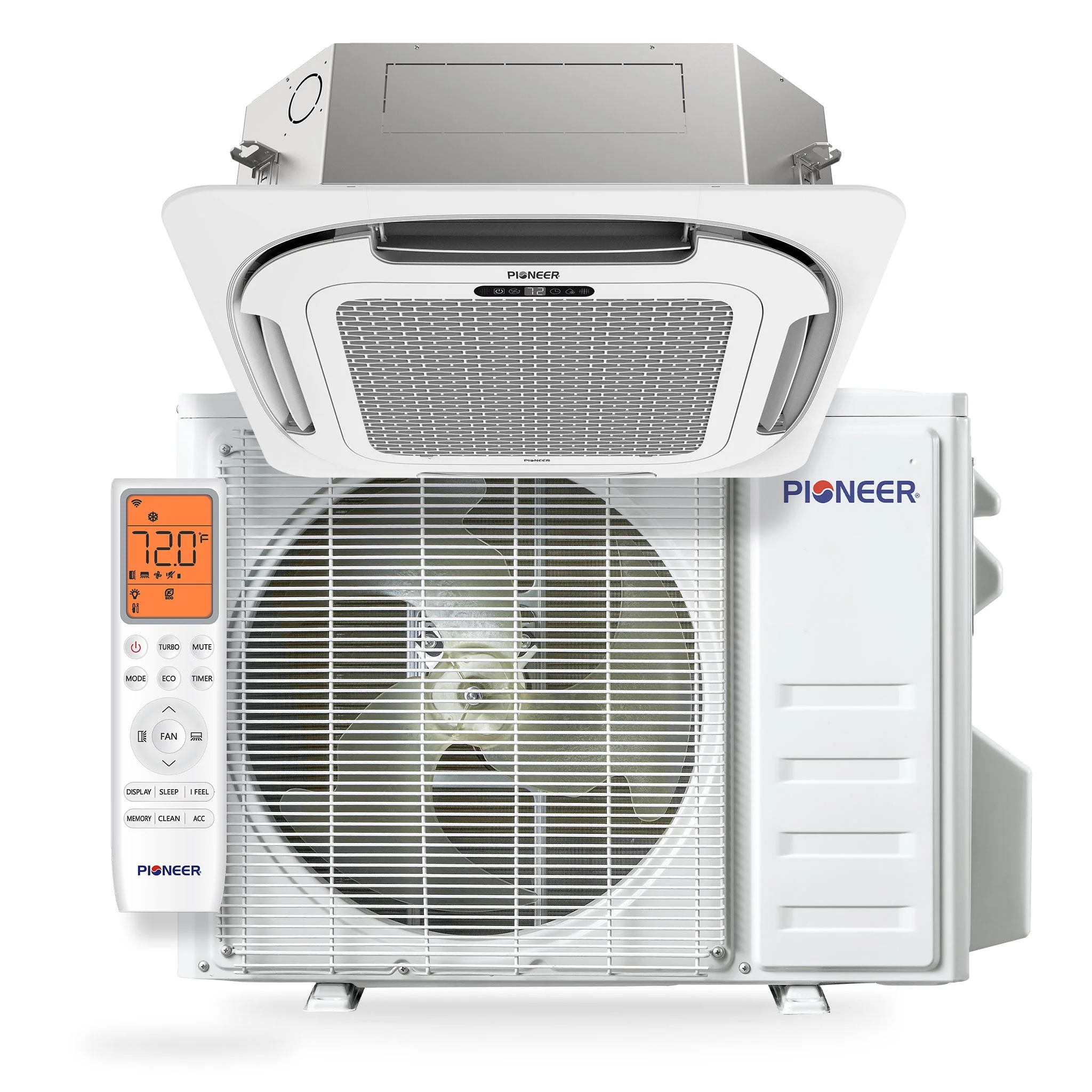

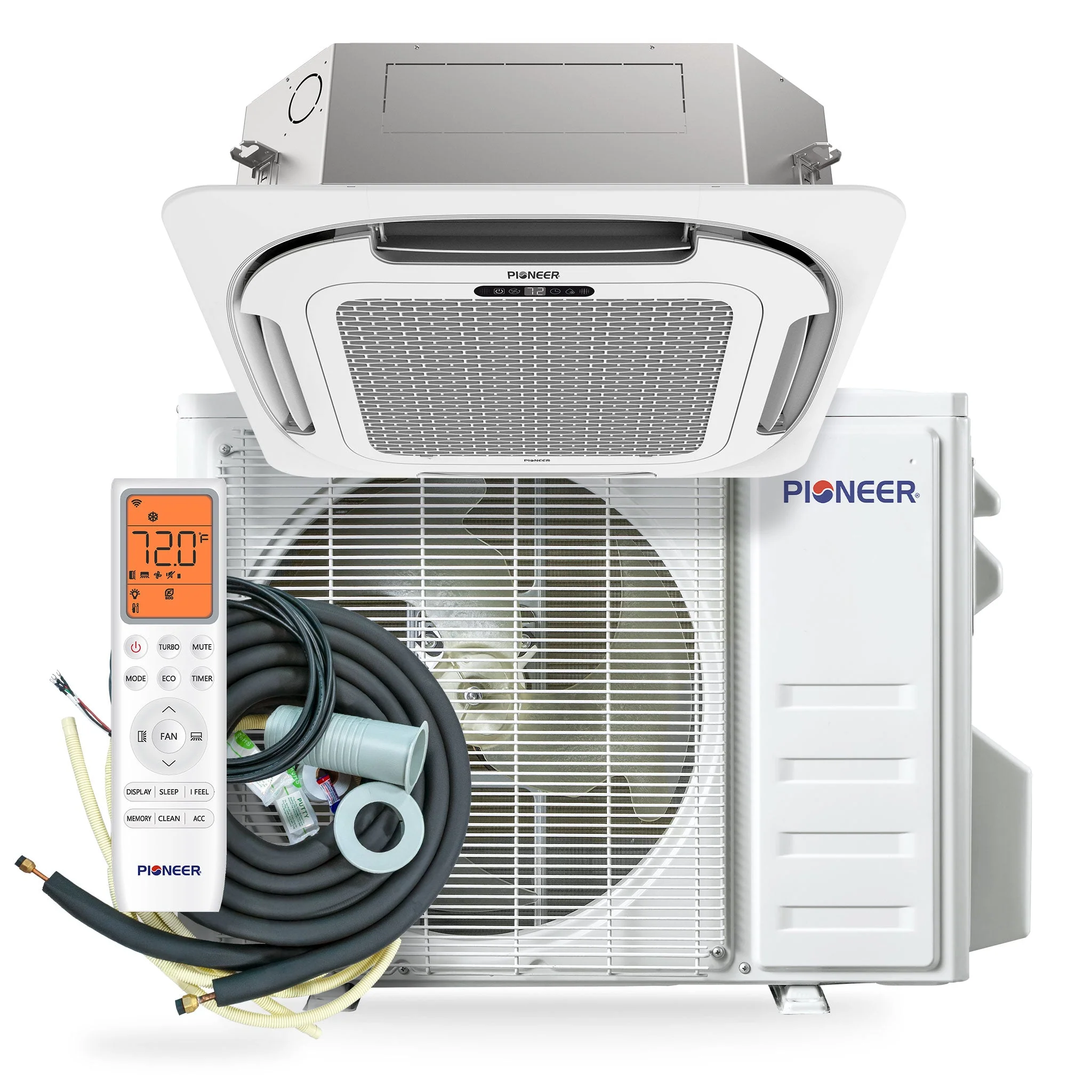

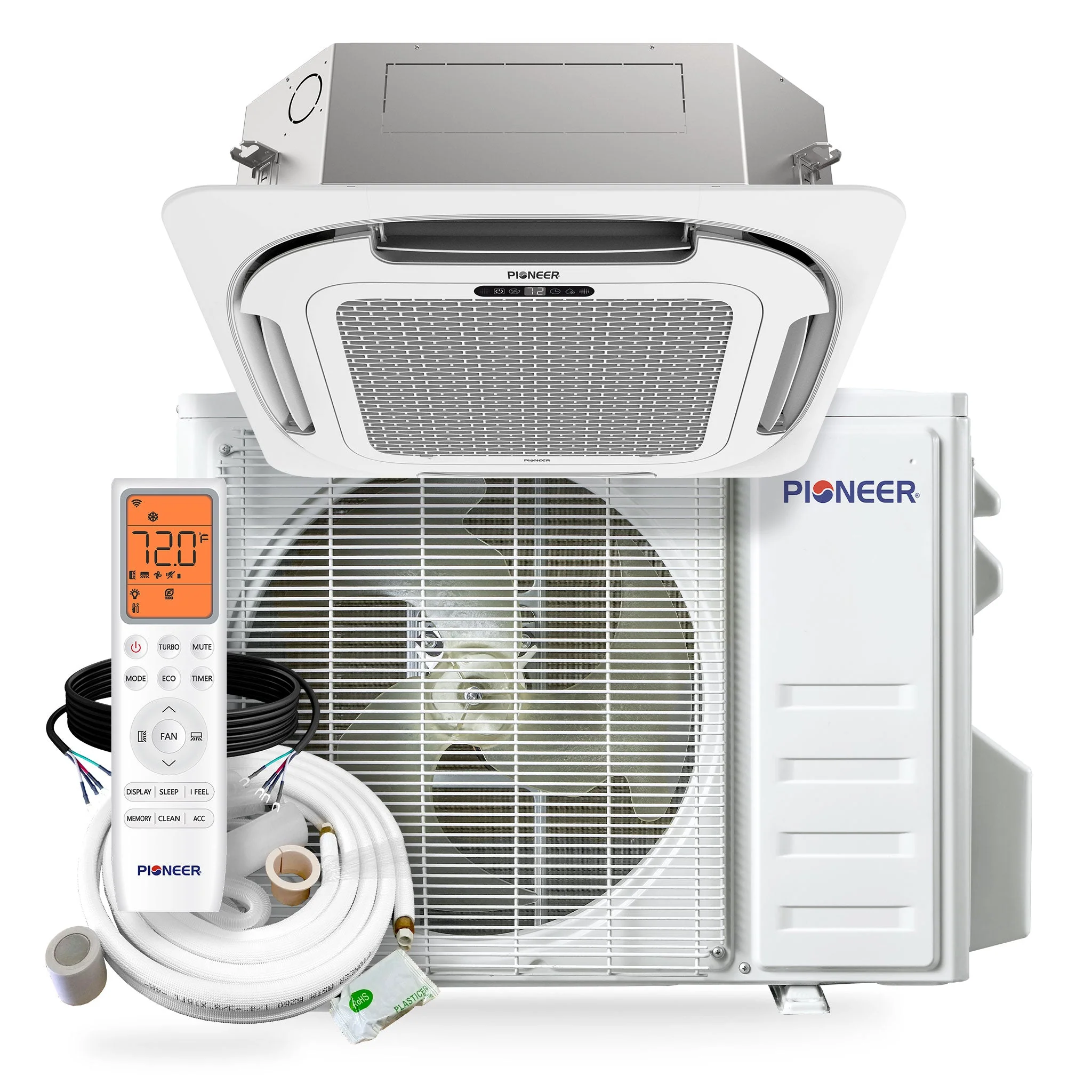

What's Included in Your Purchase

• Indoor Unit

• Outdoor Unit

• Indoor Panel

• Wireless Remote Control

• Remote Control Wall Holder

• Remote Control Batteries

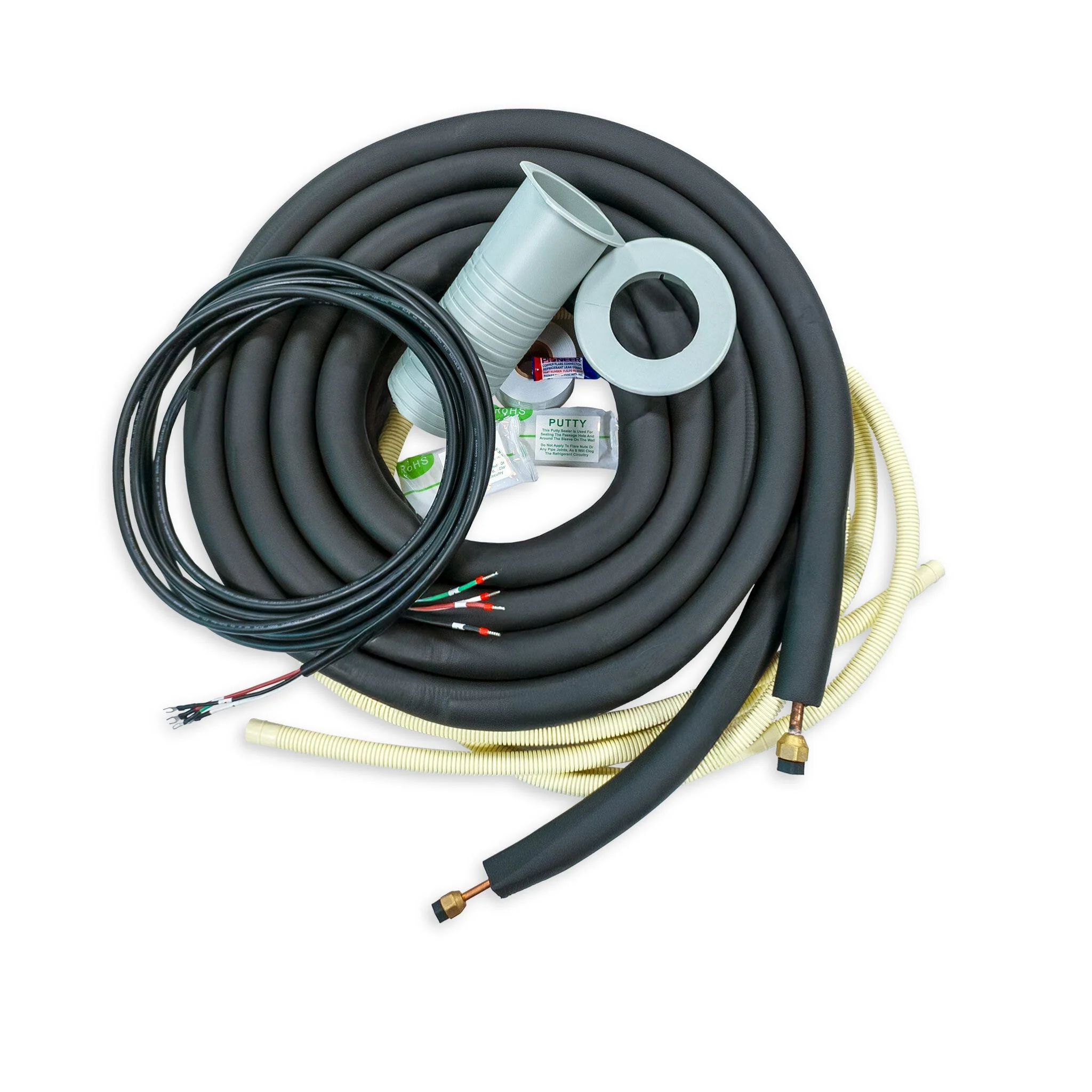

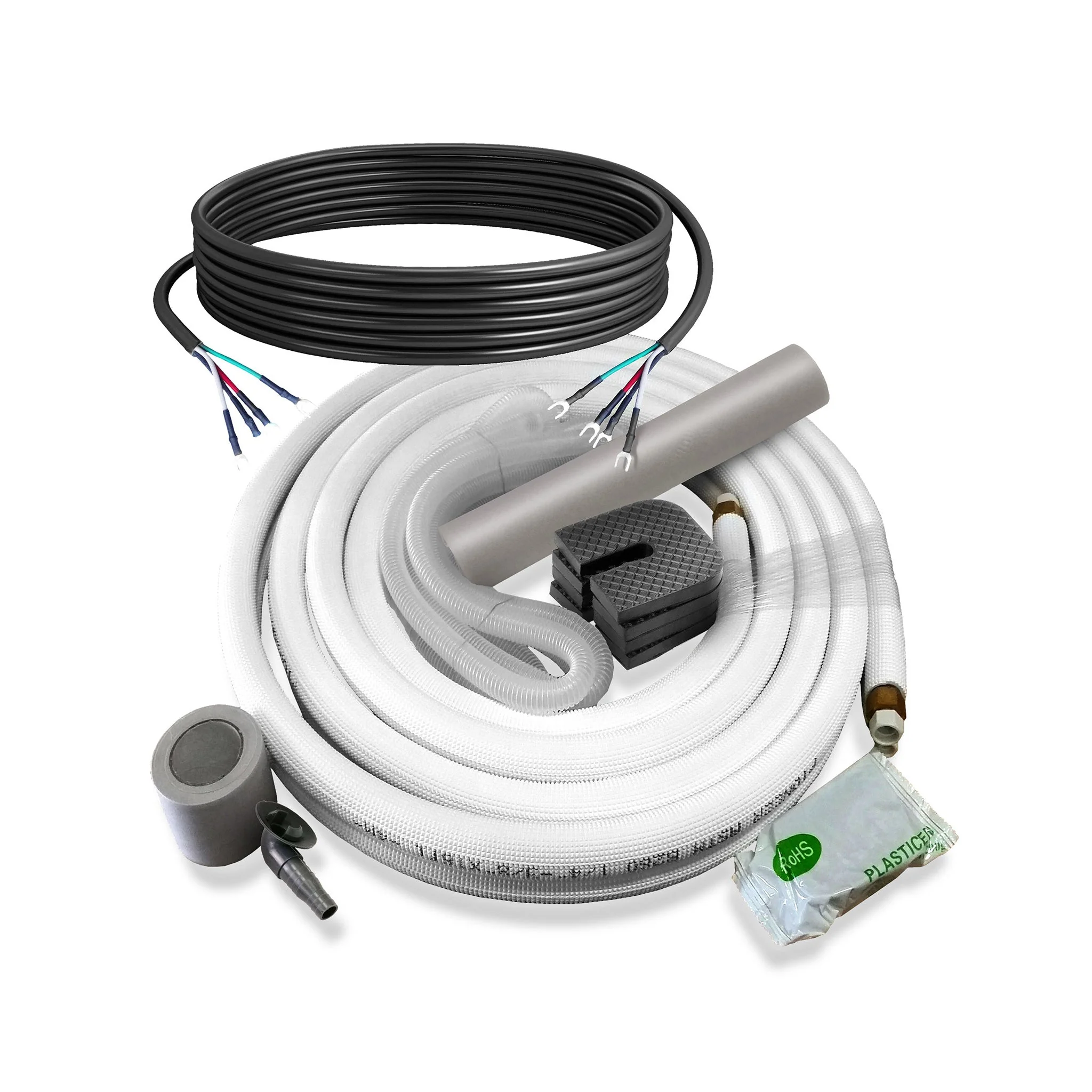

• Customizable Length Copper Lines

• Customizable Length Electrical Wire

• 10 Ft. Drain for indoor/outdoor

• Wall Passage Sleeve

• Putty for Wall Hole

• Leak Guard Sealer

• Wrapping Tape

• Installation Manual
• User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

• Up to 5 years Warranty for Parts

• Up to 5 years Warranty for Compressor

System Kit
Power Supply:	208~230V, 60Hz, 1Ph
Cooling Rated Capacity:	23,000 BTU/h
Cooling Capacity Range:	7,550~25,200 BTU/h
Cooling SEER2:	22.5 BTU/W.h
Cooling EER2:	11.7 BTU/W.h
Heating Rated Capacity:	25,000 BTU/h
Heating Capacity Range:	8,700~28,300 BTU/h
Heating HSPF2 (Region IV):	10.4 / 8.4 BTU/W.h
Heating C.O.P.2 (47°F/5°F):	3.6 / 2.0 W/W
Refrigerant Type:	R454b
Suitable Area:	750~1,000 Sq.F
AHRI Reference:	217048761
Indoor Unit
Part Number:	CT024GLSILSFHG
Air Flow (Turbo/Hi/Med/Lo/Mute):	735/676/529/423/394 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute):	50/47/43/38/34 dB(A)
Product Dimensions (WDH):	33"-1/8 x 33"-3/4 x 10"-3/4 Inches
Carton Dimensions (WDH):	36"-7/8 x 36"-7/8 x 11"-1/2 Inches
Net / Gross Weight:	51.8 / 59.5 lbs

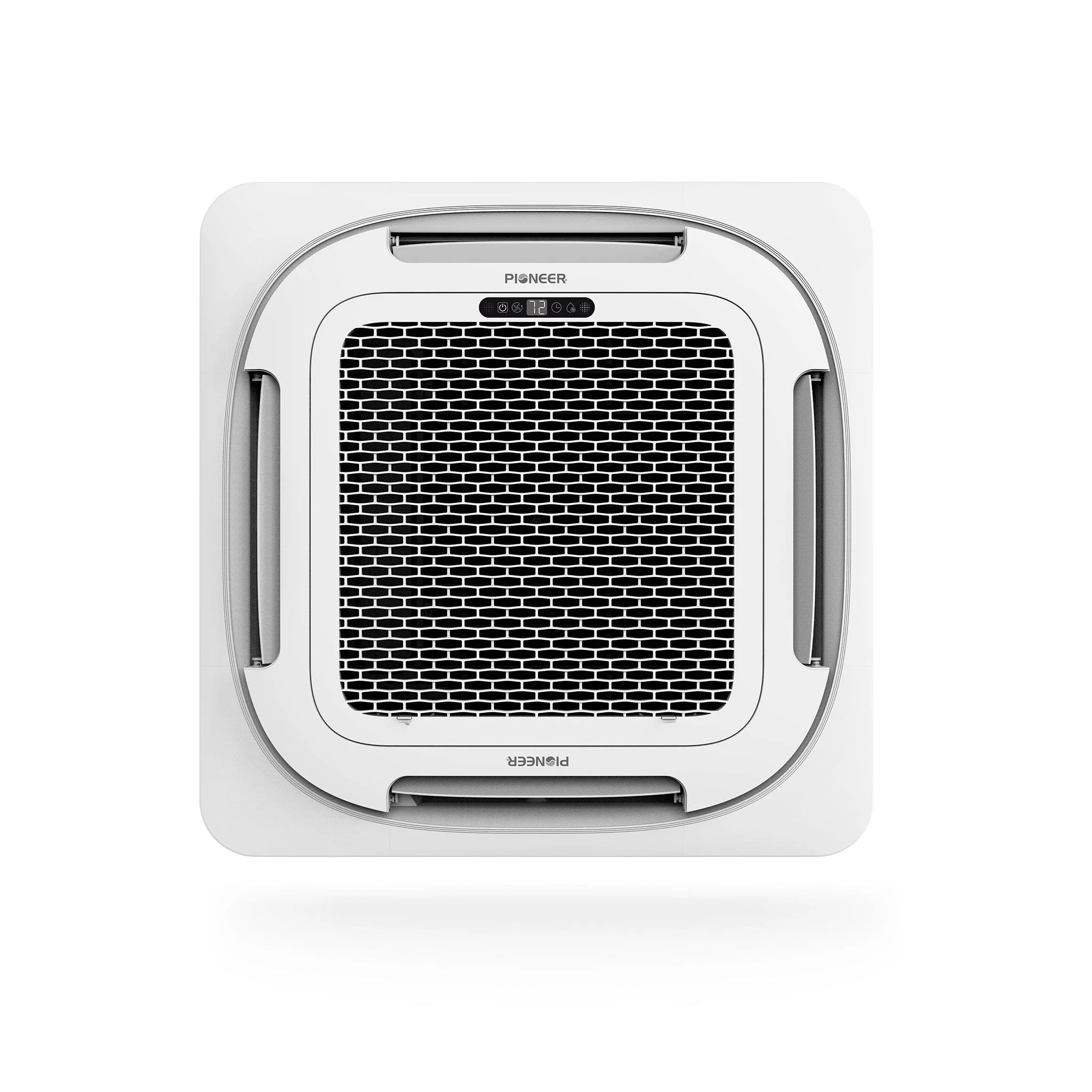

Decorative Panel
Part Number:	CT2460DPNL
Product Dimensions (WDH):	37-3/8" x 37-3/8" x 2-7/8"
Carton Dimensions (WDH):	41-1/2" x 41-1/2" x 3"-1/2
Net / Gross Weight:	13.2 / 19.8 lbs

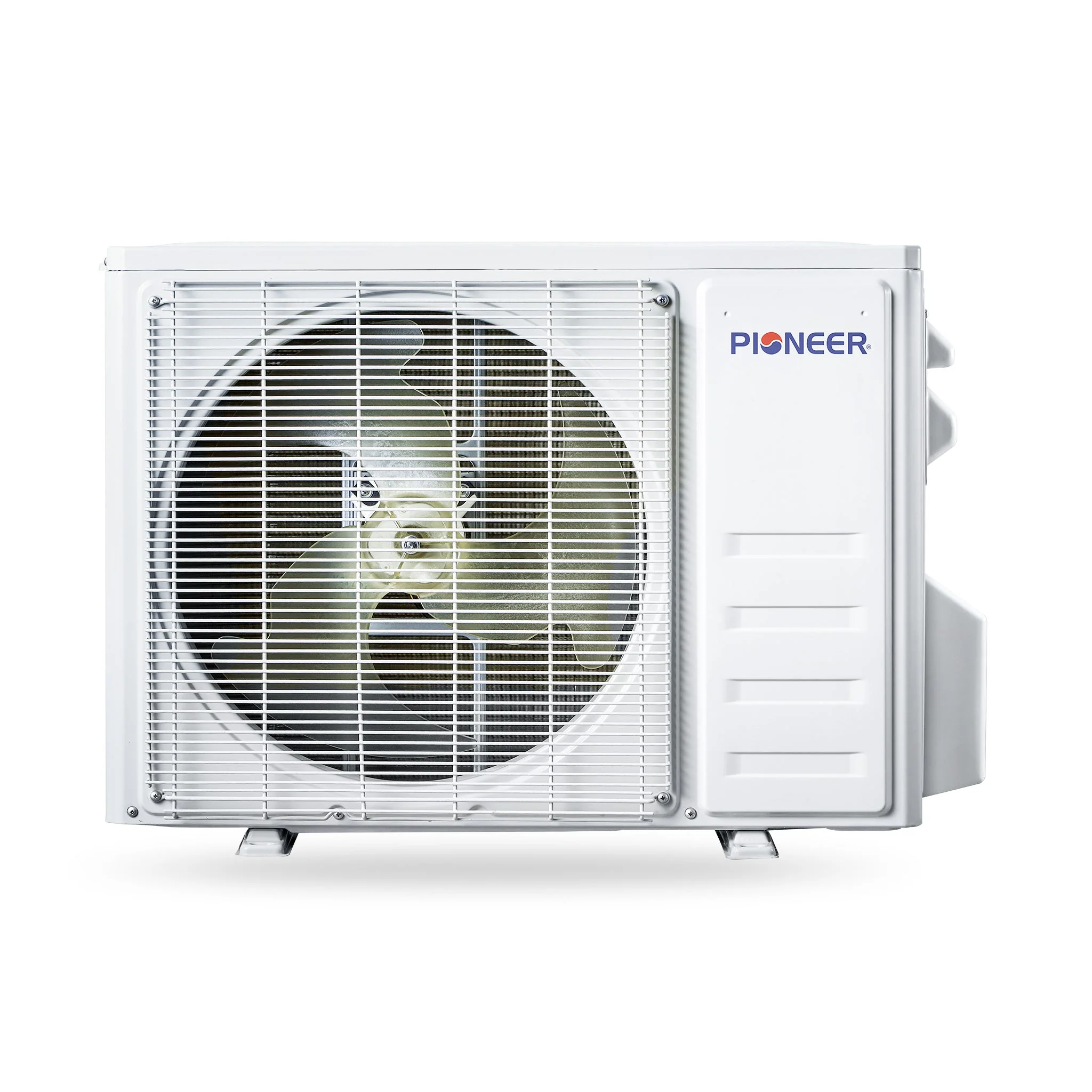

Outdoor Unit
Part Number:	YN024GLSI24RPG
Breaker Needed:	20A (double-pole)
Sound Level:	54 dB(A)
Net Dimensions (WDH):	38"-1/2 x 16"-5/8 x 31"-5/8 Inches
Carton Dimensions (WDH):	40"-1/4 x 18"-7/8 x 31"-7/8 Inches
Net / Gross Weight:	104.7 / 119.0 lbs.
