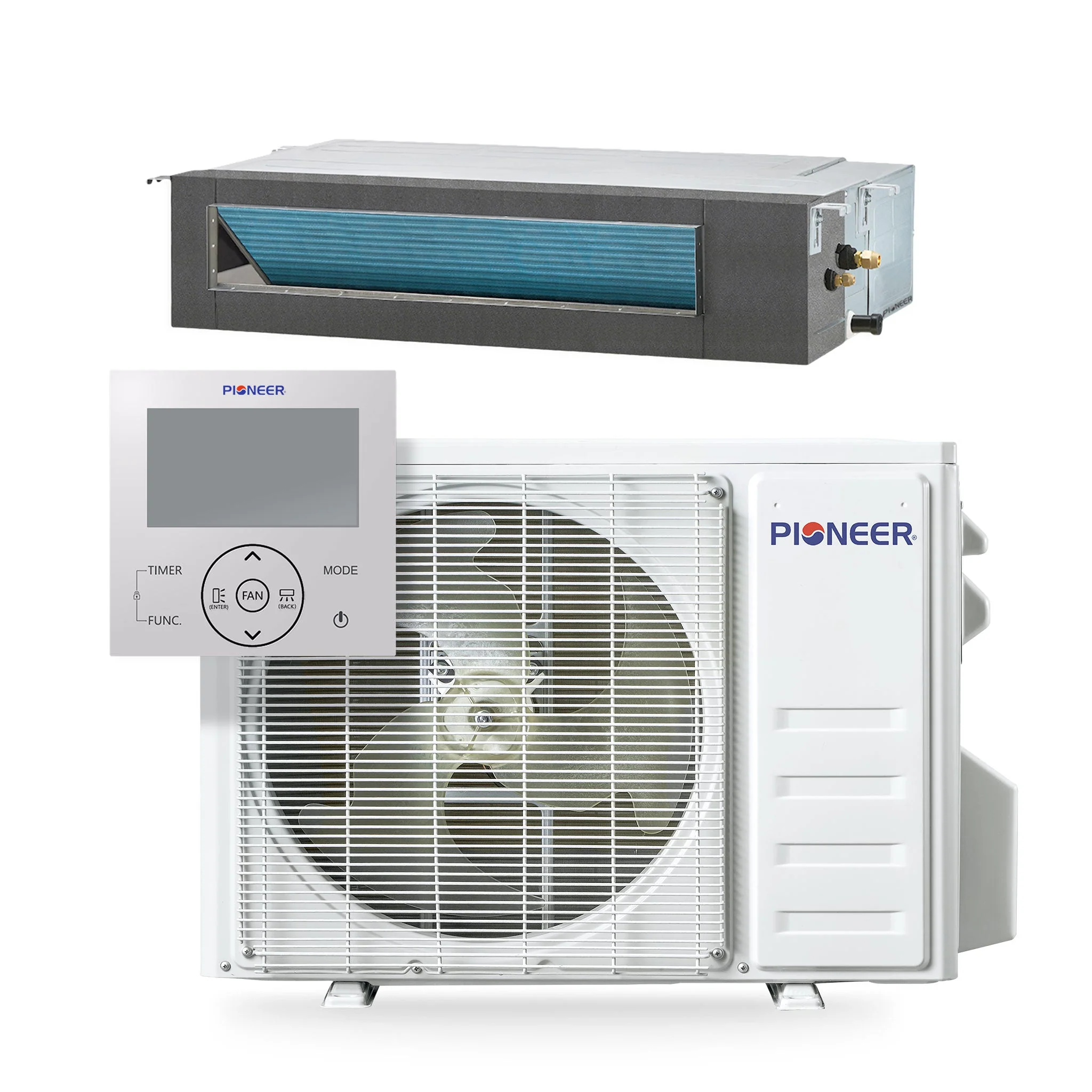

Pioneer® Quantum Ultra™ 9,000 BTU 20.5 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set (RYT009GLSI24RL)
Pioneer® Quantum Ultra™ 9,000 BTU 20.5 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set (RYT009GLSI24RL)
Original: $1,288.00
-65%$1,288.00
$450.80The Story
Summary
- High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
- Cooling capacity: 9,500 BTU/H with 20.5 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 9,500 BTU/H with 9.5 HSPF2 / 3.5 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Quantum Ultra™ Ceiling Concealed
Pioneer® concealed duct mini split systems provide hidden heating and cooling for multiple rooms through a single ducted unit. Ideal for separated zones like master suites, one system can condition sub-areas with uniform comfort. Available in six capacities, including ceiling-concealed and slim duct models, these systems suit zones of all sizes.
Important
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

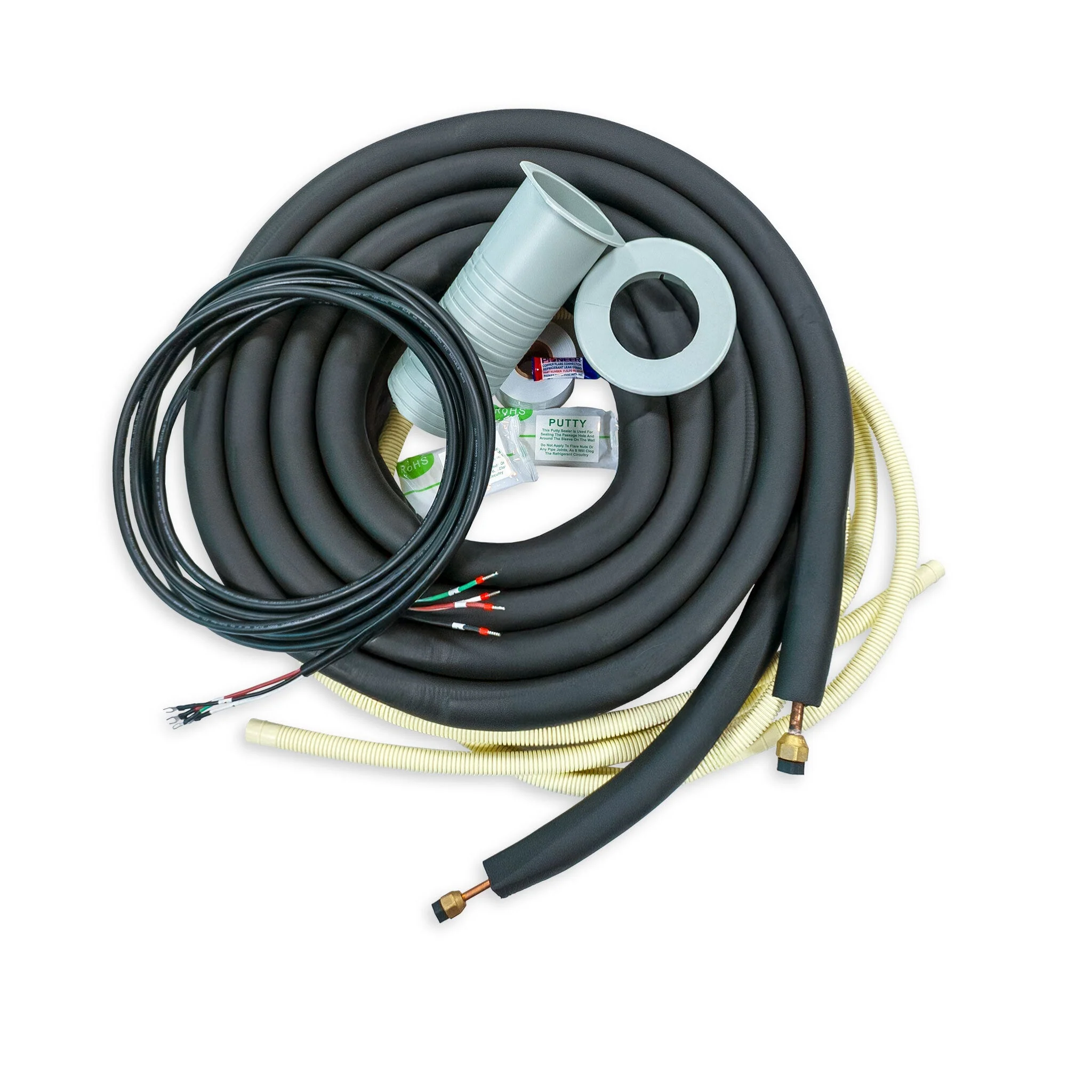

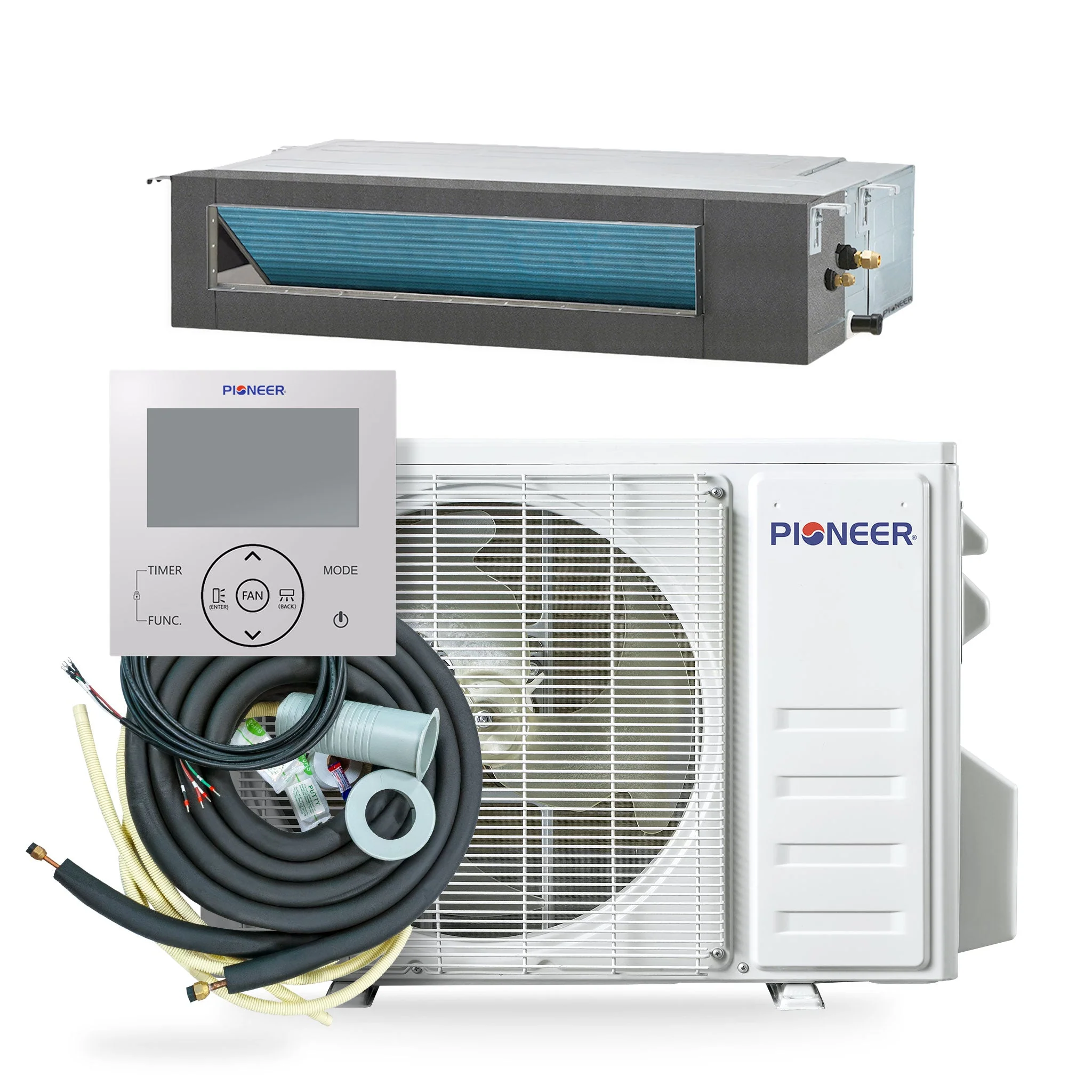

What's Included in Your Purchase
- Indoor Unit
- Outdoor Unit

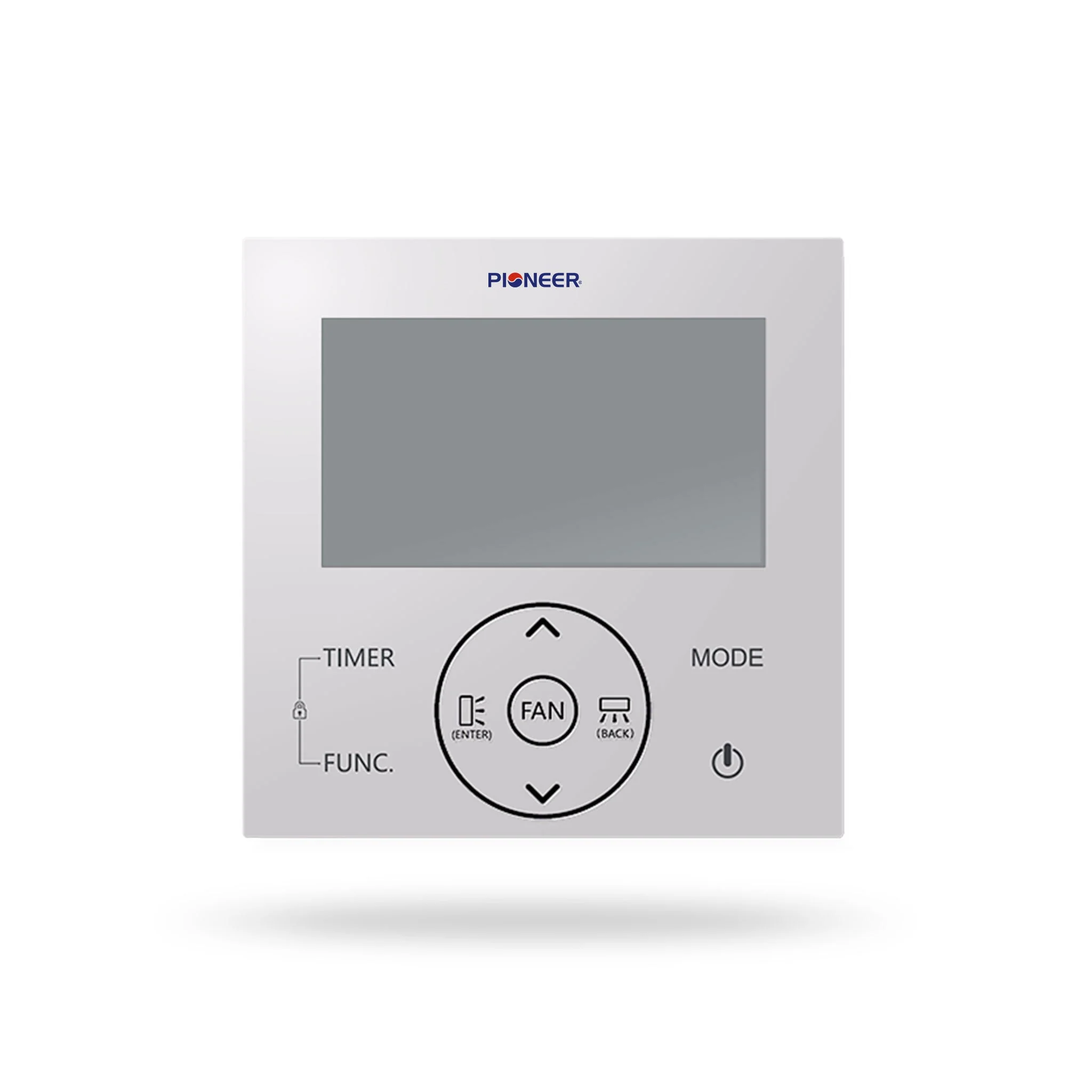

- Wire Remote Control
- Customizable Length Copper Lines
- Customizable Length Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Product Warranty
Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy
- Up to 5 years Warranty for Parts
- Up to 5 years Warranty for Compressor
System Kit |
|
| Power Supply: | 208~230V, 60Hz, 1Ph |
| Cooling Rated Capacity: | 9,500 BTU/h |
| Cooling Capacity Range: | 2,000~10,400 BTU/h |
| Cooling SEER2: | 20.5 BTU/W.h |
| Cooling EER2: | 12.5 BTU/W.h |
| Heating Rated Capacity: | 9,500 BTU/h |
| Heating Capacity Range: | 2,500~12,300 BTU/h |
| Heating HSPF2 (Region IV): | 9.5 / 8.5 BTU/W.h |
| Heating C.O.P.2 (47°F/5°F): | 3.5 / 1.9 W/W |
| Refrigerant Type: | R454b |
| Suitable Area: | 250~350 Sq.F |
| AHRI Reference: | 217048762 |
Indoor Unit |
|
| Part Number: | RT009GLSILCFHG |
| Air Flow (Turbo/Hi/Med/Lo/Mute): | 335/305/276/182/182 CFM |
| Sound Level (Turbo/Hi/Med/Lo/Mute): | 43/41/39 dB(A) |
| Product Dimensions (WDH): | 27"-1/2 x 19"-1/4 x 7"-7/8 Inches |
| Carton Dimensions (WDH): | 35"-1/2 x 21"-7/8 x 9"-7/8 Inches |
| Net / Gross Weight: | 33.1 / 40.8 lbs. |

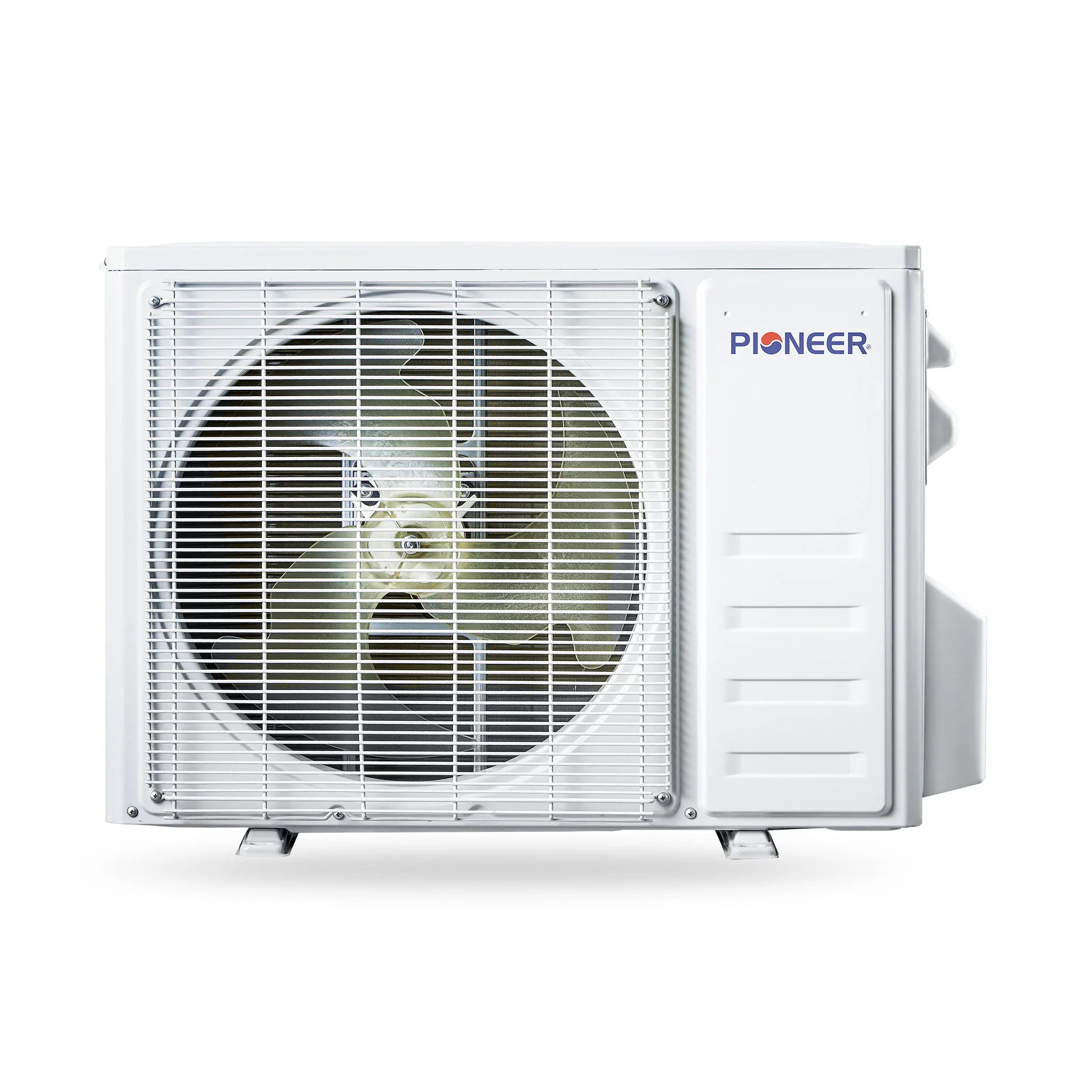

Outdoor Unit |
|
| Part Number: | YN009GLSI24RPG |
| Breaker Needed: | 15A (double-pole) |
| Sound Level: | 50 dB(A) |
| Net Dimensions (WDH): | 31"-7/8 x 12" x 21"-5/8 Inches |
| Carton Dimensions (WDH): | 32"-7/8 x 13" x 22"-5/8 Inches |
| Net / Gross Weight: | 52.7 / 57.1 lbs. |
Dimension Chart
| Technical Brochure |
| User & Installation Manual |
| Service Manual |
| Disassembly Manual |
| AHRI Certificate |
| Energy Guide |
