Pioneer® Quantum Ultra™ 9,000 BTU 24 SEER2 230V High-Wall Ductless Energy-Star Mini-Split Air Conditioner Inverter Heat Pump Full Set (WYT009GLSI24RL)

Summary

• Ultra High Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
• Cooling capacity: 9,000 BTU/H with 24 SEER2 / 13 EER2 efficiency
• Heating capacity: 10,000 BTU/H with 10.0 HSPF2 / 3.81 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System

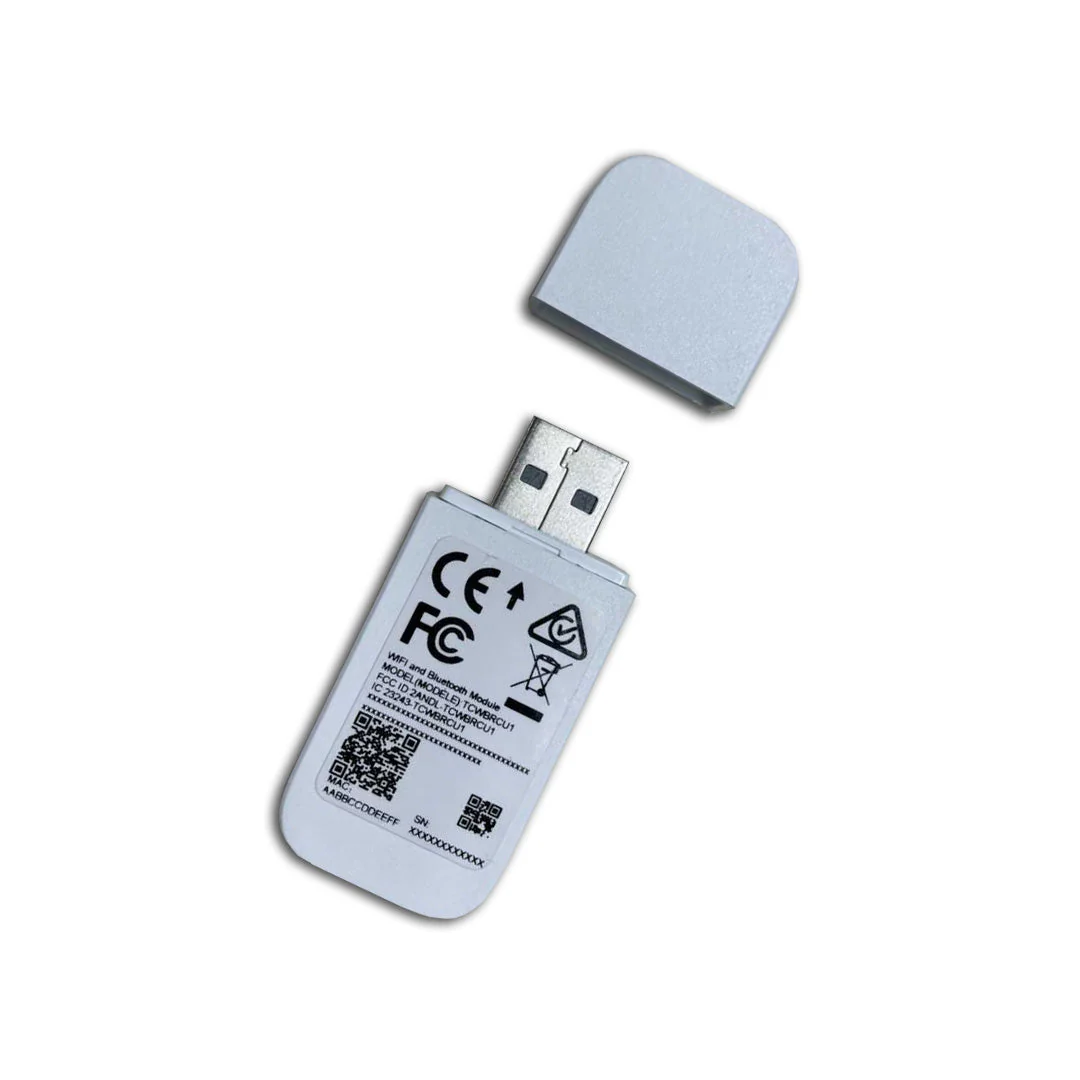

• Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

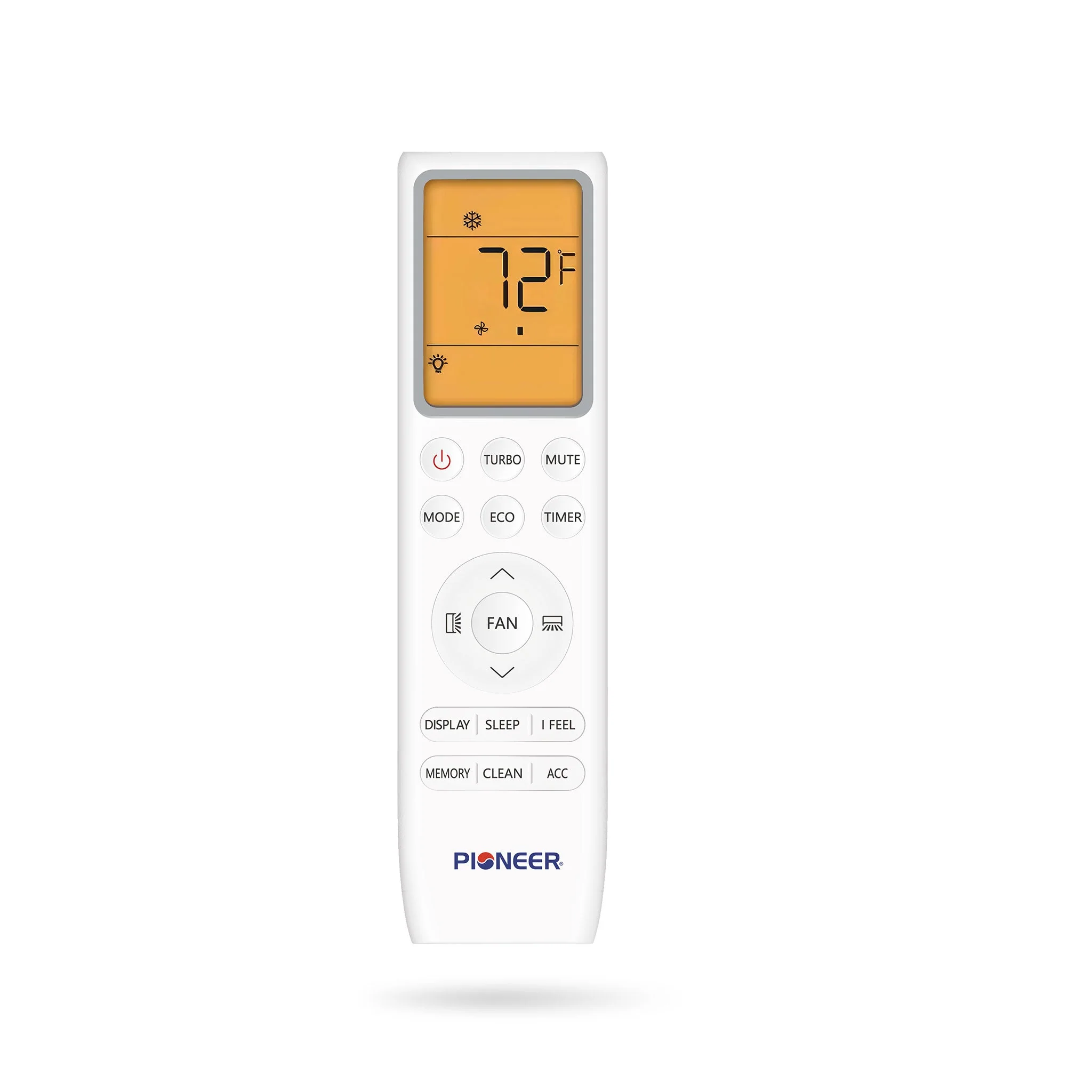

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Quantum Ultra™ High-Wall Series

At Pioneer Mini Split, we offer ductless wall-mounted mini split systems in various capacities and efficiency ratings, making them easy to install and providing reliable single-zone comfort. Each unit features a remote control for cooling, heating, dehumidification, and ventilation, while automatic louvers and variable airflow ensure ideal conditions with minimal energy consumption.

Important

The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

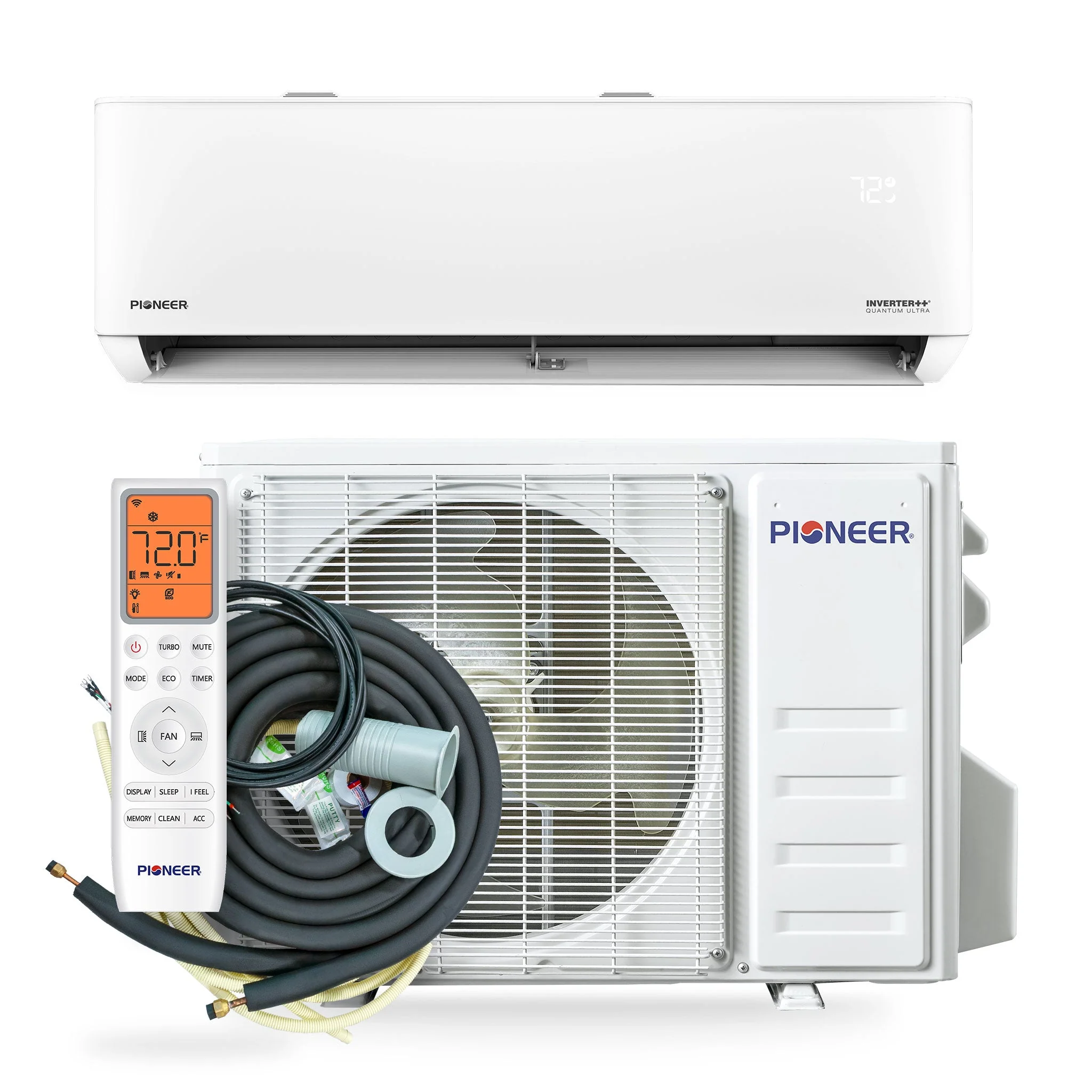

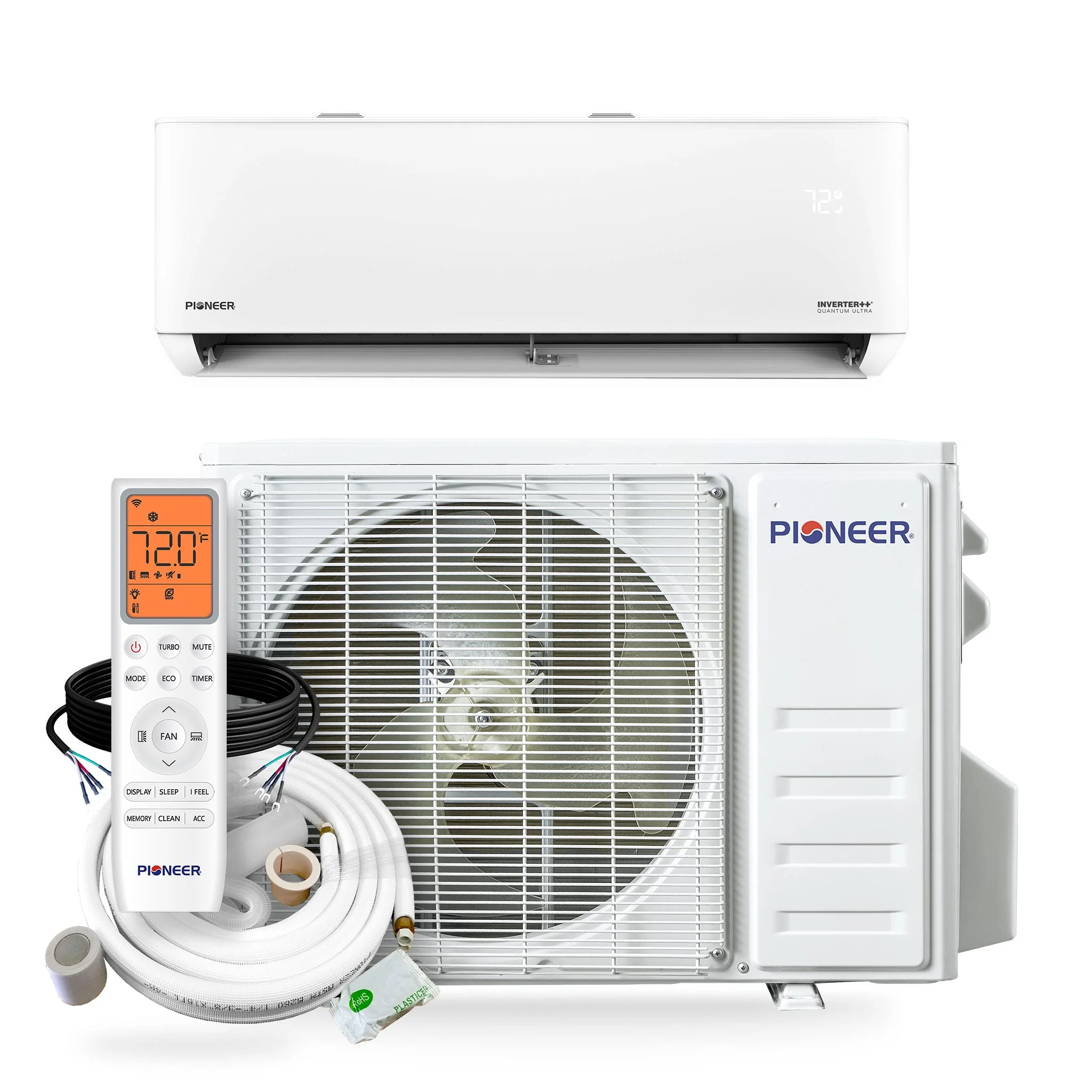

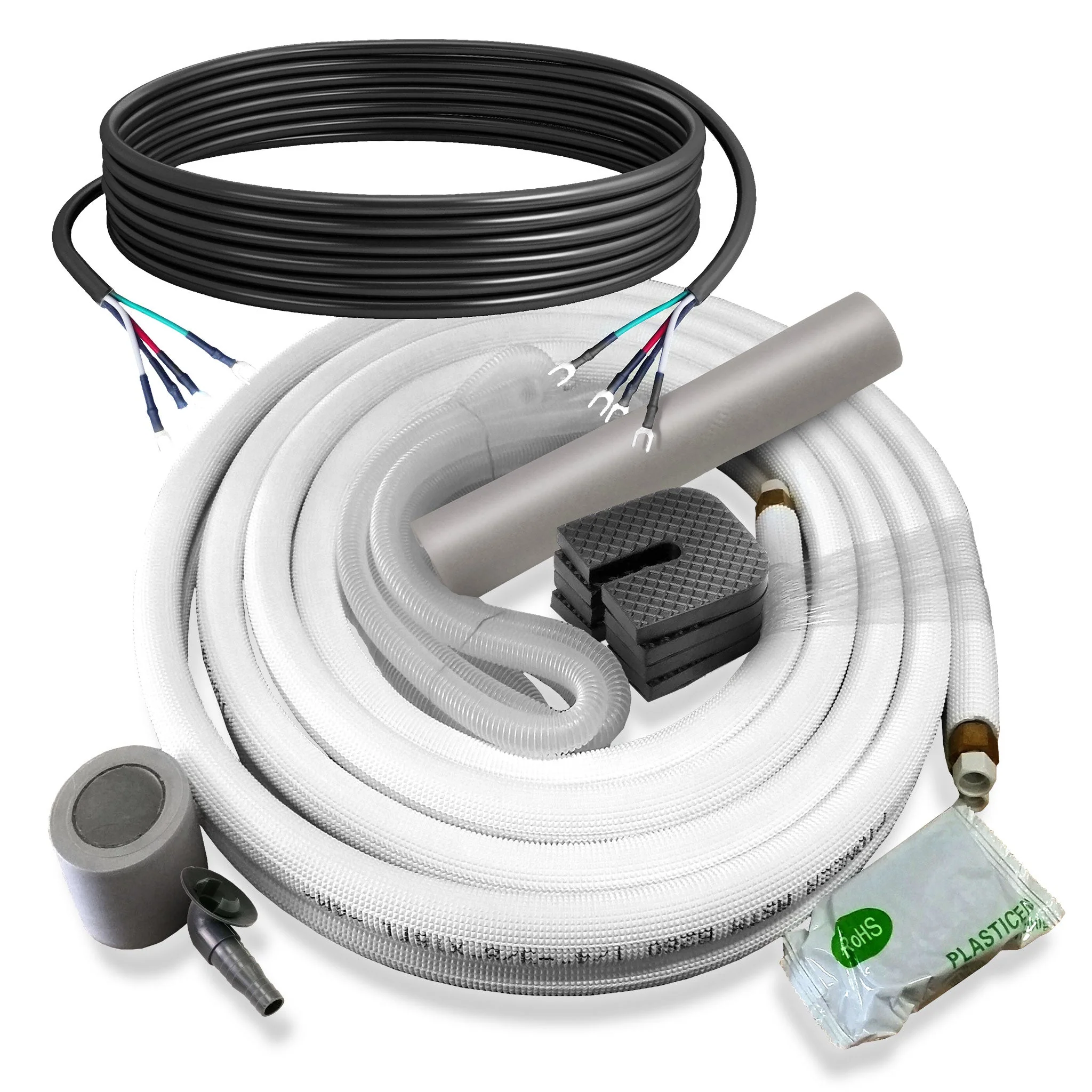

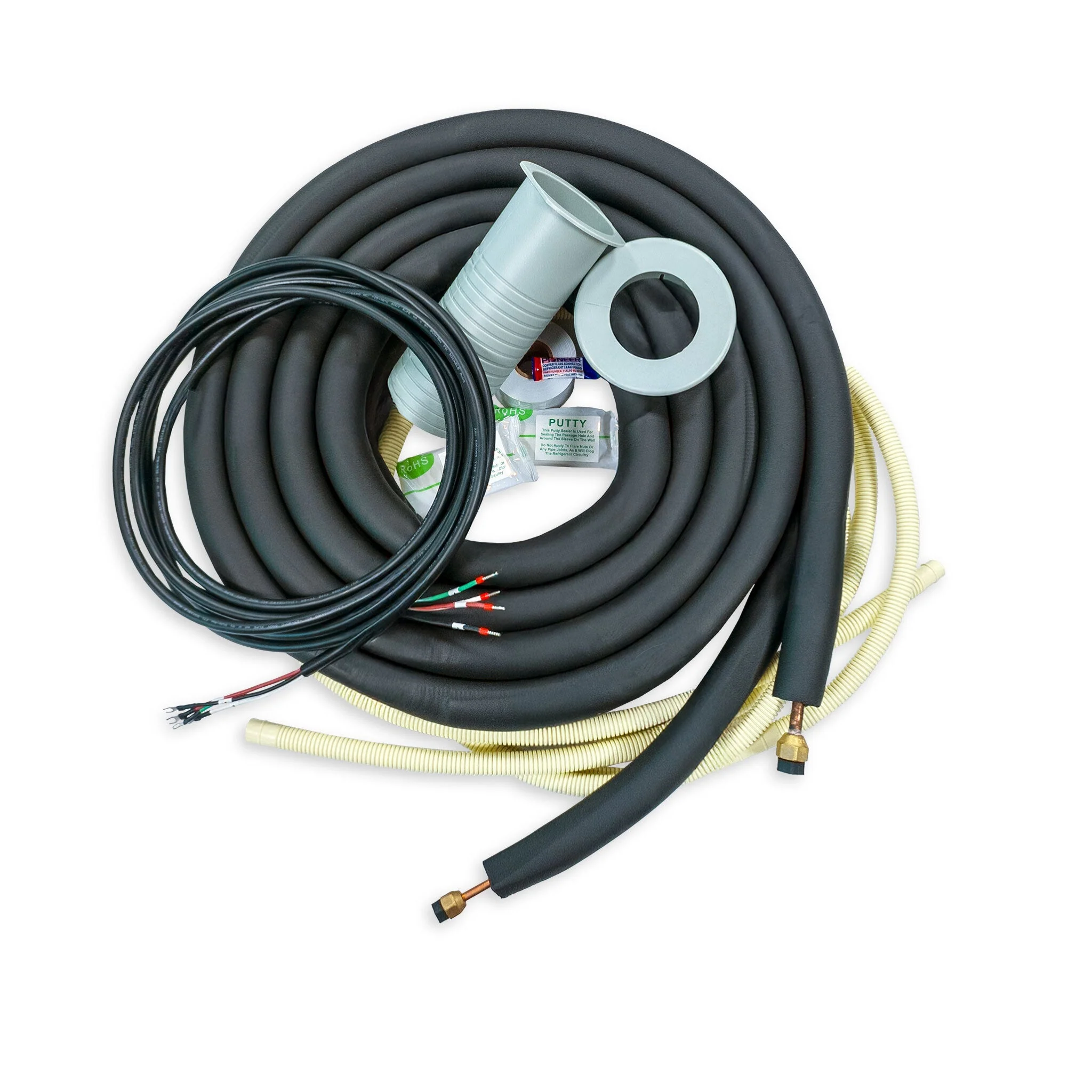

What's Included in Your Purchase

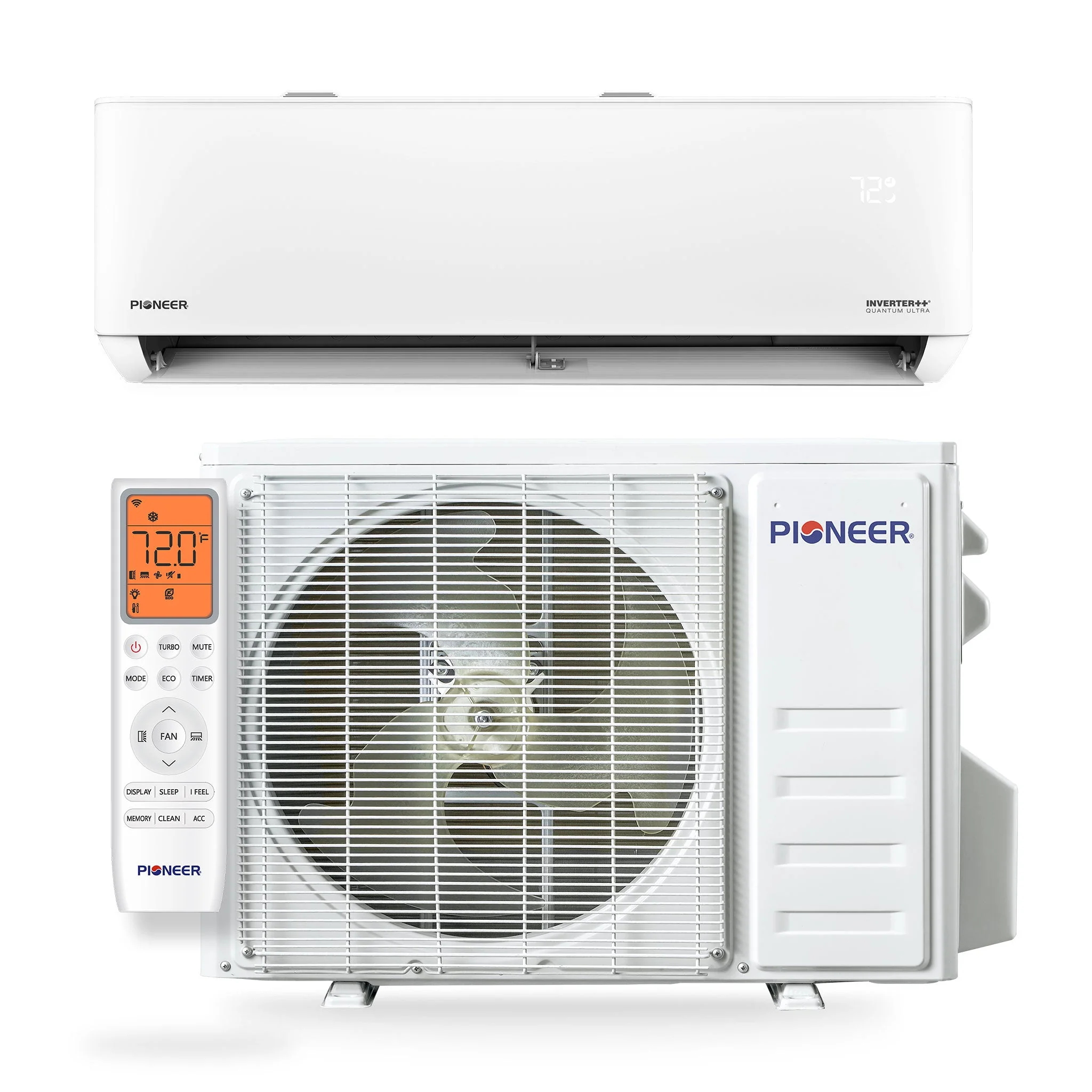

• Indoor Unit

• Outdoor Unit

• Wireless Remote Control

• Remote Control Wall Holder

• Remote Control Batteries

• Customizable Length Copper Lines

• Customizable Length Electrical Wire

• 10 Ft. Drain for indoor/outdoor

• Wall Passage Sleeve

• Putty for Wall Hole

• Leak Guard Sealer

• Wrapping Tape

• Installation Manual

• User’s Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

• Up to 5 years Warranty for Parts

• Up to 5 years Warranty for Compressor

System Kit
Power Supply	208~230V, 60Hz, 1Ph
Cooling Rated Capacity	9,000 BTU/h
Cooling Capacity Range	2,400~11,000 BTU/h
Cooling SEER2	24.0 BTU/W.h
Cooling EER2	13.0 BTU/W.h
Heating Rated Capacity	10,000 BTU/h
Heating Capacity Range	2,400~11,000 BTU/h
Heating HSPF2 (Region IV)	10.0 / 8.6 BTU/W.h
Heating C.O.P.2 (47°F/5°F)	3.81 / 2.1 W/W
Refrigerant Type	R454b
Recommended Room Size	150~350 Sq.F
Minimum Room Size	28 sq ft
Minimum Installation Height	6 ft
Piping Diameter	1/4 x 3/8"
AHRI Reference	217048749

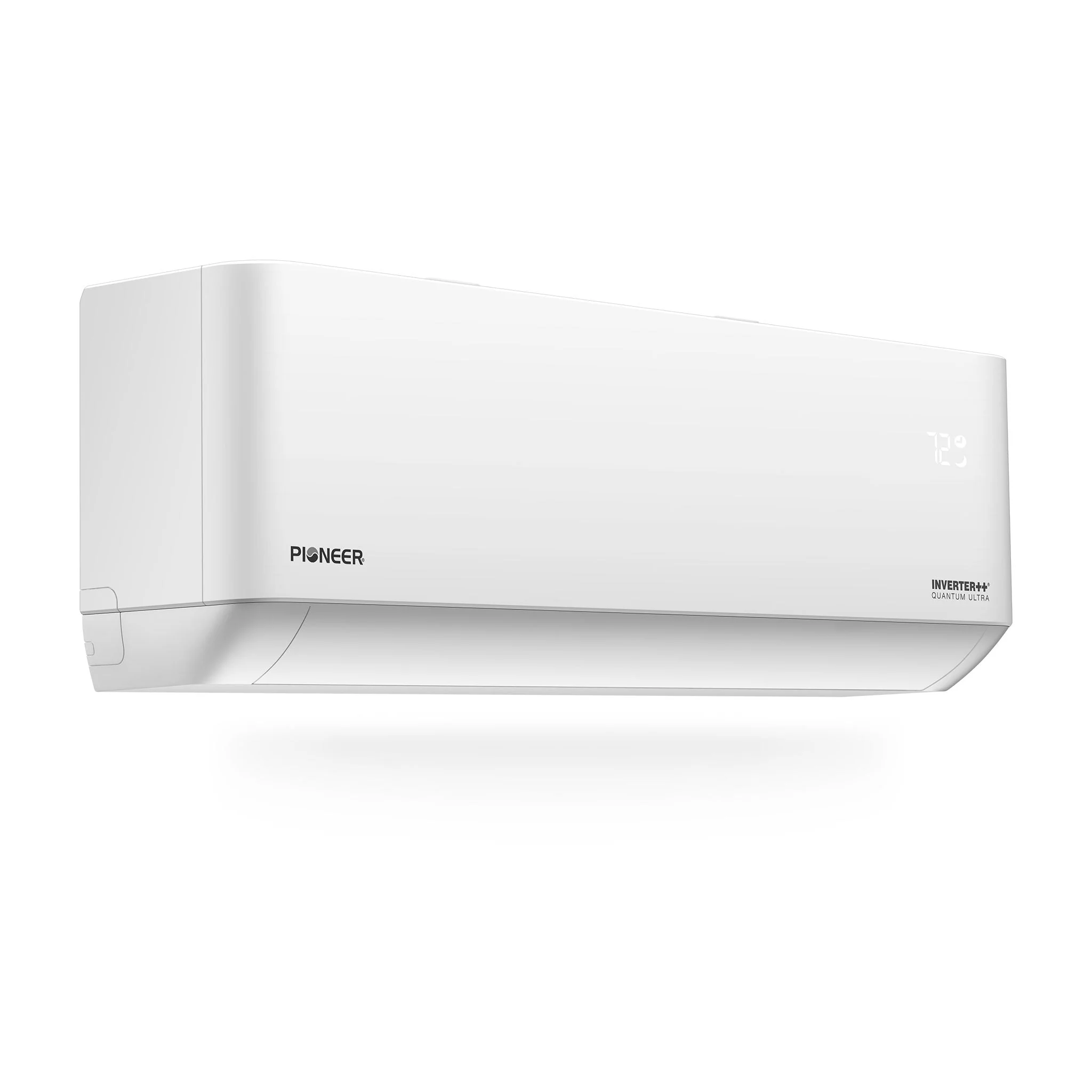

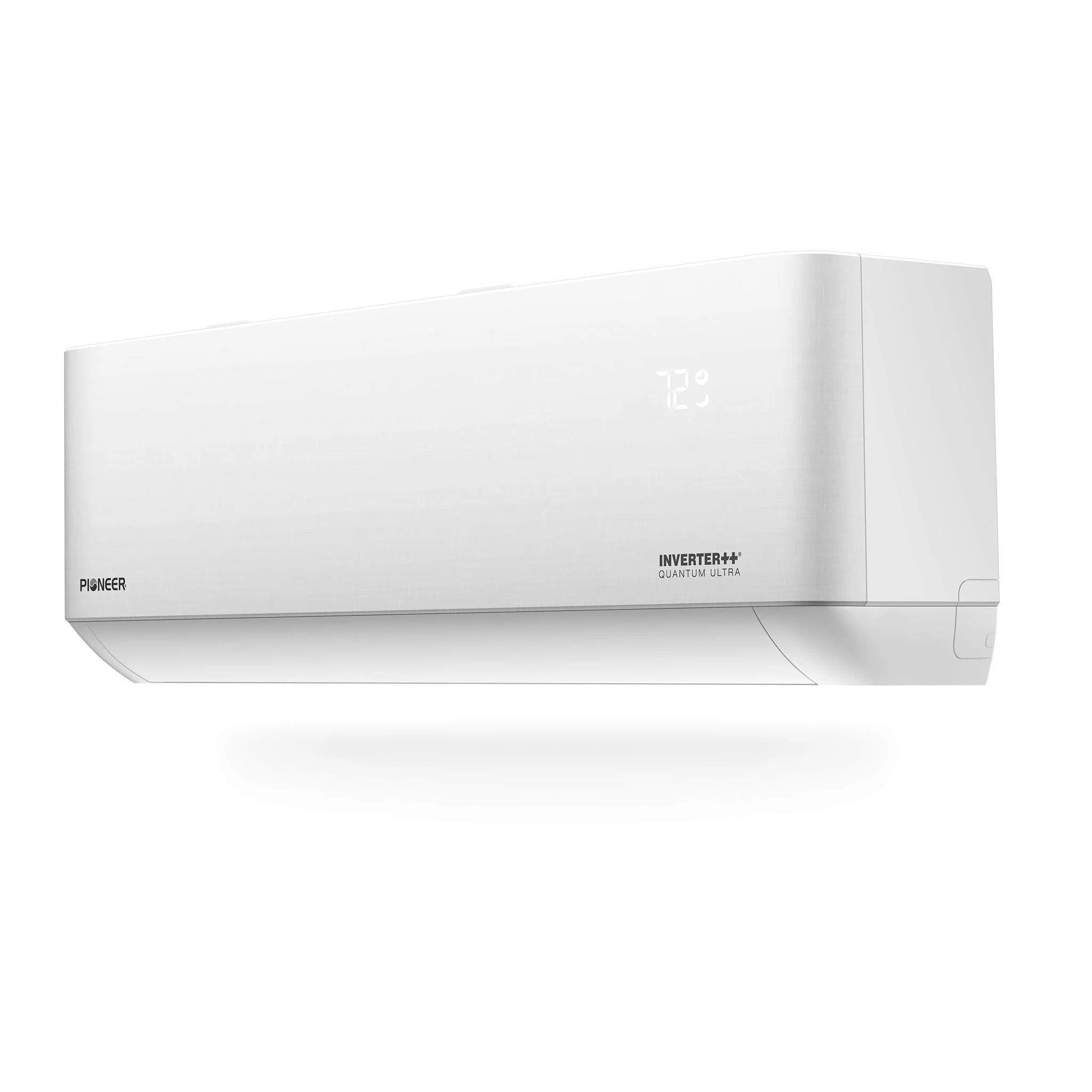

Indoor Unit
Part Number	WT009GLSI24HLG
Air Flow (Turbo/Hi/Med/Lo/Mute)	326/282.5/235/188/153 CFM
Sound Level (Turbo/Hi/Med/Lo/Mute)	43/40/33/31/30 dB(A)
Product Dimensions (WDH)	32"-1/4 x 7"-5/8 x 12" Inches
Carton Dimensions (WDH)	35" x 10"-1/2 x 15" Inches
Net / Gross Weight	20.7 / 25.1 lbs.

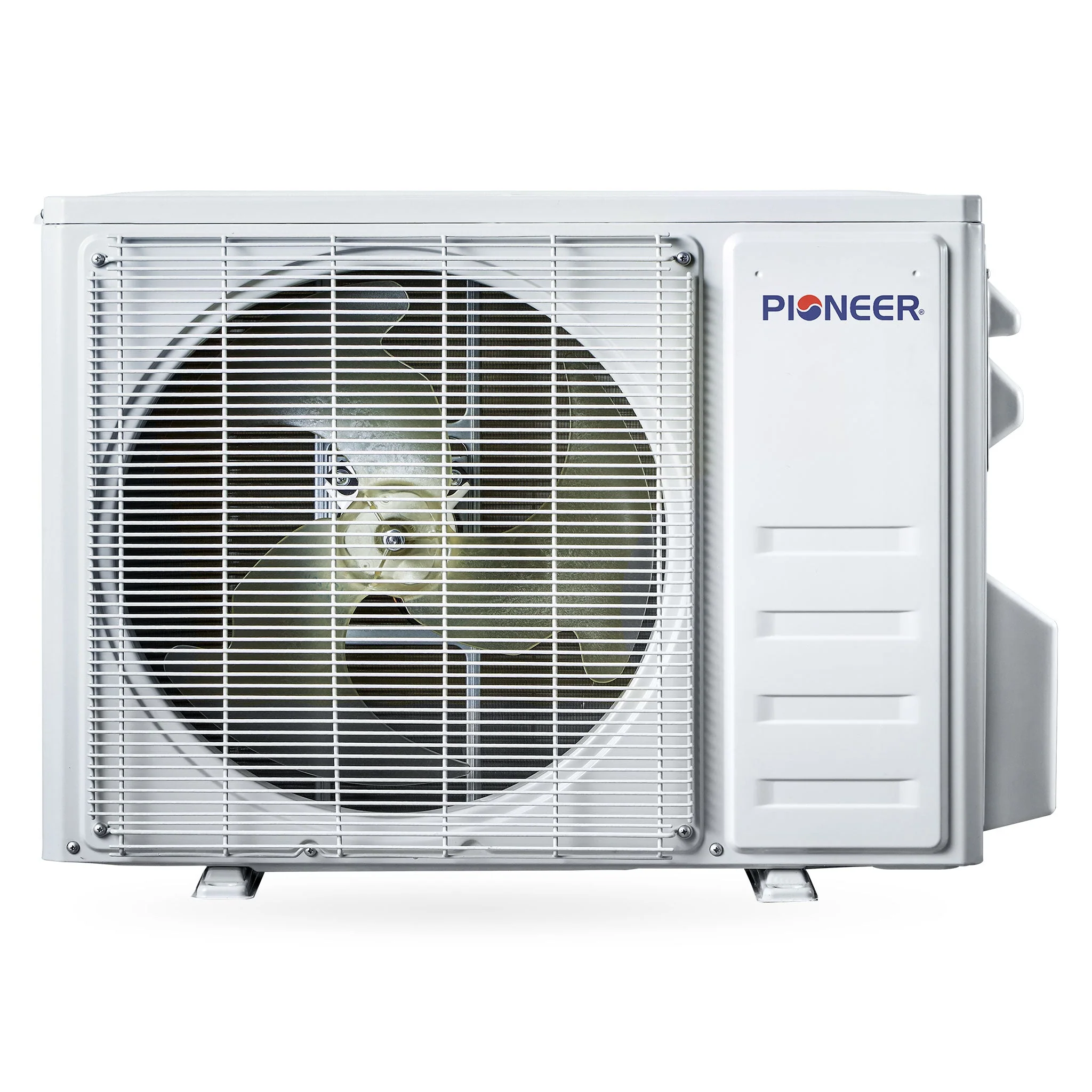

Outdoor Unit
Part Number	YN009GLSI24RPG
Breaker Needed	15A (double-pole)
Sound Level	50 dB(A)
Net Dimensions (WDH)	31"-7/8 x 12" x 21"-5/8 Inches
Carton Dimensions (WDH)	32"-7/8 x 13" x 22"-5/8 Inches
Net / Gross Weight	52.7 / 59.3 lbs.
