Senville AURA 12K BTU Mini Split with 25.4 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handler (SENA-12HF)

Senville SENA-12HF/G is a high-efficiency 12000 BTU ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

Features

• 25.4 SEER2 ENERGY STAR - Save up to 56% on energy costs annually.
• Alexa Enabled Smart Control - Control via voice or app anywhere.
• Recommended for 500–750 sq. ft. - Ideal for medium-sized rooms.
• Heating down to -30°C (-22°F) - Reliable performance in extreme cold.
• Ultra-Quiet Operation - Whisper-quiet for bedrooms & offices.
• Professional Installation - Required to maintain warranty coverage.
• Smart Home Integration with Alexa - Control your Senville system with Alexa or the app from anywhere. Create schedules, adjust settings, and enjoy convenience and energy savings remotely.
• ENERGY STAR Certified - Save up to 56% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
• Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
• Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
• 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
• Installation Kit + Accessories Included - Includes a complimentary 16ft. Installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

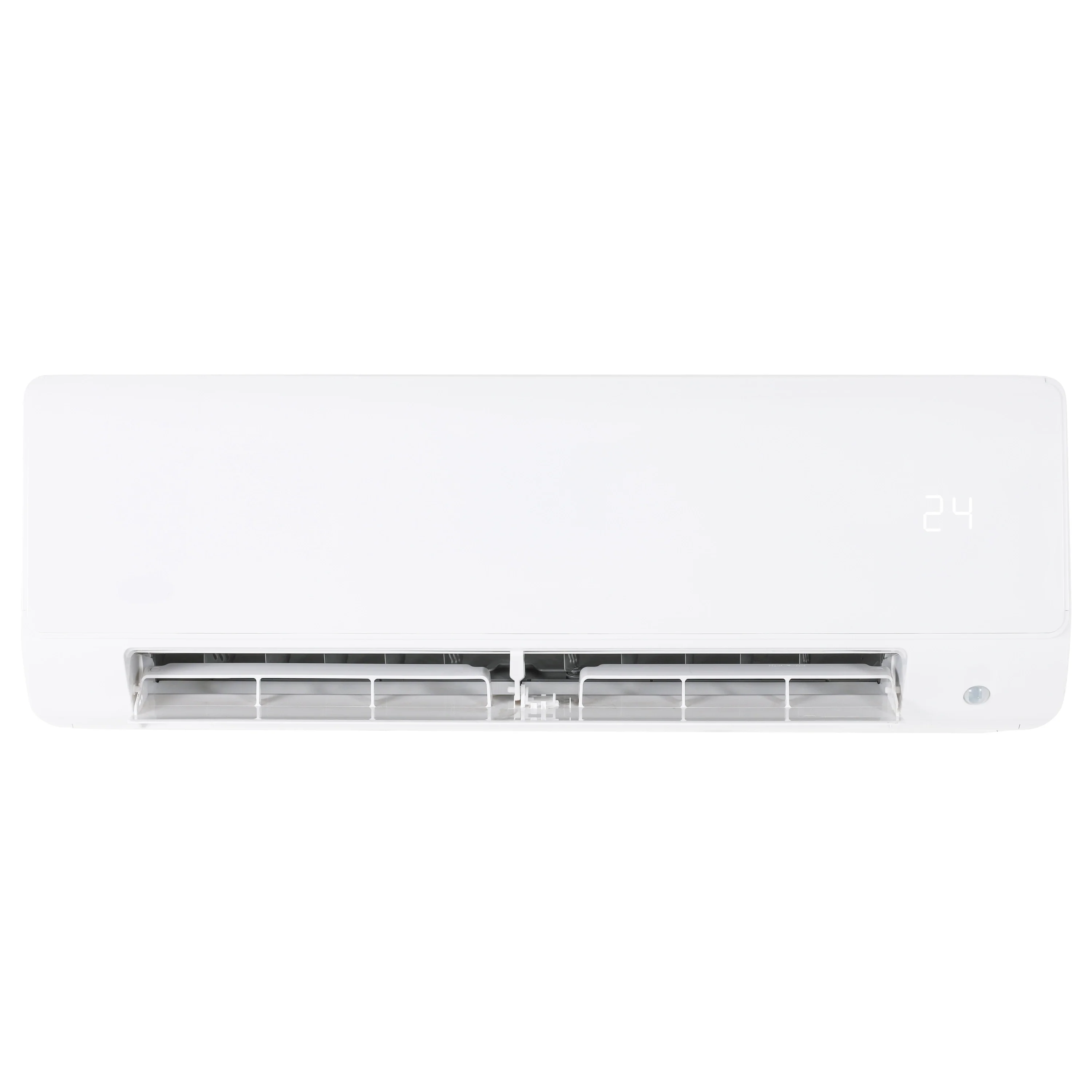

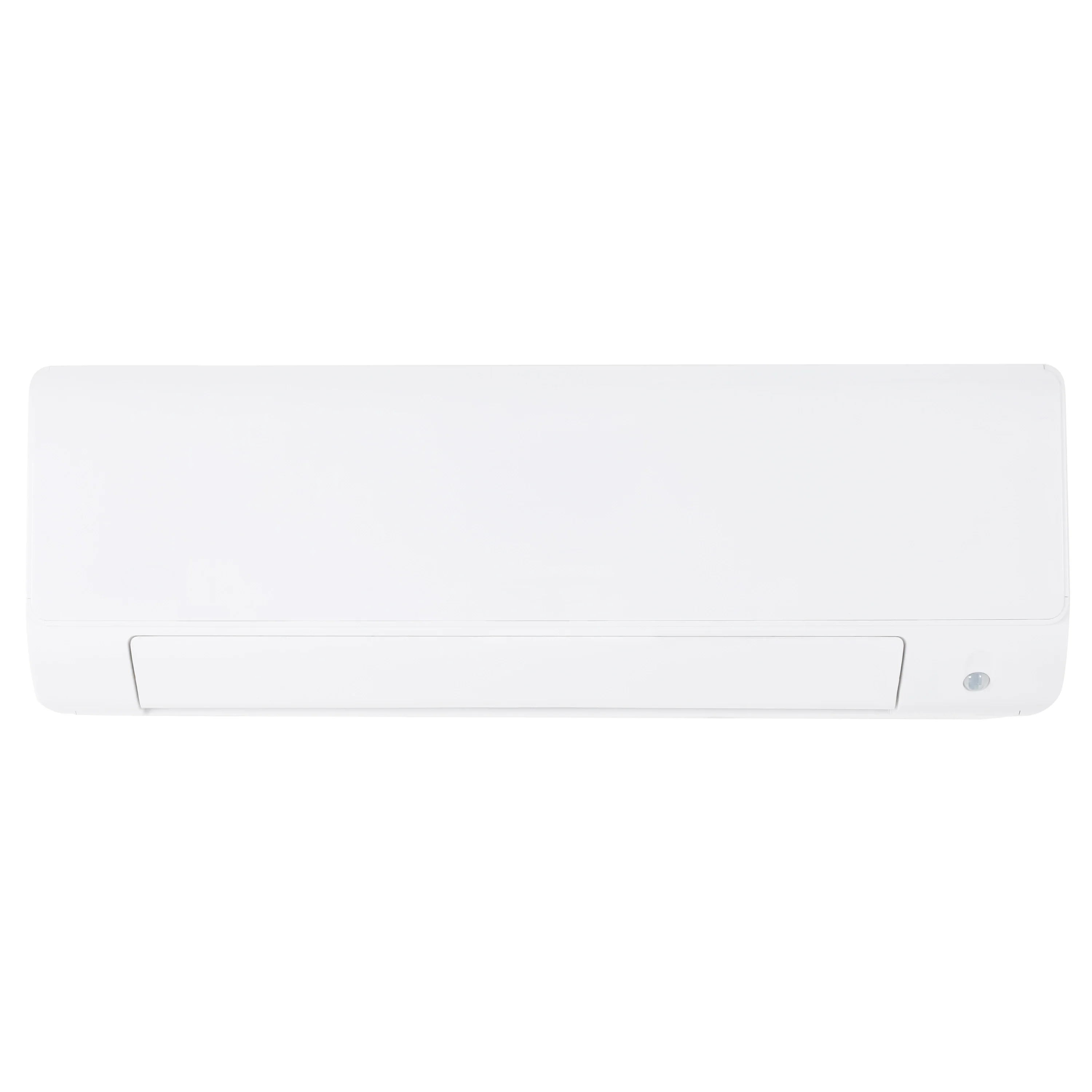

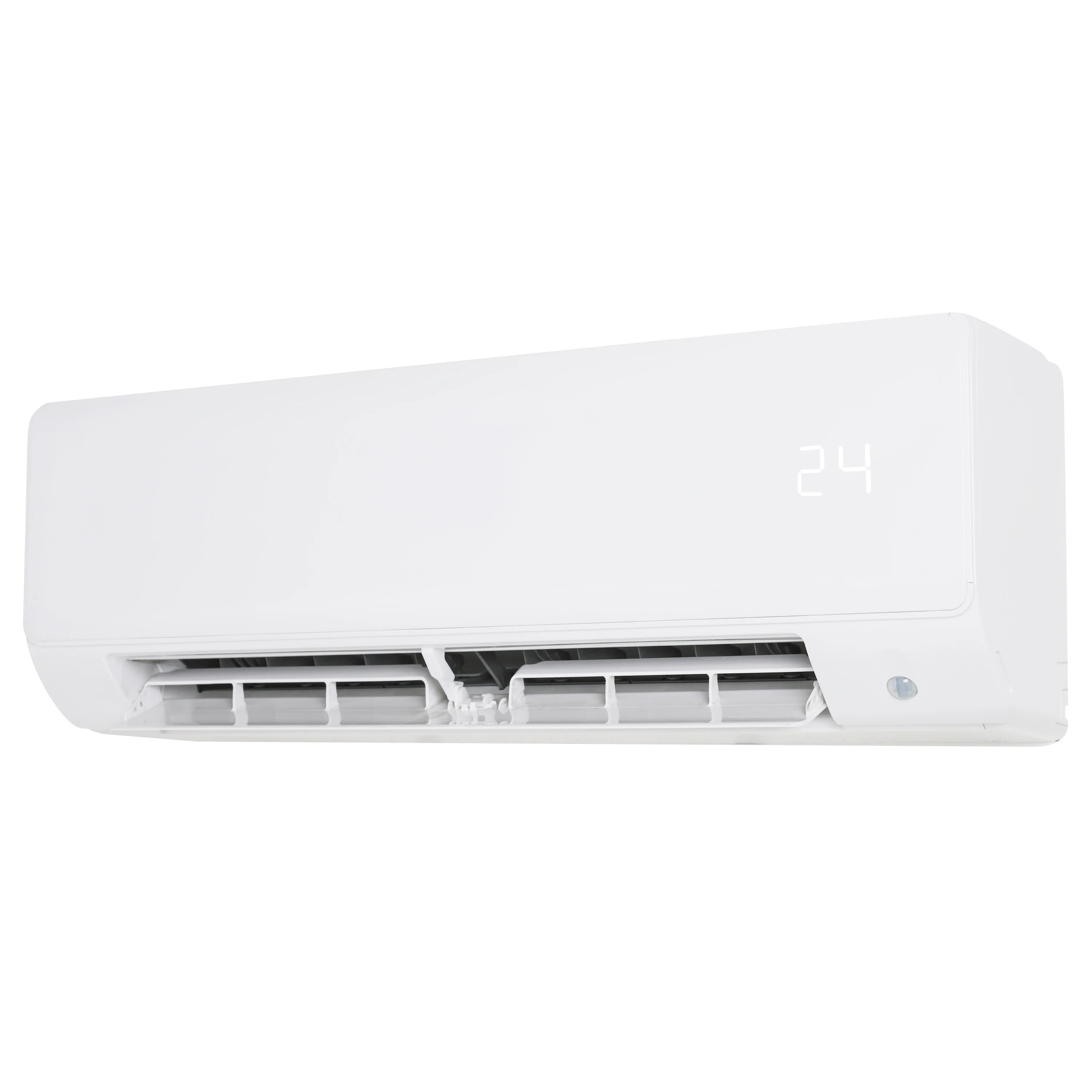

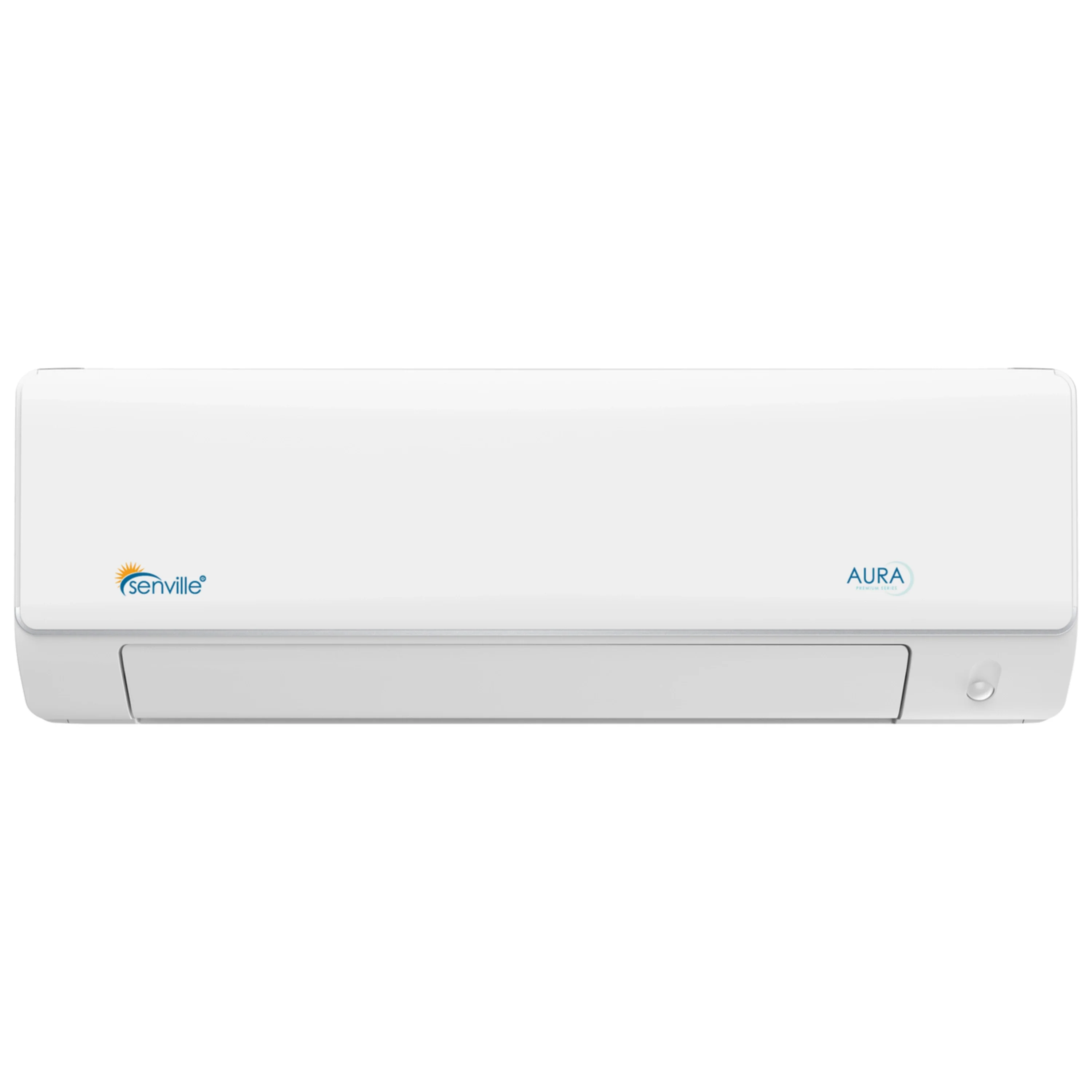

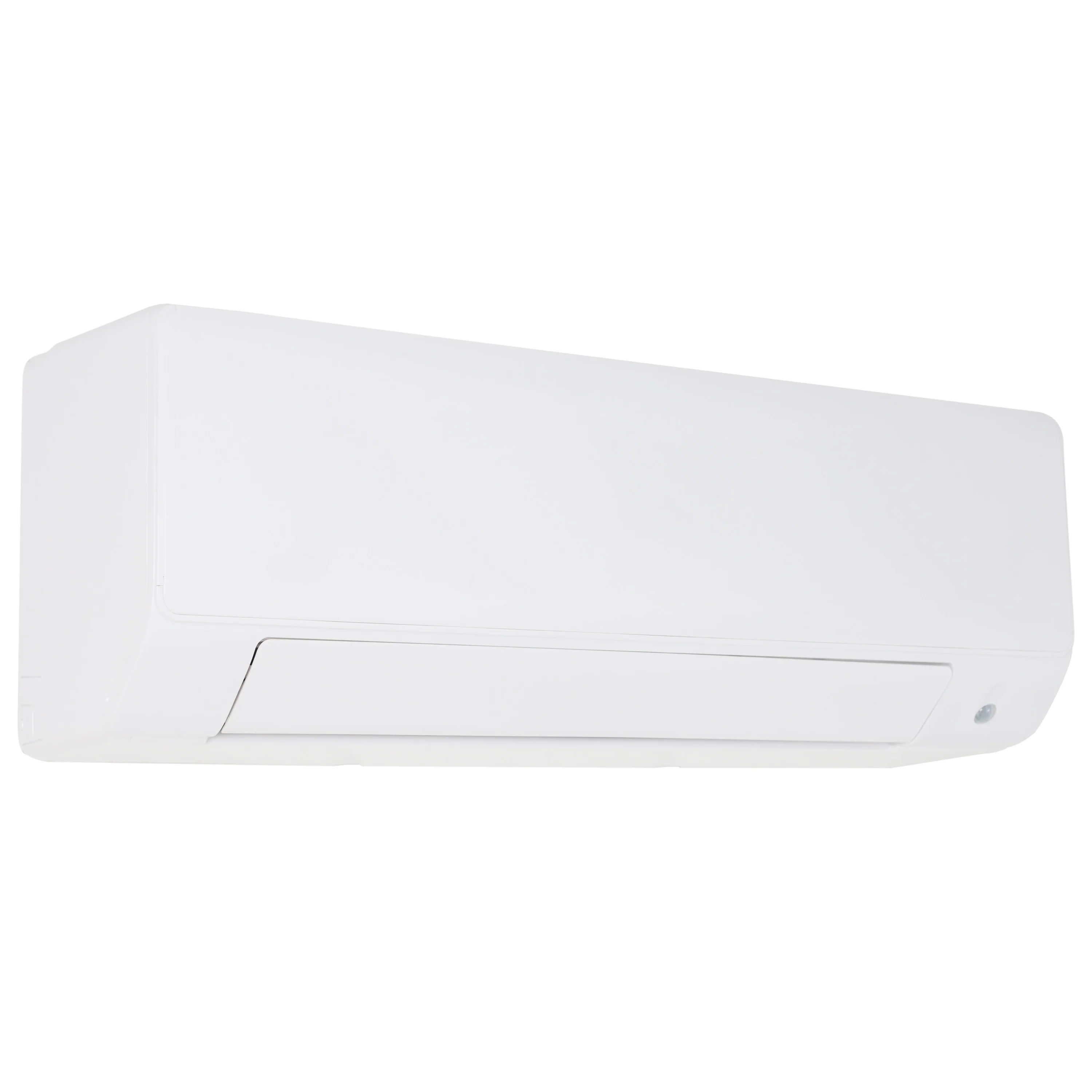

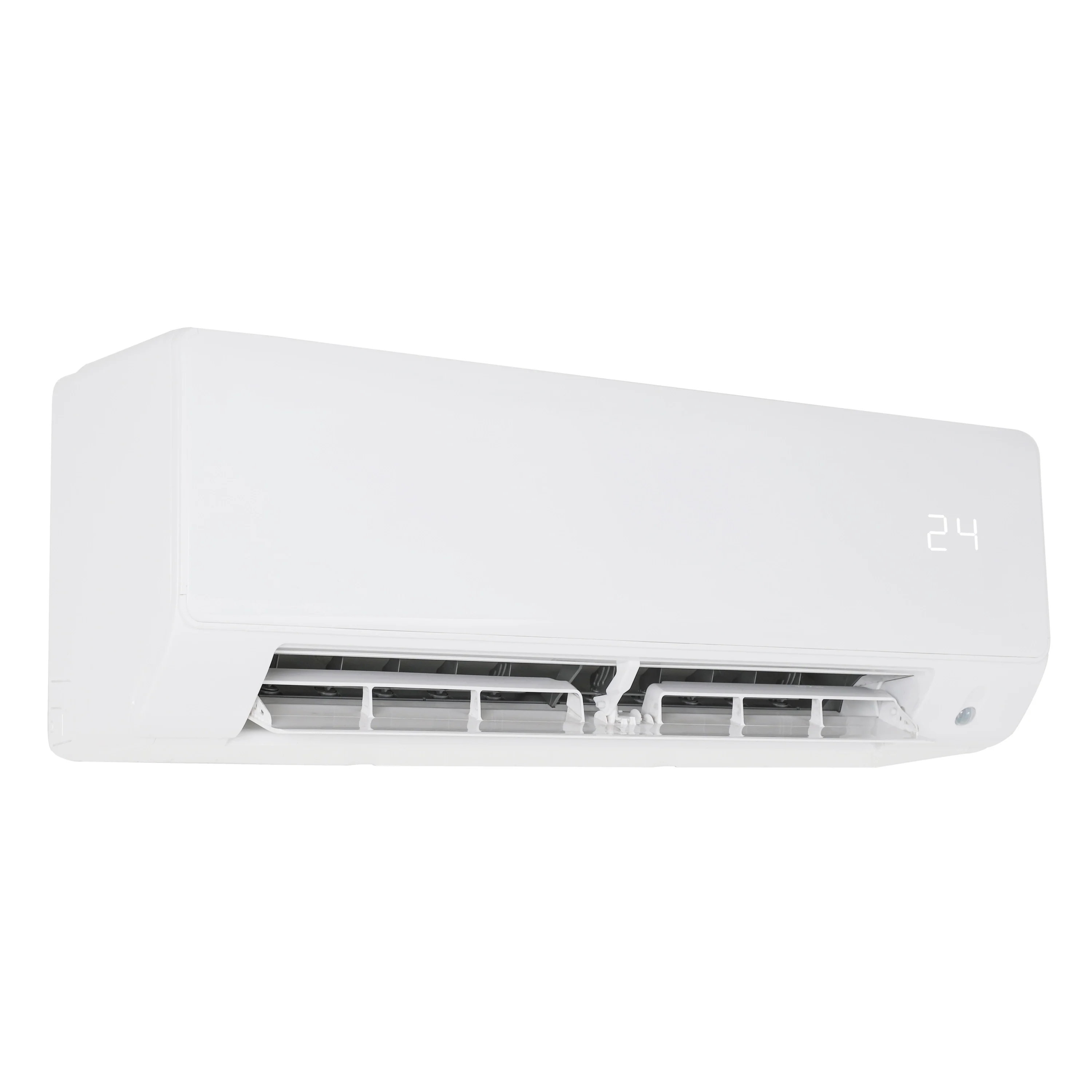

• Indoor Unit
• Outdoor Unit

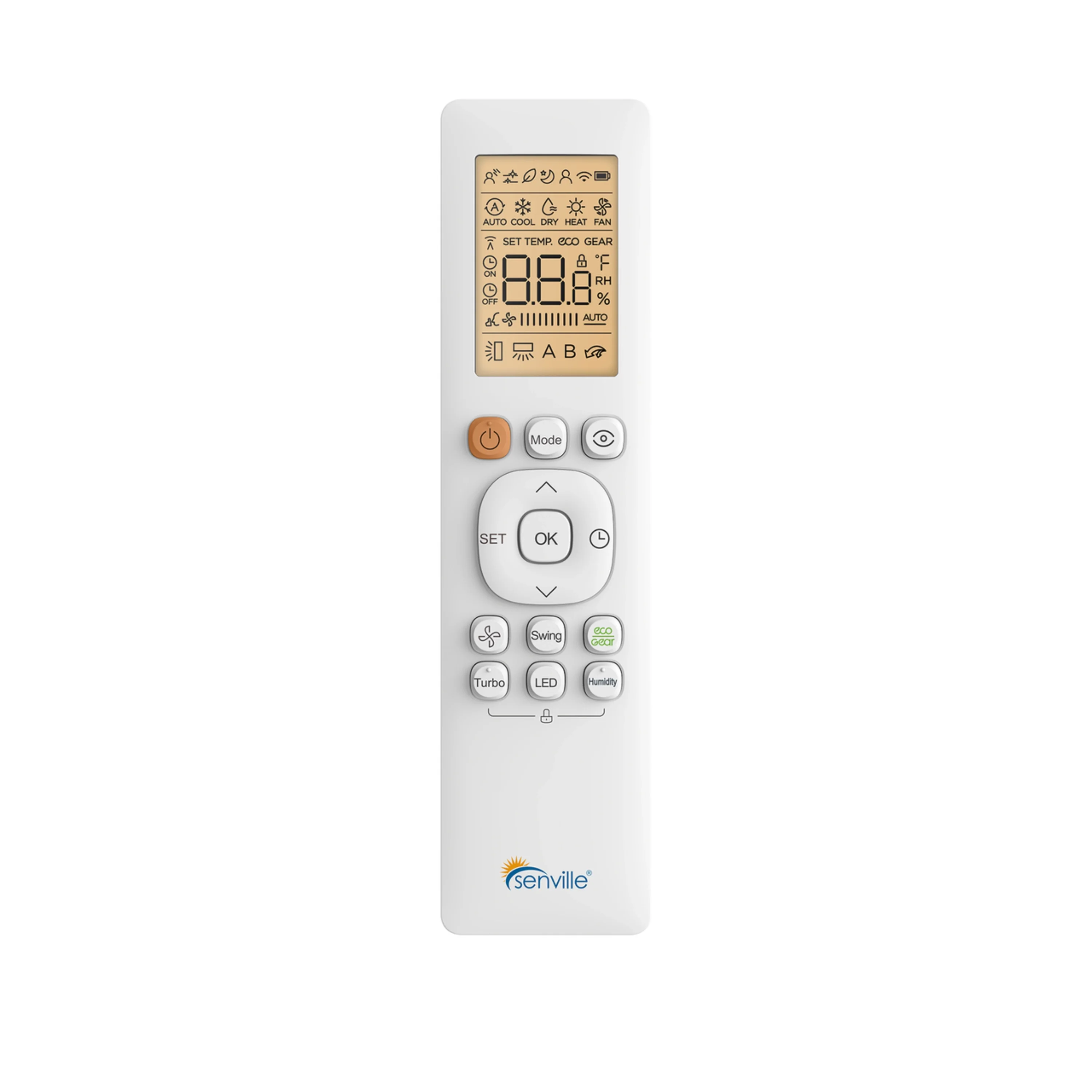

• Wireless Remote Control
• Alexa USB Kit

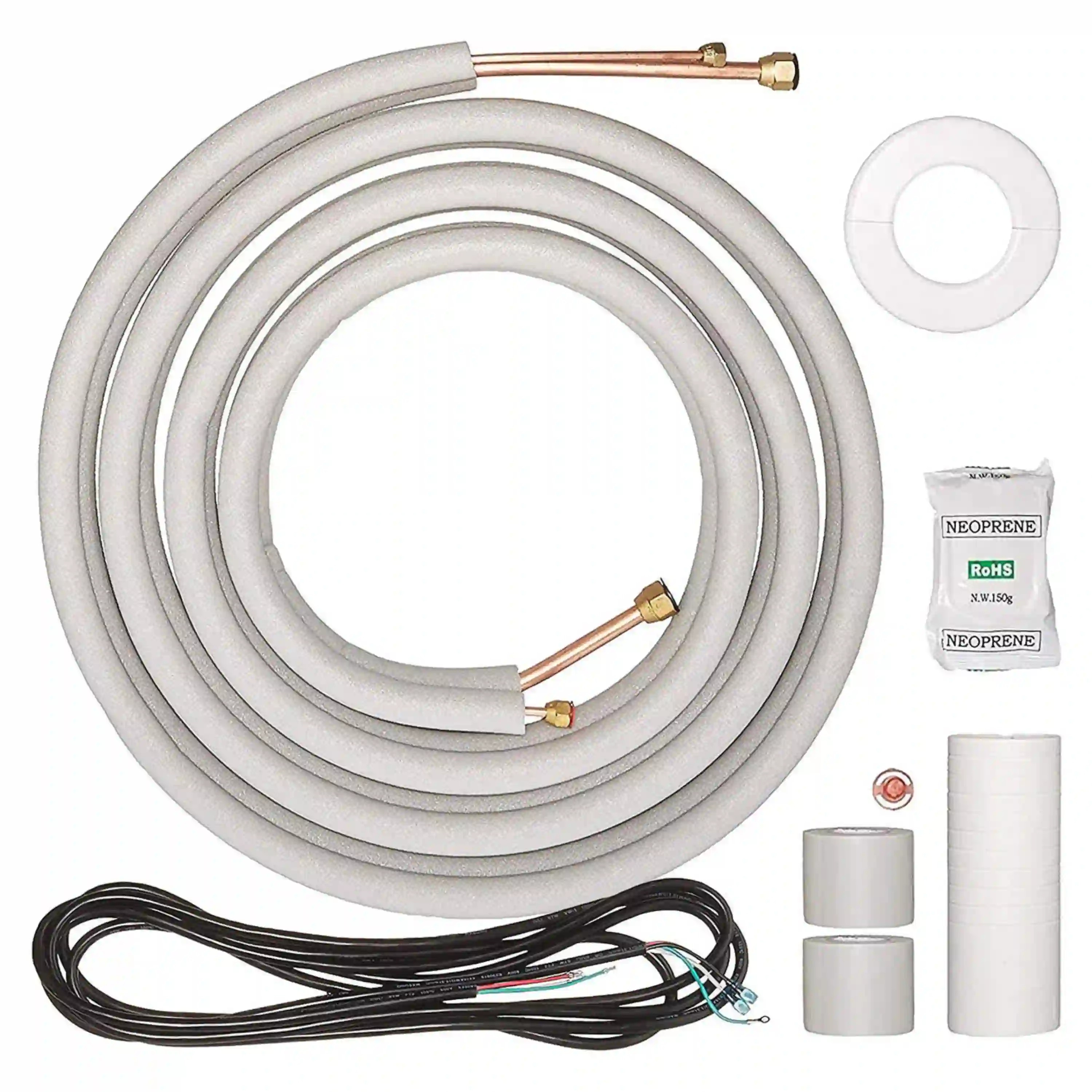

• 16 ft. Installation Kit
• Indoor-Outdoor Wiring Harness
• Installation Manual
• User’s Manual
• 10-Year Manufacturer Warranty

Condenser
Dimensions (WxDxH)	30.31 x 12.20 x 21.65 in
Weight	82.67 lbs
Air Flow (Max) CFM	1300
Noise Level dB	57
Minimum Outdoor Heating Temperature	-22°F / -30°C
Air Handler
Dimensions (WxDxH)	33.40 x 9.18 x 11.76 in
Weight	24.25 lbs
Air Flow (Turbo/H/M/L) CFM	530 / 410 / 320 / 240
Noise Level (Turbo/H/M/L) dB	47 / 40 / 34 / 24
Technical Specifications
Style	Ductless Mini Split AC With Heat Pump
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187–253
SEER2	25.4
EER2	13.5
Cooling Capacity (BTU)	12000
Cooling Range (BTU)	3500~13500
Cooling Input Range (W)	350~1200
Cooling Current Range (A)	1.8~6.0
Heating Capacity (BTU)	13000
Heating Range (BTU)	4000~14500
Heating Input Range (W)	400~1300
Heating Current Range (A)	2.0~6.8
HSPF2-4	13.7
HSPF2-5	9.6
COP W/W	3.45
Minimum Circuit Ampacity (A)	12
Max. Fuse (A)	15
Moisture Removal (L/H)	1.4
Outdoor Air Flow (Max) CFM	1300
Outdoor Noise Level dB	57
Outdoor Dimensions (WxDxH)	30.31 x 12.20 x 21.65 in
Outdoor Weight	82.67 lbs
Minimum Outdoor Heating Temperature	-22°F / -30°C
Refrigerant Type / Charge	R454B / 40.92 oz
Refrigerant Pre-charge	16 ft
Connection Wiring	14*4 AWG
Thermostat Type	Remote Control
Alexa	Enabled
Warranty	10 Years Compressor / 5 Years Parts
