Senville LETO Series 12K BTU Mini Split with 21.3 SEER2, 230 Ductless Air Conditoner and Heat Pump Condenser with Wall Mount Air Handler (SENL-12CD/220)

The Senville SENL-12CD/220 is a 12000 BTU mini split air conditioner and heat pump that offers a versatile and affordable solution to cooling and heating your home or business.

Features

• 21.3 SEER2 High Efficiency - Save energy while cooling and heating efficiently.
• DC Inverter Technology - Reduces energy consumption by up to 48% yearly.
• Ideal for 450–750 sq. ft. - Perfect for bedrooms, offices, and smaller living spaces.
• Heating down to -15°C (5°F) - Reliable warmth even in colder climates.
• Dehumidifier, Fan & Turbo - Customize your comfort with multiple modes.
• Professional Installation - Licensed professional installation required.

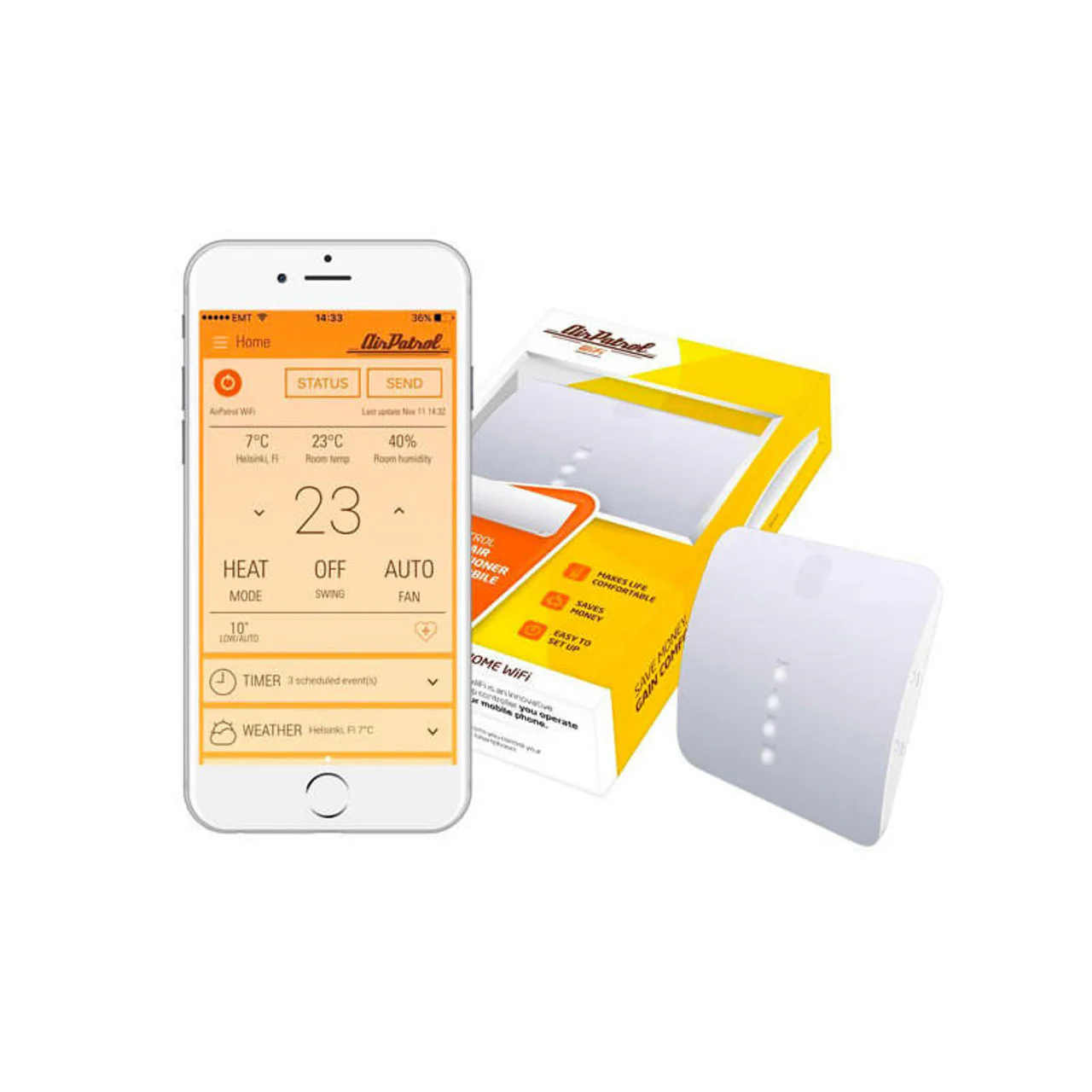

• Smart Home Integration with Alexa - Easily control your Senville 18000 BTU mini split air conditioner with your voice or the Alexa app. Turn it on/off, adjust temperatures, or set schedules remotely. Enjoy convenience and energy savings with WiFi-enabled control.
• Energy-Saving Inverter Technology - Enjoy significant energy savings with Senville's DC Inverter system. The ductless heat pump automatically adjusts power to maintain your ideal temperature while reducing energy use by up to 48% yearly.
• Quiet Operation & Sleep Mode - Enjoy whisper-quiet operation as low as 22.5 dB. Sleep Mode gradually adjusts temperatures overnight for energy efficiency and comfort.
• 5-Year Manufacturer's Warranty - Includes 5-year compressor & parts warranty with North American support for peace of mind and reliable service.

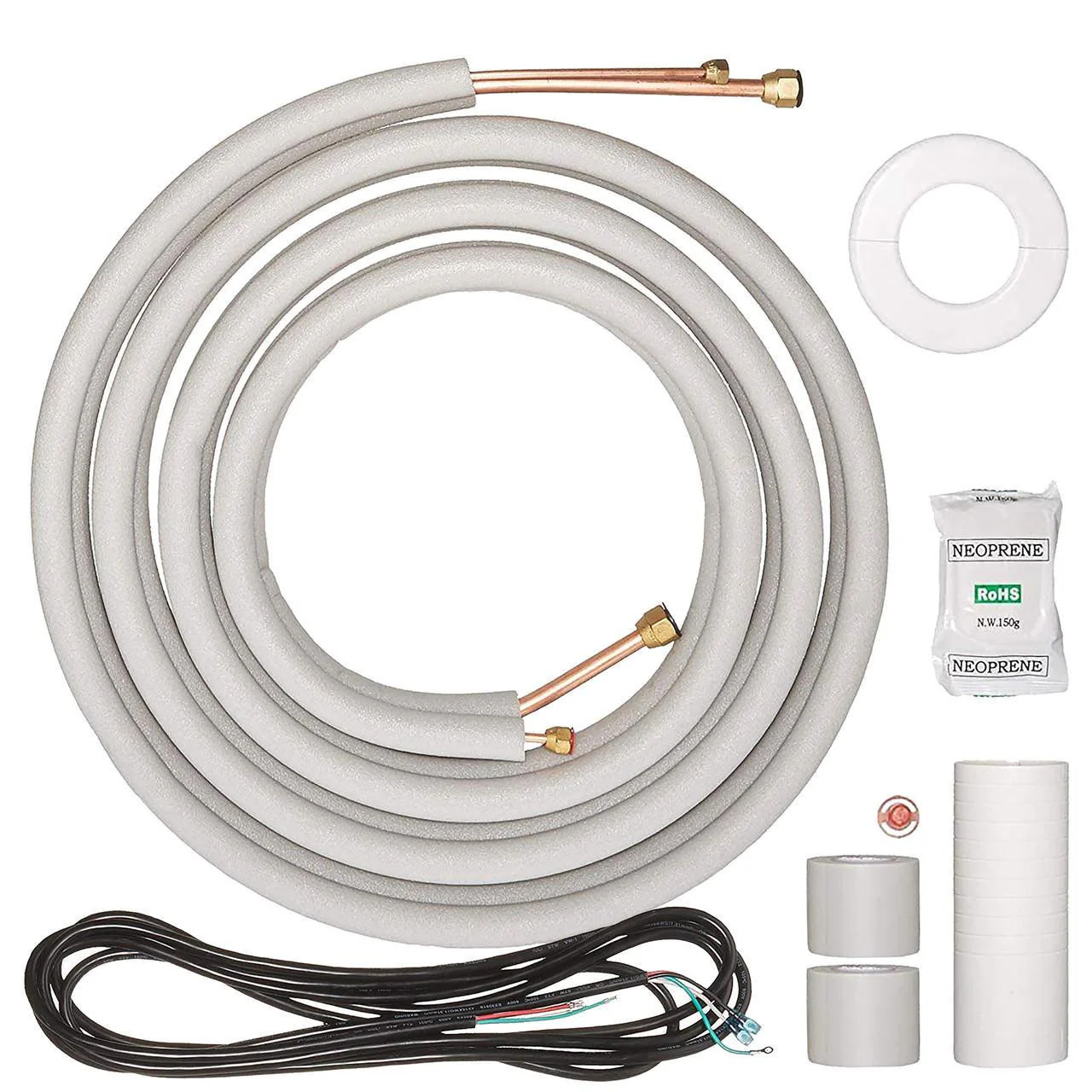

• Installation Kit + Accessories Included - Includes a complimentary 16ft. Installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

• Indoor Unit

• Outdoor Unit

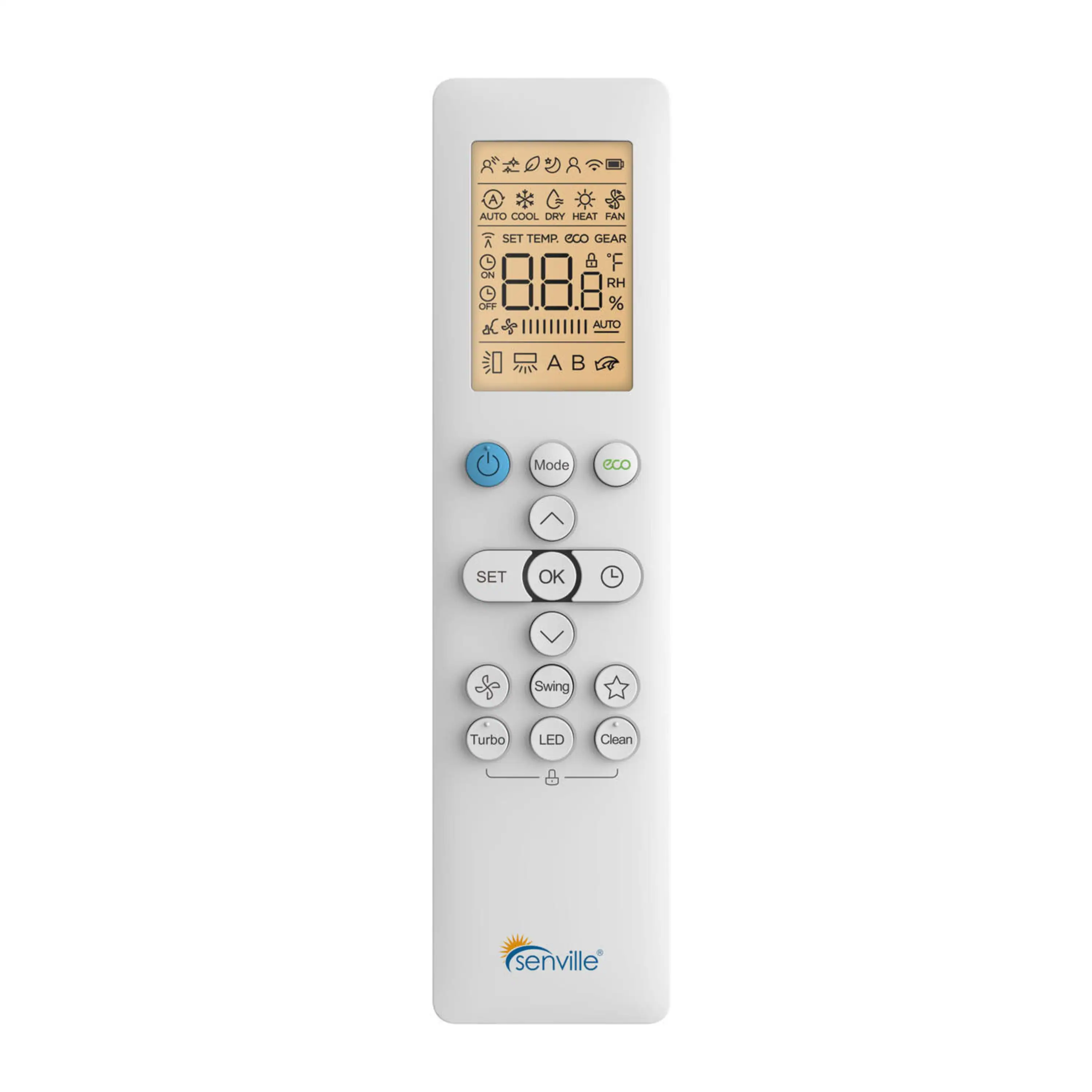

• Wireless Remote Control

• Installation Kit

• Indoor to Outdoor Wiring Harness

• Alexa USB Kit

• Installation Manual

• User’s Manual

• Manufacturer Warranty

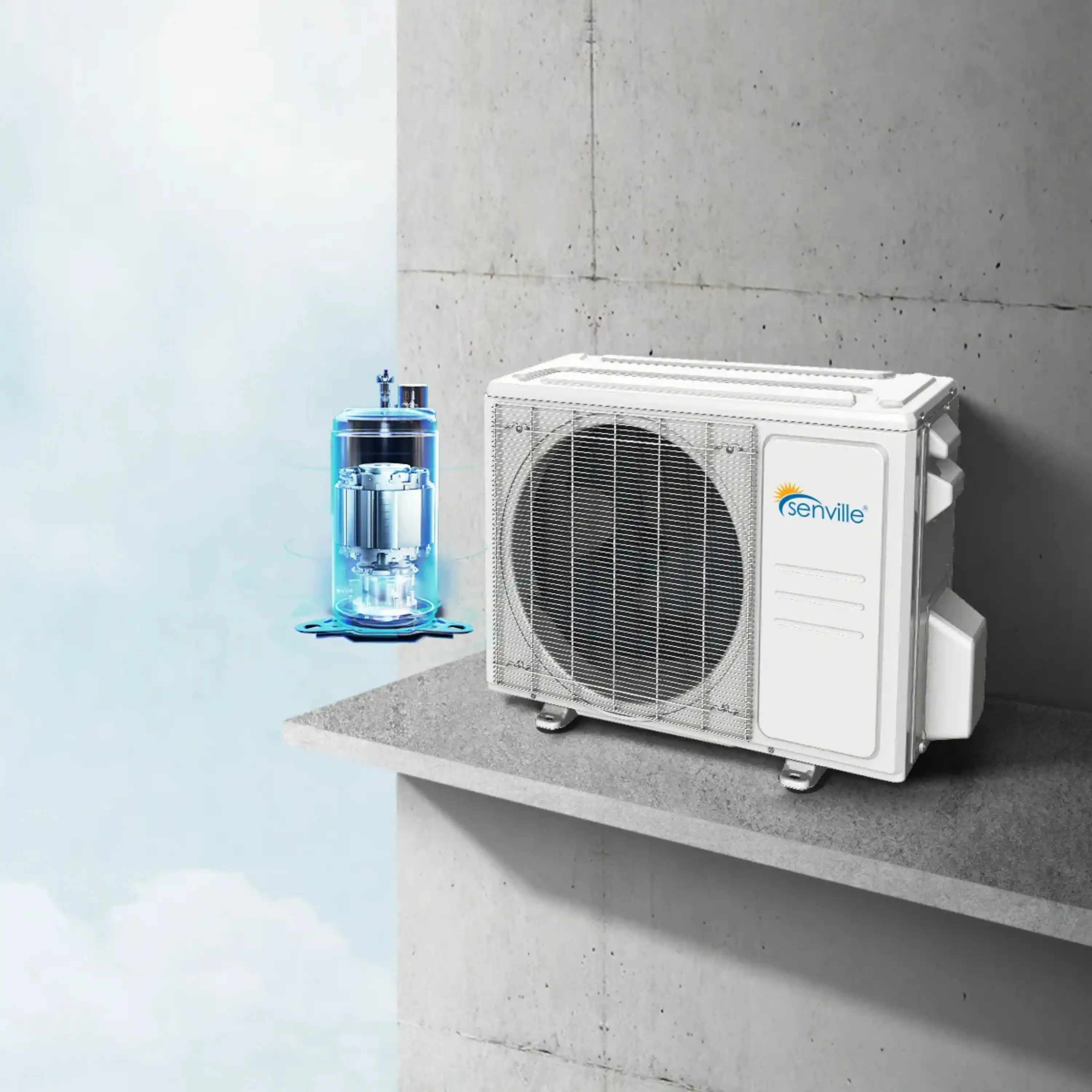

Condenser
Dimensions (WxDxH) (in.)	30.12 x 11.93 x 21.85
Weight	59.08 lbs.
Air Flow (Max) CFM	1235.3
Noise Level dB	54.0

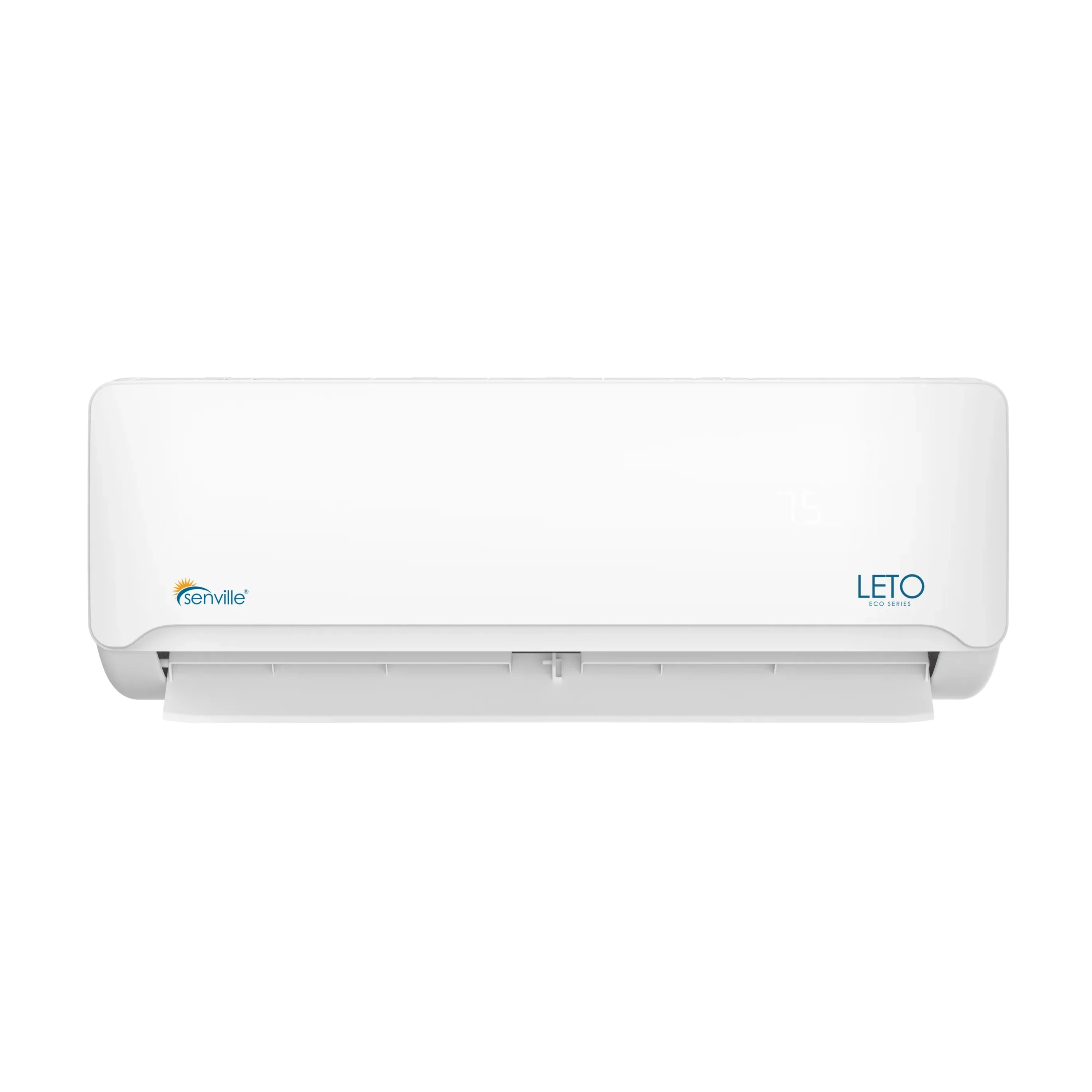

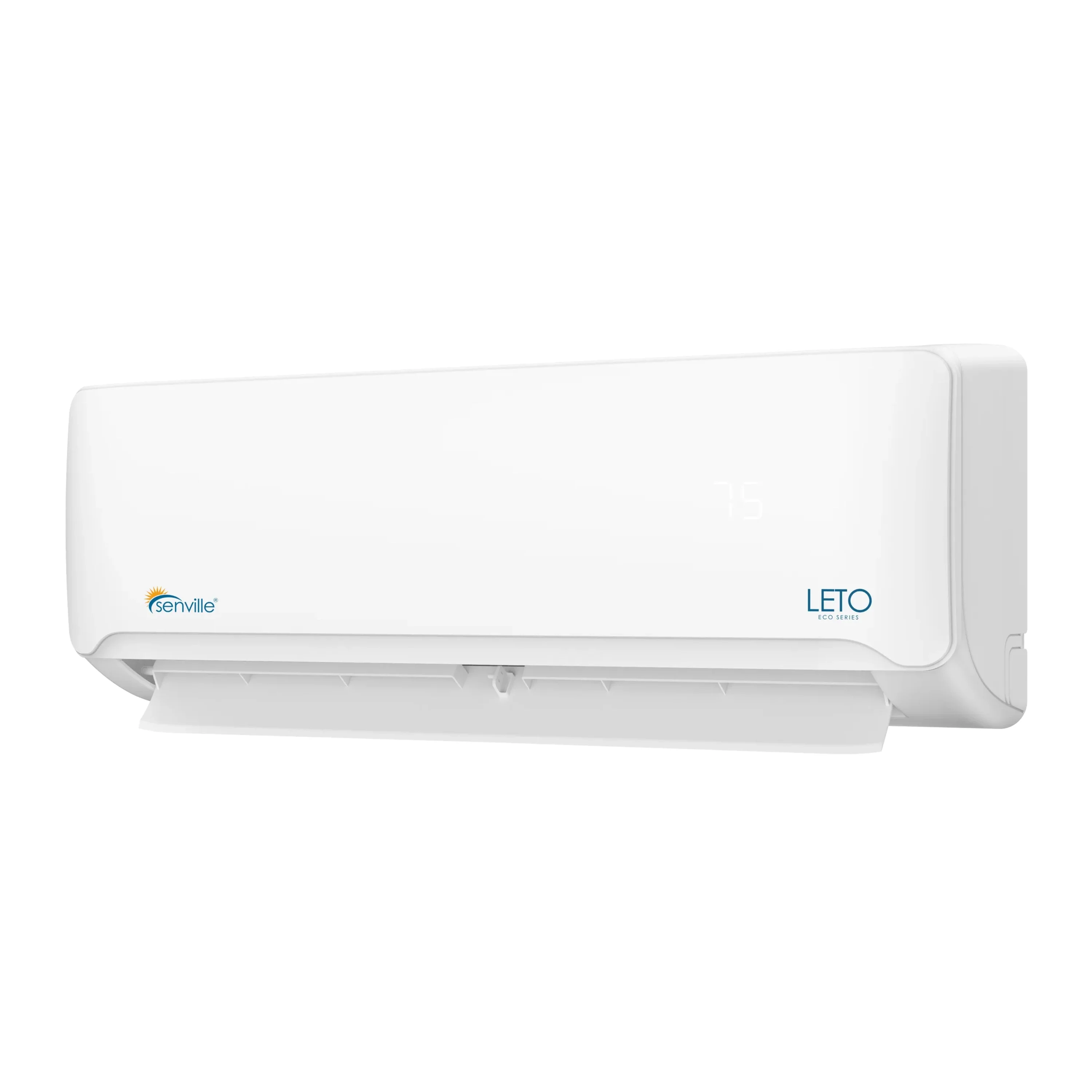

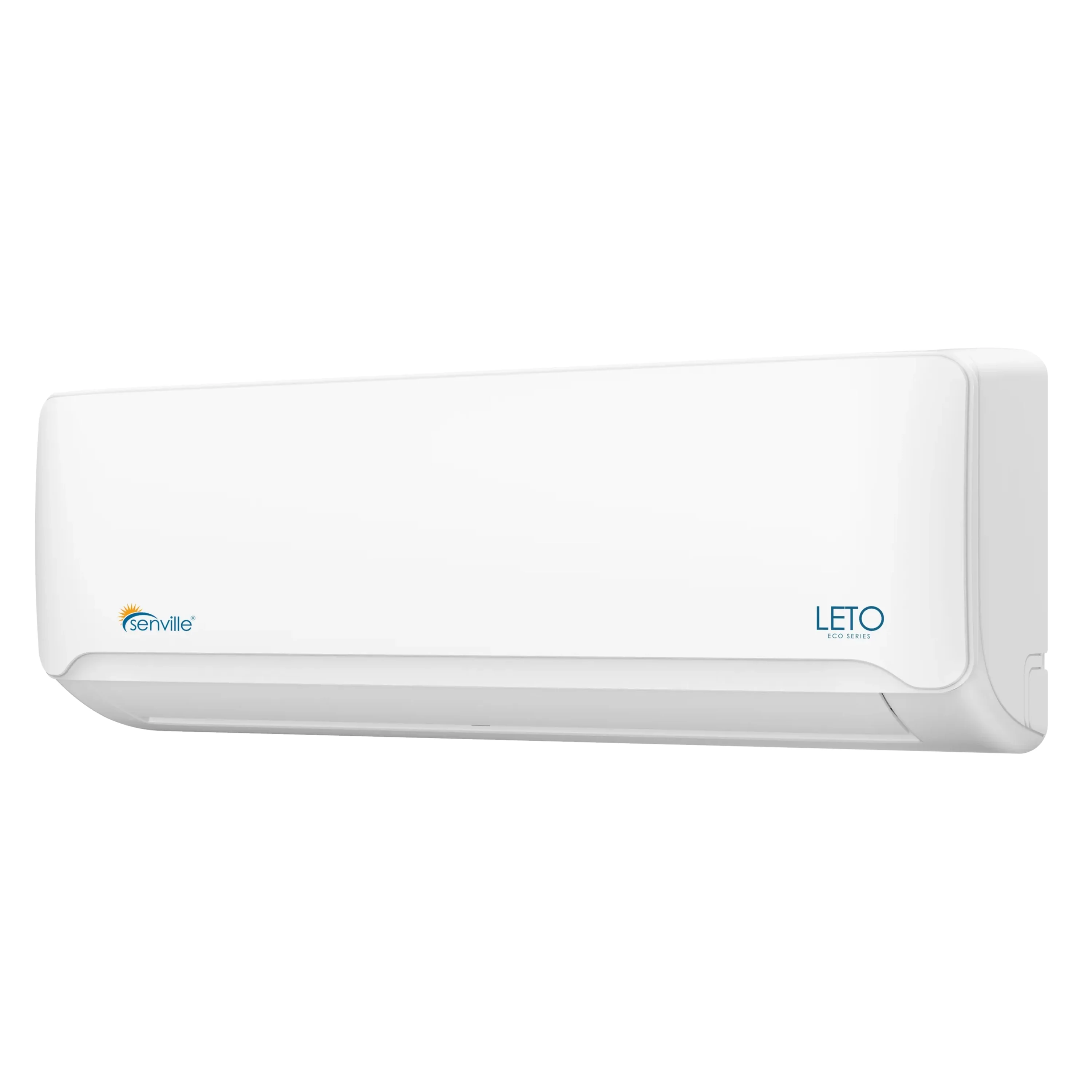

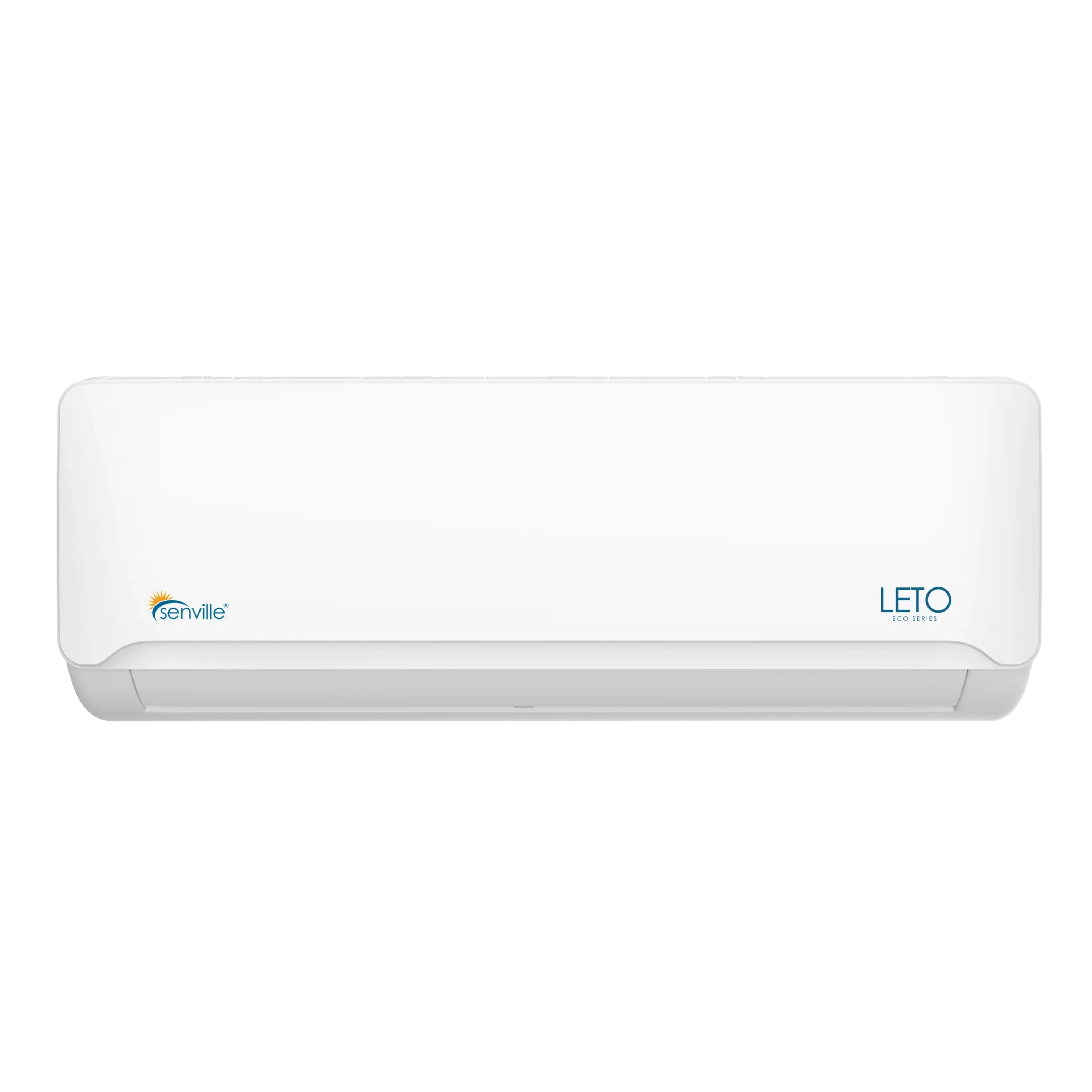

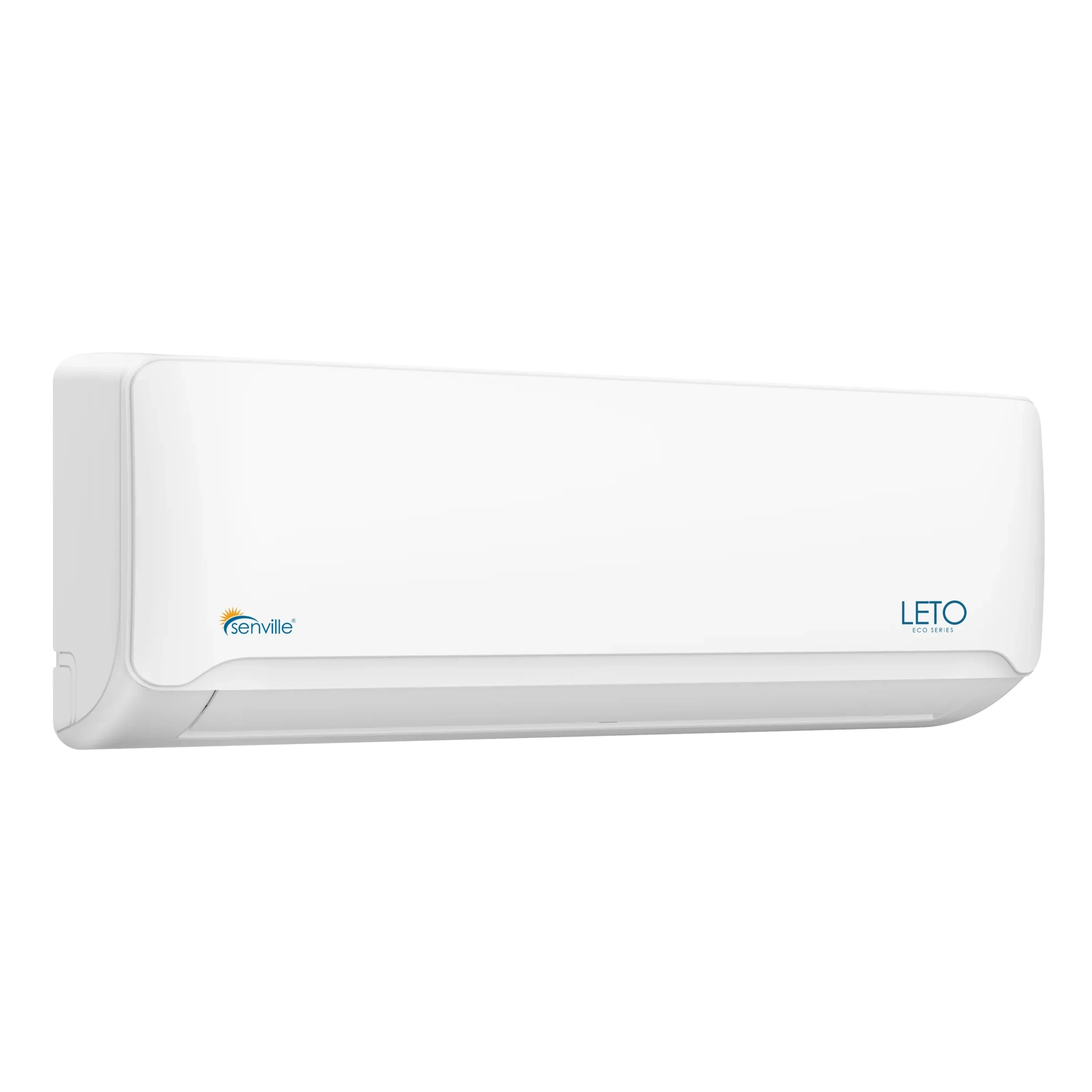

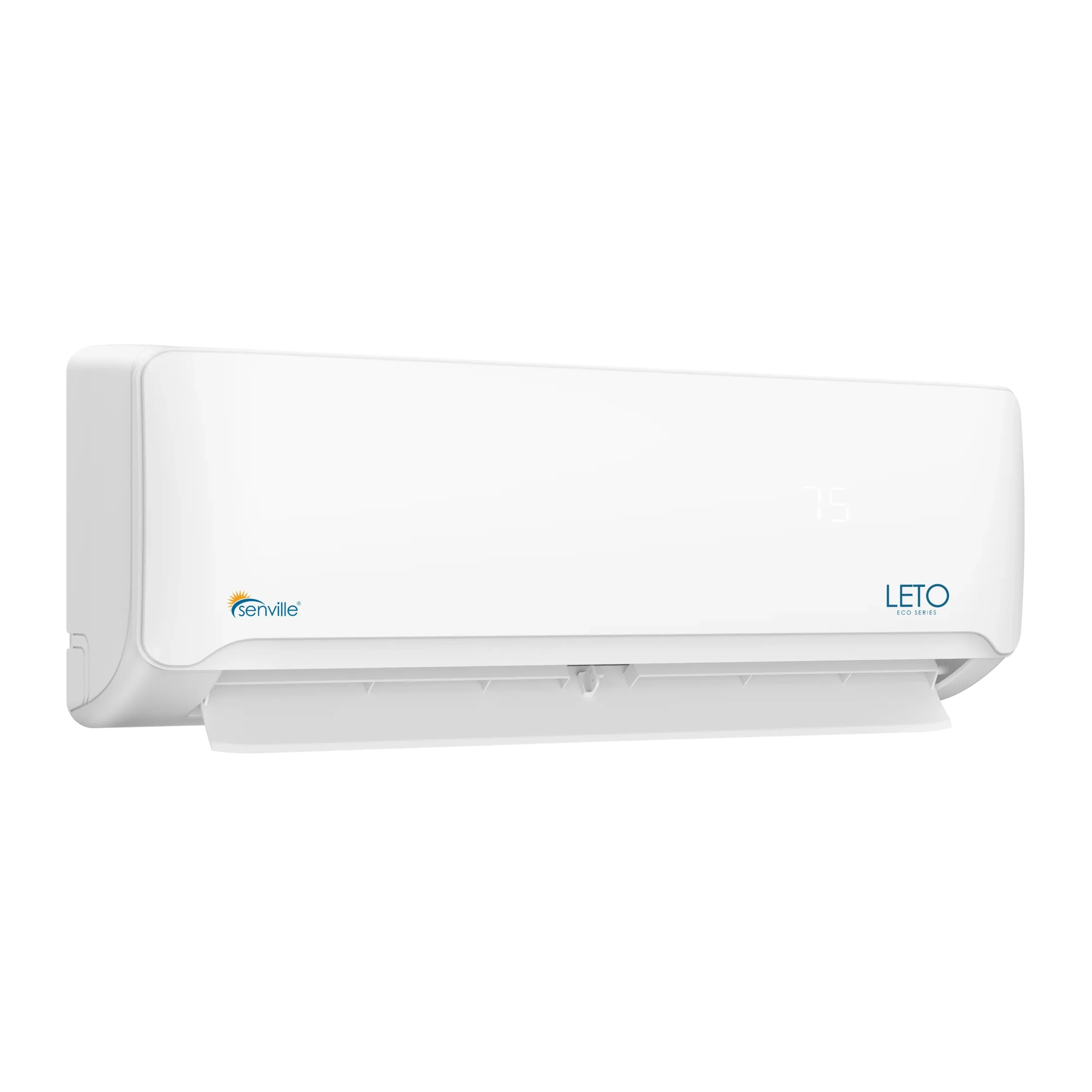

Air Handler
Dimensions (WxDxH) (in.)	31.57 x 7.44 x 11.69
Weight	19.4 lbs.
Air Flow (Turbo/H/M/L) CFM	359.0 / 306.1 / 206.0 / 144.2
Noise Level (Turbo/H/M/L) dB	44.0 / 38.0 / 32.0 / 22.5
Technical Specifications
SEER2	21.3
EER2	10.8
Style	Ductless Mini Split AC With Heat Pump
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
Cooling Capacity (BTU)	12000
Cooling Range (BTU)	1700~13300
Cooling Input Range (W)	140~1400
Cooling Current Range (A)	1.3~6.2
Heating Capacity (BTU)	12000
Heating Range (BTU)	2400~12200
Heating Input Range (W)	200~1230
Heating Current Range (A)	1.1~13.2
HSPF2-4	9.1
HSPF2-5	7.0
COP W/W	3.18
Minimum Circuit Ampacity (A)	13
Max. Fuse (A)	15
Moisture Removal (L/H)	2.5
Refrigerant Type	R454B
Refrigerant Pre-charge	25 ft.
Connection Wiring	14*4 AWG
Thermostat Type	Remote Control
Alexa	Enabled
Warranty	5 Years Compressor / 5 Years Parts
Certification	ETL Certified/ AHRI Certified
