Senville 18K BTU Mini Split with 20.4 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Floor Mounted Air Handler (SENA-18HF-IF)

Senville SENA-18HF/IF is a high-efficiency 18000 BTU floor mount ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

Features

• 20.4 SEER2 ENERGY STAR - Save up to 40% on energy costs annually.
• Ultra-Quiet Operation - Whisper-quiet for bedrooms & offices.
• Heating down to -30°C (-22°F) - Reliable performance in extreme cold.
• Professional Installation - Required to maintain warranty coverage.
• ENERGY STAR Certified - Save up to 40% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
• Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
• Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
• 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
•  Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

• Indoor Unit
• Outdoor Unit

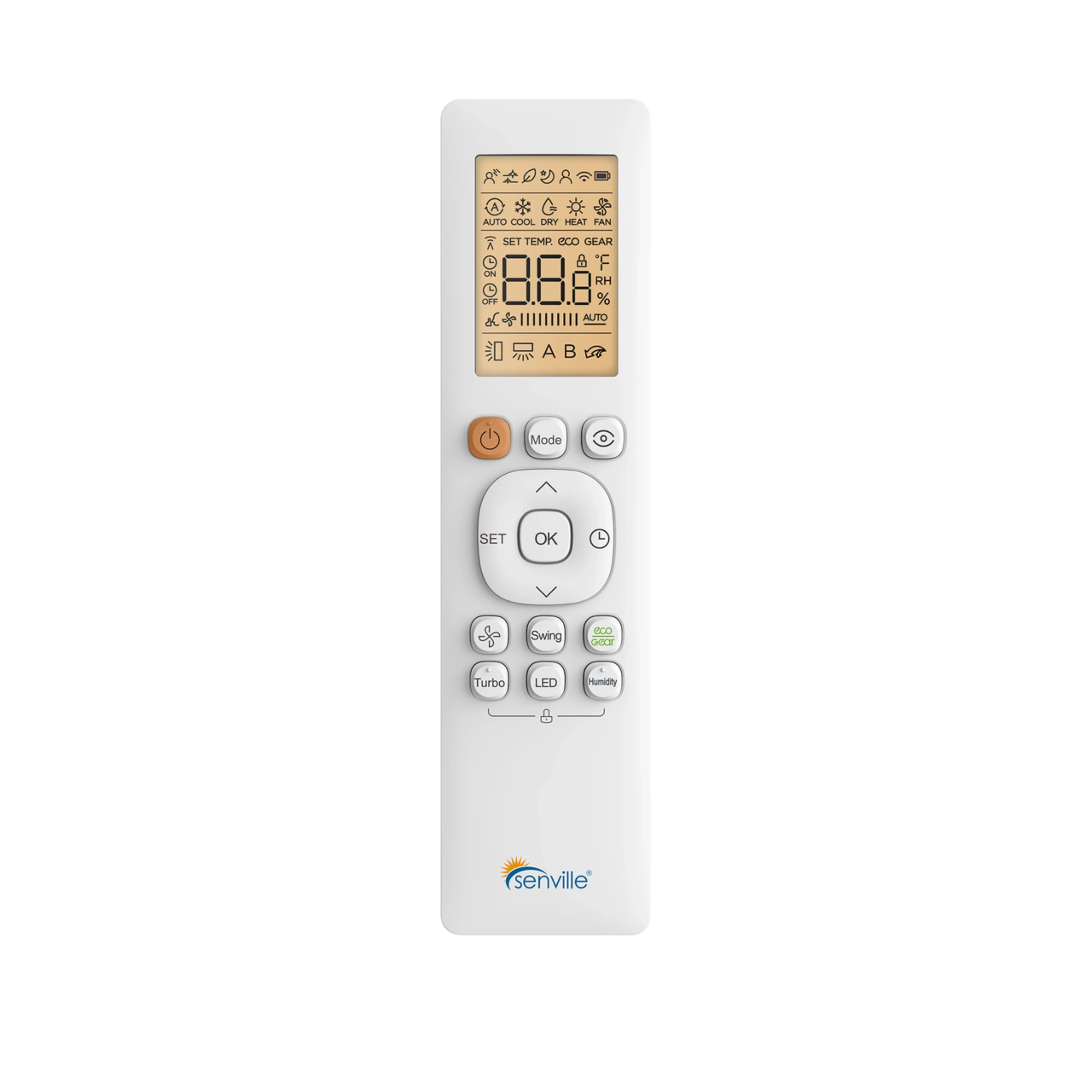

• Wireless Remote Control

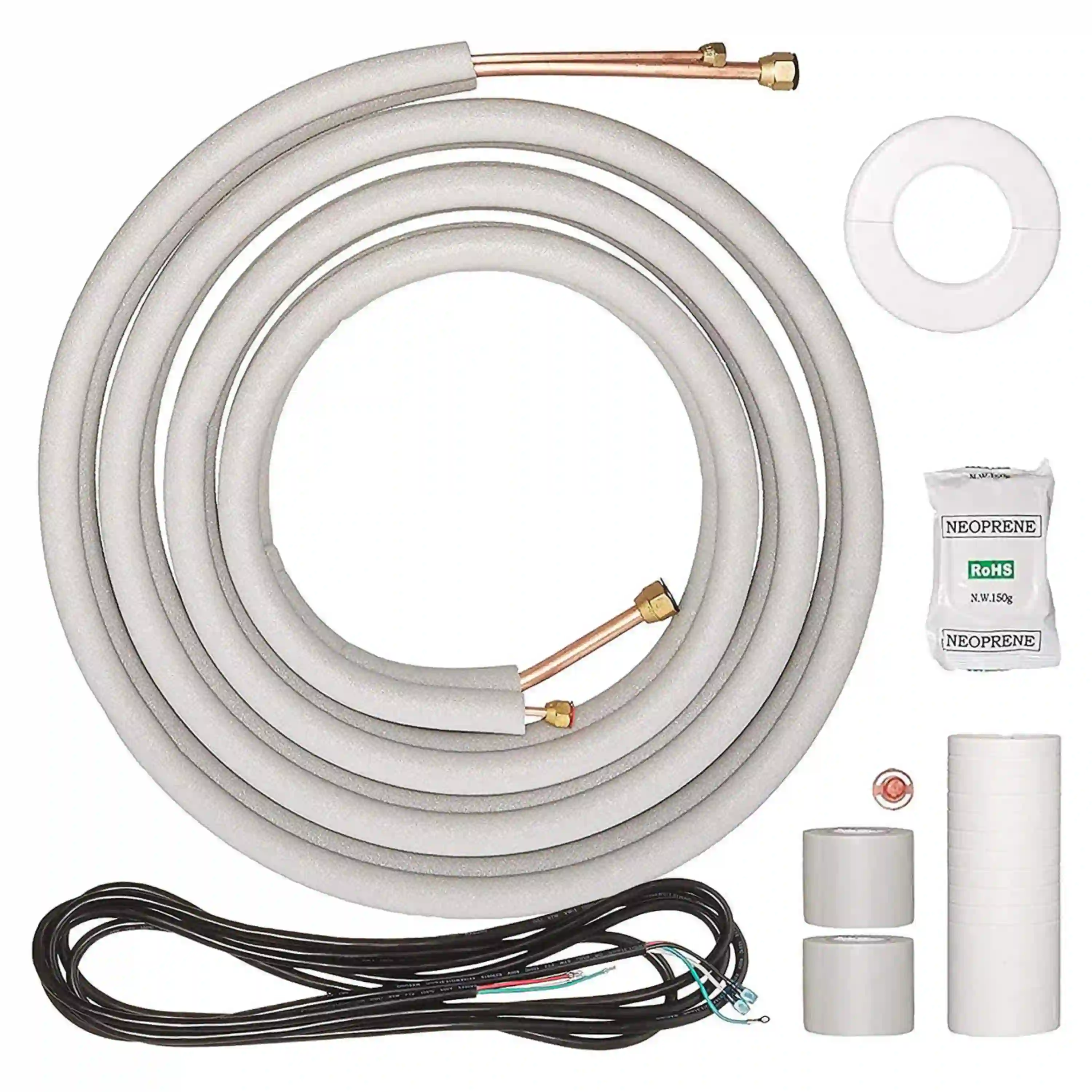

• Installation Kit
• Indoor-Outdoor Wiring Harness
• Installation Manual
• User’s Manual
• 10-Year Manufacturer Warranty

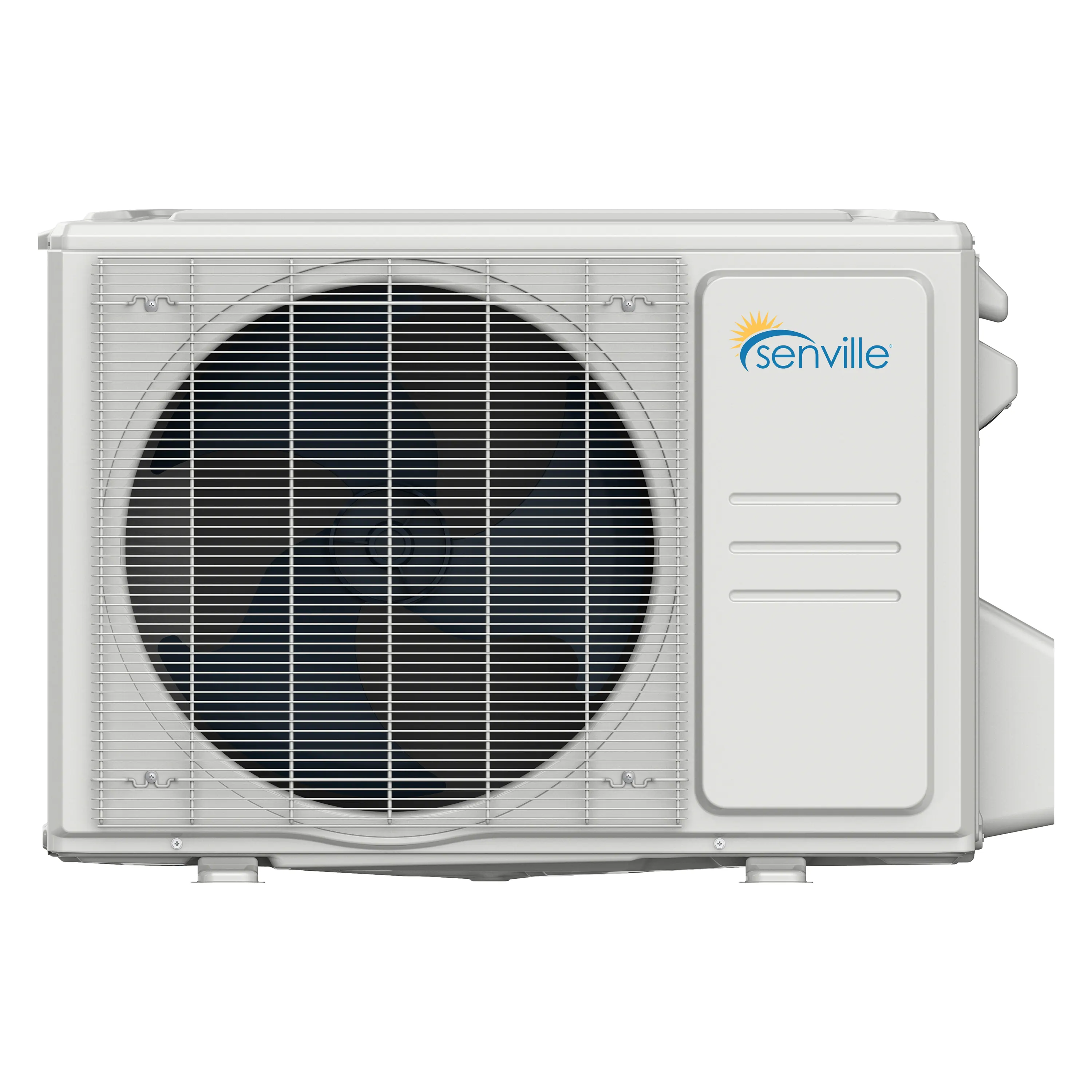

Condenser
Dimensions (WxDxH) (in.)	35.04 x 13.46 x 26.50
Weight	99.87 Lbs
Air Flow (Max) CFM	1765.8
Noise Level dB	58
Minimum Outdoor Heating Temperature	-22°F / -30°C

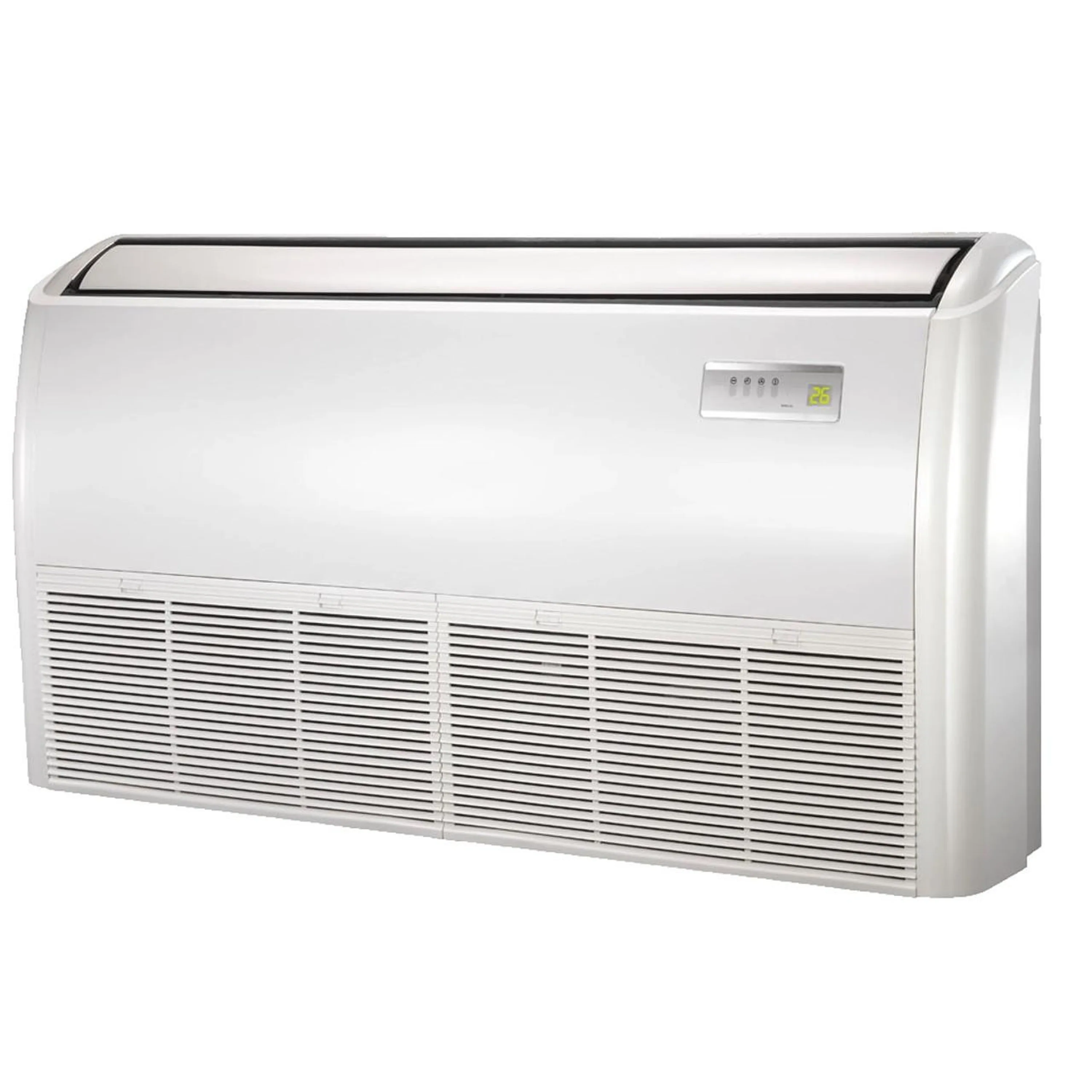

Air Handler
Dimensions (WxDxH) (in.)	42.05 x 26.57 x 9.25
Weight	58.42 Lbs.
Air Flow (Turbo/H/M/L) CFM	576.8 / 547.4 / 485.6 / 420.8
Noise Level (Turbo/H/M/L) dB	45 / 42.5 / 39.5 / 30.5
Technical Specification
Style	Floor Mount Ductless Mini Split AC With Heat Pump
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
SEER2	20.4
EER2	12.5
Cooling Capacity (BTU)	17000
Cooling Range (BTU)	7400~19200
Cooling Input Range (W)	500~2300
Cooling Current Range (A)	2.5~7.4
Heating Capacity (BTU)	19000
Heating Range (BTU)	8300~20700
Heating Input Range (W)	525~1830
Heating Current Range (A)	2.8~8.0
HSPF2-4	10.3
HSPF2-5	8.2
COP W/W	3.07
Minimum Circuit Ampacity (A)	19
Max. Fuse (A)	20
Moisture Removal (L/H)	1.73
Refrigerant Type / Charge oz	R454B / 55.38
Refrigerant Pre-charge	25 Ft.
Connection Wiring	14*4 AWG
Thermostat Type	Remote Control
Warranty	10 Years Compressor / 5 Years Parts
