-65%Senville 24K BTU Mini Split with 20.4 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Floor Mounted Air Handler (SENA-24HF-IF)—
$1,799.99
$630.00The Story
Senville SENA-24HF/IF is a high-efficiency 24000 BTU floor mount ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.
Features
- 20.4 SEER2 ENERGY STAR - Save up to 40% on energy costs annually.
-
Heating down to -30°C (-22°F) - Reliable performance in extreme cold.
- Ultra-Quiet Operation - Whisper-quiet for bedrooms & offices.
- Professional Installation - Required to maintain warranty coverage.
- ENERGY STAR Certified - Save up to 40% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
- Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
- Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
- 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
- Installation Kit + Accessories Included - Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.
What's Included
- Indoor Unit
- Outdoor Unit

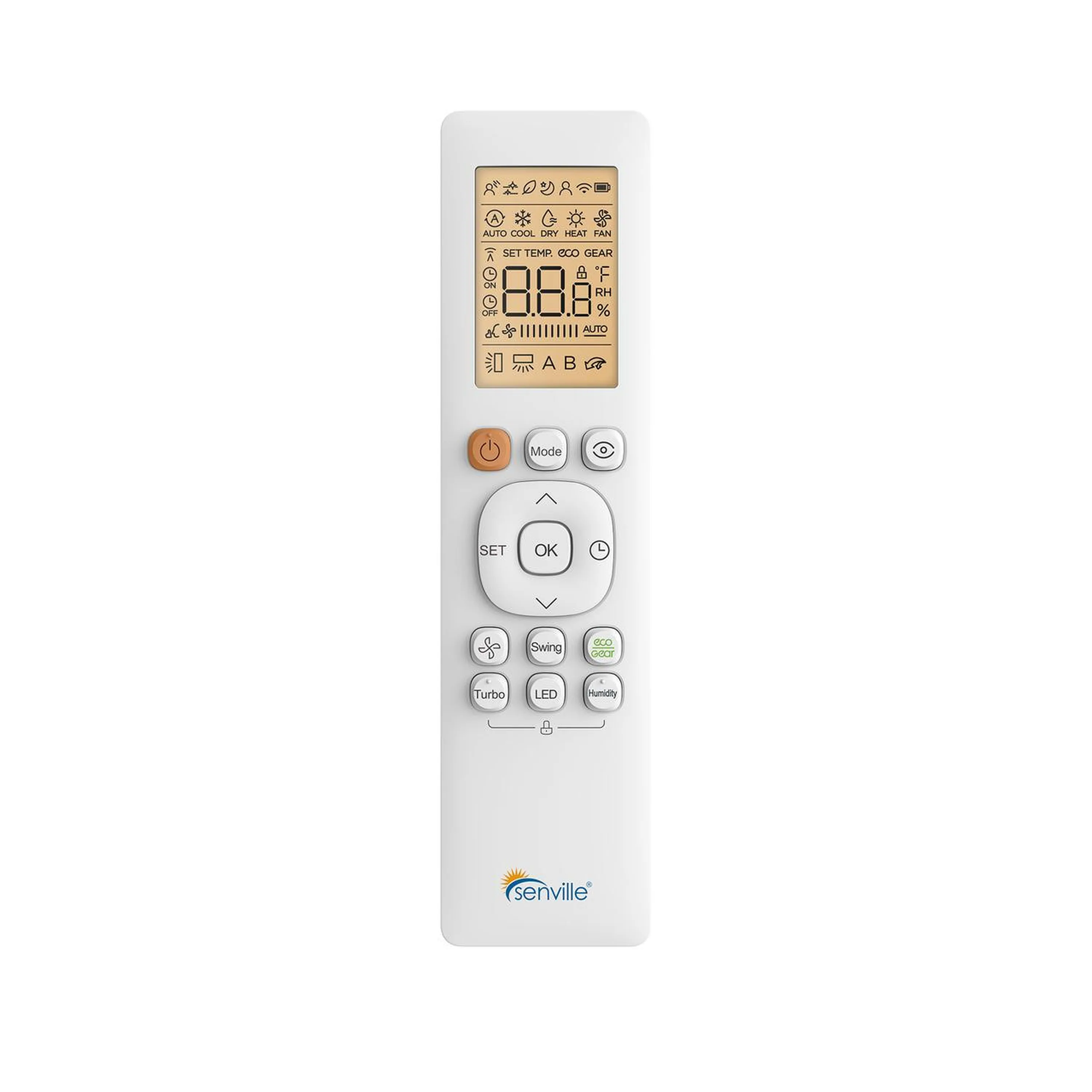

- Wireless Remote Control
- 16 ft. Installation Kit
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
| Condenser | |
| Outdoor Dimensions (WxDxH) (in.) | 37.24 x 16.14 x 31.89 |
| Outdoor Weight | 130.29 Lbs |
| Outdoor Air Flow (Max) CFM | 2236.7 |
| Outdoor Noise Level dB | 61.5 |
| Air Handler | |
| Indoor Dimensions (WxDxH) (in.) | 42.05 x 26.57 x 9.25 |
| Indoor Weight | 61.29 Lbs. |
| Indoor Air Flow (Turbo/H/M/L) CFM | 576.8 / 547.4 / 485.6 / 420.8 |
| Indoor Noise Level (Turbo/H/M/L) dB | 51.5 / 49.0 / 45 / 34 |
| Technical Specification | |
| Style | Floor Mount Ductless Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 20.4 |
| EER2 | 12 |
| Cooling Capacity (BTU) | 22000 |
| Cooling Range (BTU) | 12700~25600 |
| Cooling Input Range (W) | 980~2300 |
| Cooling Current Range (A) | 4.5~10.1 |
| Heating Capacity (BTU) | 26000 |
| Heating Range (BTU) | 11300~29500 |
| Heating Input Range (W) | 630~2570 |
| Heating Current Range (A) | 3.4~11.3 |
| HSPF2-4 | 12.1 |
| HSPF2-5 | 9.8 |
| COP W/W | 3.34 |
| Minimum Circuit Ampacity (A) | 25 |
| Max. Fuse (A) | 25 |
| Moisture Removal (L/H) | 2.73 |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge oz | R454B / 63.49 |
| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14*4 AWG |
| Thermostat Type | Remote Control |
| Warranty | 10 Years Compressor / 5 Years Parts |
| Senville Catalogue |
