Senville LETO Series 30K BTU Mini Split with 20 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handler (SENL-30CD)

Senville SENL-30CD is a high-efficiency 30000 BTU mini split air conditioner and heat pump that provides versatile, year-round comfort for your home or business.

Features

• 20 SEER2 High Efficiency - Save energy while cooling & heating efficiently.
• DC Inverter Technology - Reduces energy use by up to 20% yearly.
• Ideal for 1250–1500 sq. ft. - Perfect for large rooms, offices, or basements.
• Heating to -15°C (5°F) - Reliable warmth even in colder climates.
• Dehumidifier, Fan & Turbo - Complete climate control features built-in.
• Professional Installation - Licensed professional installation required.
• Smart Home Integration with Alexa - Control your Senville 30000 BTU mini split with voice or app via Alexa. Adjust settings, schedules, or turn on/off remotely—enjoy convenience and energy savings.
• Energy-Saving Inverter Technology - Enjoy energy savings up to 20% with advanced inverter technology that adjusts output for optimal efficiency without sacrificing comfort.
• Quiet Operation & Sleep Mode - Whisper-quiet at 34–57 dB indoors. Activate Sleep Mode for gradual overnight temp adjustments for comfort and efficiency.
• 5-Year Warranty - Includes a 5-year compressor and parts warranty backed by North American customer support for peace of mind.
• R454B Refrigerant - Includes a complimentary 16ft. Installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

• Indoor Unit

• Outdoor Unit

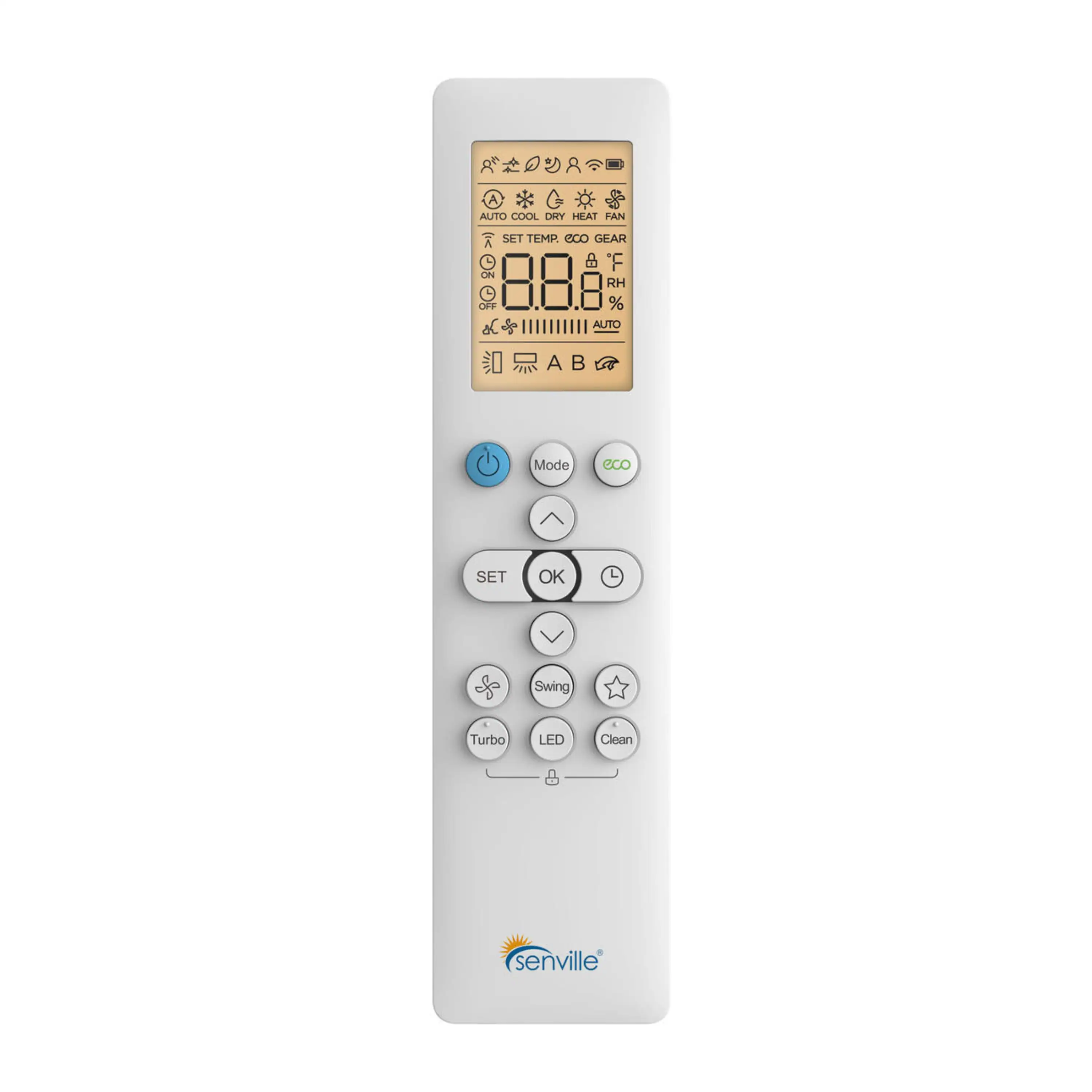

• Wireless Remote Control

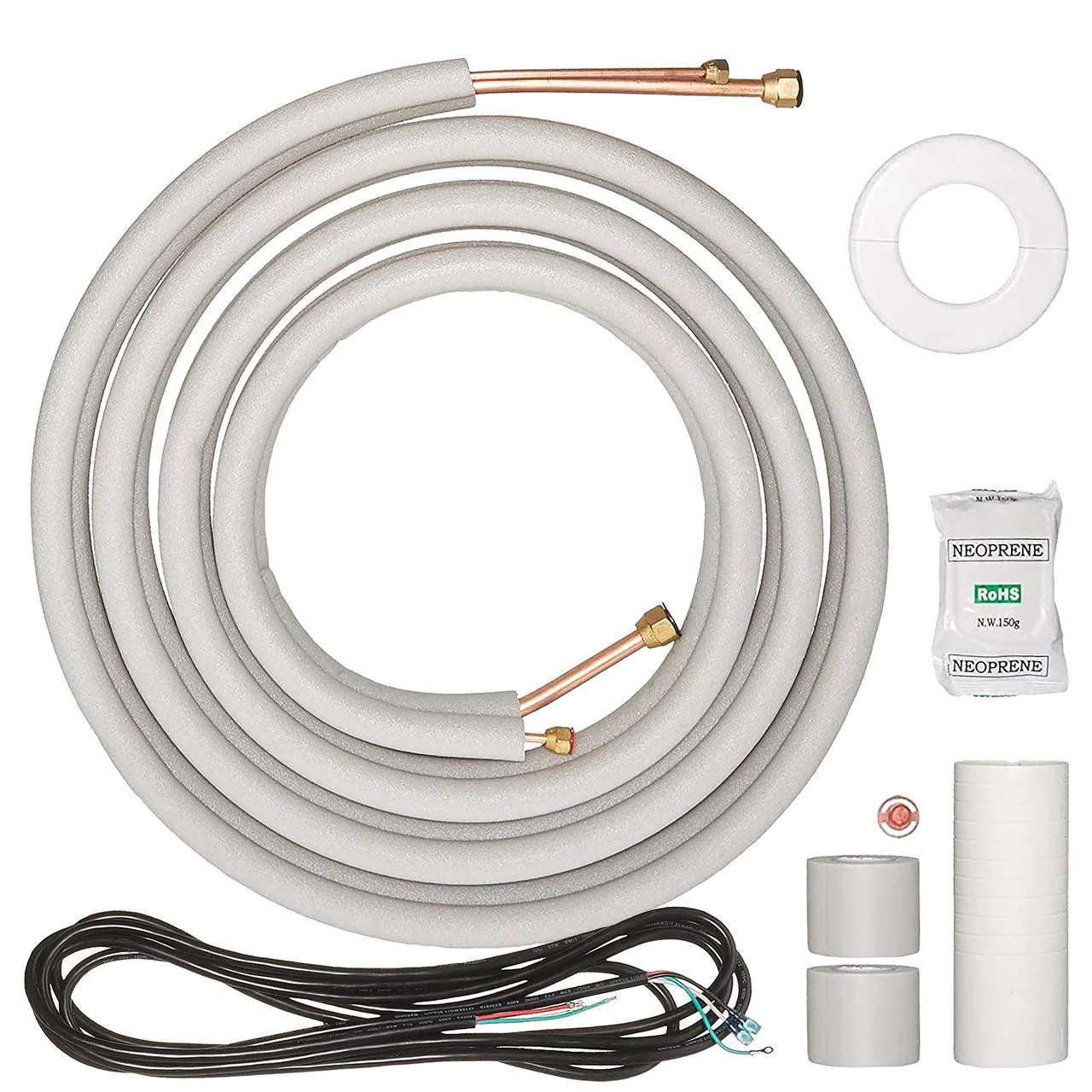

• 16 ft. Installation Kit

• Indoor to Outdoor Wiring Harness

• Alexa USB Kit

• Installation Manual

• User’s Manual

• Manufacturer Warranty

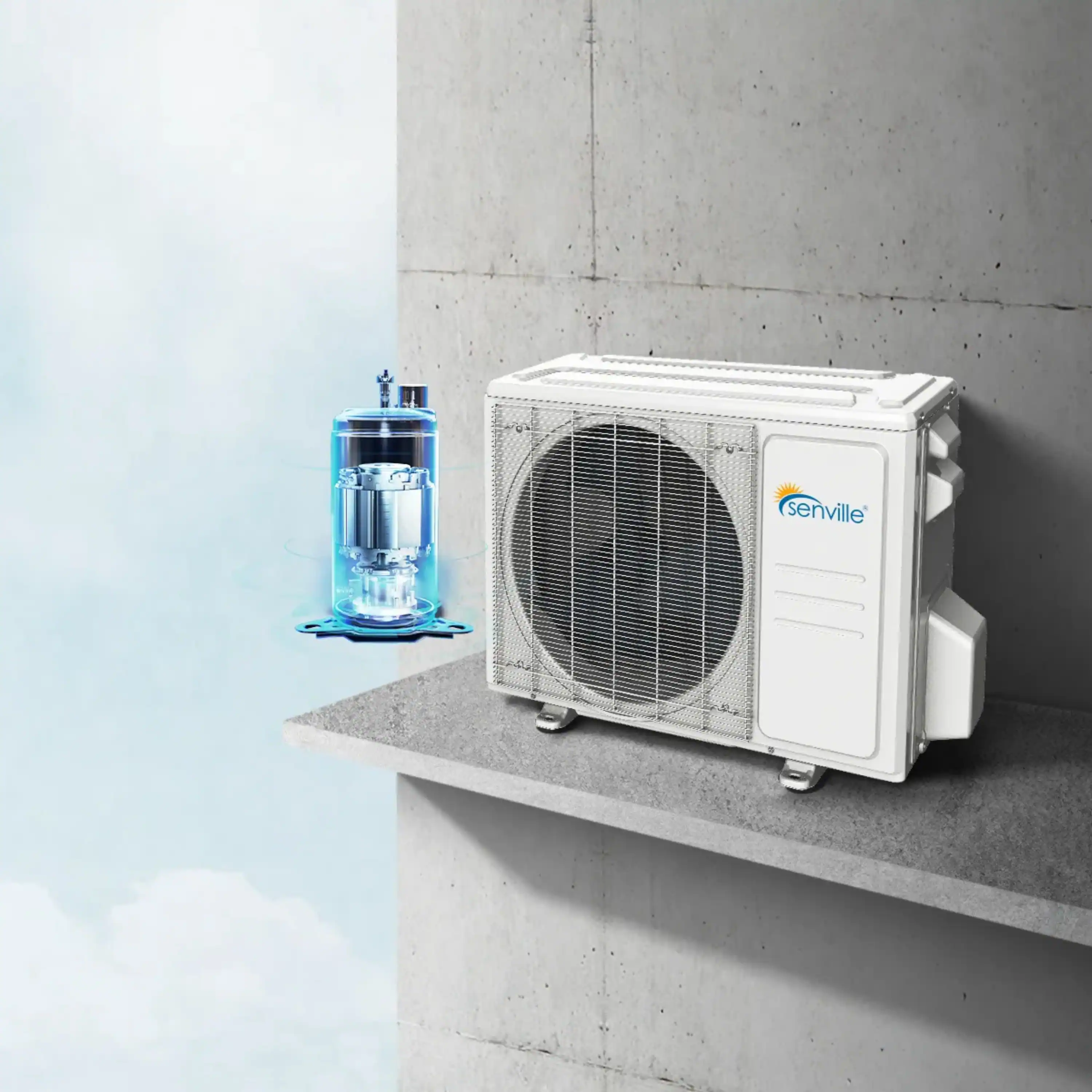

Condenser
Dimensions (WxDxH) (in.)	37.24 x 16.14 x 31.89
Weight	150.35 lbs
Air Flow (Max) CFM	2235.3
Noise Level dB	60.5

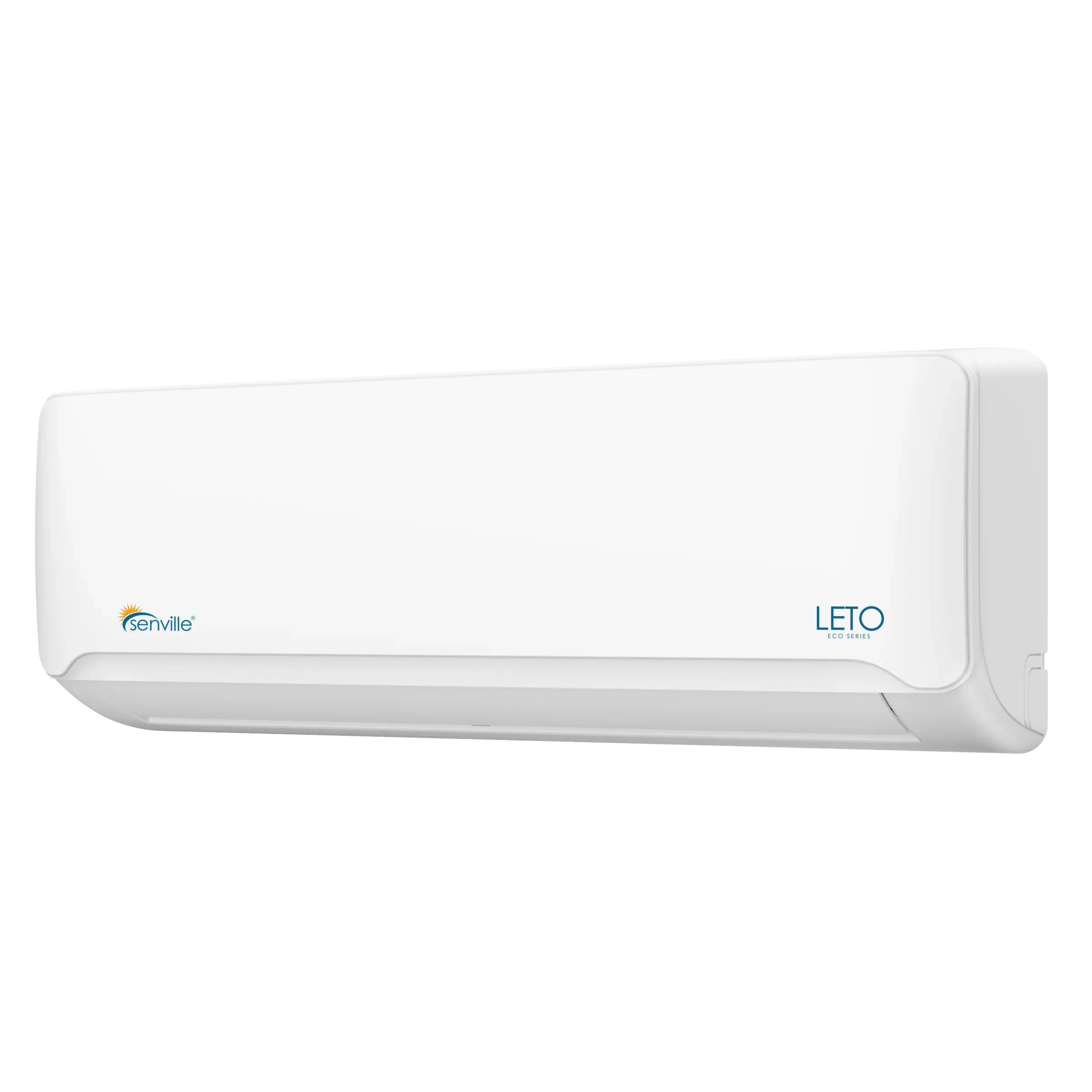

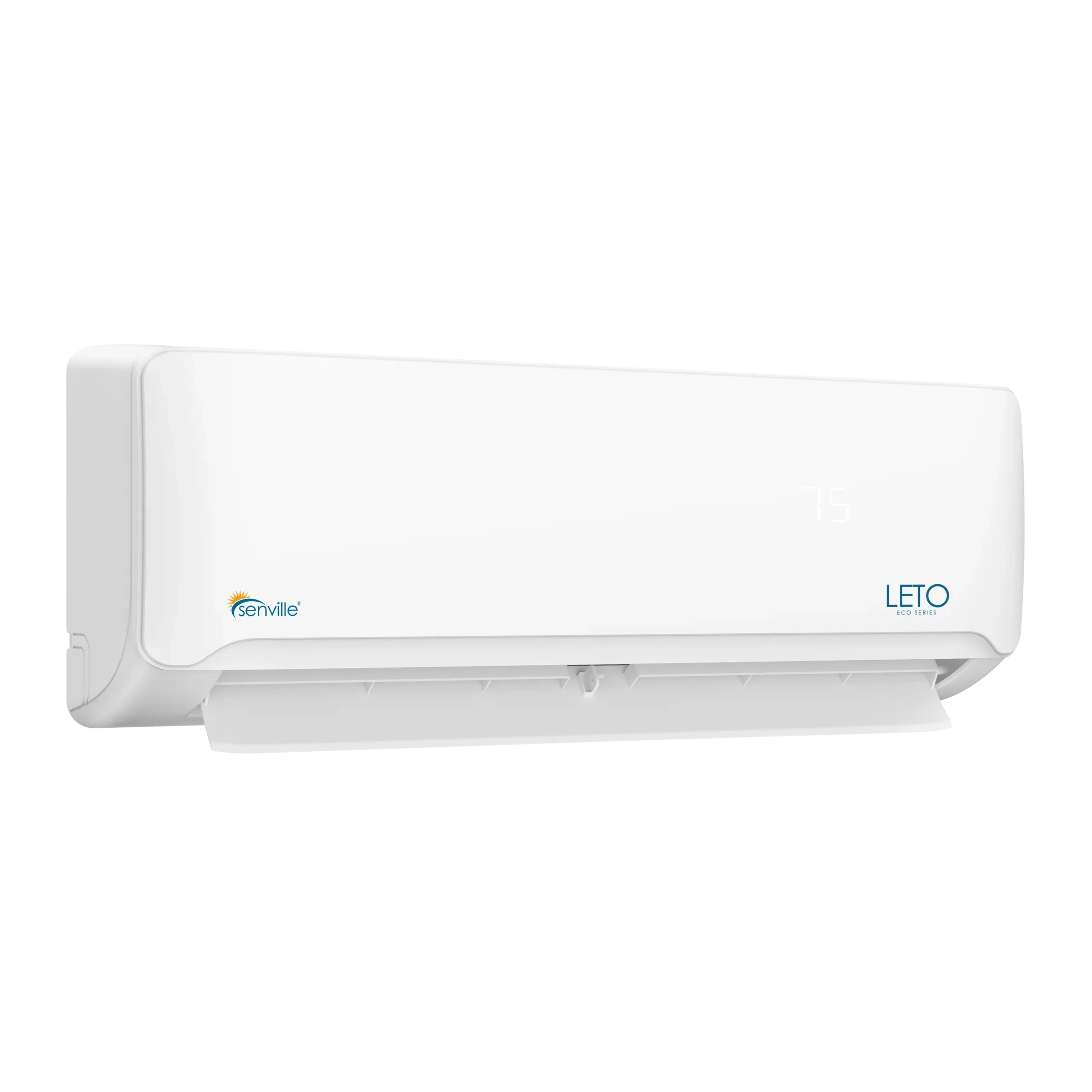

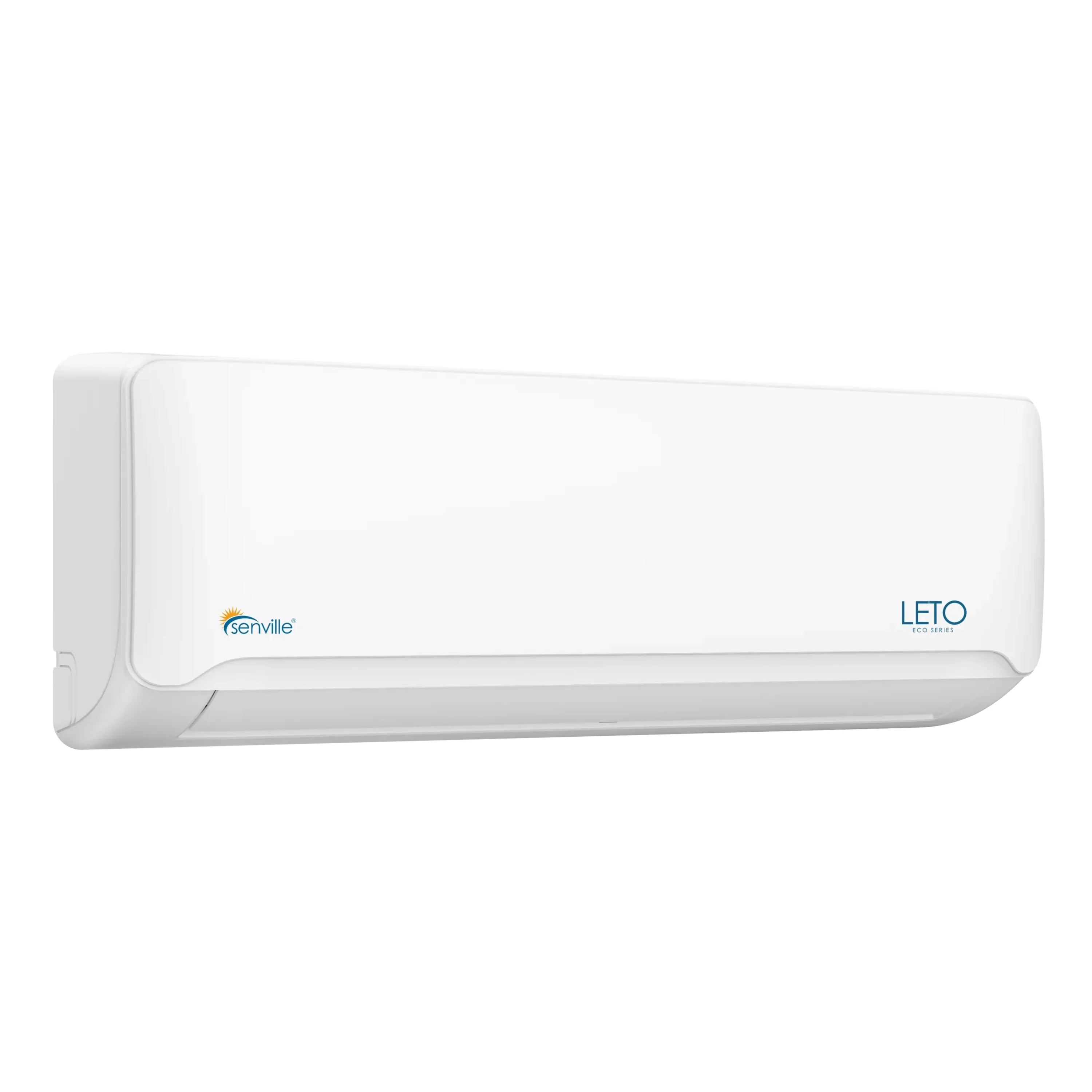

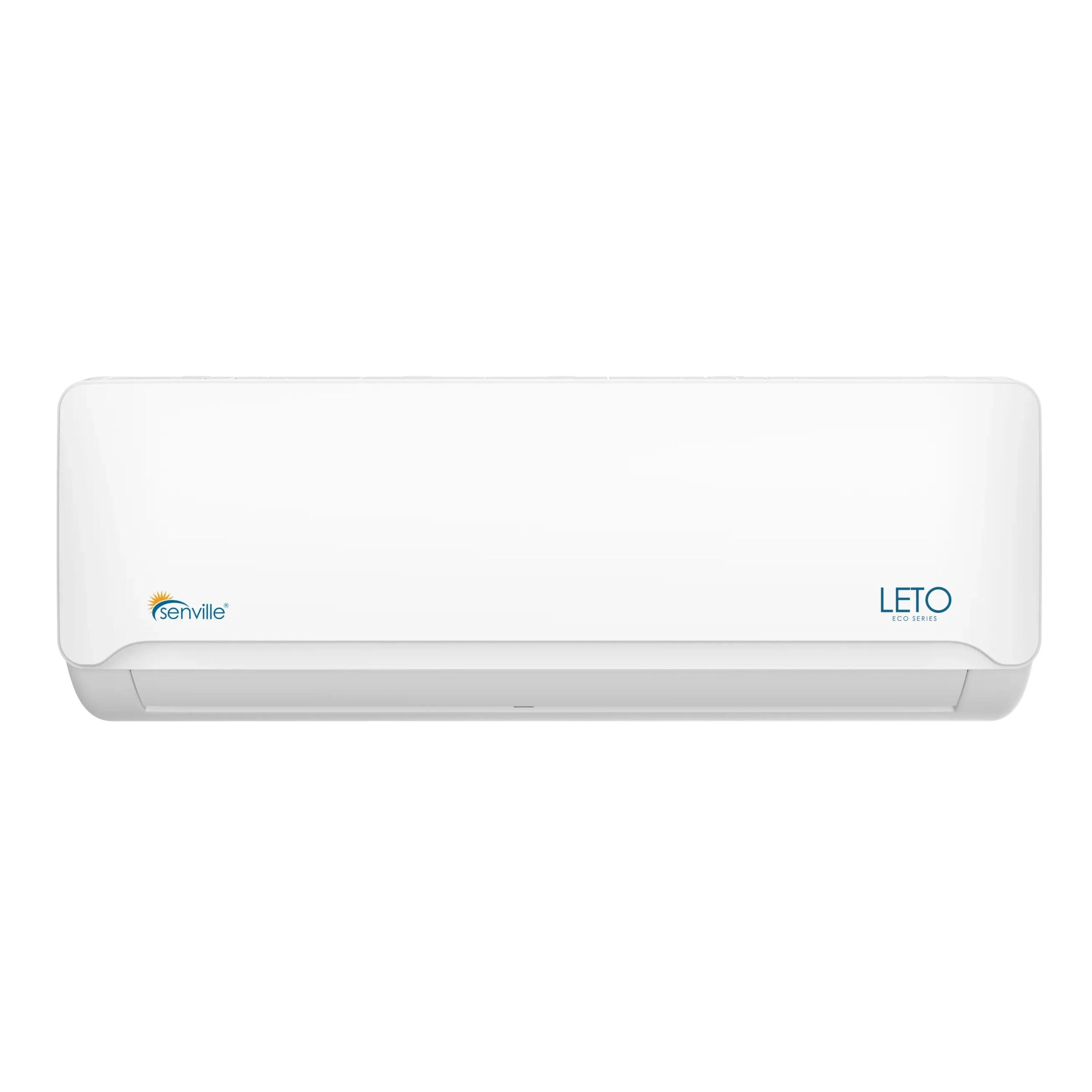

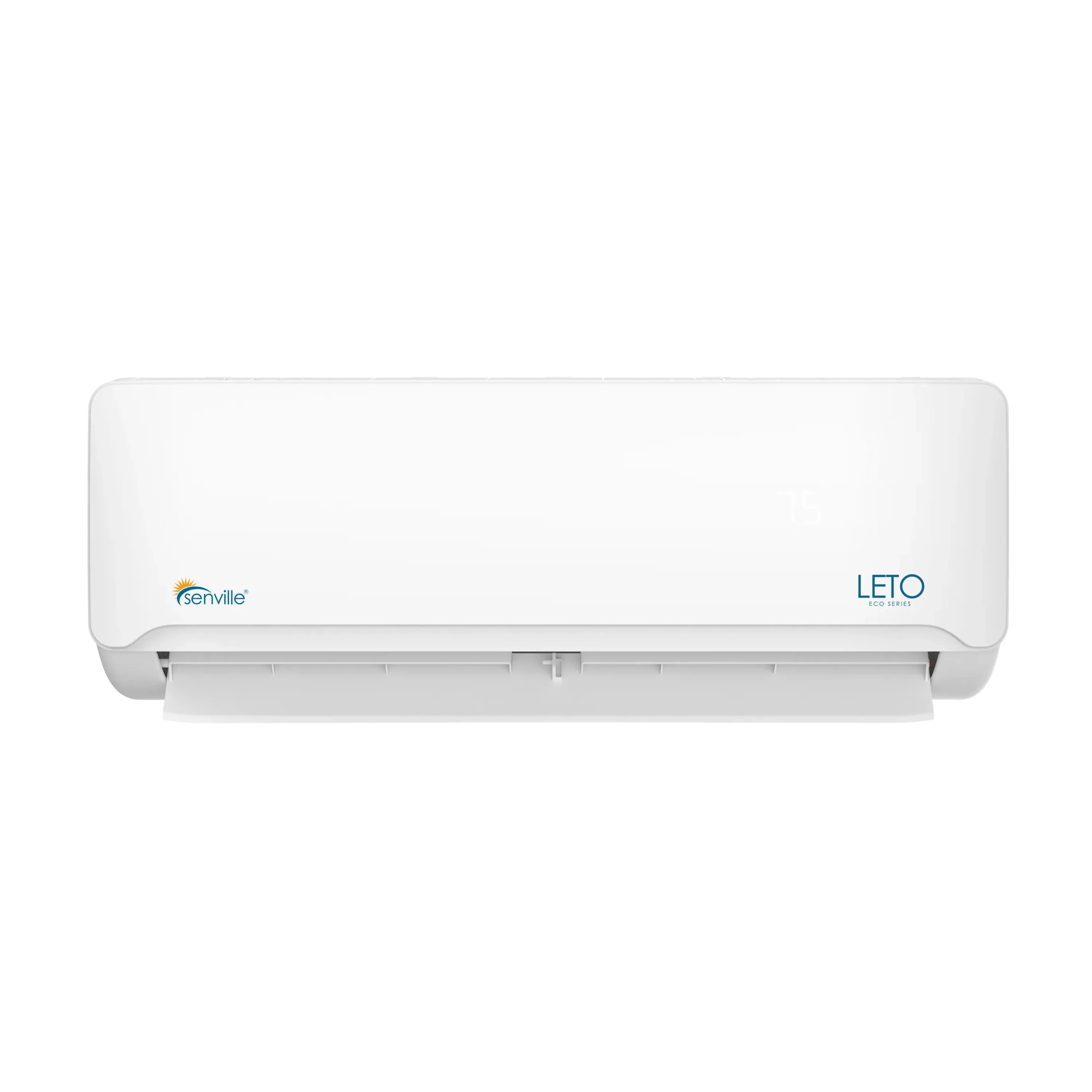

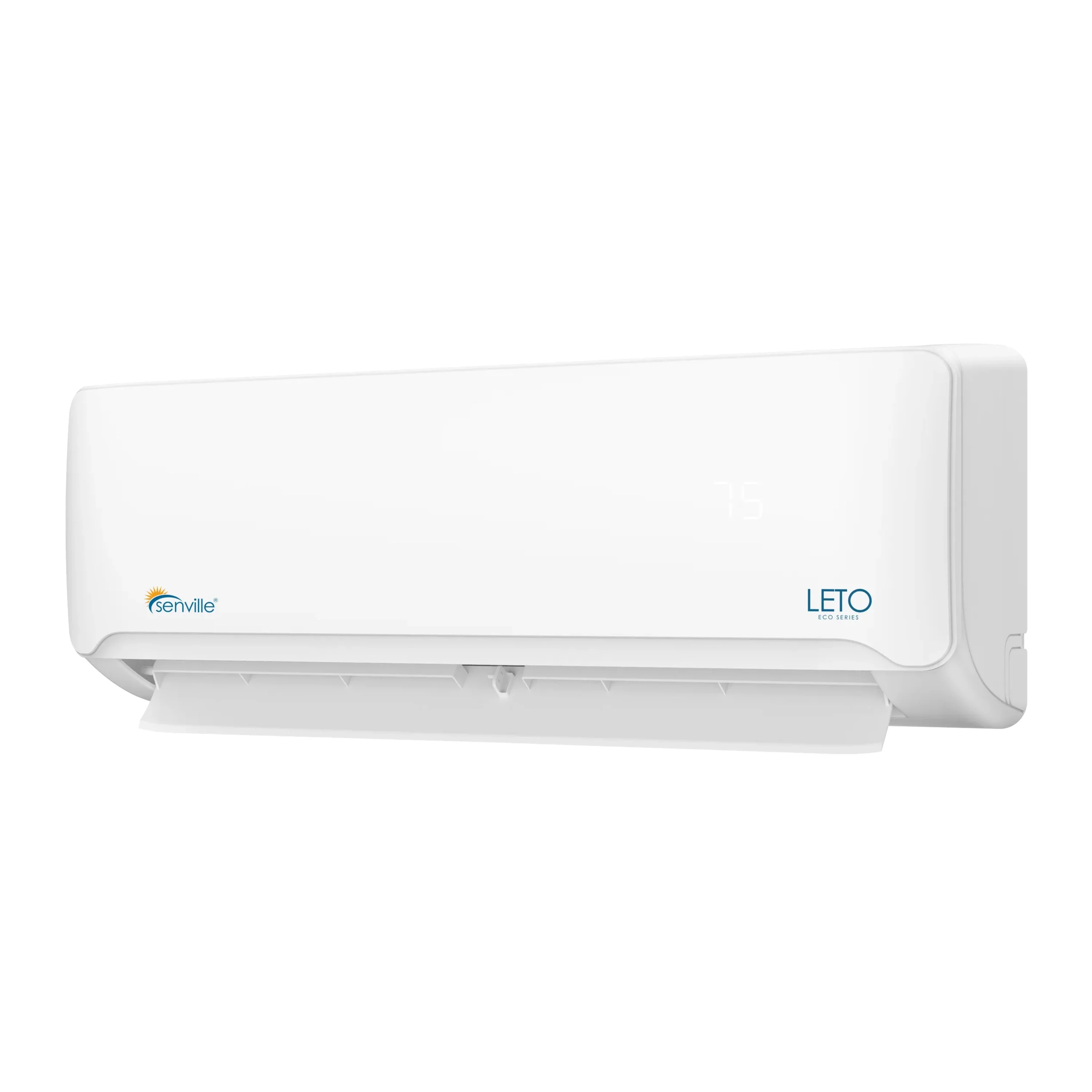

Air Handler
Dimensions (WxDxH) (in.)	49.57 x 11.10 x 14.25
Weight	40.34 lbs
Air Flow (Turbo/H/M/L) CFM	853.5 / 732.8 / 470.9 / 353.2
Noise Level (Turbo/H/M/L) dB	57.0 / 51 / 44.5 / 34
Technical Specifications
SEER2	20
EER2	11
Style	Ductless Mini Split AC With Heat Pump
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
Cooling Capacity (BTU)	30000
Cooling Range (BTU)	6200~33700
Cooling Input Range (W)	660~3200
Cooling Current Range (A)	2.6~14.1
Heating Capacity (BTU)	30000
Heating Range (BTU)	11800~33700
Heating Input Range (W)	675~2930
Heating Current Range (A)	3.7~13
HSPF2-4	9.2
HSPF2-5	6.9
COP W/W	3
Minimum Circuit Ampacity (A)	28
Max. Fuse (A)	30
Moisture Removal (L/H)	3.6
Refrigerant Type	R454B
Refrigerant Pre-charge	25 ft.
Connection Wiring	14*4 AWG
Thermostat Type	Remote Control
Alexa	Enabled
Warranty	5 Years Compressor / 5 Years Parts
Certification	ETL Certified/ AHRI Certified
