Senville LETO Series 36K BTU Mini Split with 18 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handler (SENL-36CD)

The Senville SENL-36CD-L is a 36000 BTU mini split air conditioner and heat pump that offers a versatile and affordable solution to cooling and heating your home or business.

Features

• 18 SEER2 High Efficiency - Save on energy costs with advanced inverter performance.
• DC Inverter Technology - Reduce yearly energy use by up to 48%.
• Ideal for 1250–1800 sq. ft. - Great for larger rooms and living areas.
• Heating down to -15°C (5°F) - Designed to perform in cold climates.
• Smart Climate Control - Includes dehumidifier, fan, and turbo functions.
• Professional Installation - Licensed technician installation required.
• Smart Home Integration with Alexa - Control your Senville mini split with Alexa voice commands or app. Schedule temperature settings and monitor your system remotely for convenience and savings.
• Energy-Saving Inverter Technology - Maximize comfort and minimize costs with DC Inverter technology. It adjusts in real-time to maintain desired temperature without excessive power use.

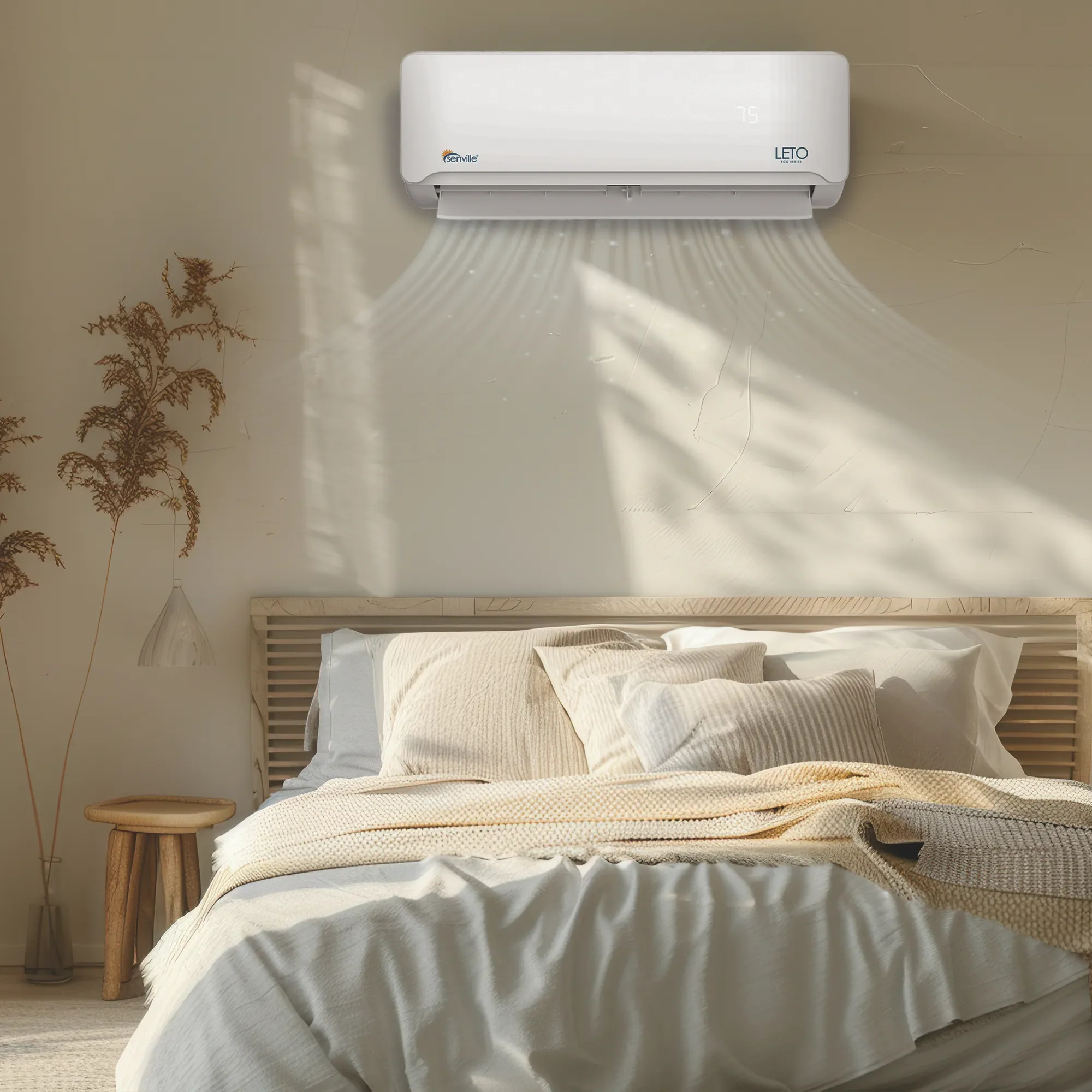

• Whisper-Quiet Operation - Operates as quietly as 34 dB. Enjoy restful sleep and undisturbed relaxation with ultra-quiet fan settings and sleep mode functions.
• 5-Year Manufacturer's Warranty - Backed by a 5-year compressor and parts warranty, with North American support for quick and reliable service when you need it.

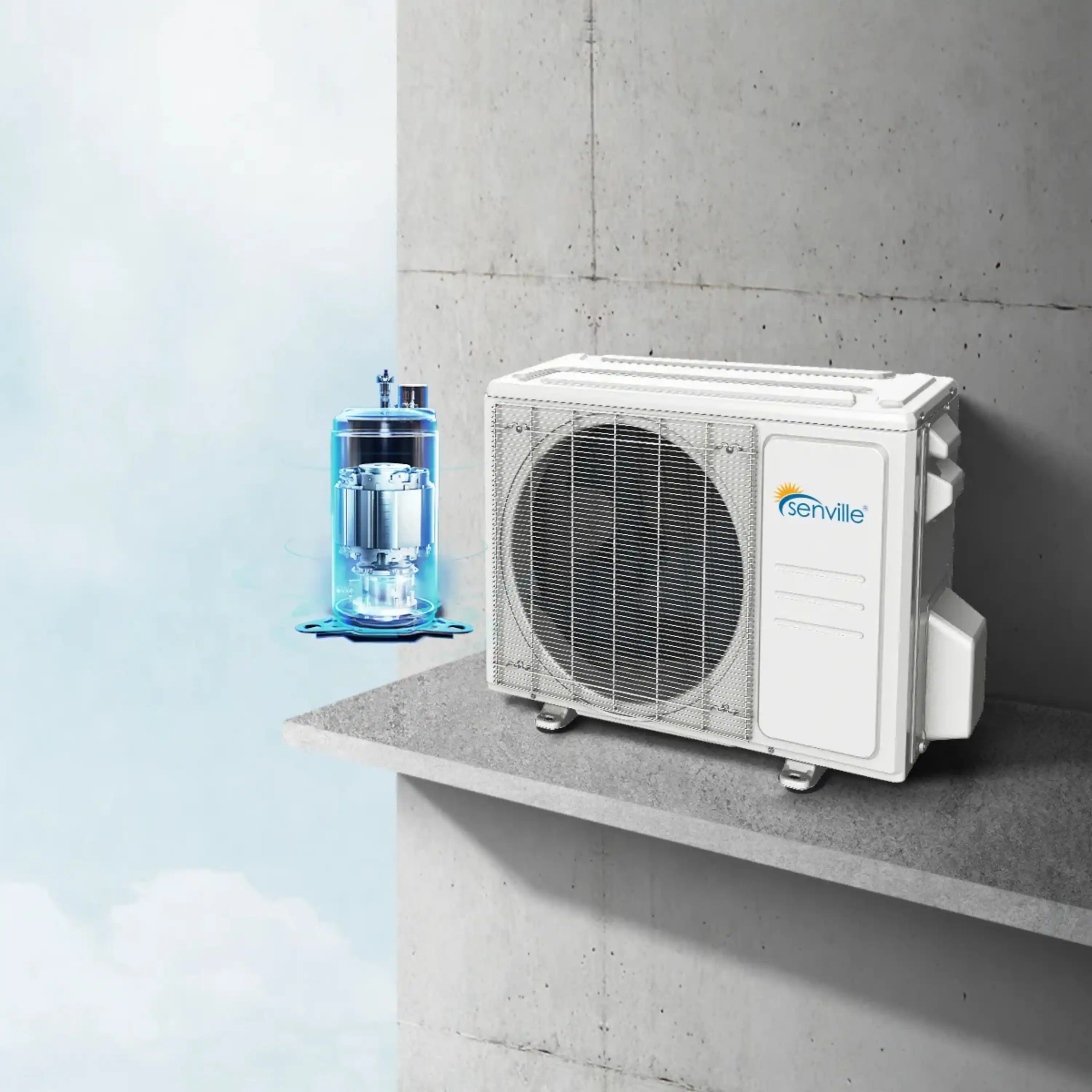

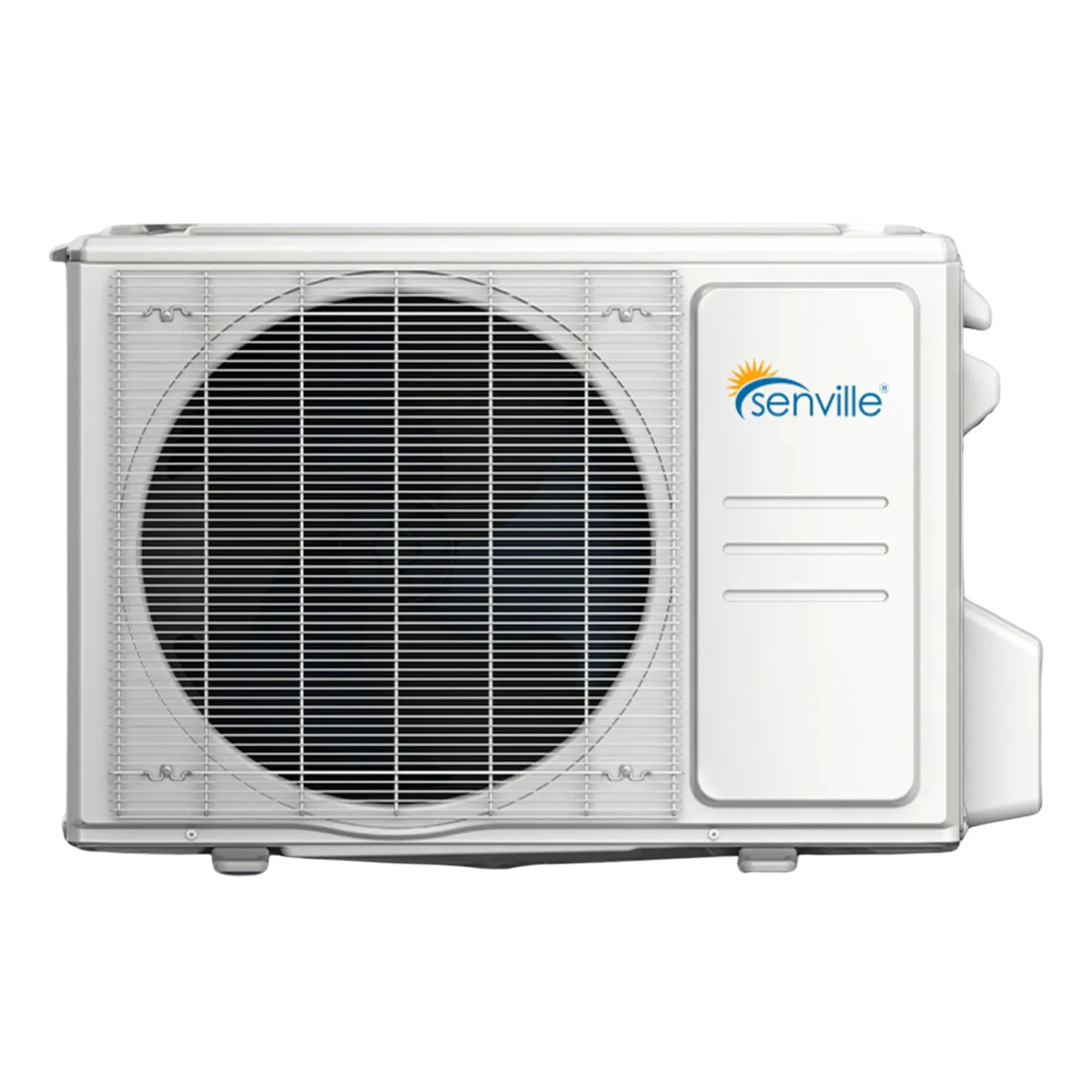

Condenser
Dimensions (WxDxH) (in.)	37.24 x 16.14 x 31.89
Weight	142.86 lbs.
Air Flow (Max) CFM	2235.3
Noise Level dB	61.4

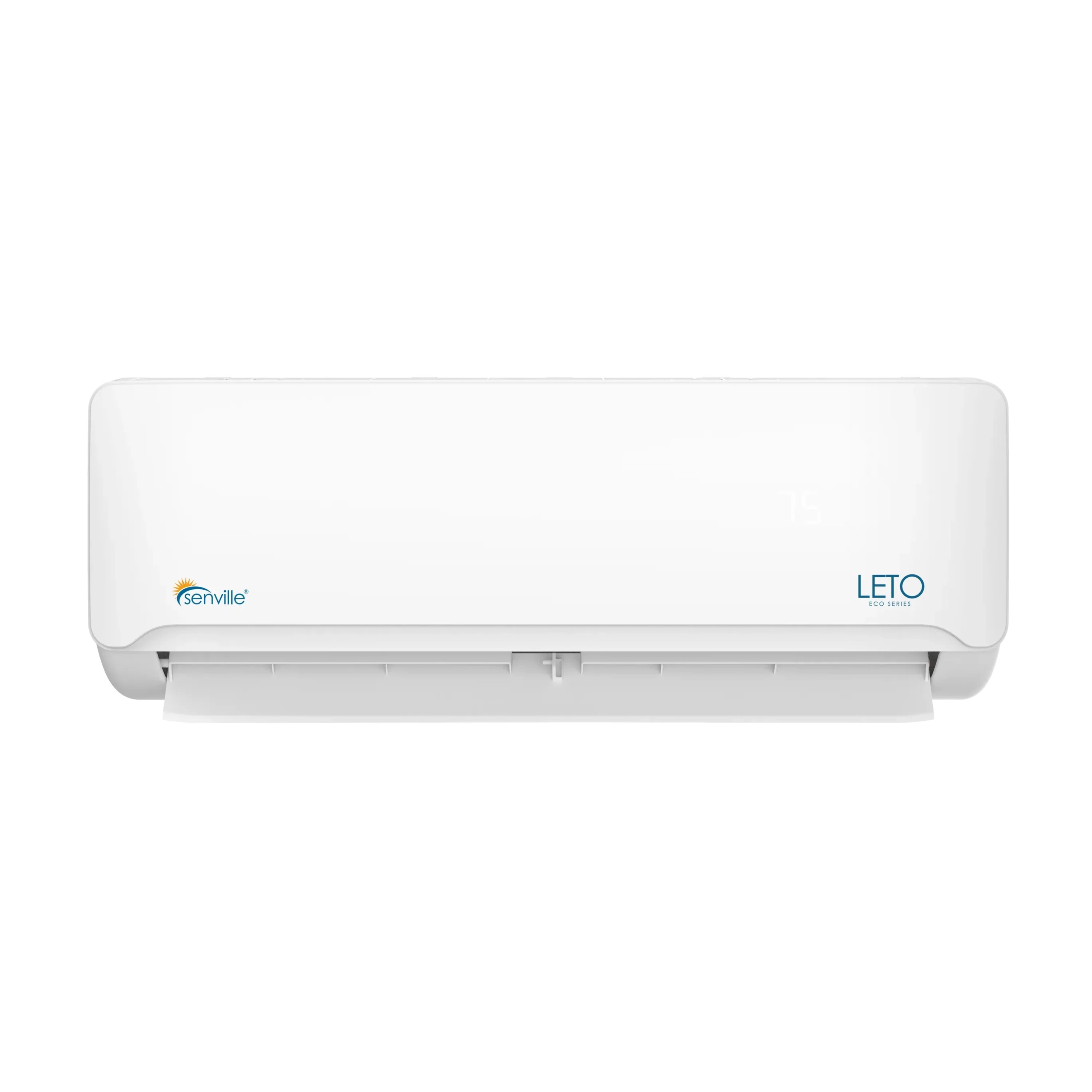

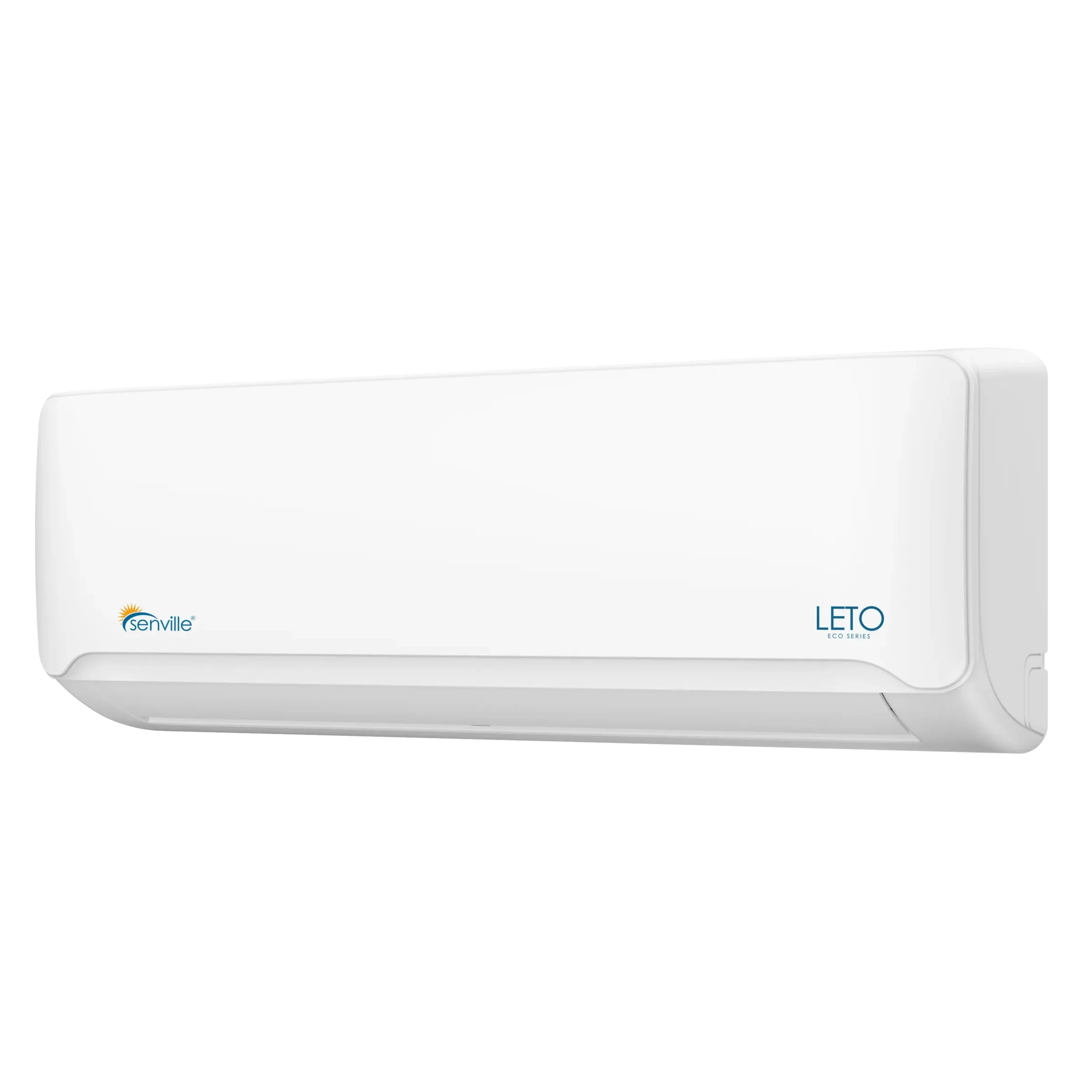

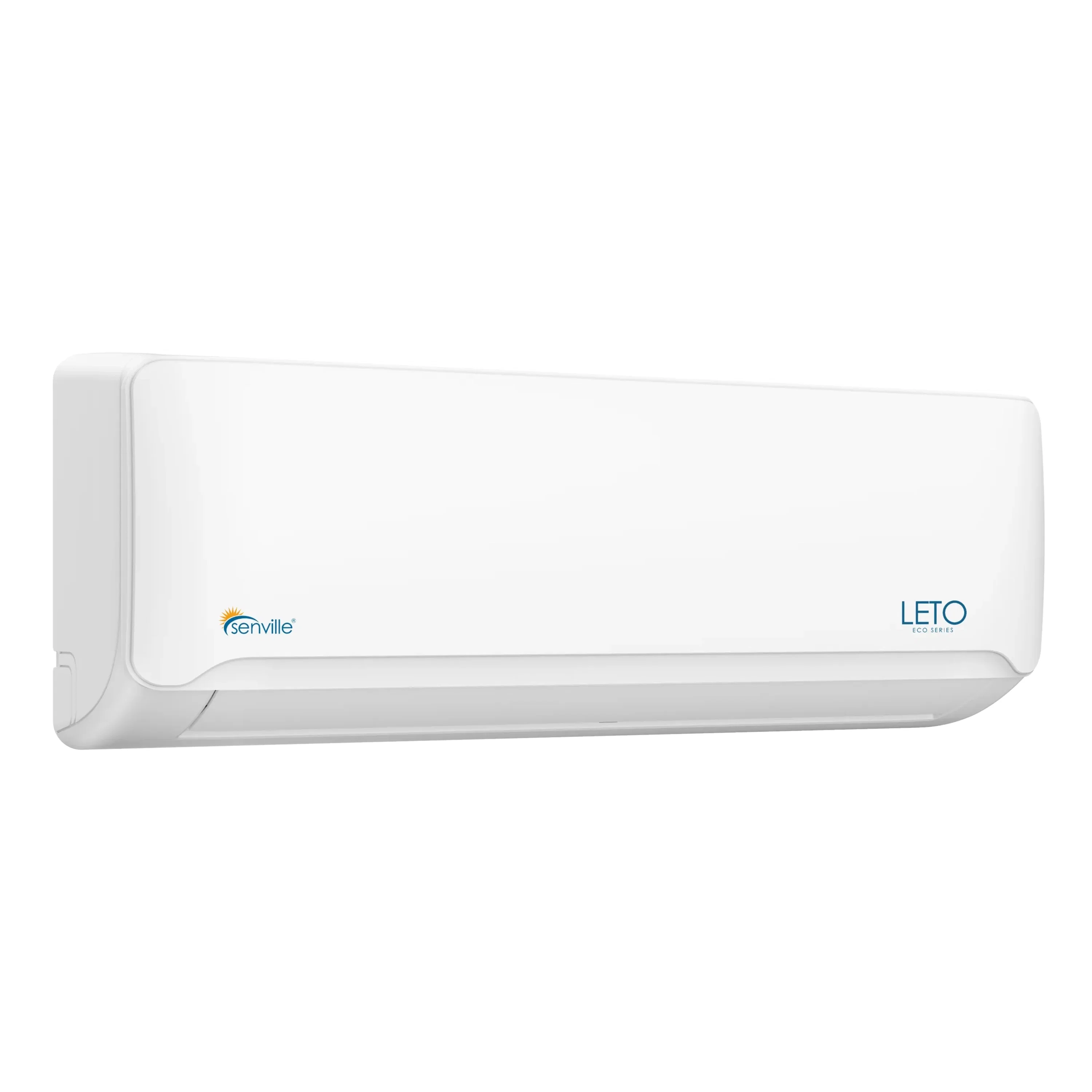

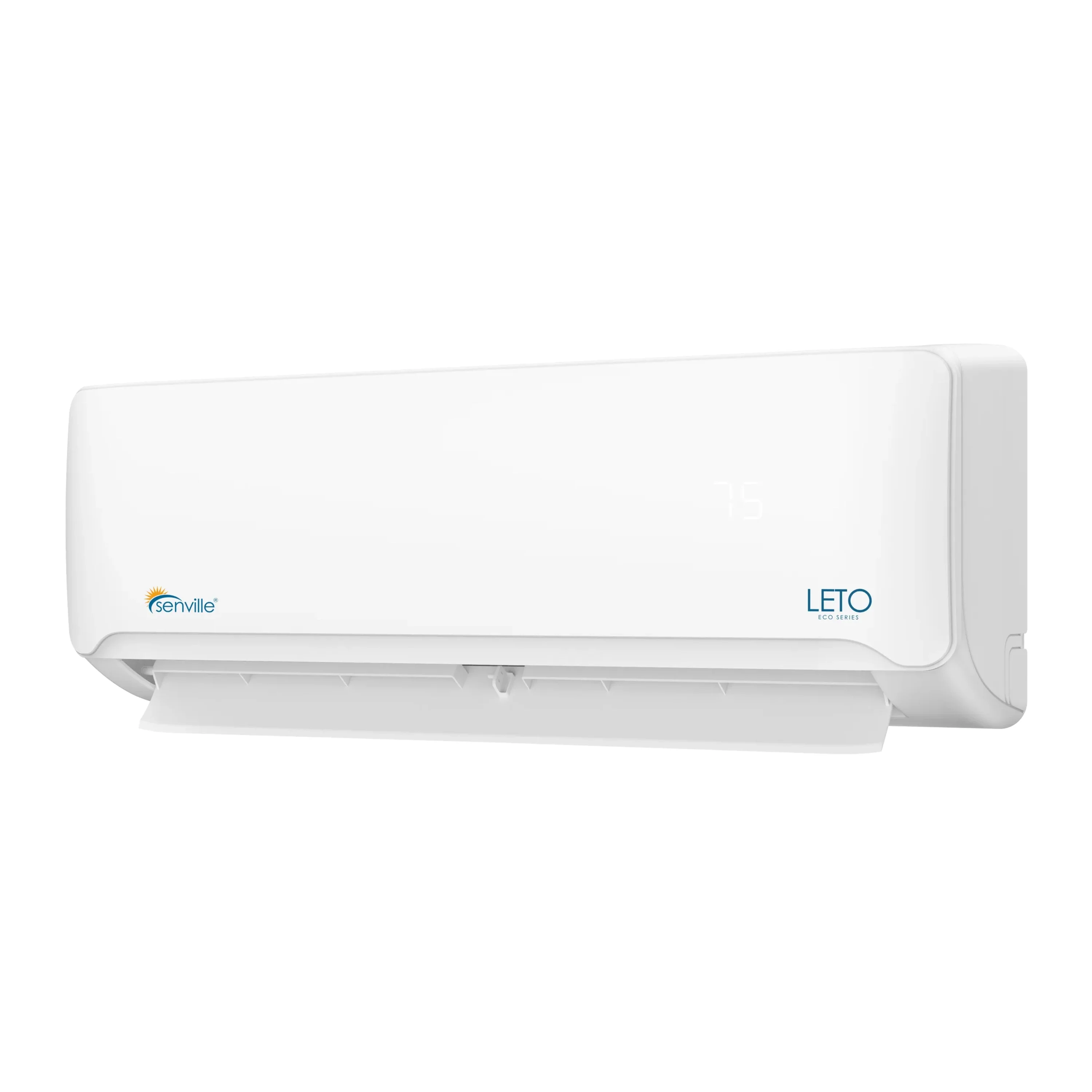

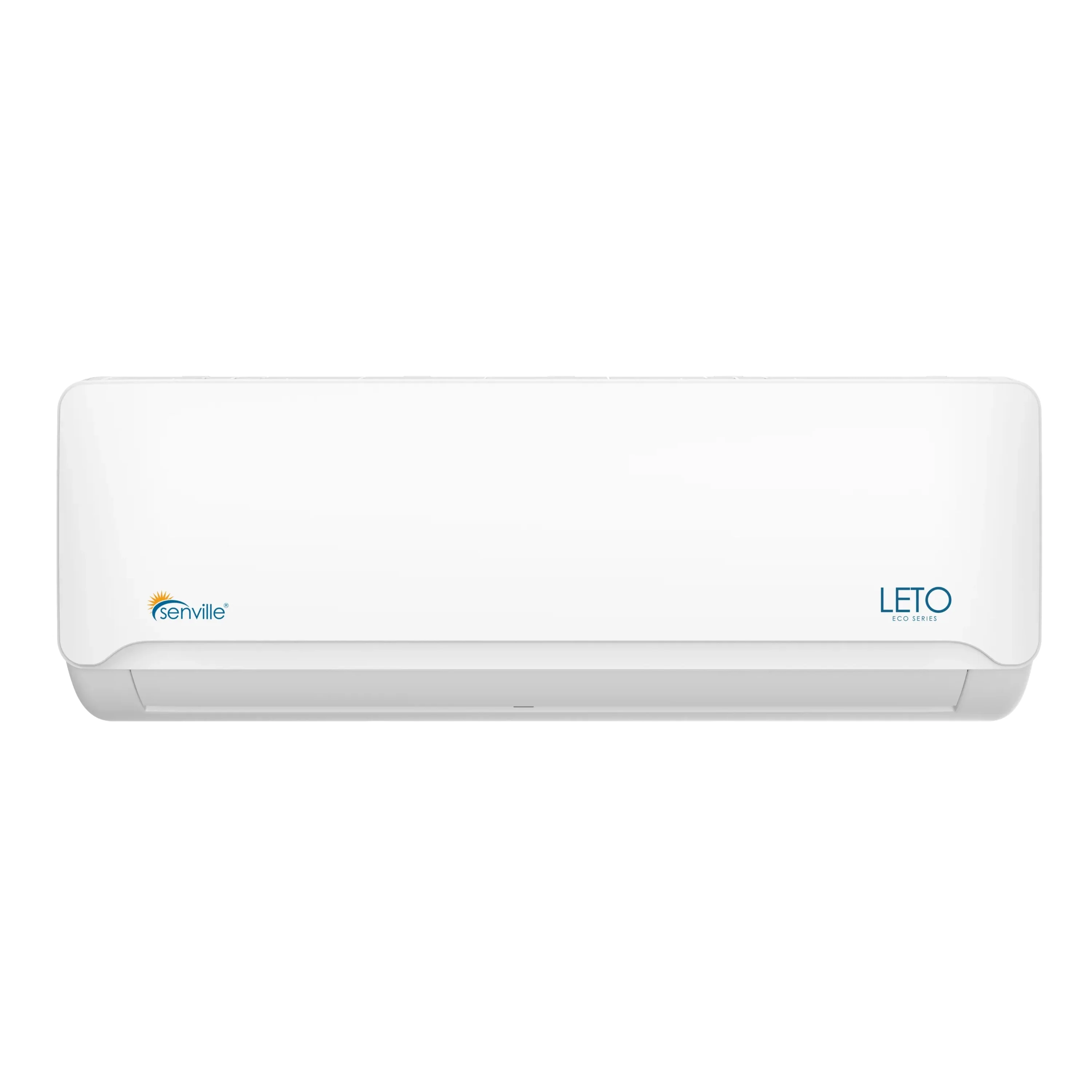

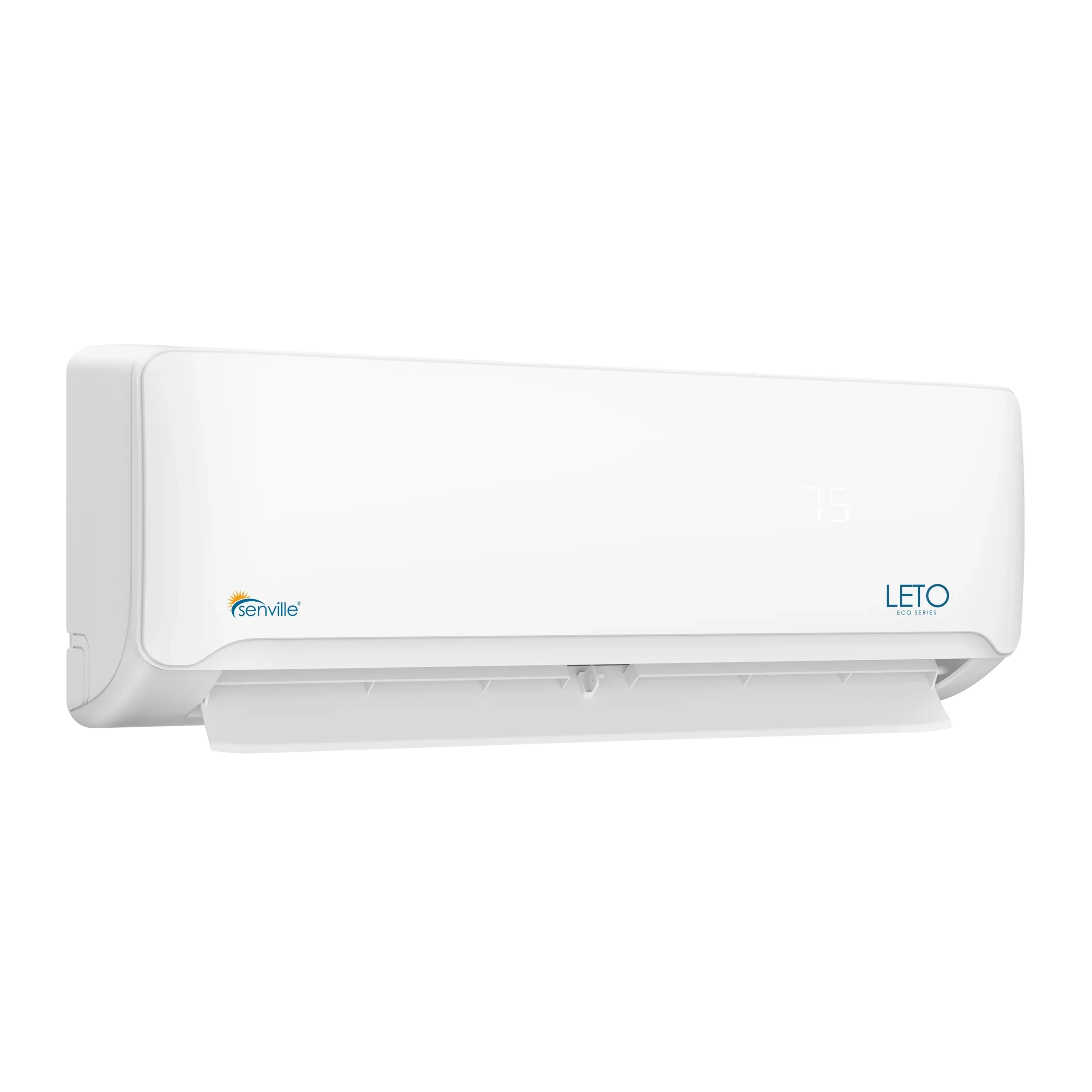

Air Handler
Dimensions (WxDxH) (in.)	49.57 x 11.10 x 14.25
Weight	40.34 lbs.
Air Flow (Turbo/H/M/L) CFM	882.9 / 732.8 / 518.0 / 400.2
Noise Level (Turbo/H/M/L) dB	56.5 / 50.5 / 44.5 / 34
Technical Specifications
SEER2	18
EER2	9
Style	Ductless Mini Split AC With Heat Pump
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
Cooling Capacity (BTU)	36000
Cooling Range (BTU)	2900~36200
Cooling Input Range (W)	380~4140
Cooling Current Range (A)	2.9~18
Heating Capacity (BTU)	36000
Heating Range (BTU)	3600~36600
Heating Input Range (W)	445~3950
Heating Current Range (A)	3.0~17.2
HSPF2-4	8.5
HSPF2-5	6.8
COP W/W	2.82
Minimum Circuit Ampacity (A)	33
Max. Fuse (A)	35
Moisture Removal (L/H)	4.9
Refrigerant Type	R454B

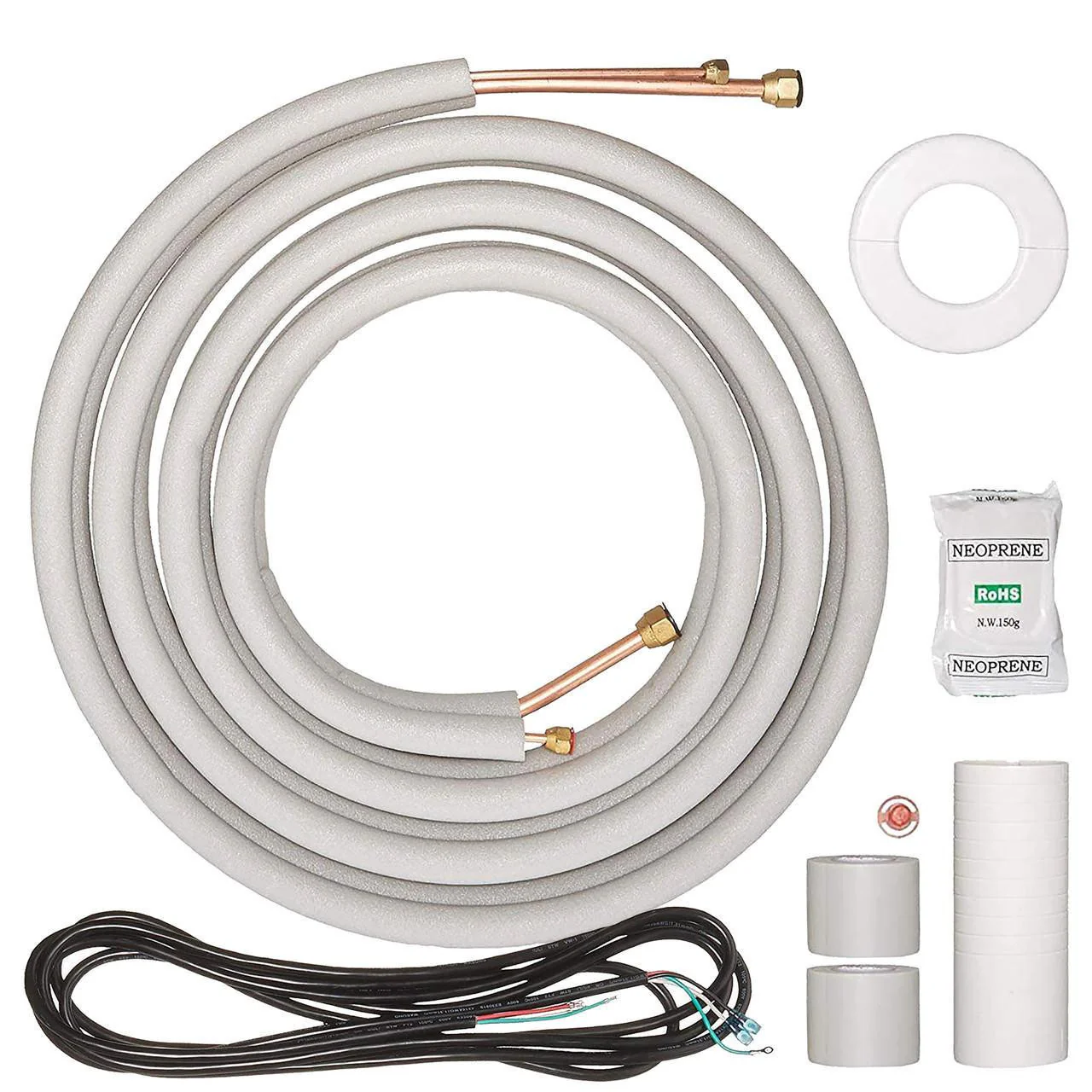

Refrigerant Pre-charge	25 ft.
Connection Wiring	14*4 AWG

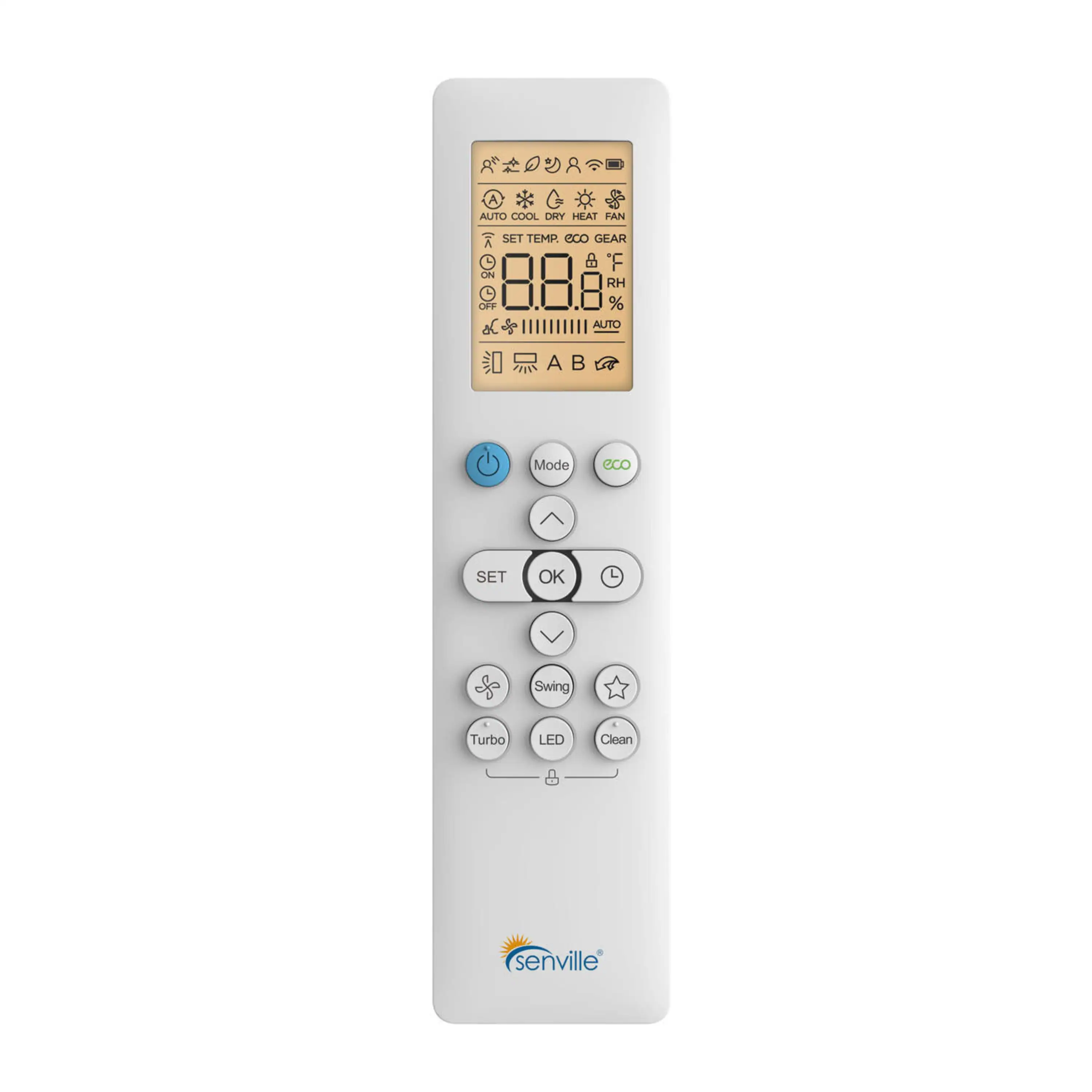

Thermostat Type	Remote Control
Alexa	Enabled
Warranty	5 Years Compressor / 5 Years Parts
Certification	ETL Certified/ AHRI Certified
