Senville AURA 9K BTU Mini Split with 27.4 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handler (SENA-09HF)

Senville SENA-09HF is a high-efficiency 9000 BTU ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

Features

• 27.4 SEER2 ENERGY STAR - Save up to 58% on energy costs annually.
• Heating down to -30°C (-22°F) - Reliable performance in extreme cold.

• Alexa Enabled Smart Control - Control via voice or app anywhere.
• Ultra-Quiet Operation - Whisper-quiet for bedrooms & offices.

• Recommended for 100–450 sq. ft. - Great for small rooms or studios.
• Professional Installation - Required to maintain warranty coverage.
• Smart Home Integration with Alexa - Control your Senville system with Alexa or the app from anywhere. Create schedules, adjust settings, and enjoy convenience and energy savings remotely.
• ENERGY STAR Certified - Save up to 58% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
• Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
• Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
• 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
• Installation Kit + Accessories Included - Includes a complimentary 16ft. Installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

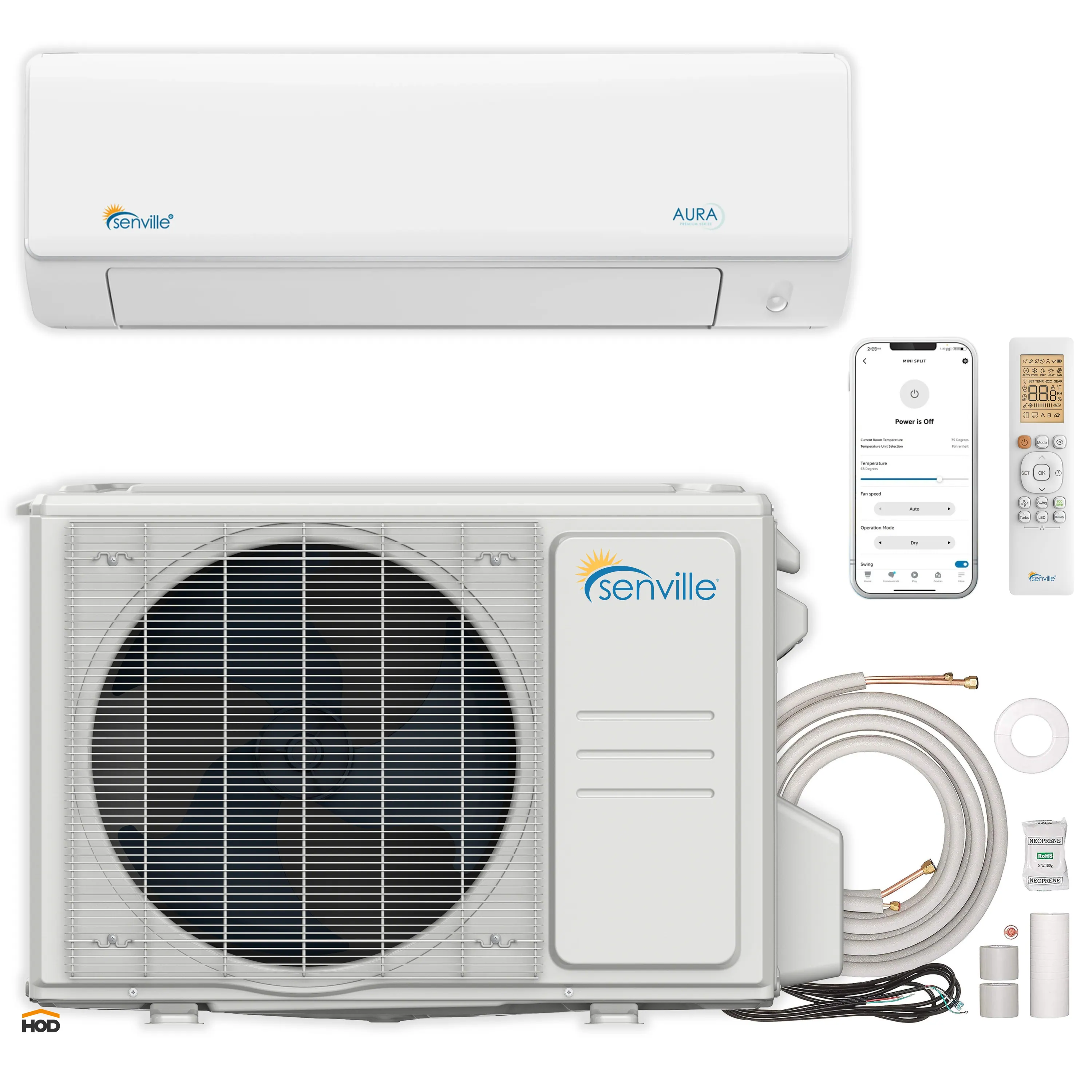

What's Included

• Indoor Unit

• Outdoor Unit

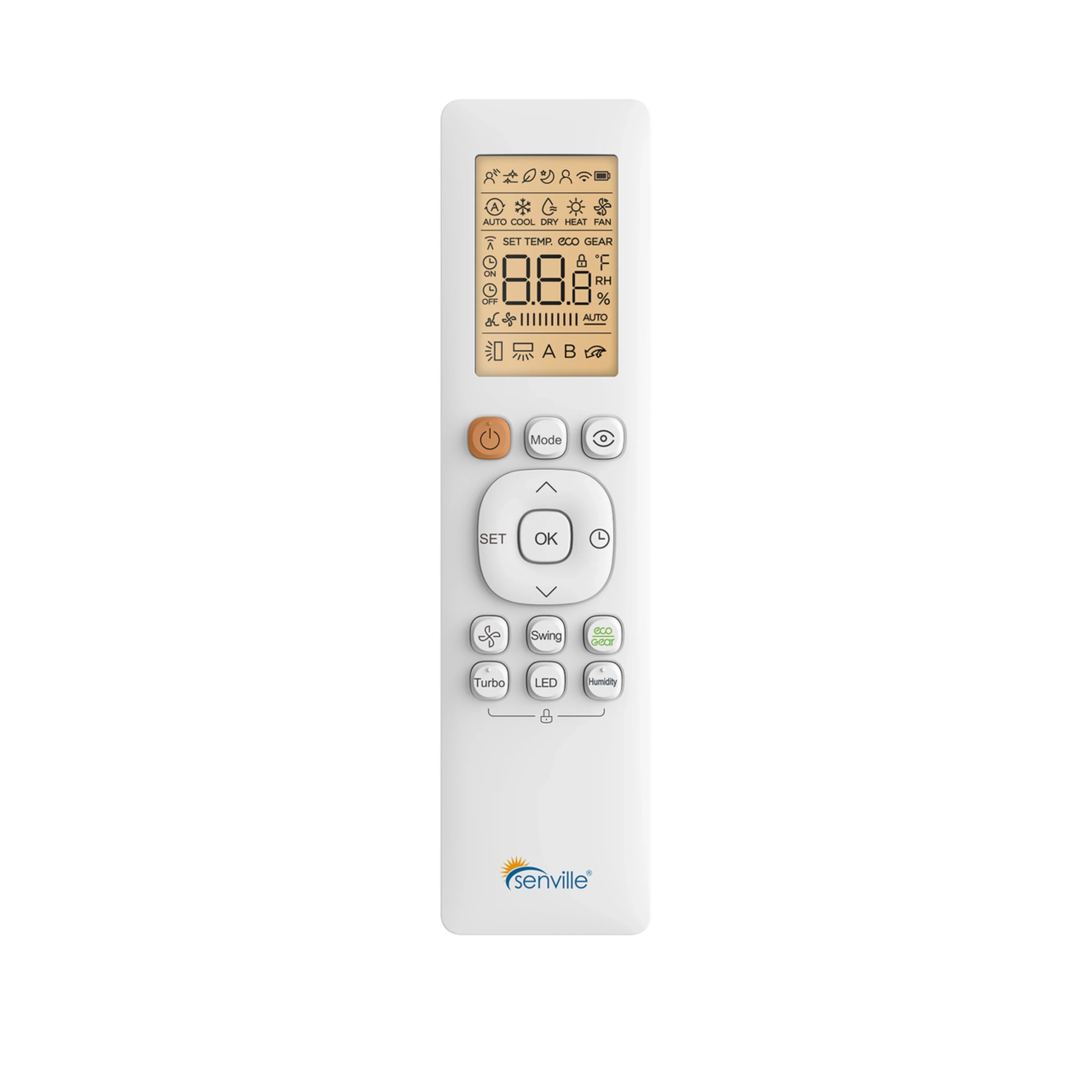

• Wireless Remote Control

• Alexa USB Kit

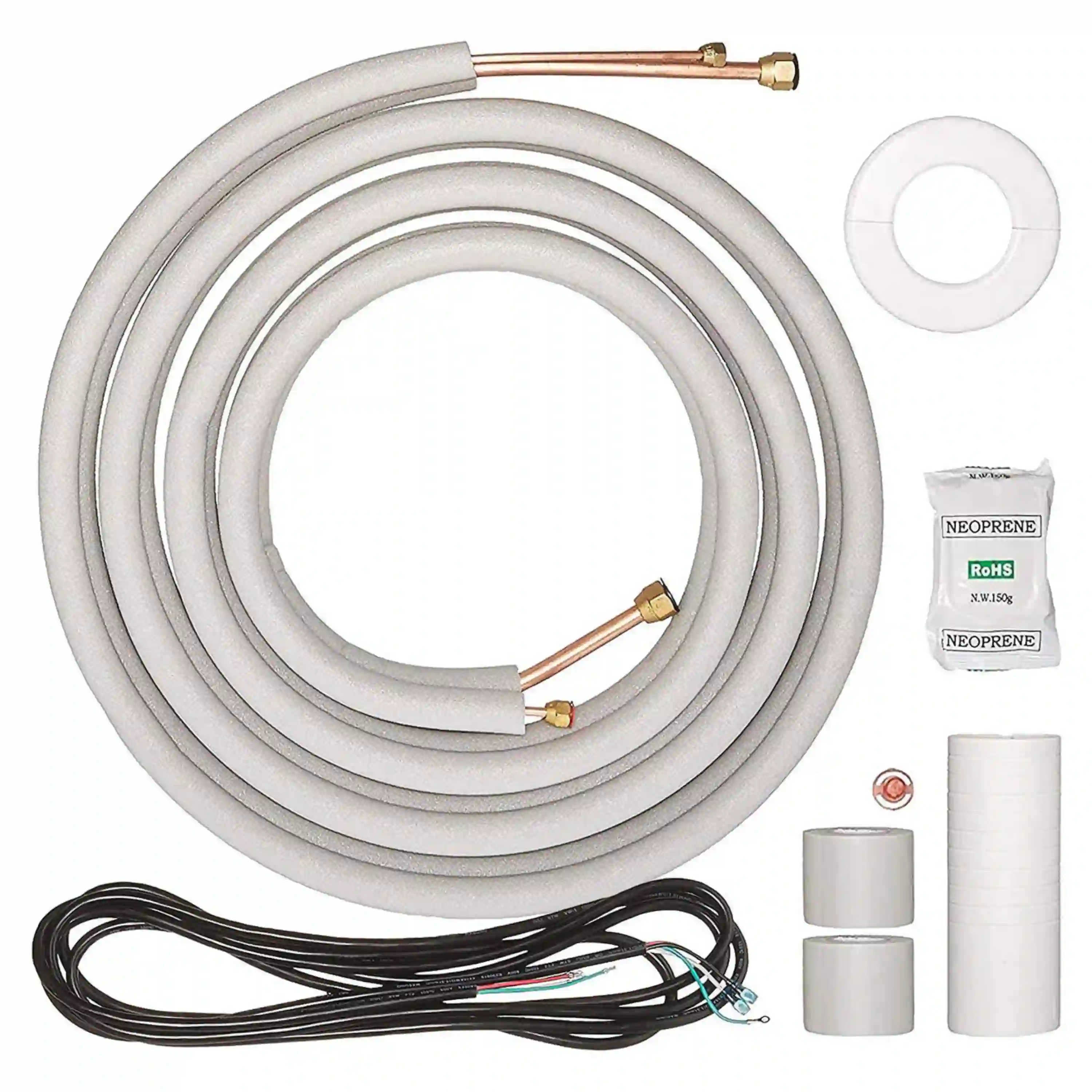

• 16 ft. Installation Kit

• Indoor-Outdoor Wiring Harness

• Installation Manual

• User’s Manual

• 10-Year Manufacturer Warranty

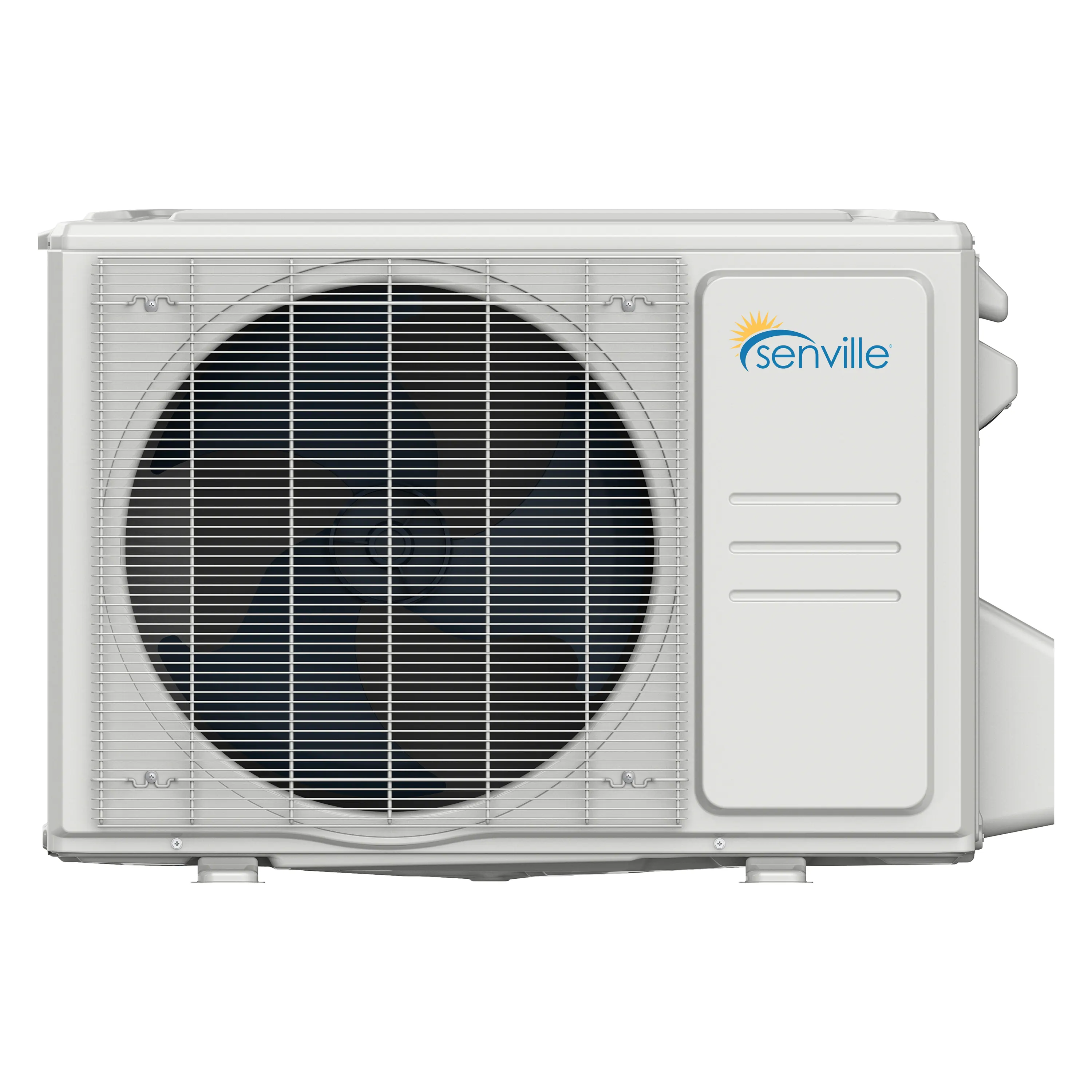

Condenser
Dimensions (WxDxH)	28.74 x 11.02 x 19.49 in
Weight	66.14 lbs
Air Flow (Max) CFM	1100
Noise Level dB	56

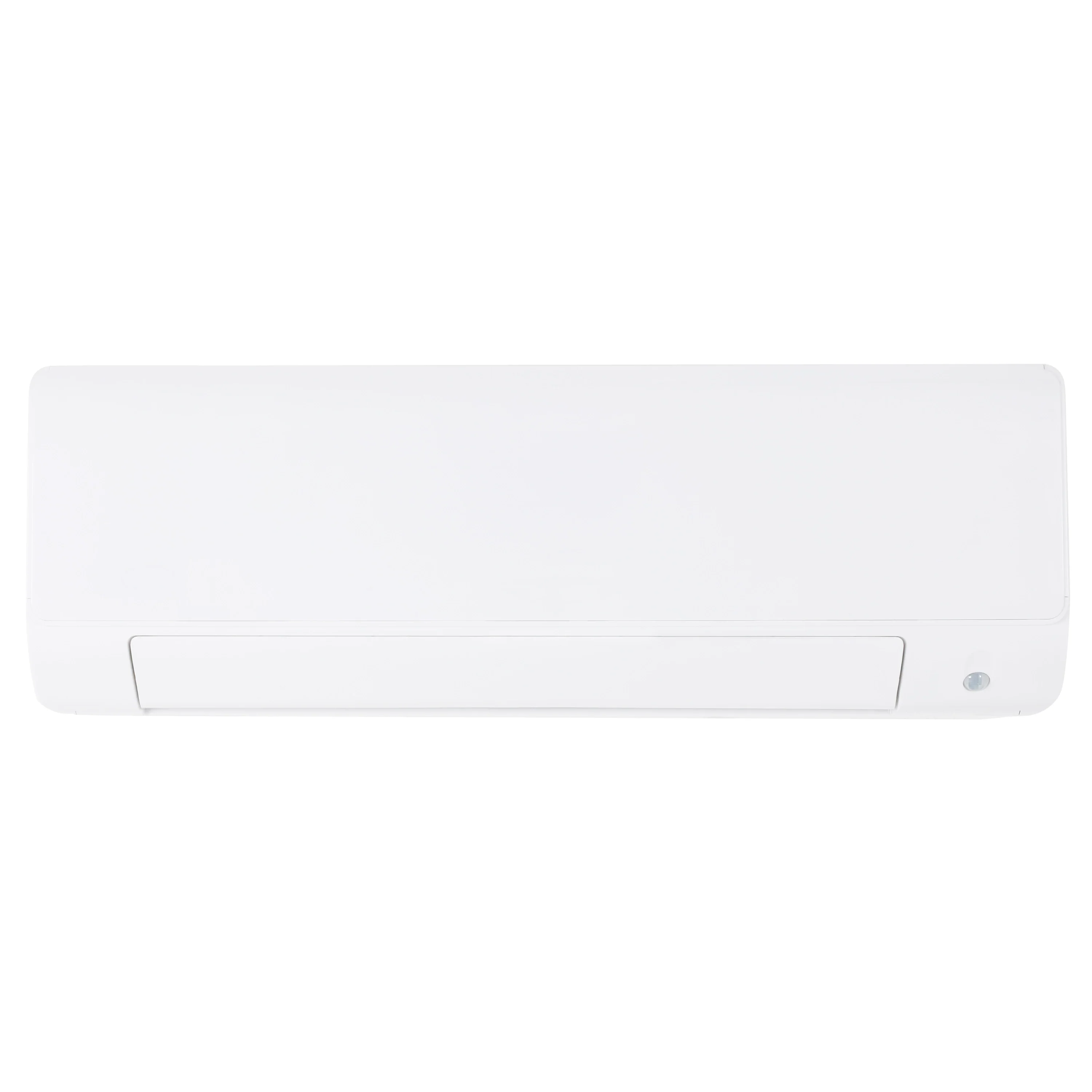

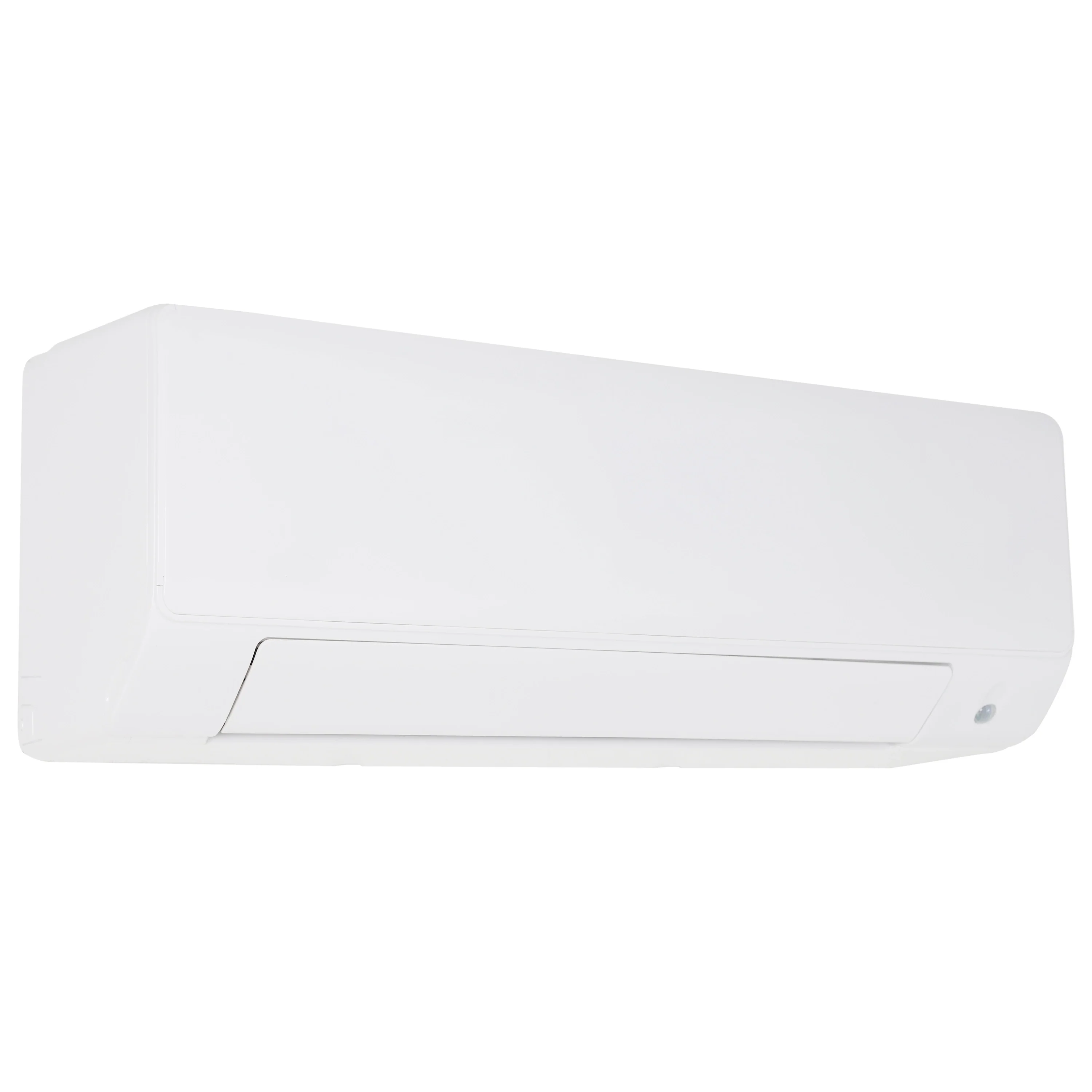

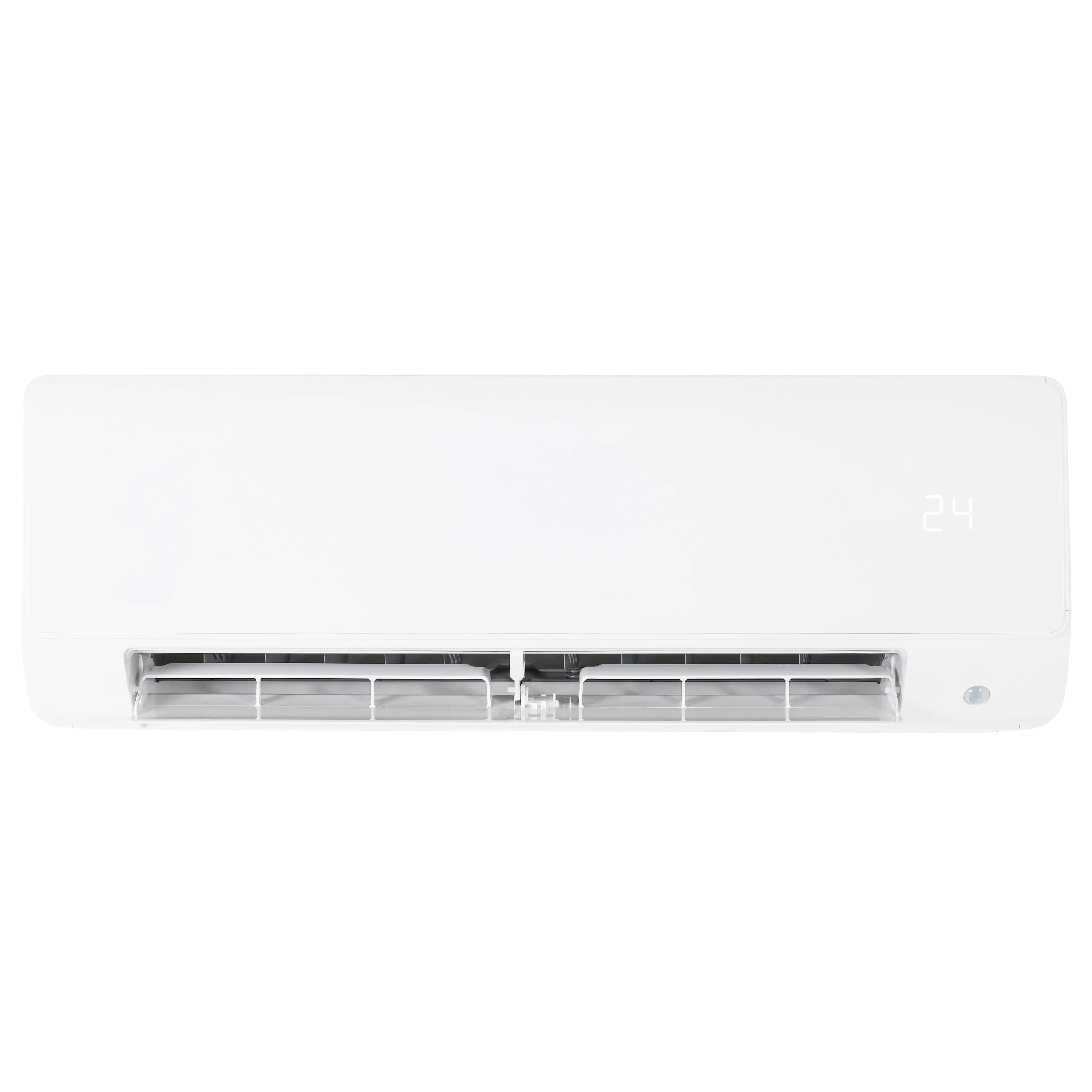

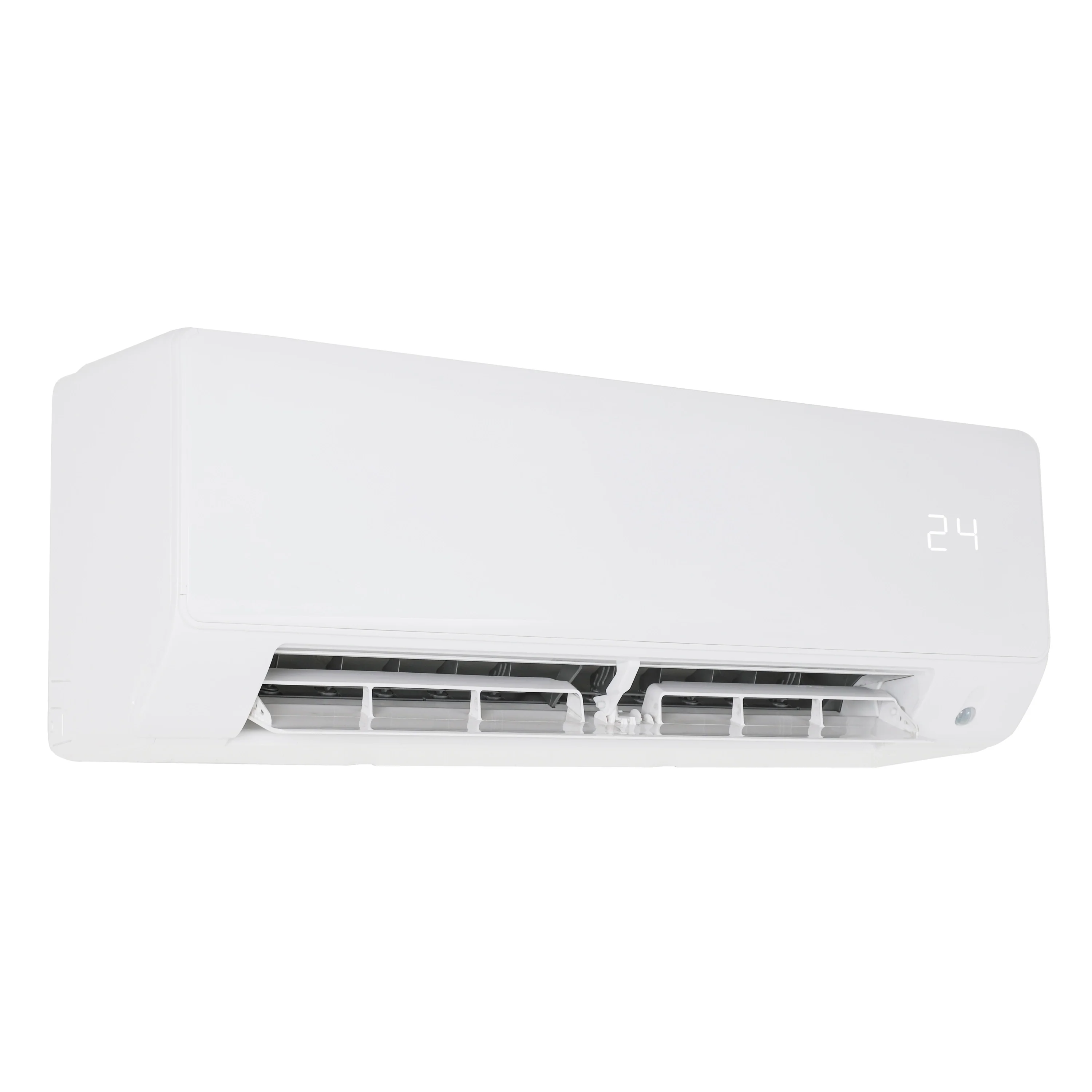

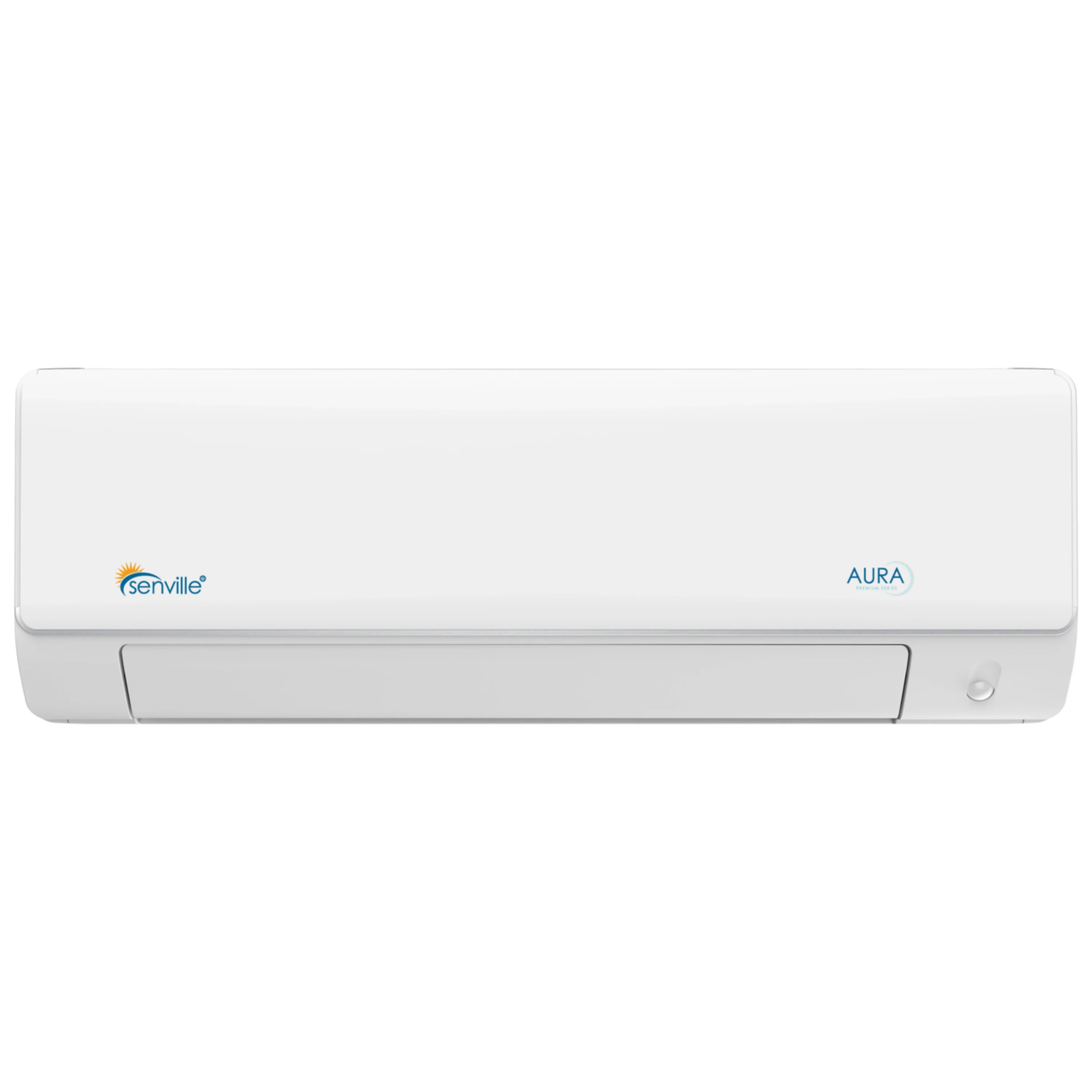

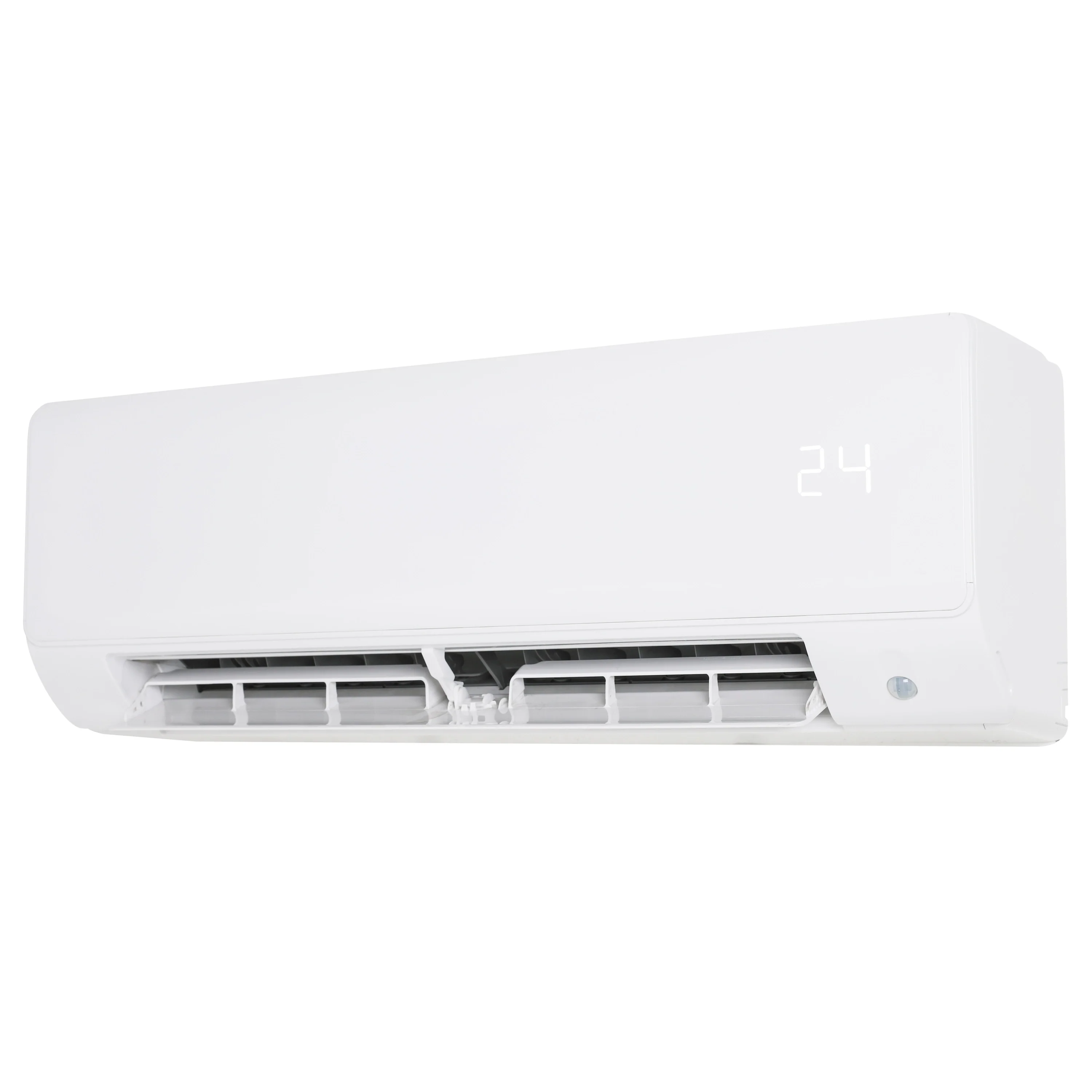

Air Handler
Dimensions (WxDxH)	33.40 x 9.18 x 11.76 in
Weight	22.05 lbs
Air Flow (Turbo/H/M/L) CFM	425 / 340 / 260 / 200
Noise Level (Turbo/H/M/L) dB	45 / 37 / 31 / 23
Technical Specification
Style	Ductless Mini Split AC With Heat Pump
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187–253
SEER2	27.4
EER2	14.5
Cooling Capacity (BTU)	9000
Cooling Range (BTU)	3000~10500
Cooling Input Range (W)	320~950
Cooling Current Range (A)	1.5~4.8
Heating Capacity (BTU)	9800
Heating Range (BTU)	3100~11000
Heating Input Range (W)	330~1050
Heating Current Range (A)	1.6~5.1
HSPF2-4	13.9
HSPF2-5	9.8
COP W/W	3.55
Minimum Circuit Ampacity (A)	10
Max. Fuse (A)	15
Moisture Removal (L/H)	1.0
Minimum Outdoor Heating Temperature	-22°F / -30°C
Refrigerant Type / Charge	R454B / 37.15 oz
Refrigerant Pre-charge	25 ft
Connection Wiring	14*4 AWG
Thermostat Type	Remote Control
Alexa	Enabled
Warranty	10 Years Compressor / 5 Years Parts
