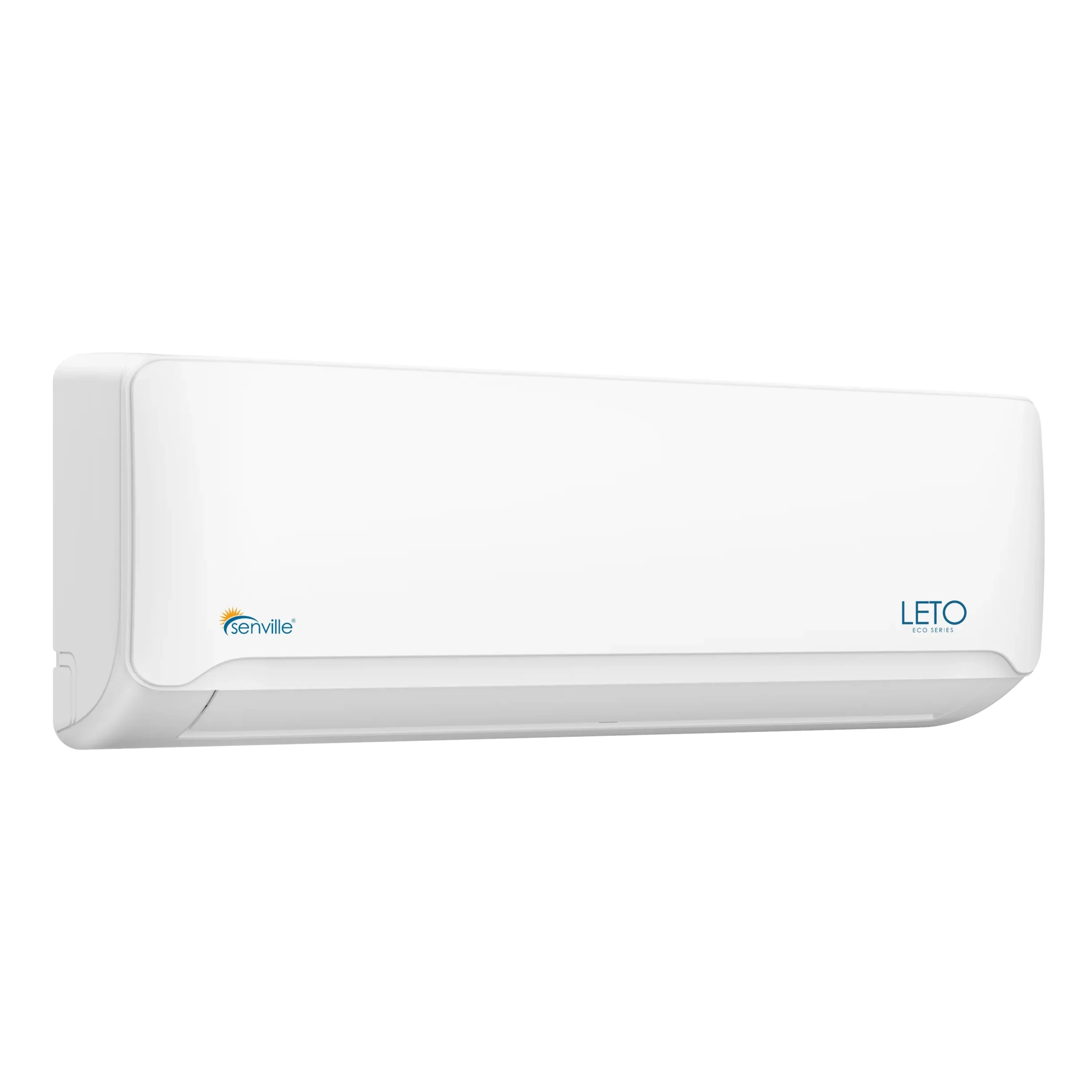

Senville LETO Series 9K BTU Mini Split with 21.2 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handler (SENL-9CD/220)

The Senville SENL-09CD/220V is a 9000 BTU mini split air conditioner and heat pump that offers a versatile and affordable solution to cooling and heating your home or business.

Features

• 21.2 SEER2 High Efficiency - Save energy while cooling and heating efficiently.
• DC Inverter Technology - Reduces energy consumption by up to 48% yearly.
• Ideal for 100–450 sq. ft. - Perfect for bedrooms, offices, and smaller living spaces.
• Heating down to -15°C (5°F) - Reliable warmth even in colder climates.
• Dehumidifier, Fan & Turbo - Customize your comfort with multiple modes.
• Professional Installation - Licensed professional installation required.
• Smart Home Integration with Alexa - Control your Senville mini split air conditioner with Alexa voice or app. Adjust temperature, set routines, and manage multiple rooms remotely—ideal for vacation homes or energy savings on the go.
• Energy-Saving Inverter Technology - Experience energy savings up to 20% annually with eco-friendly inverter technology. Automatically adjusts to maintain your comfort while reducing costs.
• Quiet Operation & Sleep Mode - Enjoy whisper-quiet operation as low as 23 dB. Sleep Mode gradually adjusts temperatures overnight for energy efficiency and comfort.
• 5-Year Manufacturer's Warranty - Includes 5-year compressor & parts warranty with North American support for peace of mind and reliable service.
• Installation Kit + Accessories Included - Includes a complimentary 16ft. Installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

• Indoor Unit

• Outdoor Unit

• Wireless Remote Control

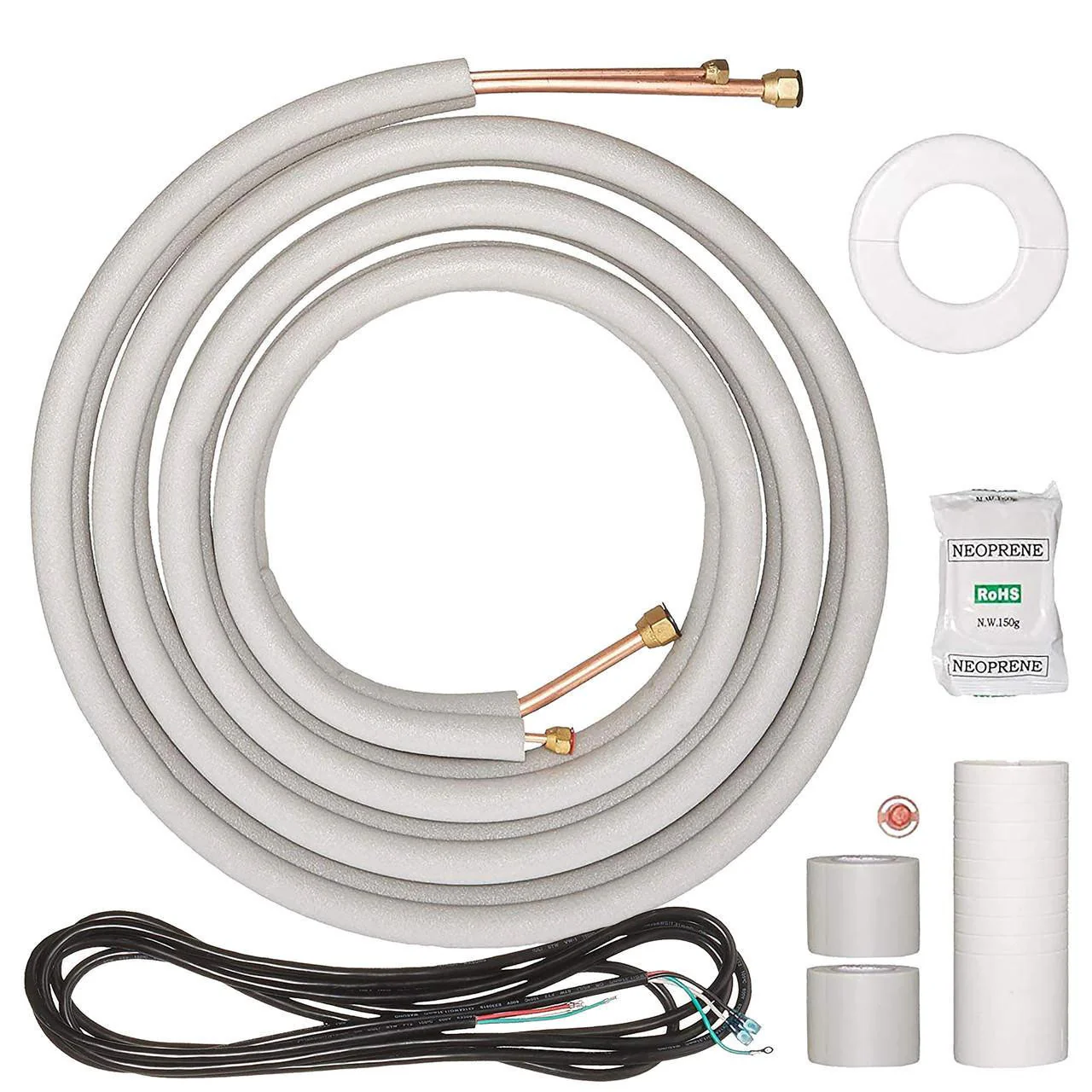

• 16 ft. Installation Kit

• Indoor to Outdoor Wiring Harness

• Alexa USB Kit

• Installation Manual

• User’s Manual

• Manufacturer Warranty

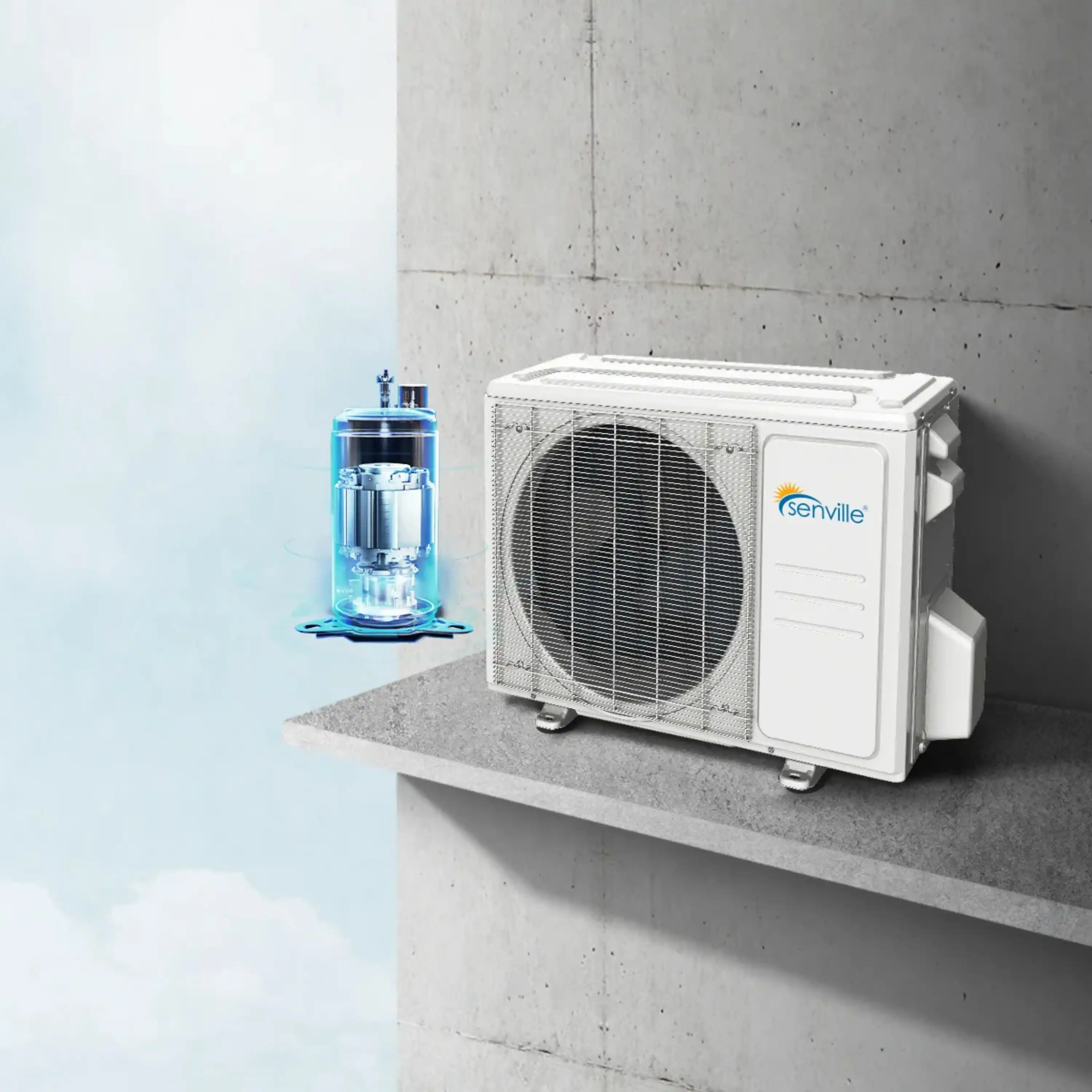

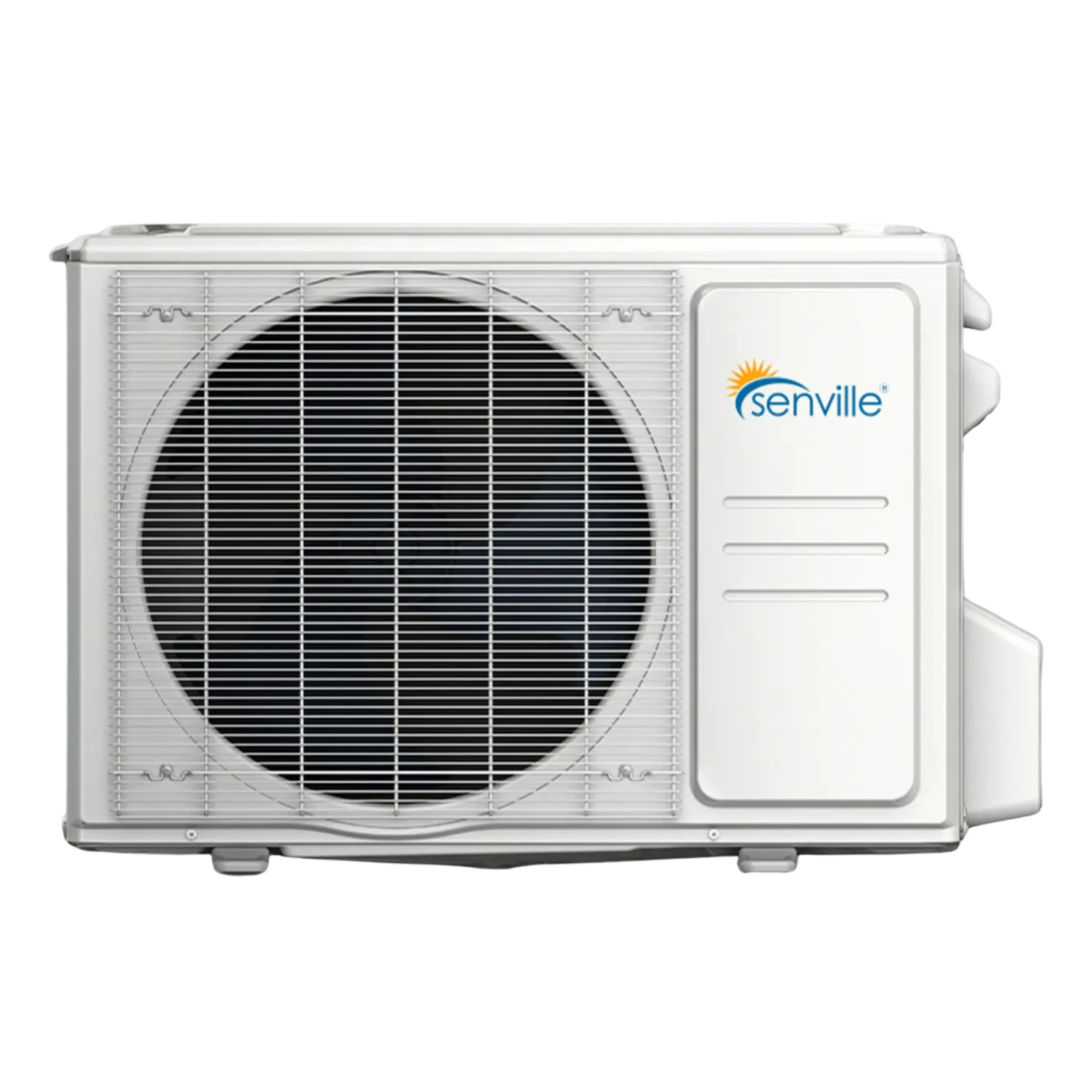

Condenser
Dimensions (WxDxH) (in.)	30.12 x 11.93 x 21.85
Weight	54.23 lbs.

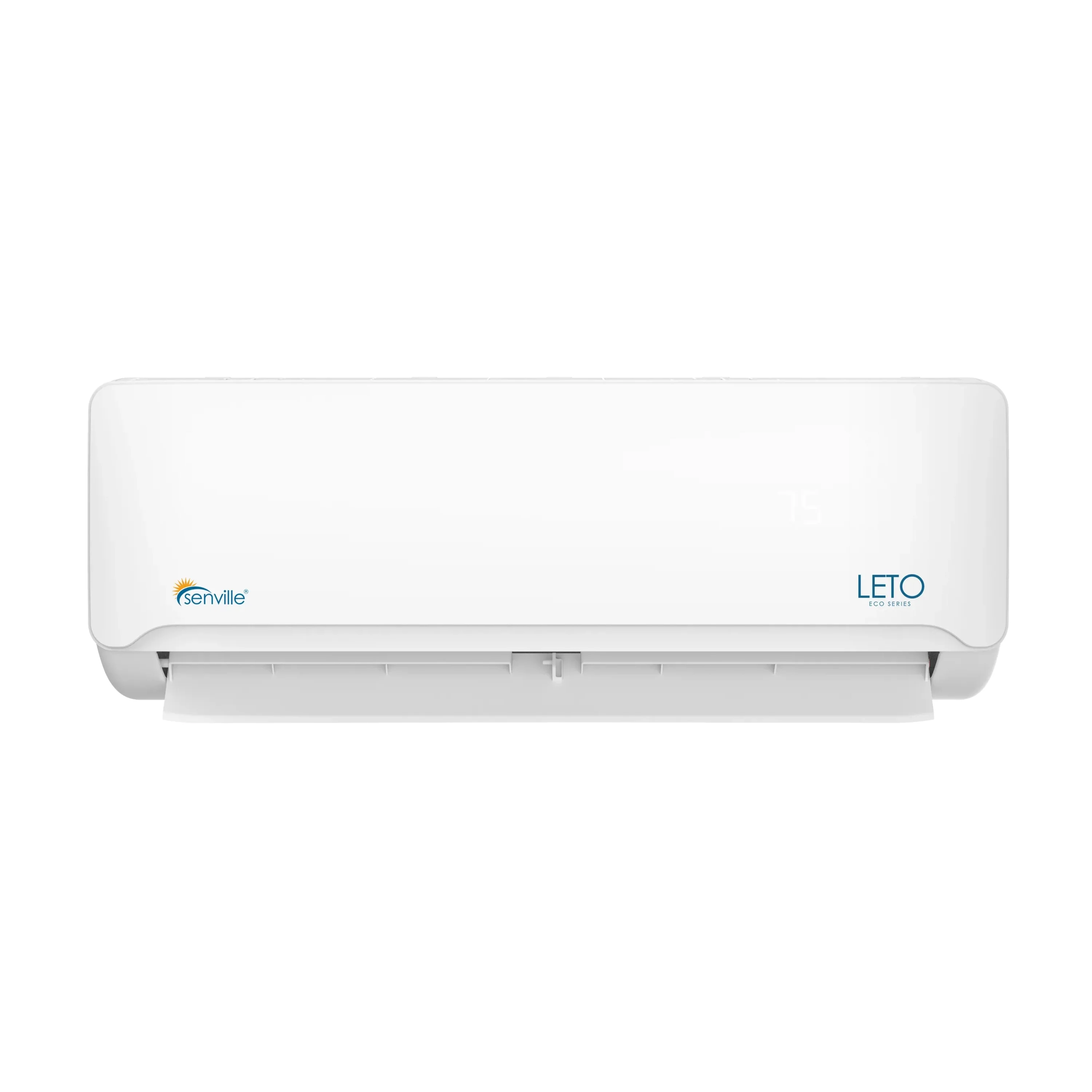

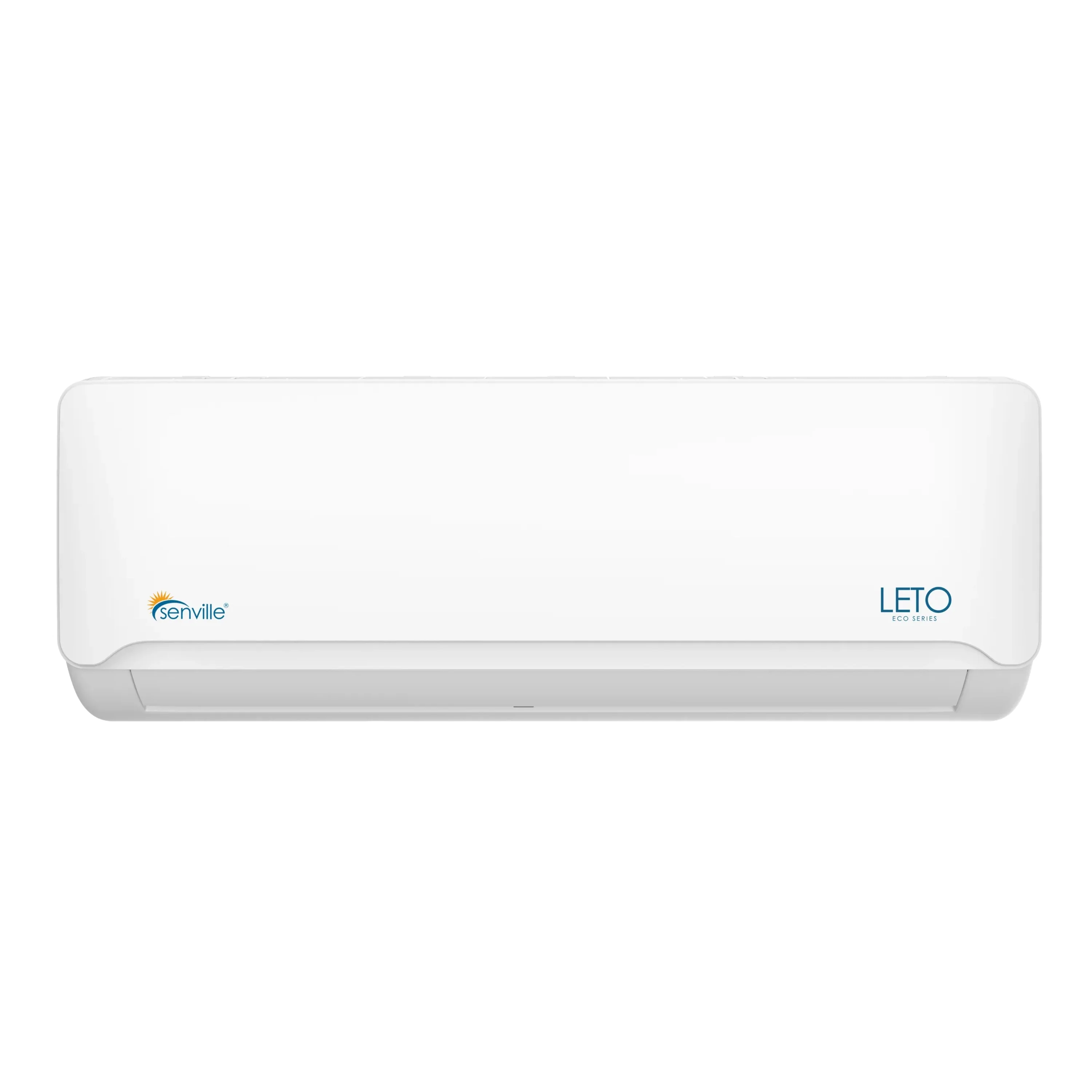

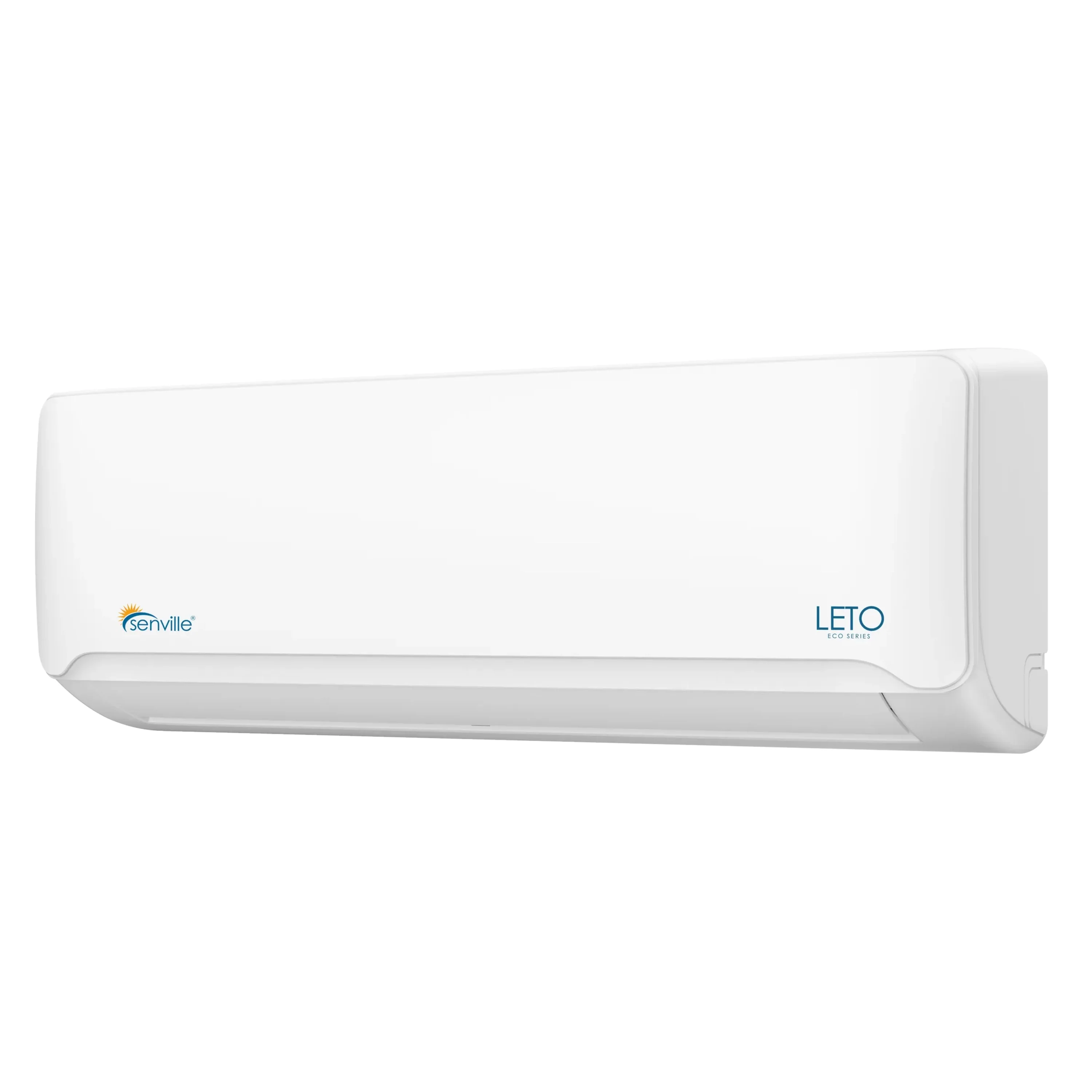

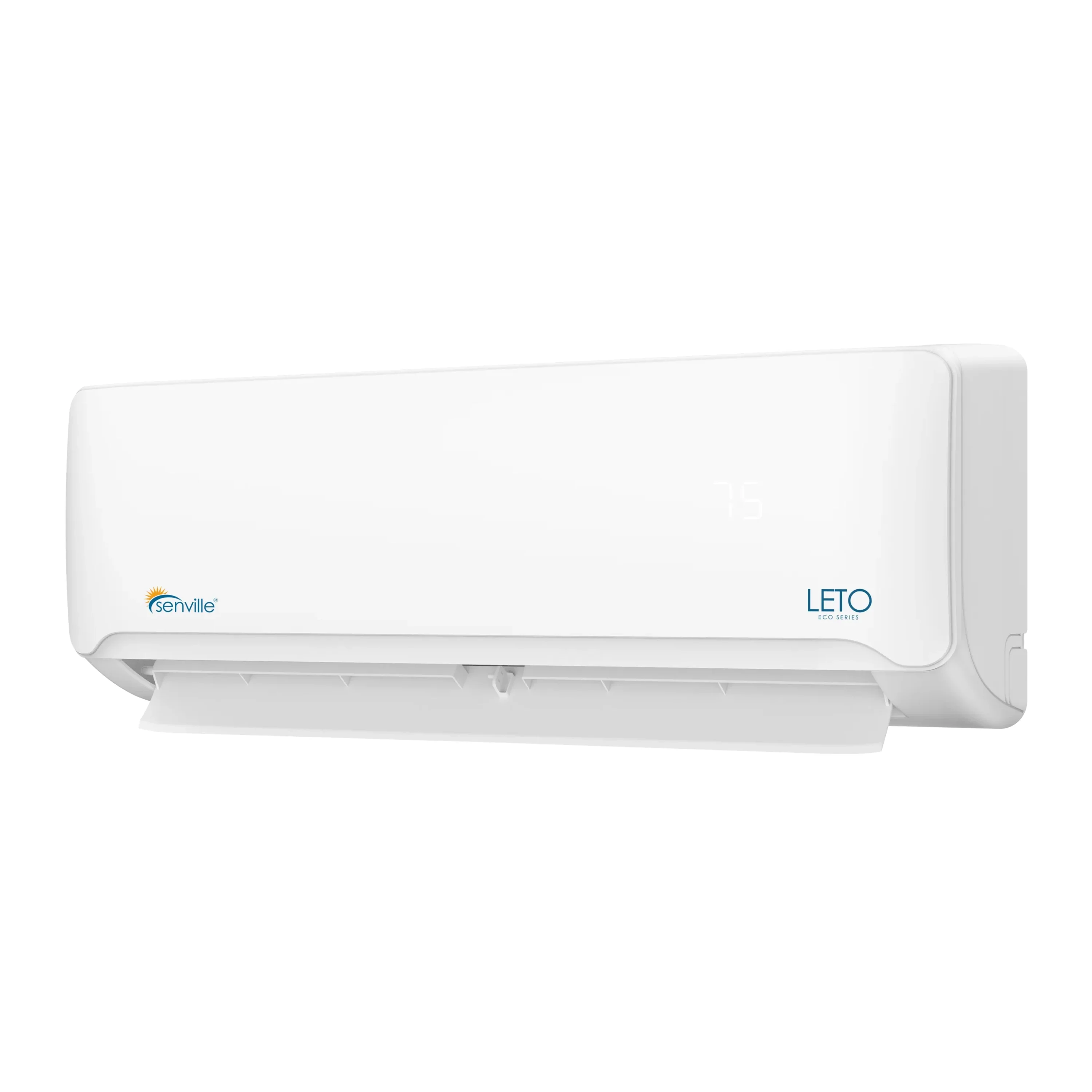

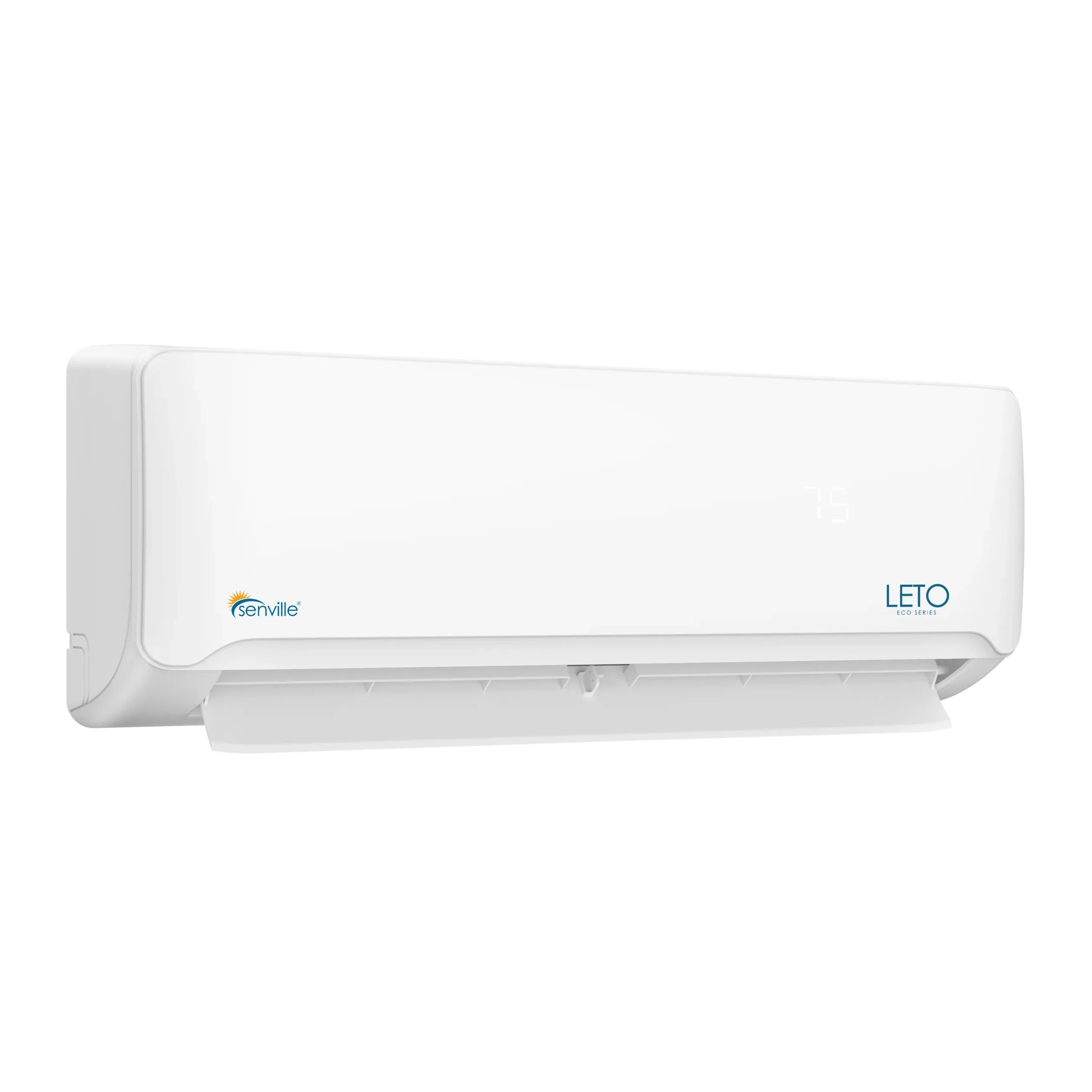

Air Handler
Dimensions (WxDxH) (in.)	28.43 x 7.36 x 11.42
Weight	16.98 lbs.
Air Flow (Turbo/H/M/L) CFM	312 / 264.9 / 194.2 / 153
Noise Level (Turbo/H/M/L) dB	40.5 / 35.5 / 31.5 / 23.0
Technical Specifications
SEER2	21.2
EER2	12.6
Style	Ductless Mini Split AC With Heat Pump
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
Cooling Capacity (BTU)	9000
Heating Capacity (BTU)	10000
HSPF2-4	9.1
HSPF2-5	7
COP W/W	3.2
Minimum Circuit Ampacity (A)	12
Max. Fuse (A)	15
Refrigerant Type	R454B
Refrigerant Pre-charge	25 ft.
Connection Wiring	14*4 AWG
Thermostat Type	Remote Control
Alexa	Enabled
Warranty	5 Years Compressor / 5 Years Parts
Certification	ETL Certified/ AHRI Certified
