✨ New Arrivals Just Dropped!Explore
Select Line Set Length
From $385.00
Original: $1,099.99

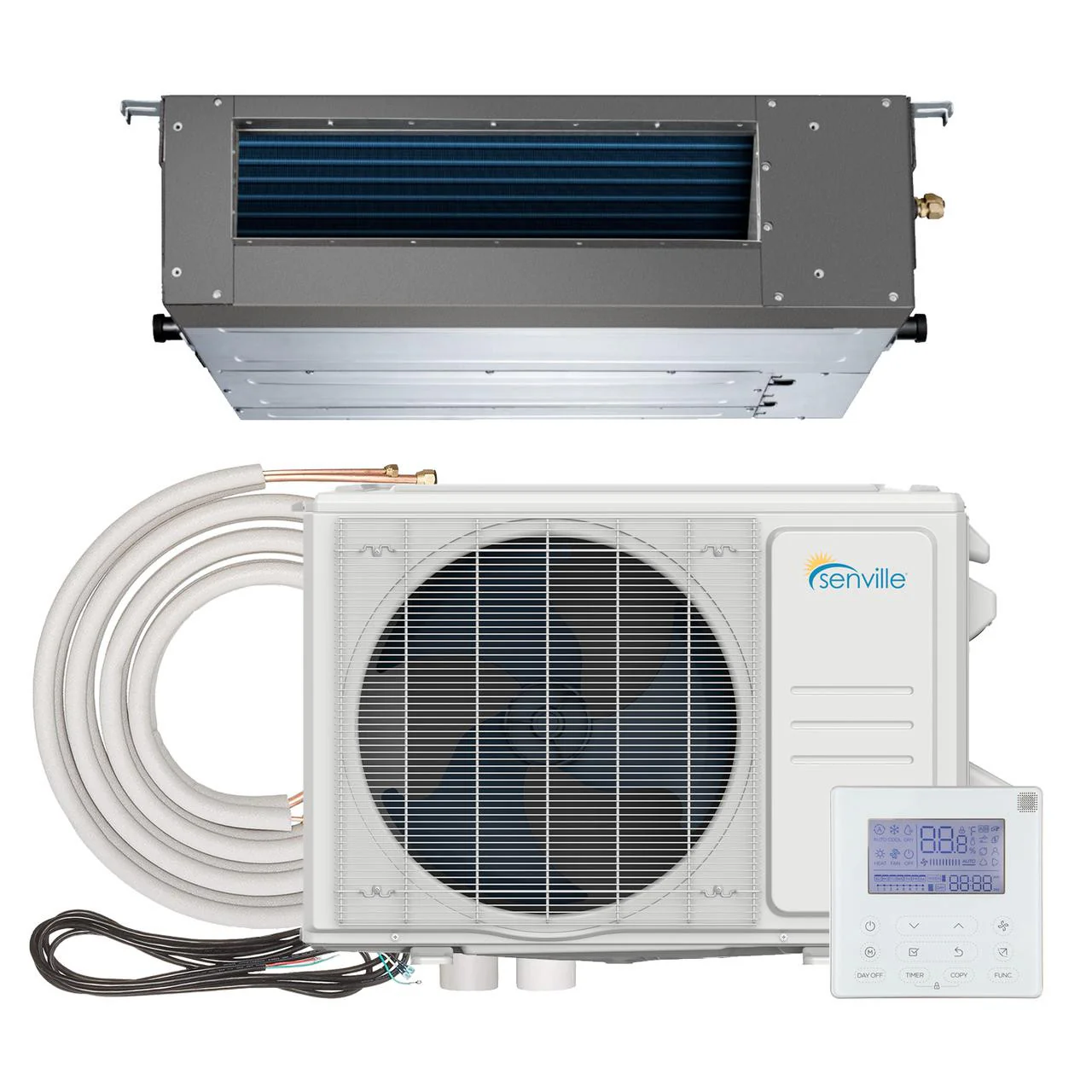

-65%Senville 9K BTU Mini Split with 21.4 SEER2, 230V Concealed Duct Air Conditioner and Heat Pump Condenser (SENA-09HF-ID)—
$1,099.99
$385.00The Story
Senville SENA-09HF/ID is a high-efficiency 9000 BTU concealed duct mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.
Features
- 21.4 SEER2 ENERGY STAR - Save up to 40% on energy costs annually.
-
Heating down to -30°C (-22°F) - Reliable performance in extreme cold.
- Ultra-Quiet Operation - Whisper-quiet for bedrooms & offices.
-
Professional Installation - Required to maintain warranty coverage.
- ENERGY STAR Certified - Save up to 40% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
- Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
- Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
- 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.

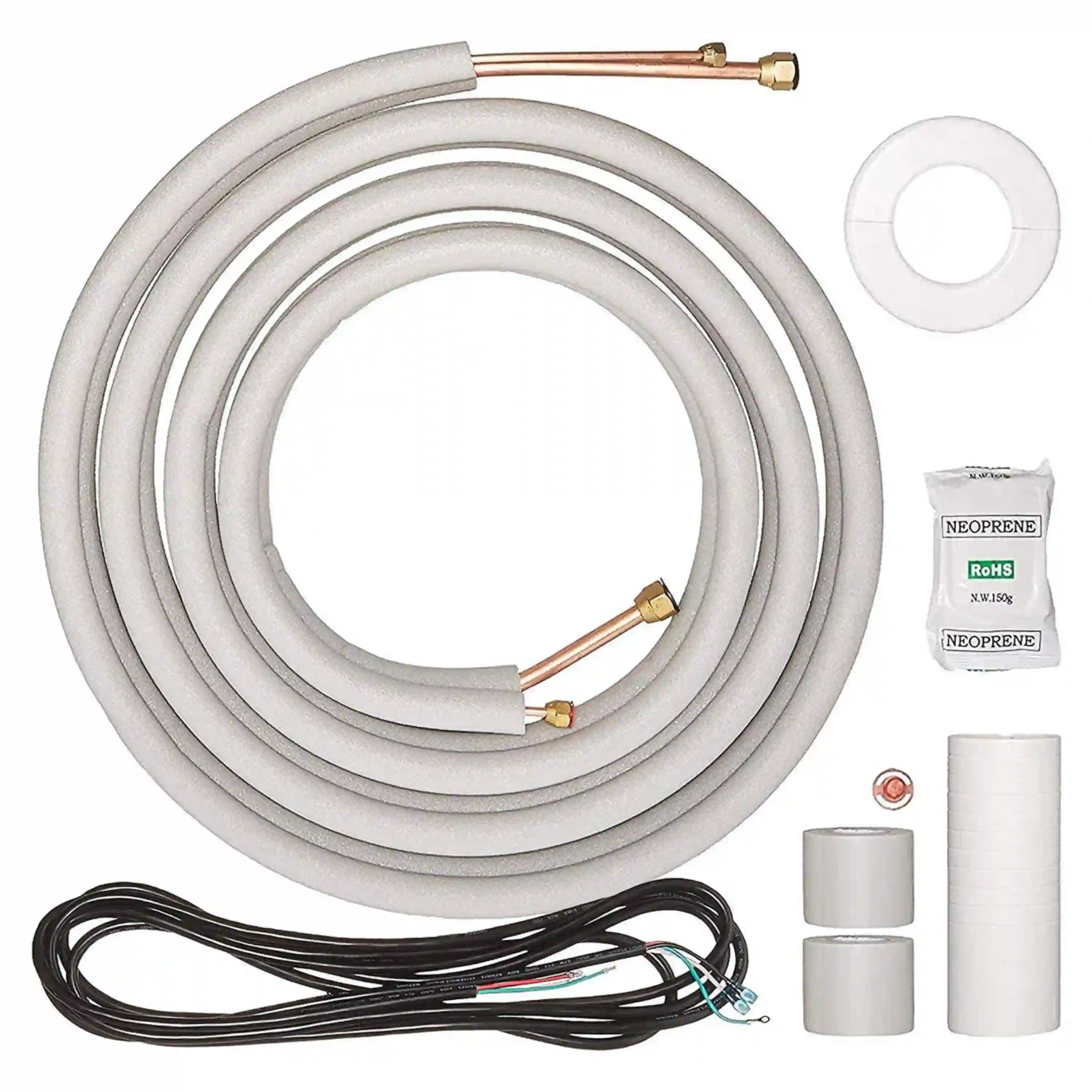

- Installation Kit + Accessories Included - Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.
What's Included
- Indoor Unit
- Outdoor Unit

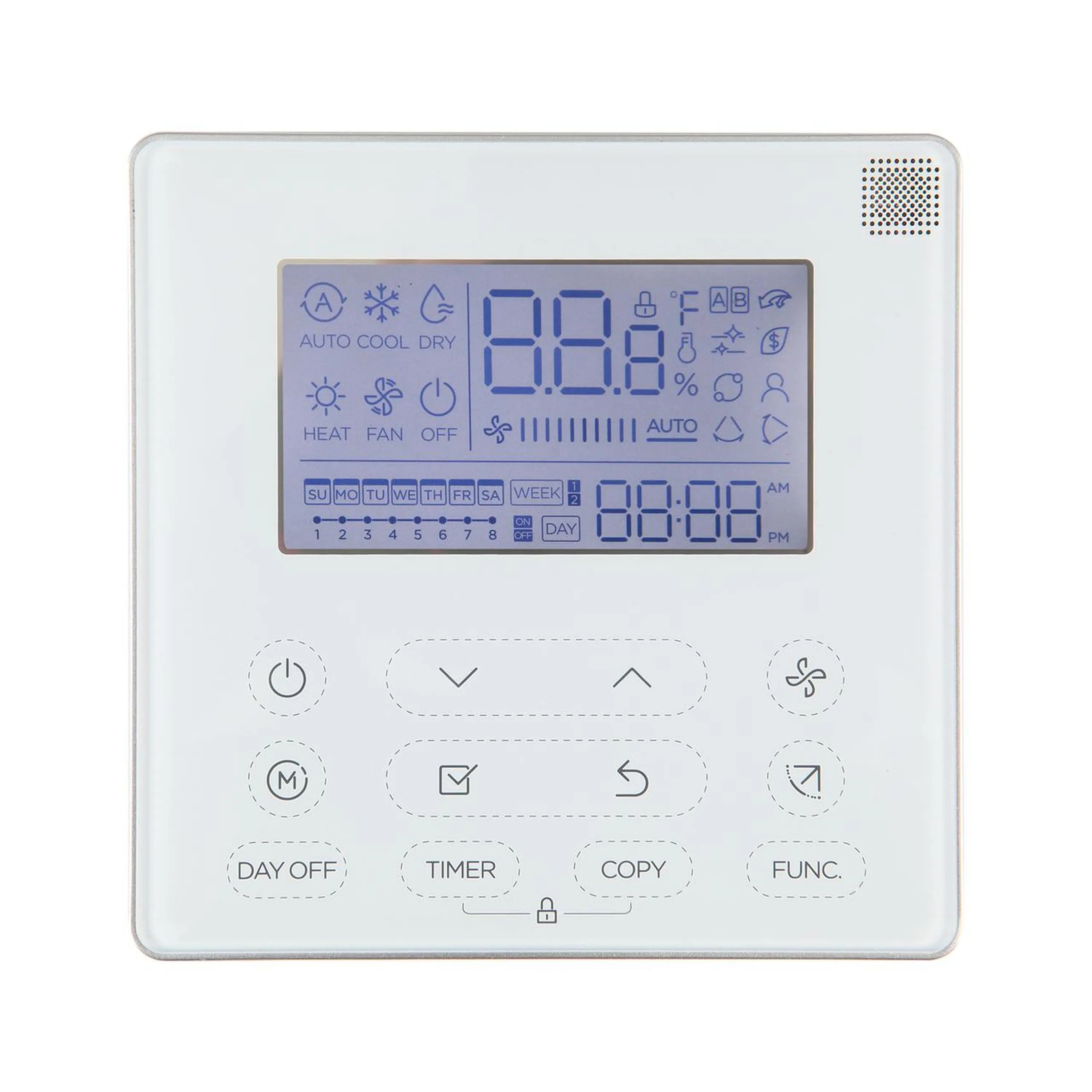

- Wireless Remote Control
- Installation Kit
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty

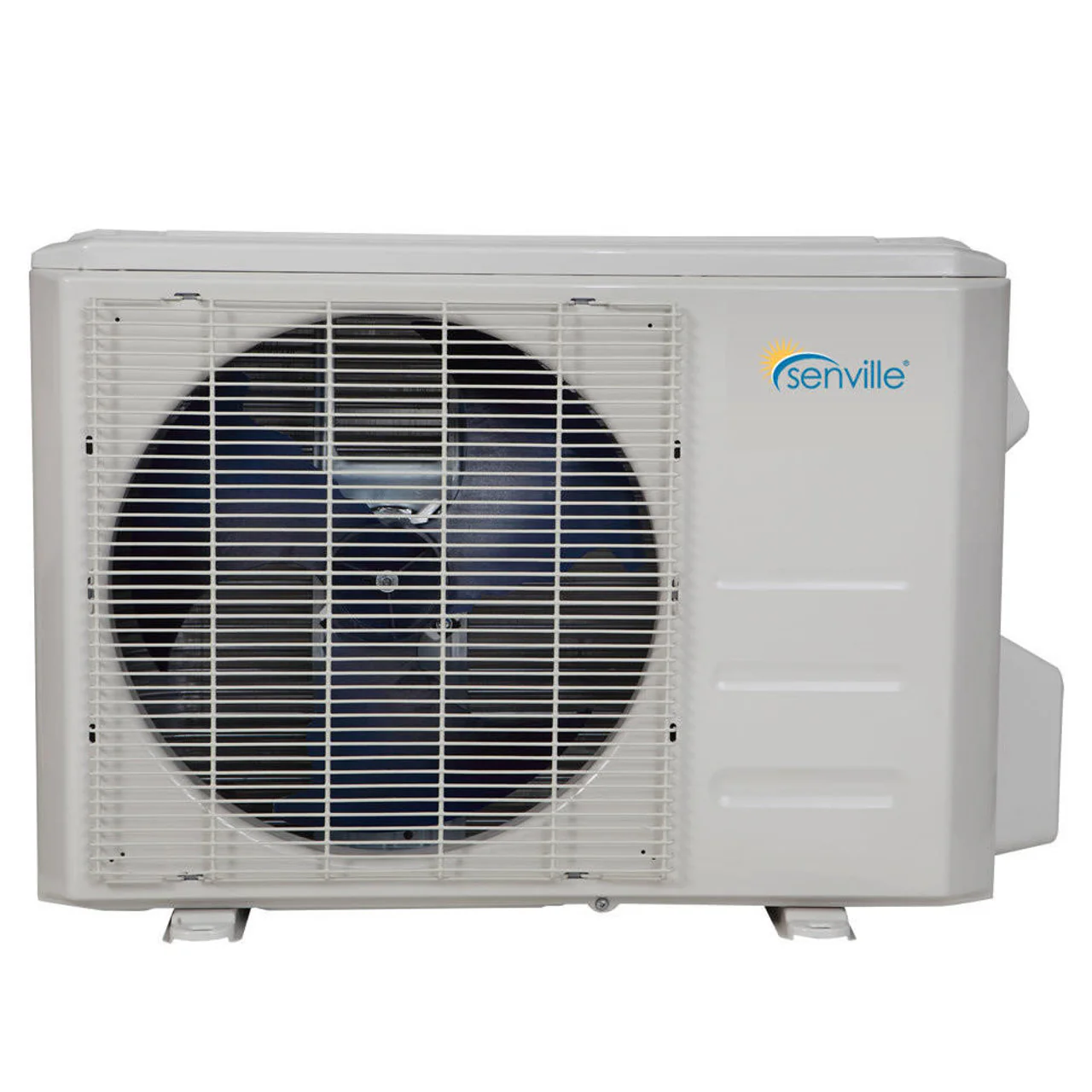

| Condenser | |
| Dimensions (WxDxH) (in.) | 31.69 x 12.99 x 21.81 |
| Weight | 72.75 Lbs |
| Air Flow (Max) CFM | 1470.6 |
| Noise Level dB | 56 |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |

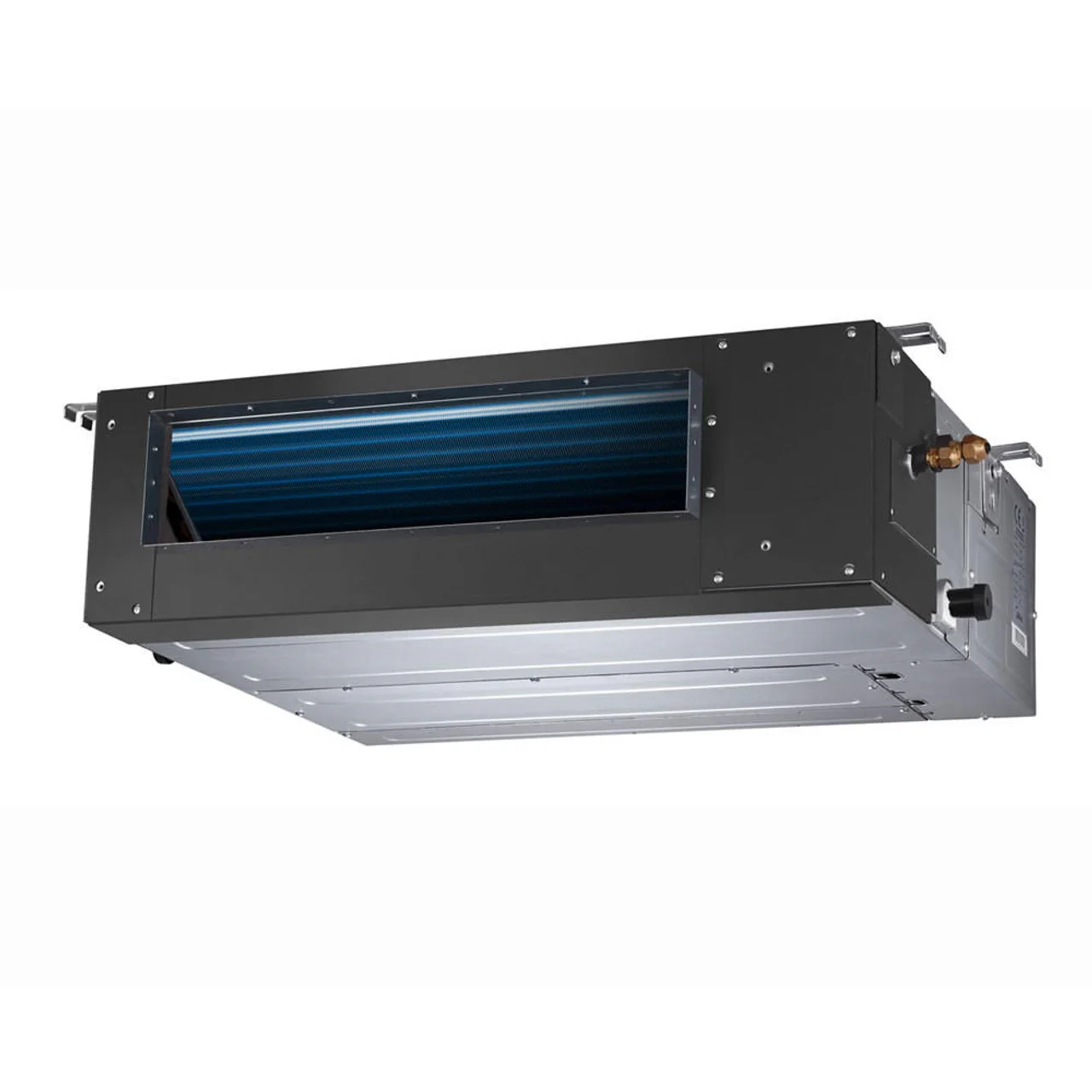

| Air Handler | |
| Dimensions (WxDxH) (in.) | 27.56 x 19.92 x 7.87 |
| Weight | 39.46 Lbs |
| Air Flow (Turbo/H/M/L) CFM | 400.2 / 323.7 / 264.9 / 176.6 |
| Noise Level (/H/M/L) dB | 32.5 / 31 / 29.5 |
| Technical Specification | |
| Style | Concealed Duct Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 21.4 |
| EER2 | 13.4 |
| Cooling Capacity (BTU) | 9000 |
| Cooling Range (BTU) | 3400~13500 |
| Cooling Input Range (W) | 145~1200 |
| Cooling Current Range (A) | 1.3~5.5 |
| Heating Capacity (BTU) | 10000 |
| Heating Range (BTU) | 3800~16200 |
| Heating Input Range (W) | 260~1450 |
| Heating Current Range (A) | 1.9~6.5 |
| HSPF2-4 | 12.5 |
| HSPF2-5 | 9.7 |
| COP W/W | 3.53 |
| Minimum Circuit Ampacity (A) | 15 |
| Max. Fuse (A) | 15 |
| Refrigerant Type / Charge oz | R454B / 35.27 |
| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14*4 AWG |
| Thermostat Type | Remote Control |
| Alexa | Enabled |
| Warranty | 10 Years Compressor / 5 Years Parts |
| Senville Catalogue |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Senville SENA-09HF/ID is a high-efficiency 9000 BTU concealed duct mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.
Features
- 21.4 SEER2 ENERGY STAR - Save up to 40% on energy costs annually.
-
Heating down to -30°C (-22°F) - Reliable performance in extreme cold.
- Ultra-Quiet Operation - Whisper-quiet for bedrooms & offices.
-
Professional Installation - Required to maintain warranty coverage.
- ENERGY STAR Certified - Save up to 40% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
- Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
- Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
- 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
- Installation Kit + Accessories Included - Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.
What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- Installation Kit
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty
| Condenser | |
| Dimensions (WxDxH) (in.) | 31.69 x 12.99 x 21.81 |
| Weight | 72.75 Lbs |
| Air Flow (Max) CFM | 1470.6 |
| Noise Level dB | 56 |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Air Handler | |
| Dimensions (WxDxH) (in.) | 27.56 x 19.92 x 7.87 |
| Weight | 39.46 Lbs |
| Air Flow (Turbo/H/M/L) CFM | 400.2 / 323.7 / 264.9 / 176.6 |
| Noise Level (/H/M/L) dB | 32.5 / 31 / 29.5 |
| Technical Specification | |
| Style | Concealed Duct Mini Split AC With Heat Pump |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187-253 |
| SEER2 | 21.4 |
| EER2 | 13.4 |
| Cooling Capacity (BTU) | 9000 |
| Cooling Range (BTU) | 3400~13500 |
| Cooling Input Range (W) | 145~1200 |
| Cooling Current Range (A) | 1.3~5.5 |
| Heating Capacity (BTU) | 10000 |
| Heating Range (BTU) | 3800~16200 |
| Heating Input Range (W) | 260~1450 |
| Heating Current Range (A) | 1.9~6.5 |
| HSPF2-4 | 12.5 |
| HSPF2-5 | 9.7 |
| COP W/W | 3.53 |
| Minimum Circuit Ampacity (A) | 15 |
| Max. Fuse (A) | 15 |
| Refrigerant Type / Charge oz | R454B / 35.27 |
| Refrigerant Pre-charge | 25 Ft. |
| Connection Wiring | 14*4 AWG |
| Thermostat Type | Remote Control |
| Alexa | Enabled |
| Warranty | 10 Years Compressor / 5 Years Parts |
| Senville Catalogue |
