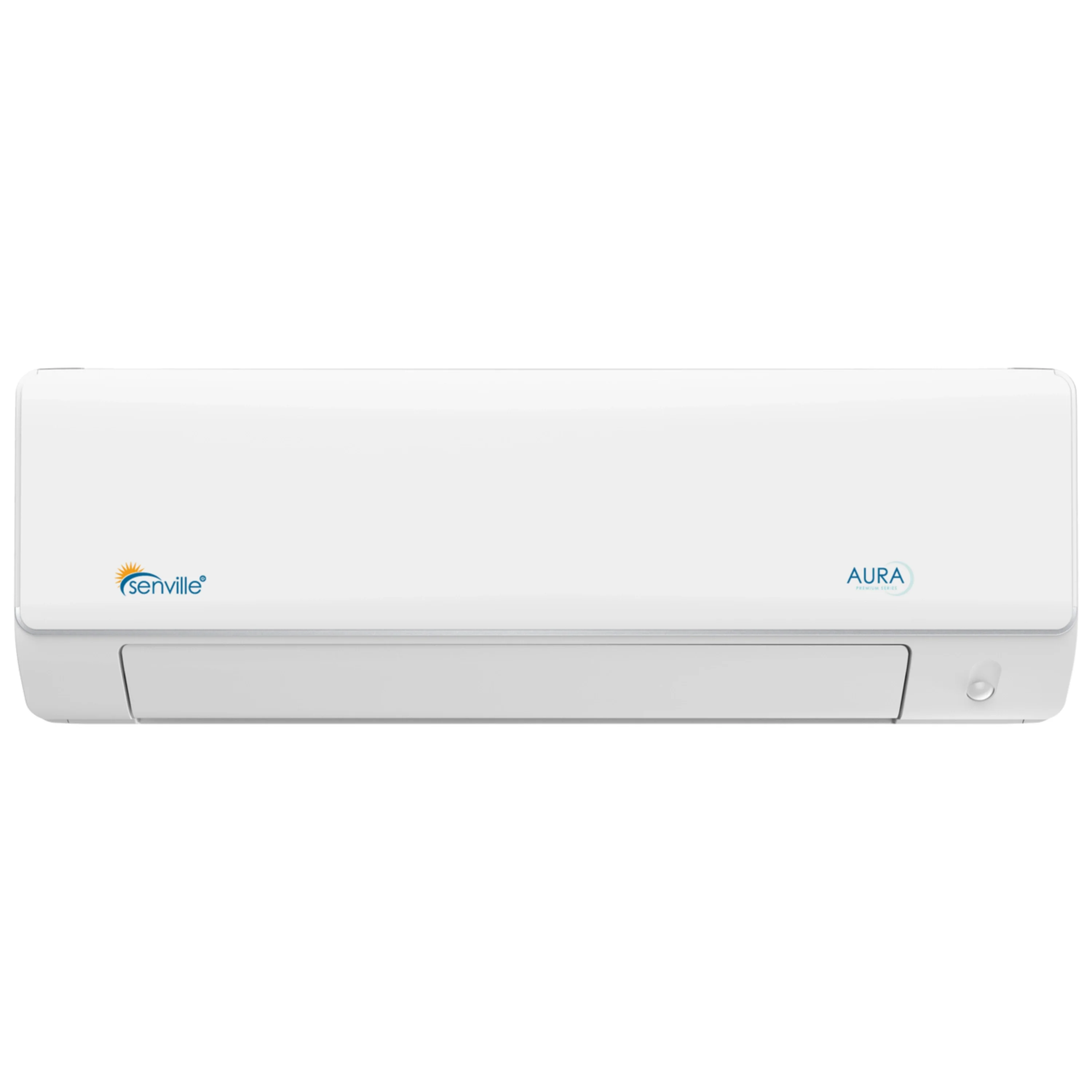

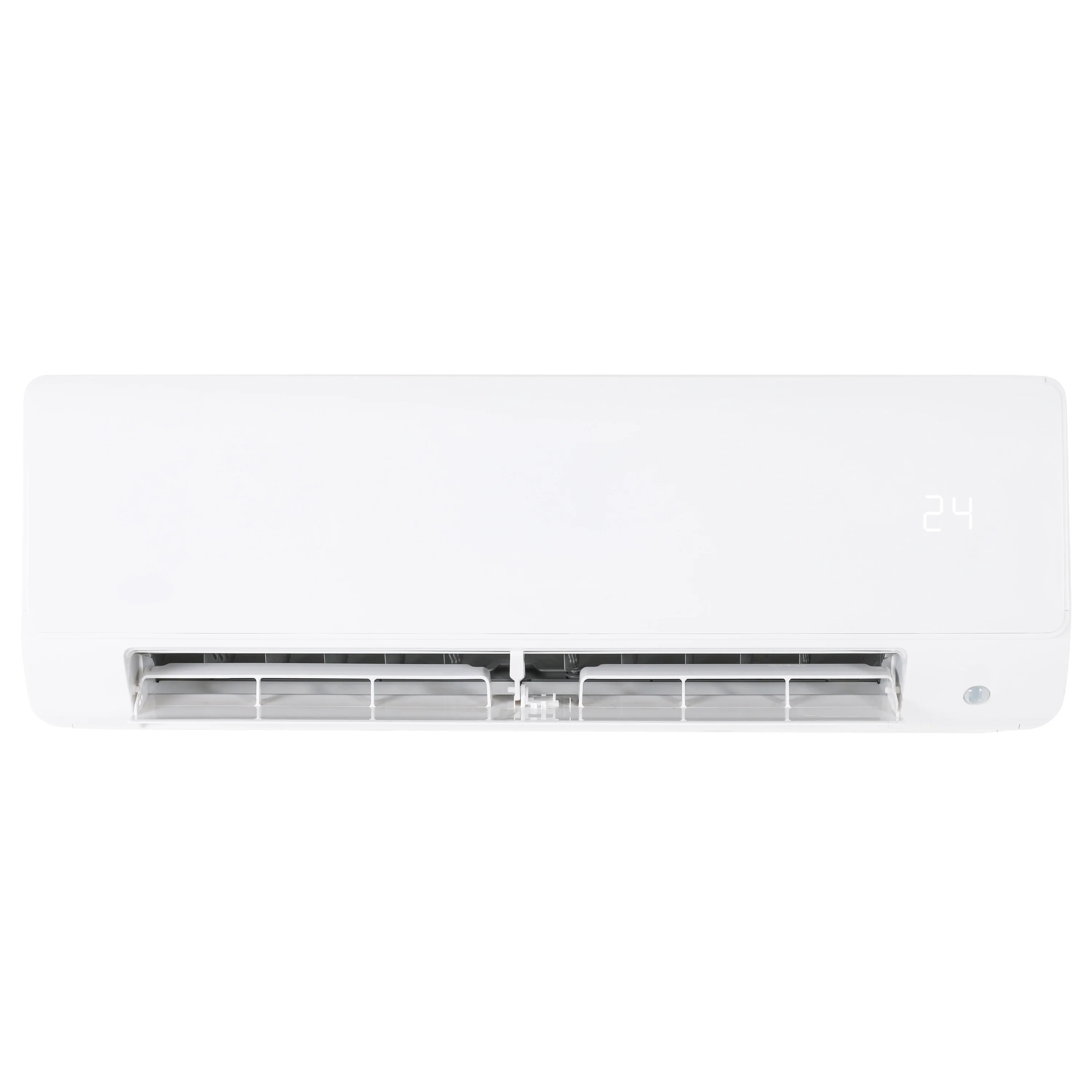

-65%Senville Mini Split - 2-Zone 36,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-36HF-D)—
$2,999.99
$1,050.00The Story
Senville SENA-36HF-D is a high-efficiency 36000 BTU dual-zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. Perfect for heating and cooling three rooms, even in extremely cold climates.
Features
- 23 SEER2 ENERGY STAR - Efficient and eco-friendly year-round operation.
-
Heats Down to -30°C / -22°F - Built for cold climates with advanced inverter technology.
- Smart Control with Alexa - Set schedules, adjust temperature, and control via app or voice.
-
Quiet Operation - Ultra-low noise levels ideal for home and office.
- Multi-Zone Coverage - Cools and heats up to 3 individual zones or rooms.
- Professional Installation - Required for full warranty and optimal performance.
- Smart Home Integration with Alexa - Control your comfort with Alexa or the Senville app. Adjust settings from anywhere.
- ENERGY STAR Certified - High-efficiency system helps lower energy costs while reducing emissions.
- Cold Climate Ready - Reliable heating at -22°F thanks to advanced compressor and inverter tech.
- Diagnostics & Leak Detection - Built-in sensors detect system issues early, including refrigerant leakage.
- 10-Year Warranty - Backed by a 10-year compressor and 5-year parts warranty across North America.
- Installation Kit + Accessories Included- Includes a complimentary Installation kit. System is pre-charged with R454B refrigerant for up to 100 ft. Professional installation required to maintain warranty coverage and performance.
What's Included

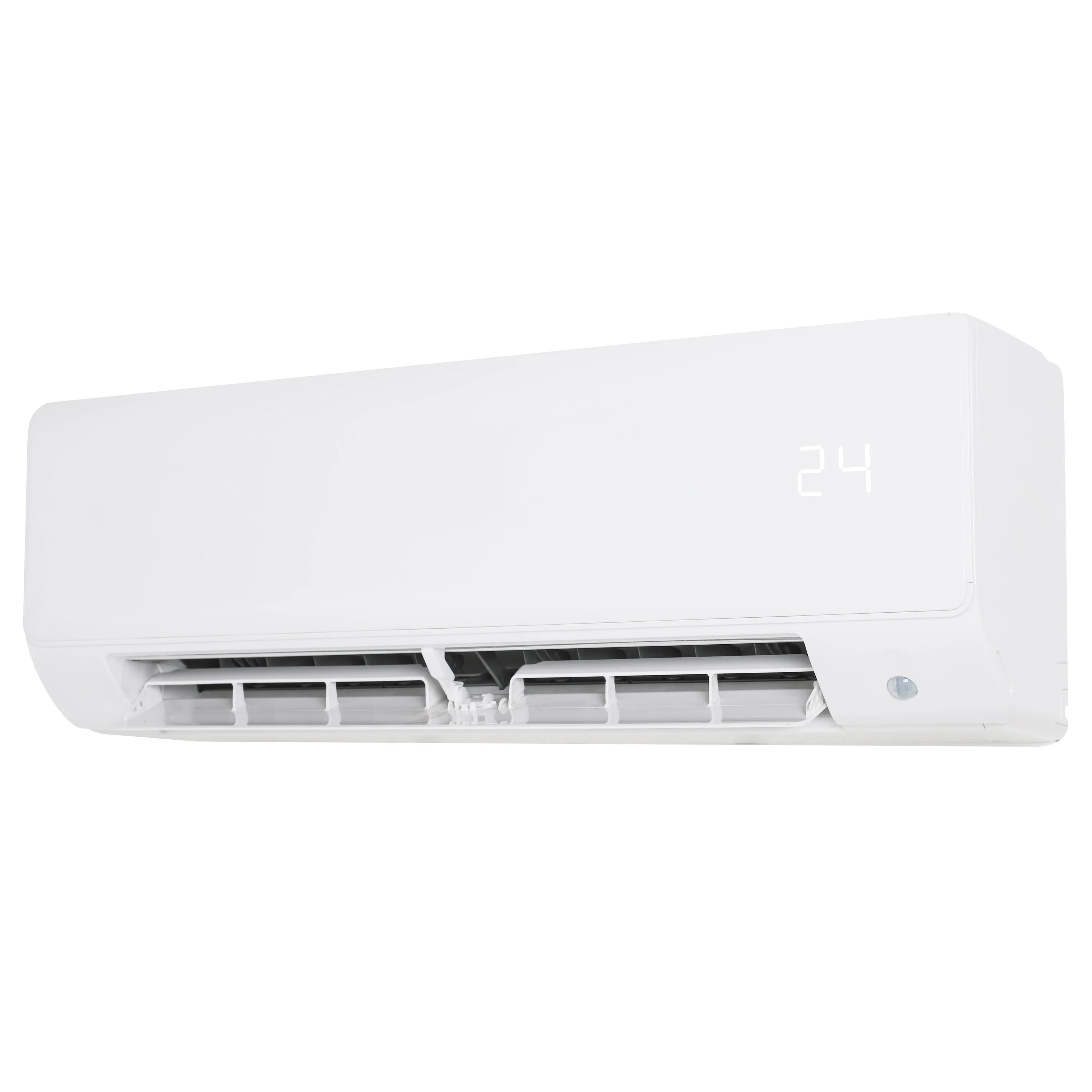

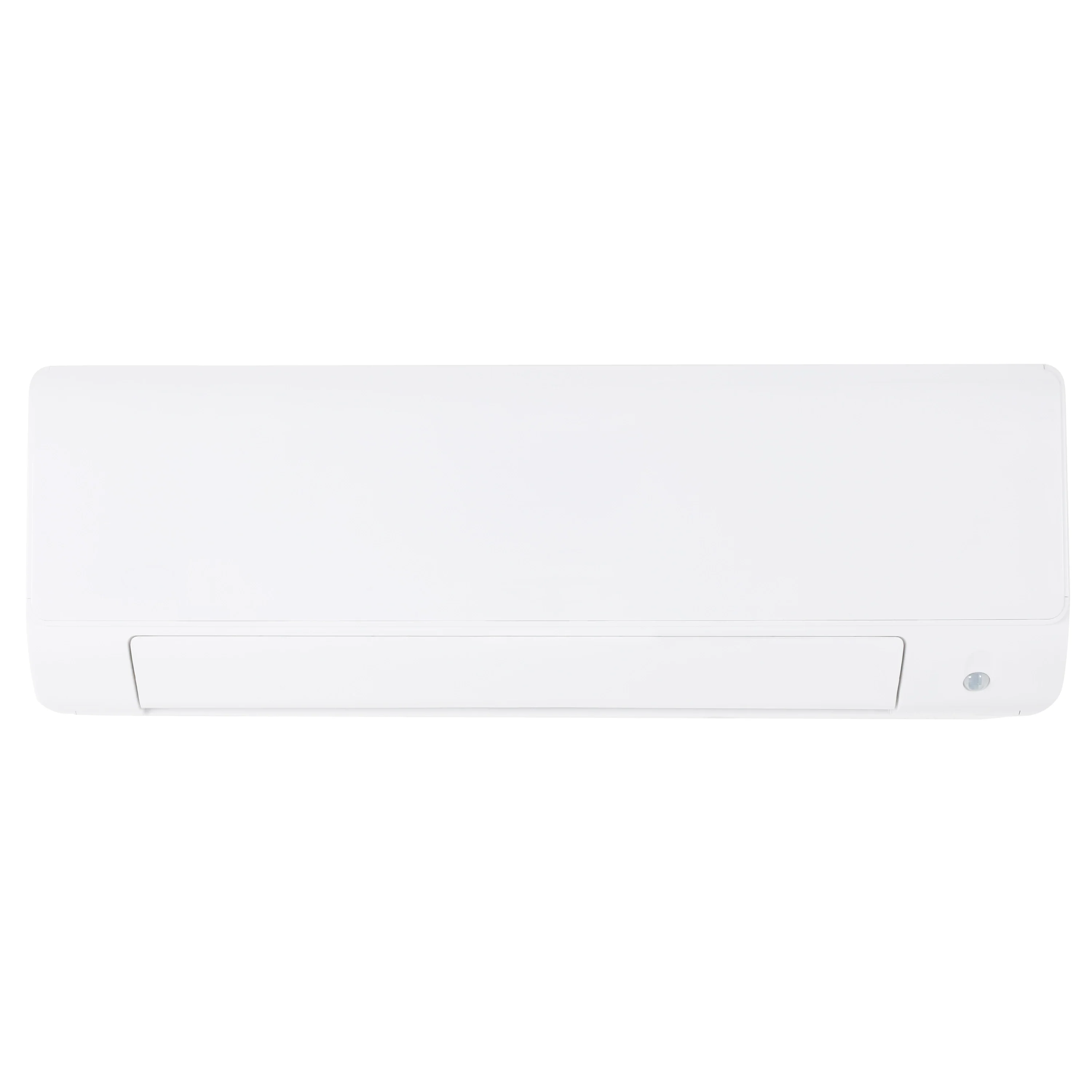

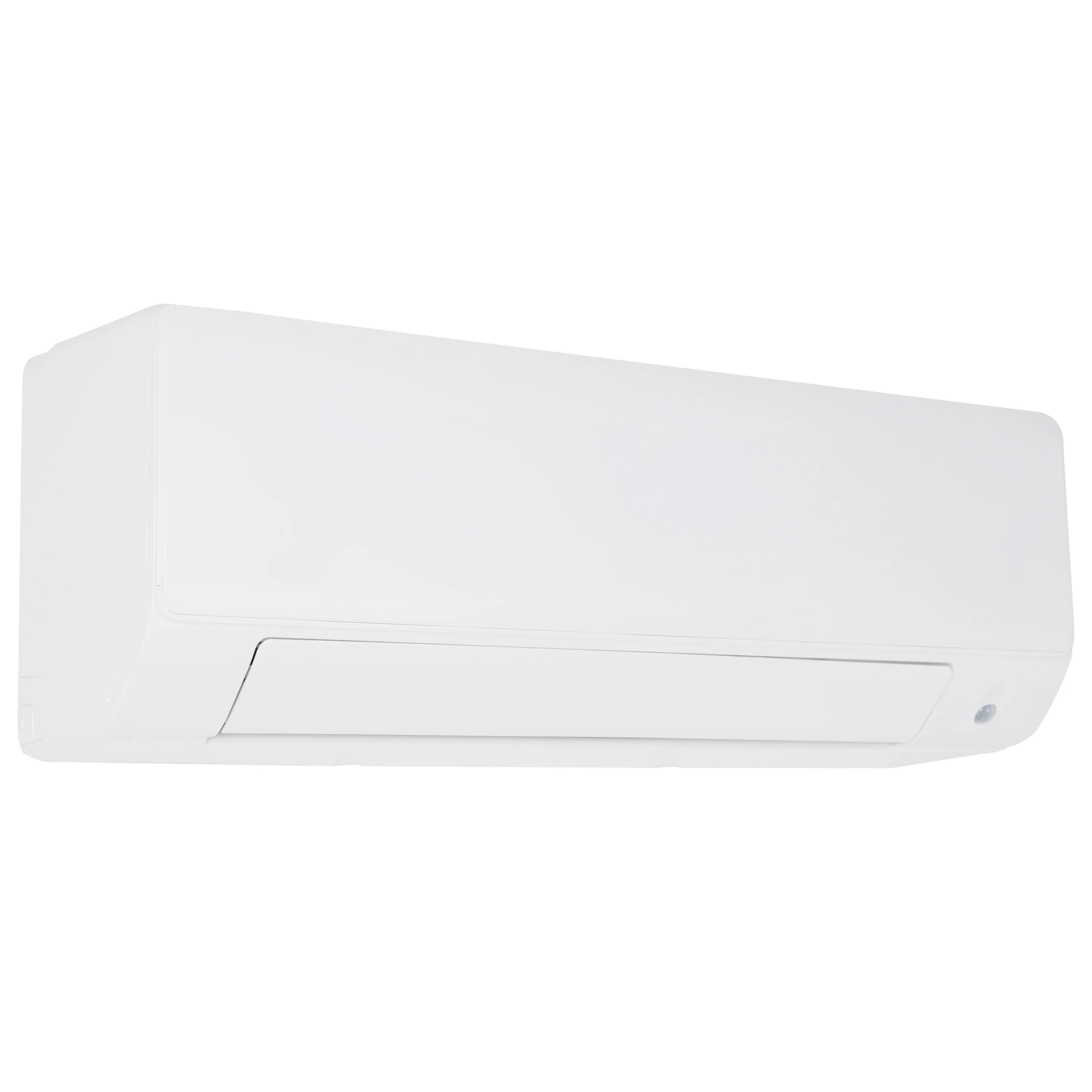

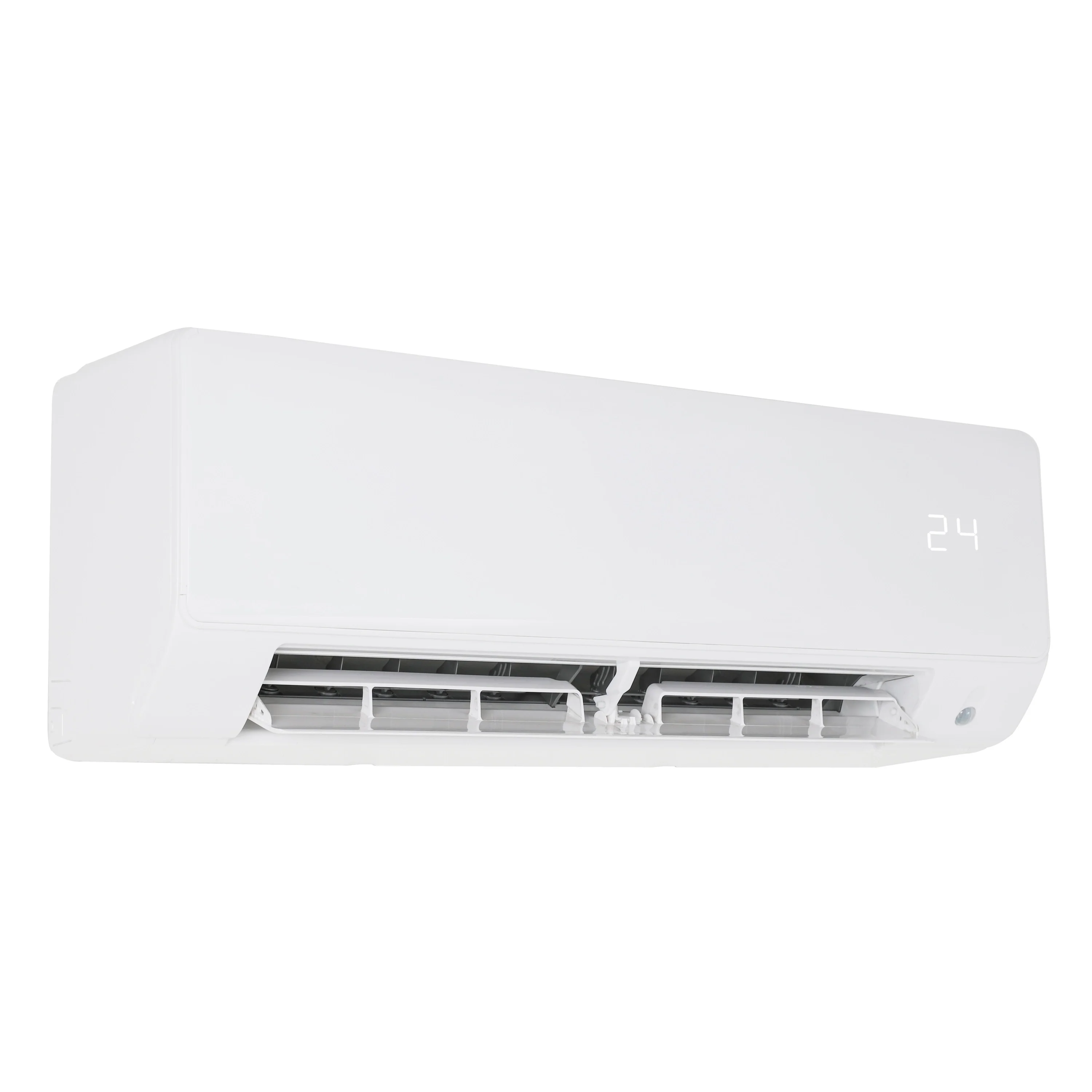

- 2 Indoor Units (various BTU combinations)
- 1 Outdoor Unit

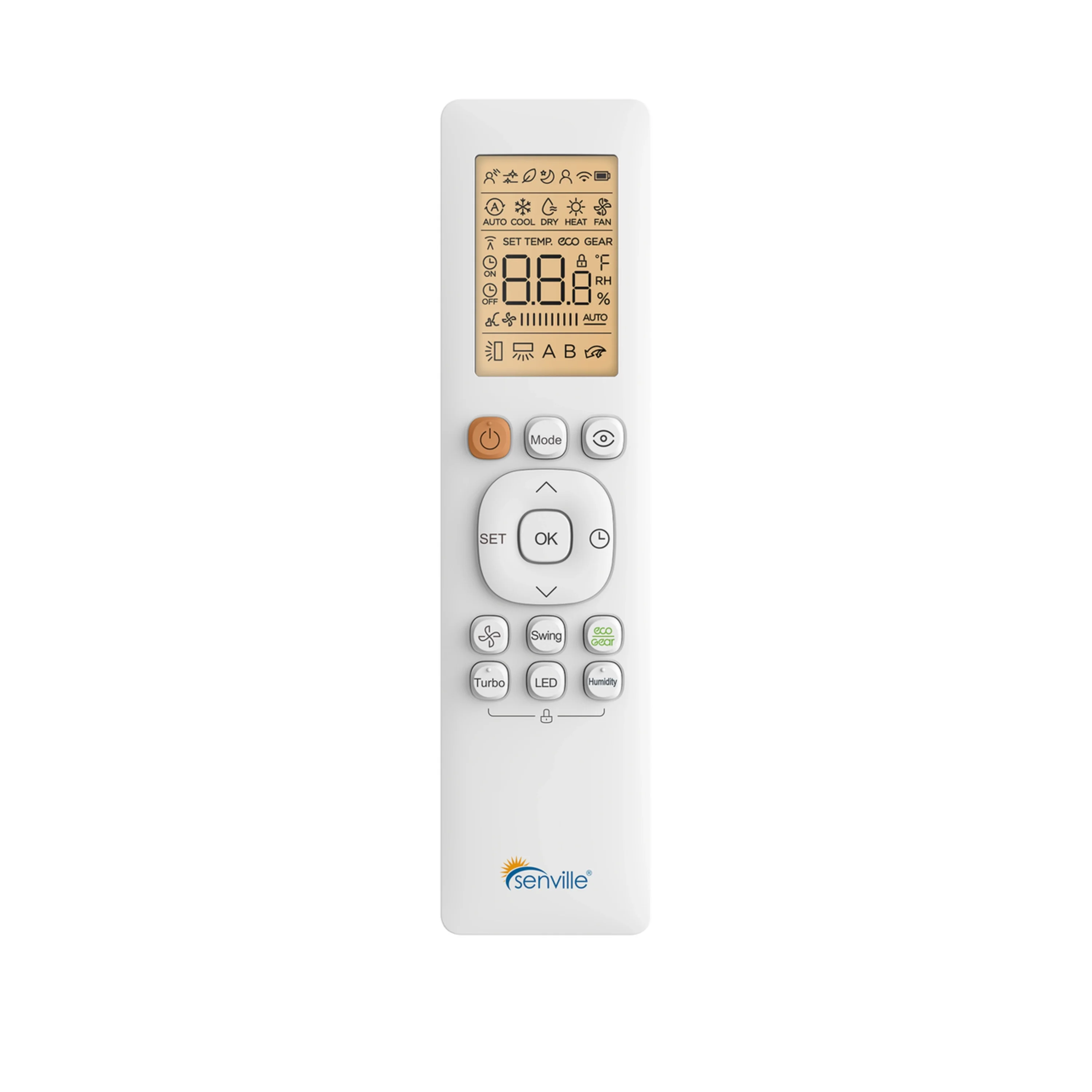

- Wireless Remote Controls
- Alexa USB Kit

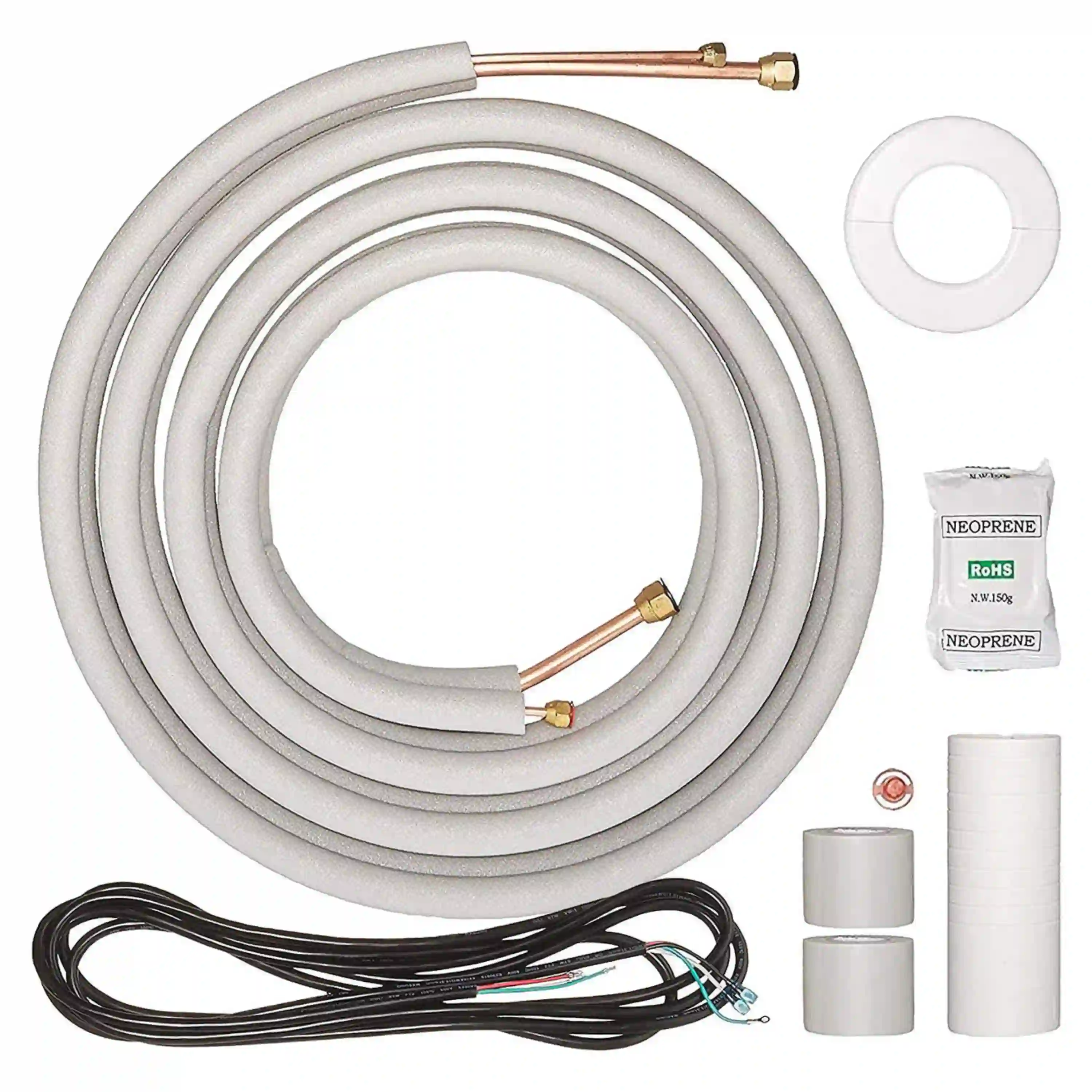

- 16 ft. Installation Kits (x2)
- Indoor-Outdoor Wiring Harness
- Installation Manual
- User’s Manual
- 10-Year Manufacturer Warranty

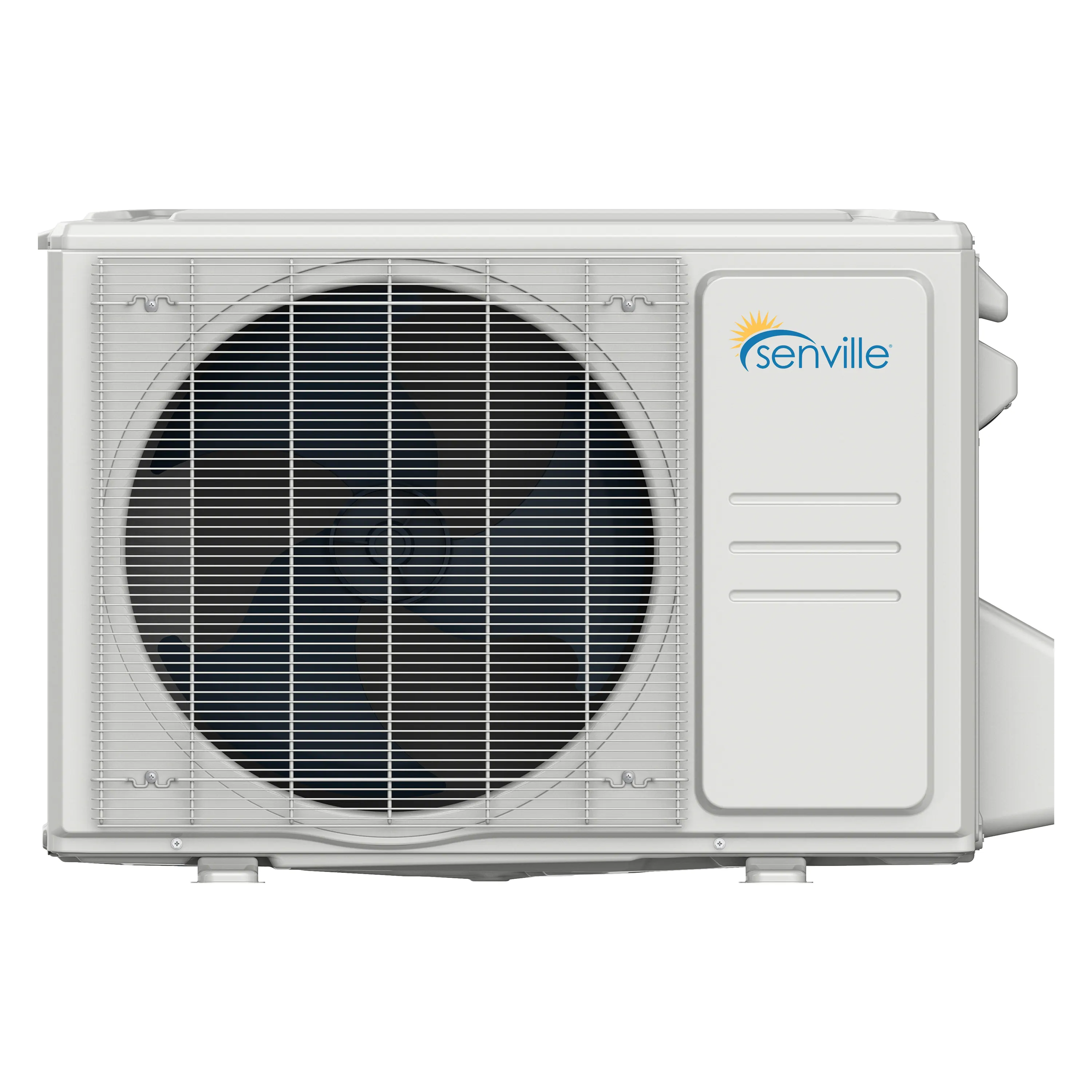

| Condenser | |
| Outdoor Dimensions (WxDxH) (in.) | 38.58 x 16.34 x 38.39 |
| Outdoor Weight | 211.86 Lbs |
| Outdoor Air Flow (Max) CFM | 3037.2 |
| Outdoor Noise Level dB | 65 |
| Technical Specification | |
| Style | Ductless Mini Split AC With Heat Pump |
| Number of Zones | 3 |
| Power Supply (V-Ph-Hz) | 208/230V, 1Ph, 60Hz |
| Voltage Range | 187–253 |
| SEER2 | 23 |
| EER2 | 13 |
| Cooling Capacity (BTU) | 36000 |
| Cooling Range (BTU) | 9000~43000 |
| Cooling Input Range (W) | 600~4000 |
| Cooling Current Range (A) | 5.2~17.8 |
| Heating Capacity (BTU) | 36000 |
| Heating Range (BTU) | 10000~44000 |
| Heating Input Range (W) | 600~3750 |
| Heating Current Range (A) | 5.2~16.6 |
| HSPF2-4 | 10.7 |
| HSPF2-5 | 8.5 |
| COP W/W | 4 |
| Minimum Circuit Ampacity (A) | 37 |
| Max. Fuse (A) | 40 |
| Minimum Outdoor Heating Temperature | -22°F / -30°C |
| Refrigerant Type / Charge | R454B / 134.04 oz |
| Refrigerant Pre-charge | 100 Ft. |
| Warranty | 10 Years Compressor / 5 Years Parts |
| Senville Catalogue |
