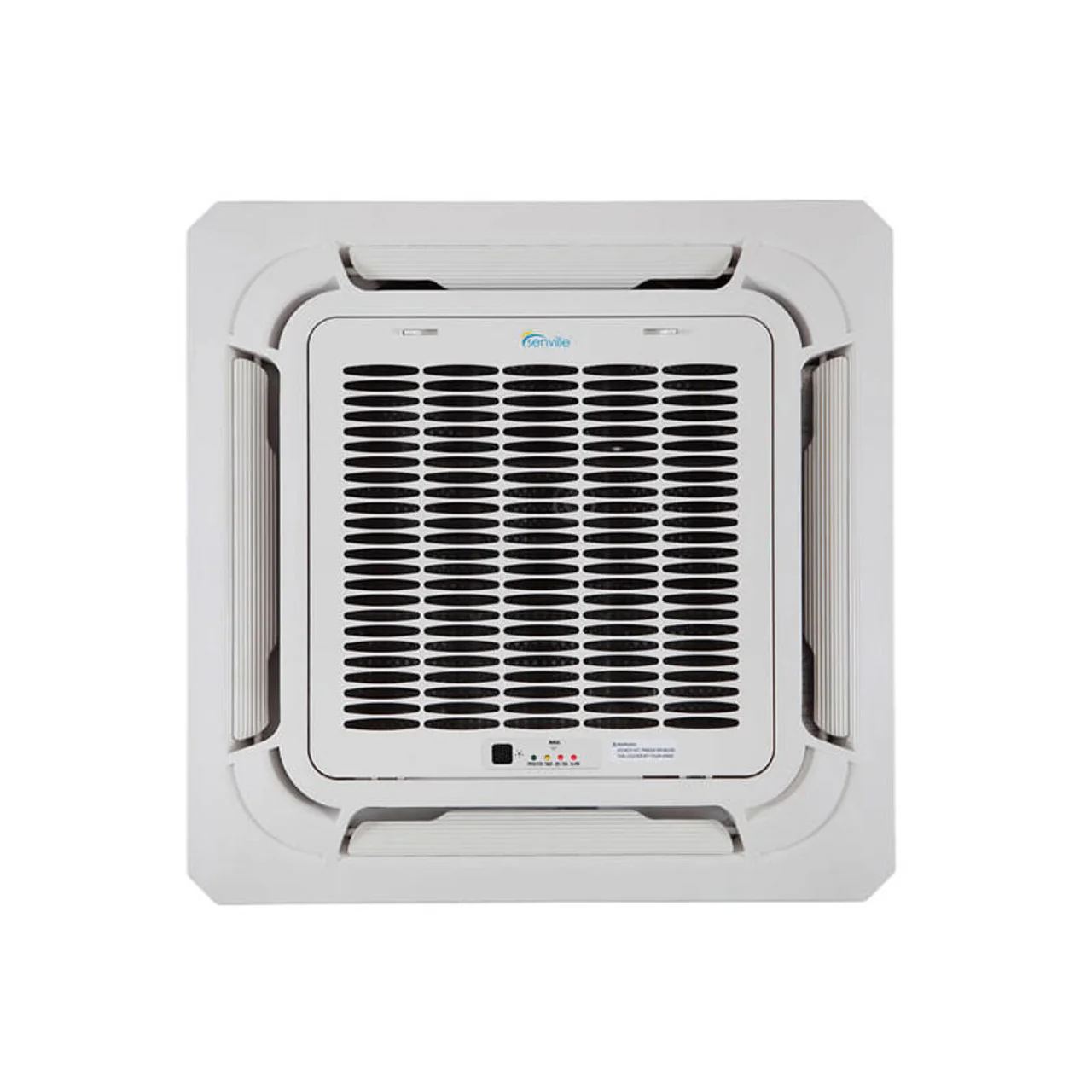

Senville Mini Split - 2-Zone 28,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Ceiling Casette Air Handlers (SENA-30HF-DIC)

This 28000 BTU Dual Zone Ceiling Cassette Air Conditioner by Senville is one of the most advanced and high-end split units on the market. Providing you with a variety of features including, SEER2 23, 2 x 12000BTU Air Conditioner & Heat Pump, Turbo Mode, Dehumidification, Timer Function, Follow Me Function and much more.

Highlights

• 23 SEER

• With Heat Pump (Up to -30C / -22F)

• Energy Star Certified

• Whisper Technology (Ultra Quiet)

• Refrigerant Leak Detection

• Inverter Technology

• Vertical Swing Function

• Built-In De-humidification Function

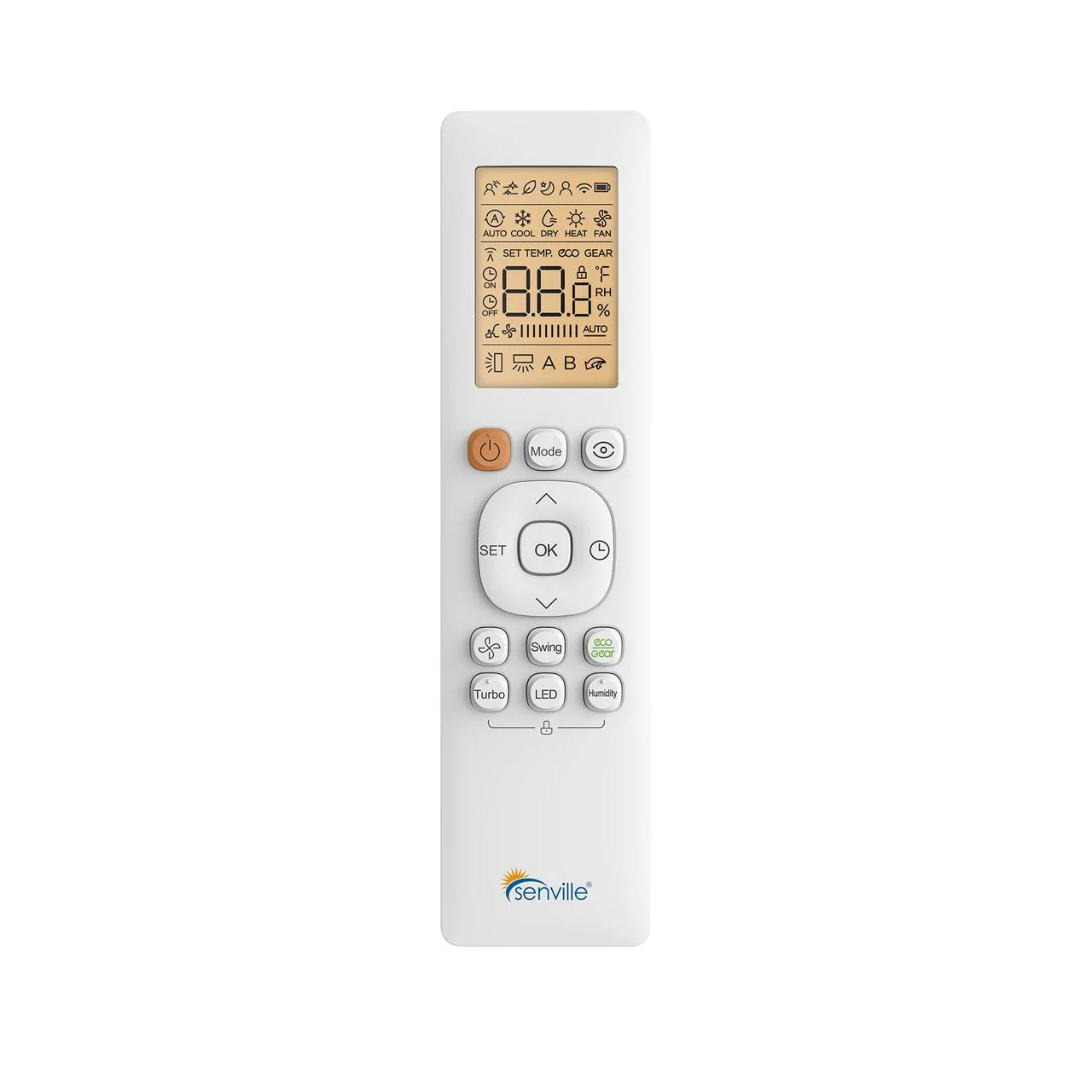

• Follow Me Function (Remote with Built-In Thermostat)

• Low Ambient Cooling (Up to -30C / -22F)

• Self-Cleaning Mode

• PTC Heat Belt and Pan

• Bucket Free Outdoor Design

• Self Diagnosis System

Features

• High Efficiency DC Inverter Mini Split - With SEER2 Ratings as high as 23, the Senville Aura surpasses many of the top name brands when it comes to efficiency. Enjoy the benefit of a cool climate controlled room, with a simple and easy to install air conditioner. Additionally, the 2x12000 BTU Senville Aura offers you one of the quietest split air conditioning systems on the market, with minimal audible noise, ensuring the most comfortable overall experience.
• Energy Star Certified - The Senville Aura Series is also fully certified by Energy Star for the highest levels of energy efficiency. With ultra energy efficient air conditioners, you can expect to save upwards of 40% on your energy costs annually. This model makes a great companion for anyone looking to cool and/or heat their home or business, while minimizing running costs in the long-term.
• Ultra Inverter Heating and Cooling (Up to -22F) - Senville is proud offer one of the most advanced heating and cooling systems in the world. Our Ultra-Inverter Technology, allows our mini split systems to provide cooling and heating at up to -22F, with up to 75% efficiency, which means you won't experience any additional cost overages on your energy as temperatures go lower. Now available on all of our AURA Series models, your Ultra Inverter system will provide you with cooling and heating, all year round, even in the coldest climates.
• Diagnostics & Leak Detection System - Also included on this ductless system are a variety of features including self-cleaning, leak detection, and diagnostic display, all designed to ensure a proper running system, that will last a lifetime. Enjoy peace of mind, knowing that your air conditioner will warn you of any potential problems, allowing for proper maintenance and a climate control system that functions at it's highest efficiency.
• Efficient Inverter Technology - Senville has long manufactured their air conditioners with an emphasis on energy efficiency and affordability. Technology like its inverter compressor, results in drastic reduction of energy usage, ultimately making it one of the most efficient systems with Inverter Technology. Its technology like this that helps the ductless system to reach such high SEER ratings. Opt for a split system with Inverter Technology to ensure that you are minimizing your energy costs.Senville has long manufactured their air conditioners with an emphasis on energy efficiency and affordability. Technology like its inverter compressor, results in drastic reduction of energy usage, ultimately making it one of the most efficient systems with Inverter Technology. Its technology like this that helps the ductless system to reach such high SEER ratings. Opt for a split system with Inverter Technology to ensure that you are minimizing your energy costs.
• Manufacturer's Warranty - All Senville models are backed by a comprehensive 10 year warranty designed to protect your purchase. All warranty claims are processed by the North American Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 10 year warranty offers coverage on the compressor and a 5 year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 10 years, and we know that we are providing you with the highest quality product available.

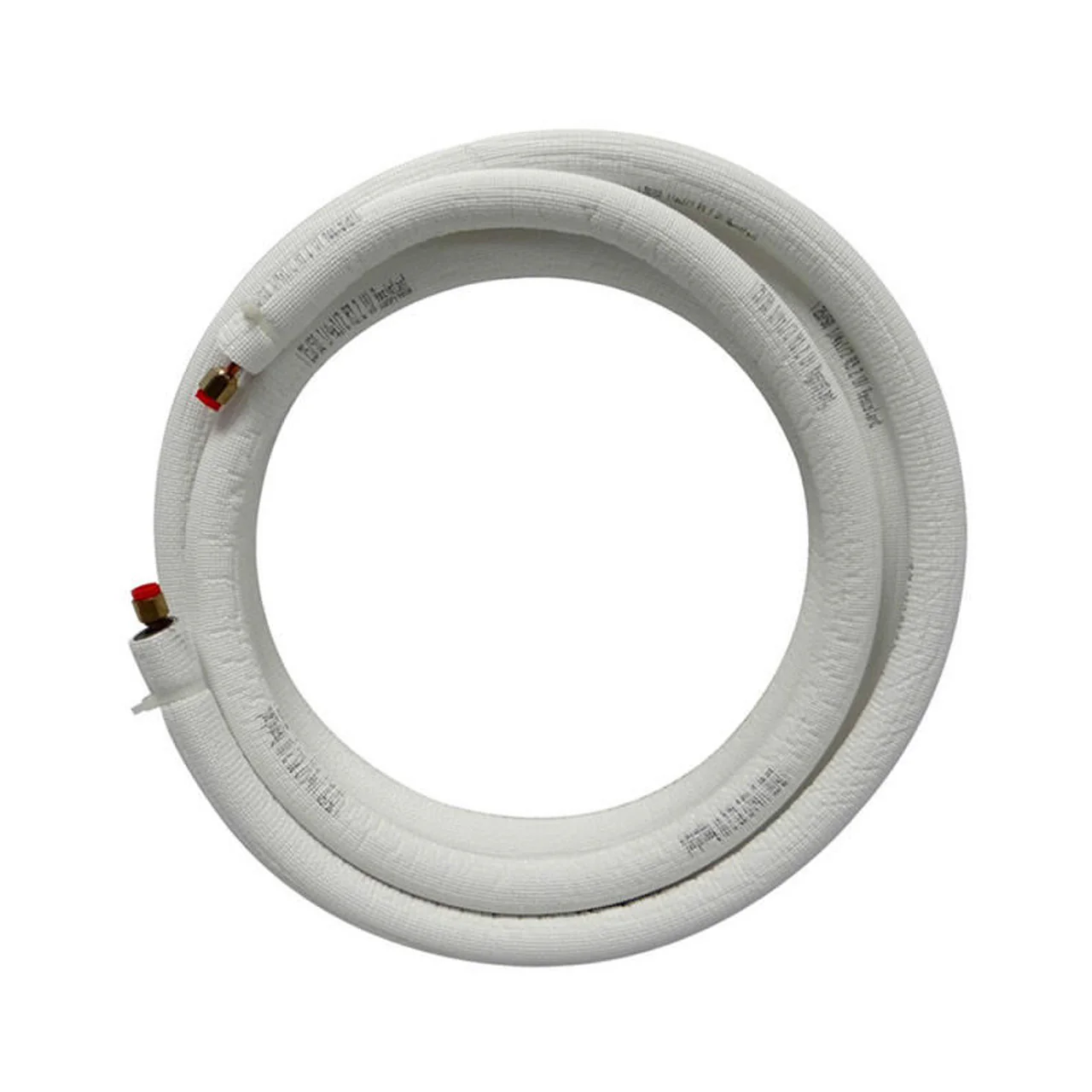

• Installation Kit & Accessories Included - Senville air conditioners include a complimentary installation kit, designed to ease installation as well as minimize installation costs. These units come pre-charged withSenville air conditioners include a complimentary installation kit, designed to ease installation as well as minimize installation costs. These units come pre-charged with R4545B refrigerant and include the necessary piping for installation and hook up. Many inferior split units, may not include these parts, which eventually adds to your costs. Our Senville models come equipped and ready for installation from the moment your arrive at your door, with minimal additional cost. . PROFESSIONAL INSTALLATION REQUIRED

Condenser
Outdoor Dimensions (WxDxH) (in.)	37.24 x 16.14 x 31.89
Outdoor Weight	168.43 Lbs
Outdoor Air Flow (Max) CFM	2148.4
Outdoor Noise Level dB	61
Technical Specification
Style	Ductless Mini Split AC With Heat Pump
Number of Zones	2-3
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
SEER2	23
EER2	12.5
Cooling Capacity (BTU)	27000
Cooling Range (BTU)	7200~37000
Cooling Input Range (W)	500~3620
Cooling Current  Range (A)	4~16
Heating Capacity (BTU)	27000
Heating Range (BTU)	8400~36000
Heating Input Range (W)	500~3400
Heating Current Range (A)	4~15
HSPF2-4	10.5
HSPF2-5	8.5
COP W/W	3.8
Minimum Circuit Ampacity (A)	30
Max. Fuse (A)	35
Minimum Outdoor Heating Temperature	-22°F / -30°C
Refrigerant Type / Charge	R454B / 120.61 oz
Refrigerant Pre-charge	75 Ft.
Warranty	10 Years Compressor / 5 Years Parts

Installation Manual

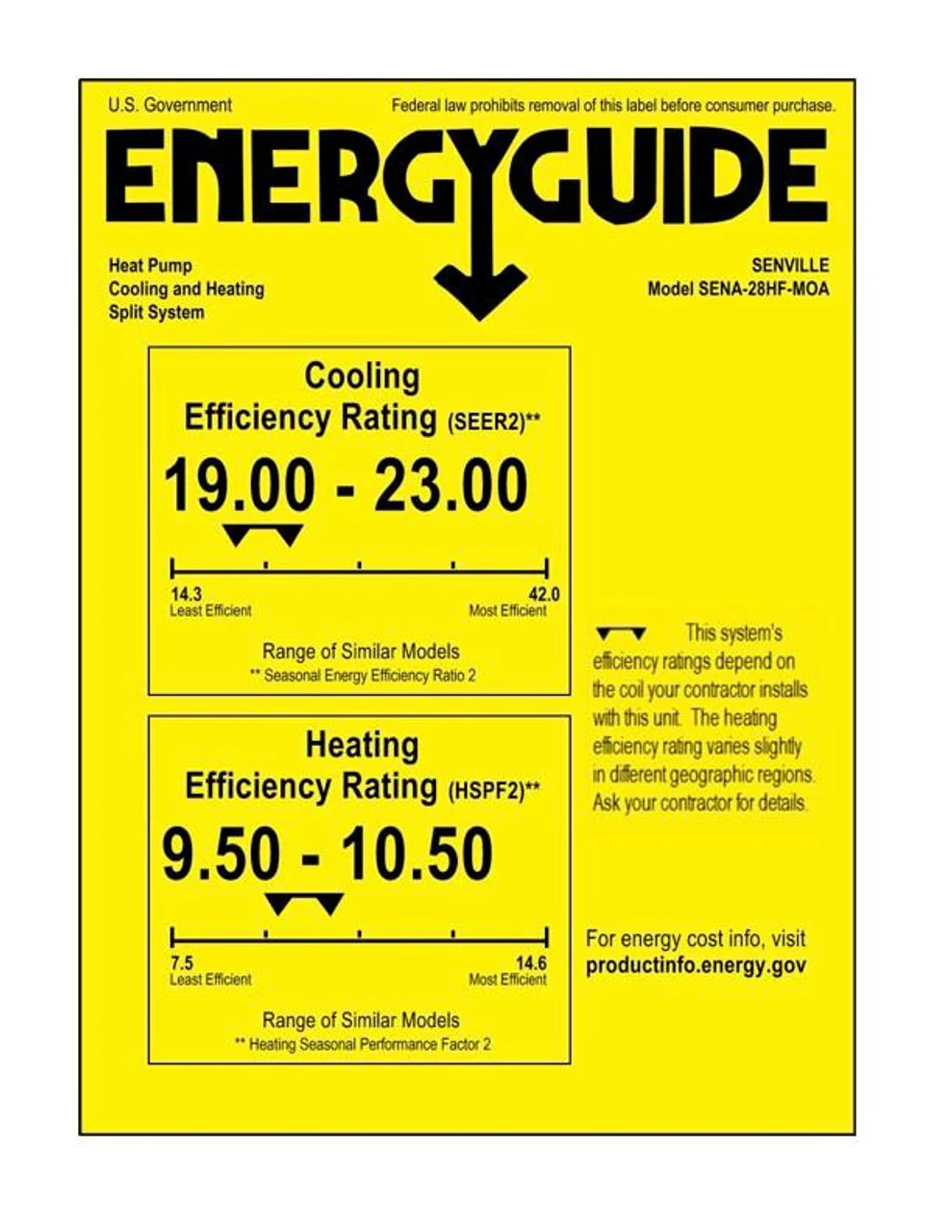

Enegy Guide
