Senville Mini Split - 2-Zone 28,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-30HF-D)

Senville SENA-30HF/D is a high-efficiency 28000 BTU dual zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

Features

• 23 SEER2 ENERGY STAR - Save up to 50% on energy costs annually.
• Heating down to -30°C (-22°F) - Reliable performance in extreme cold.

• Alexa Enabled Smart Control - Control via voice or app anywhere.
• Ultra-Quiet Operation - Whisper-quiet for bedrooms & offices.

• Recommended for 1300–1500 sq. ft. - Great for multiple zones or large spaces.
• Professional Installation - Required to maintain warranty coverage.
• Smart Home Integration with Alexa - Control your Senville system with Alexa or the app from anywhere. Create schedules, adjust settings, and enjoy convenience and energy savings remotely.
• ENERGY STAR Certified - Save up to 50% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
• Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
• Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
• 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
• Installation Kit + Accessories Included - Includes a complimentary Installation kit. System is pre-charged with R454B refrigerant for up to 75 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

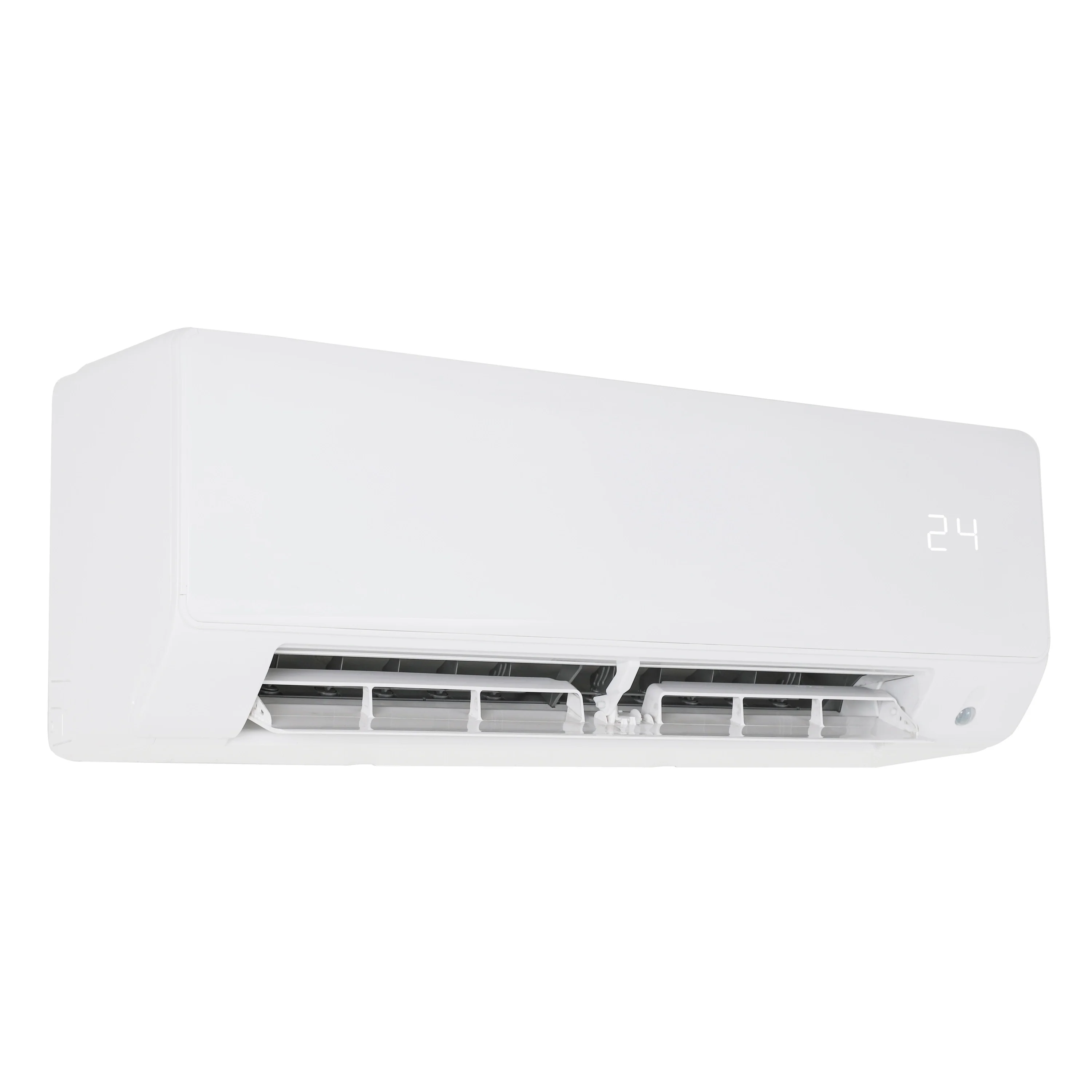

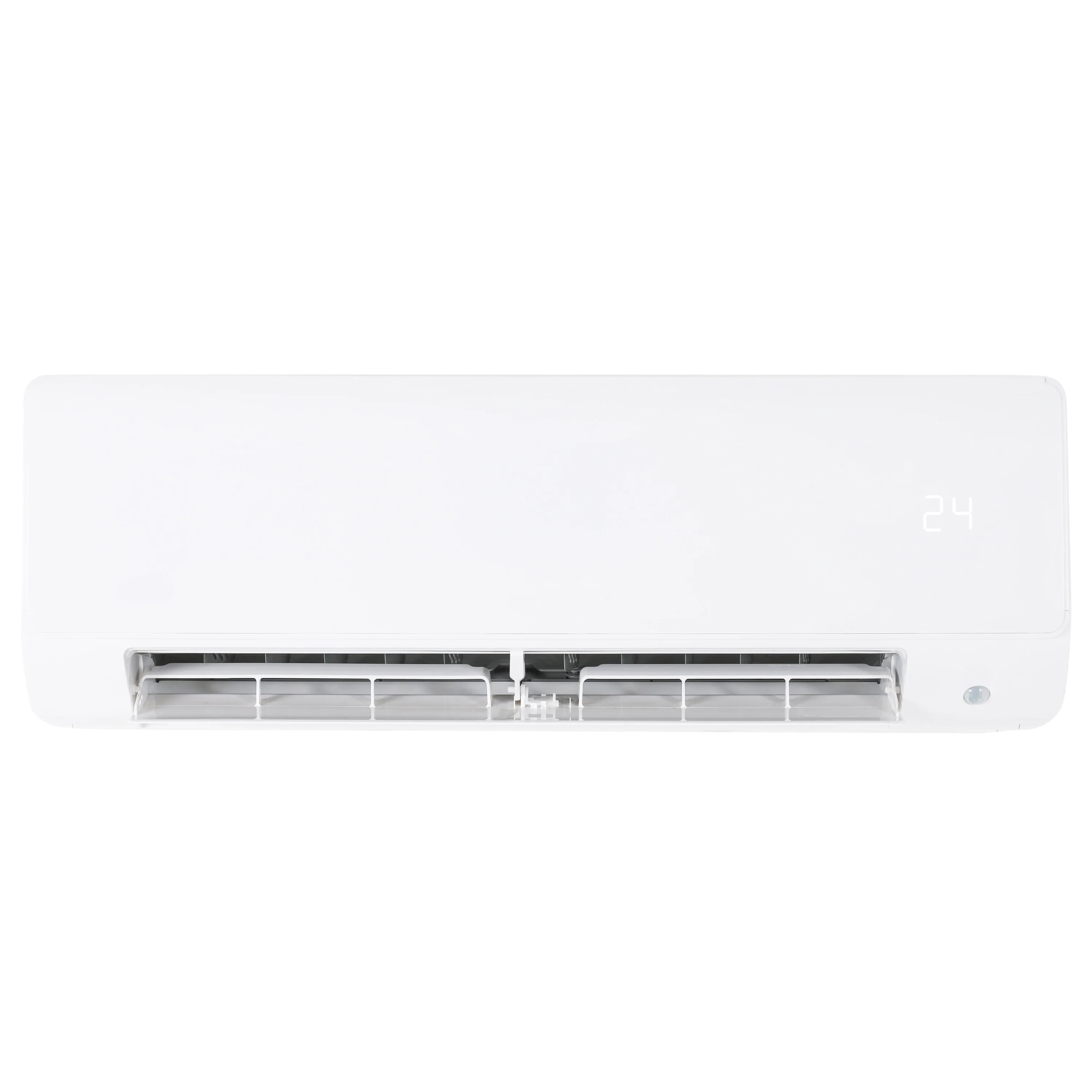

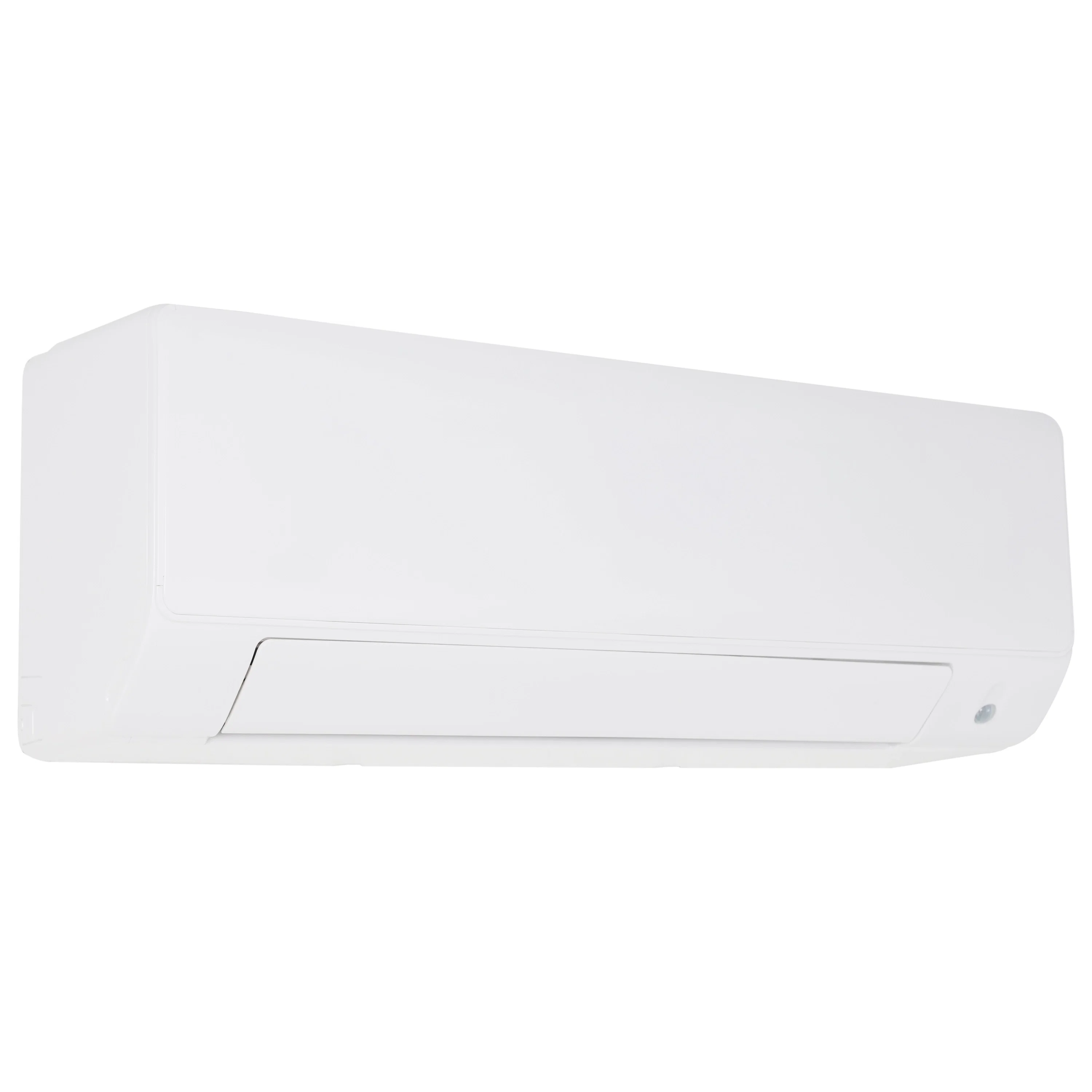

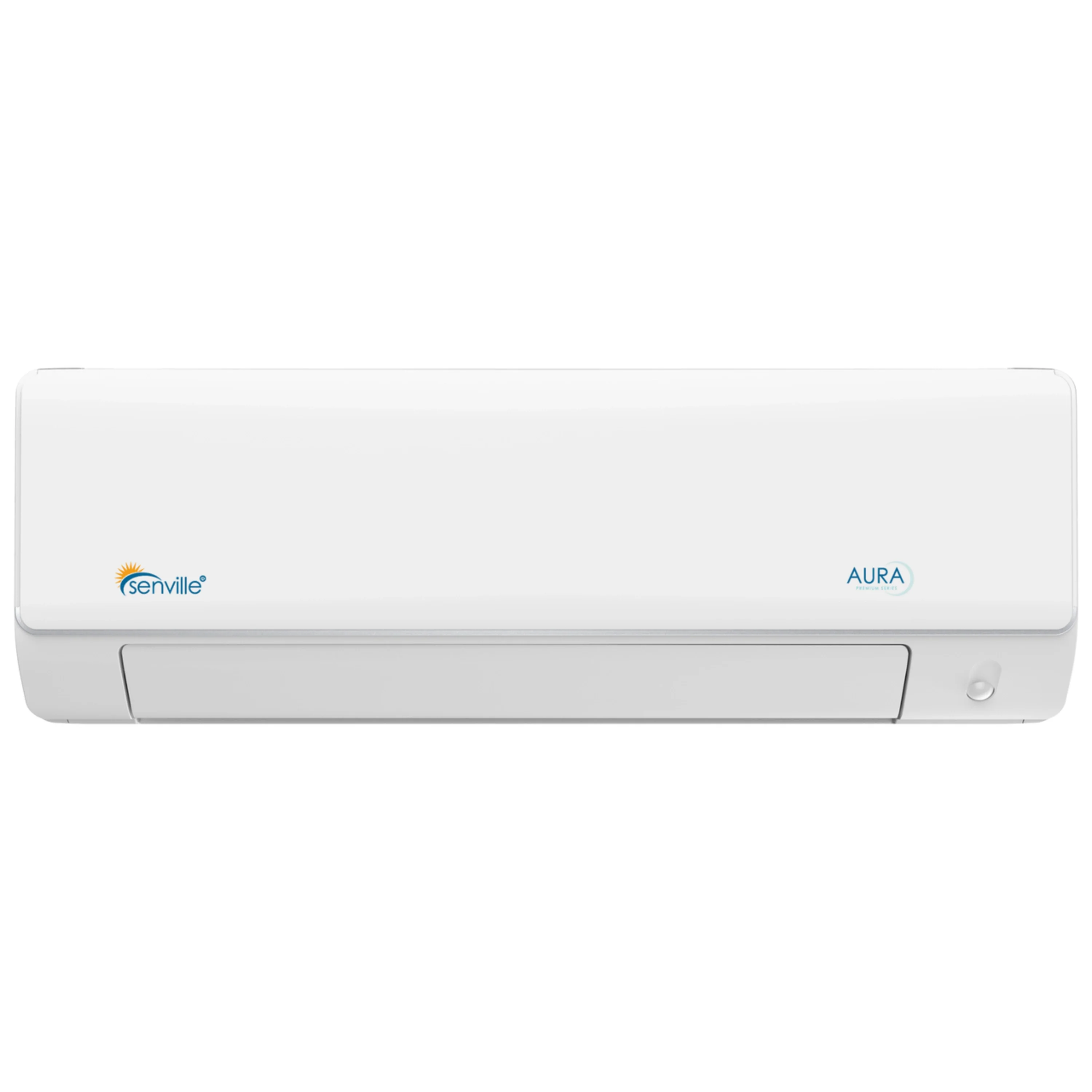

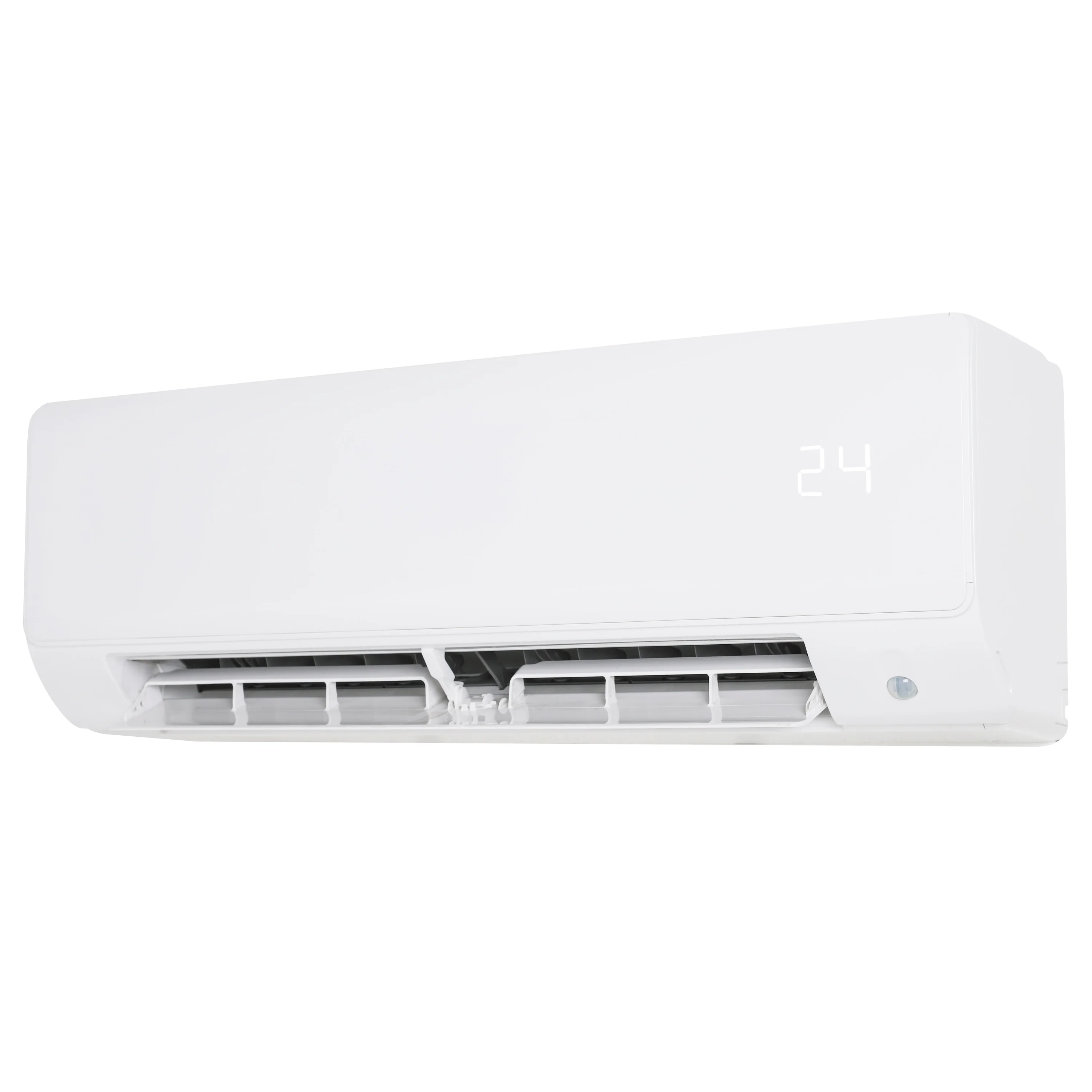

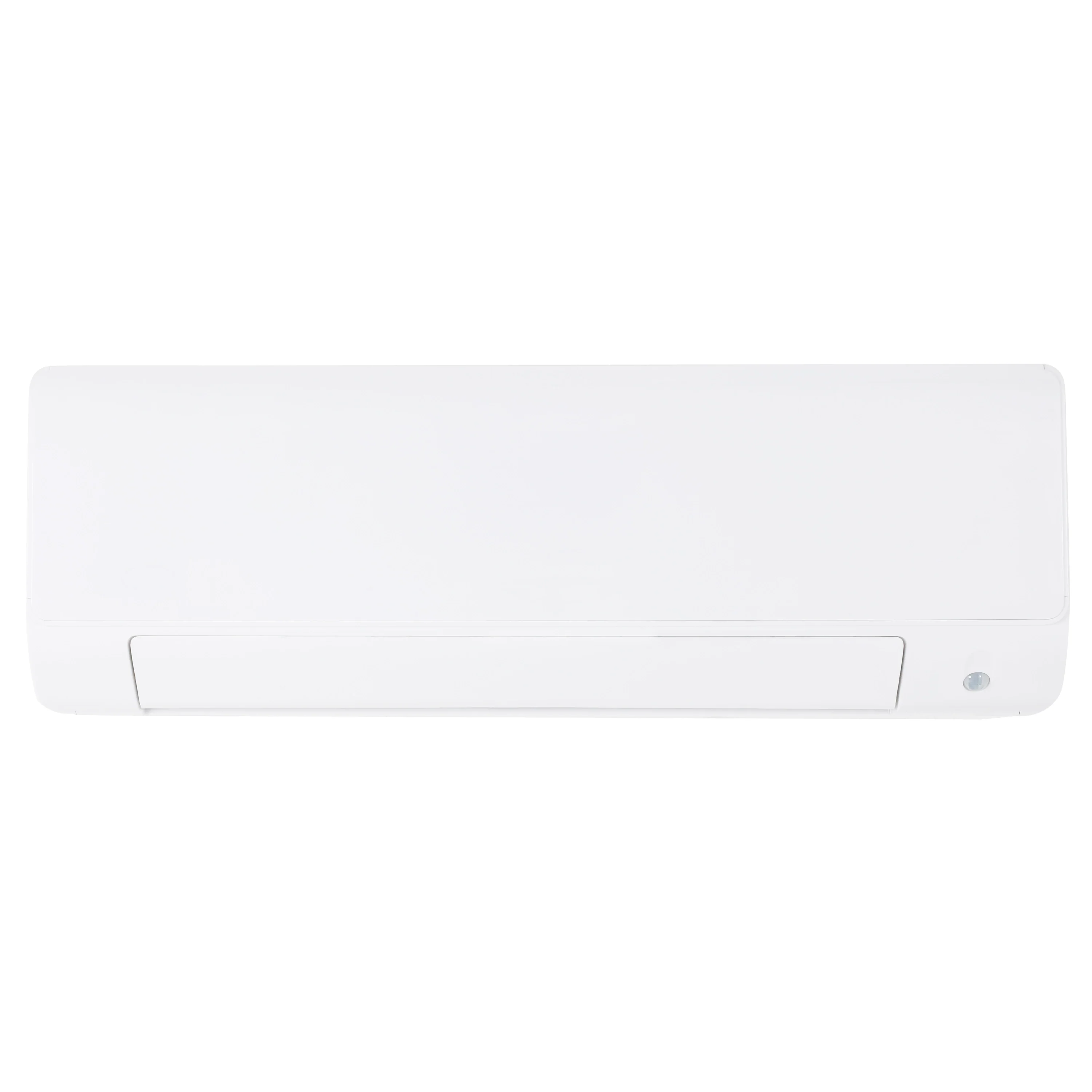

• 2 Indoor Units (12,000 BTU each)

• Outdoor Unit

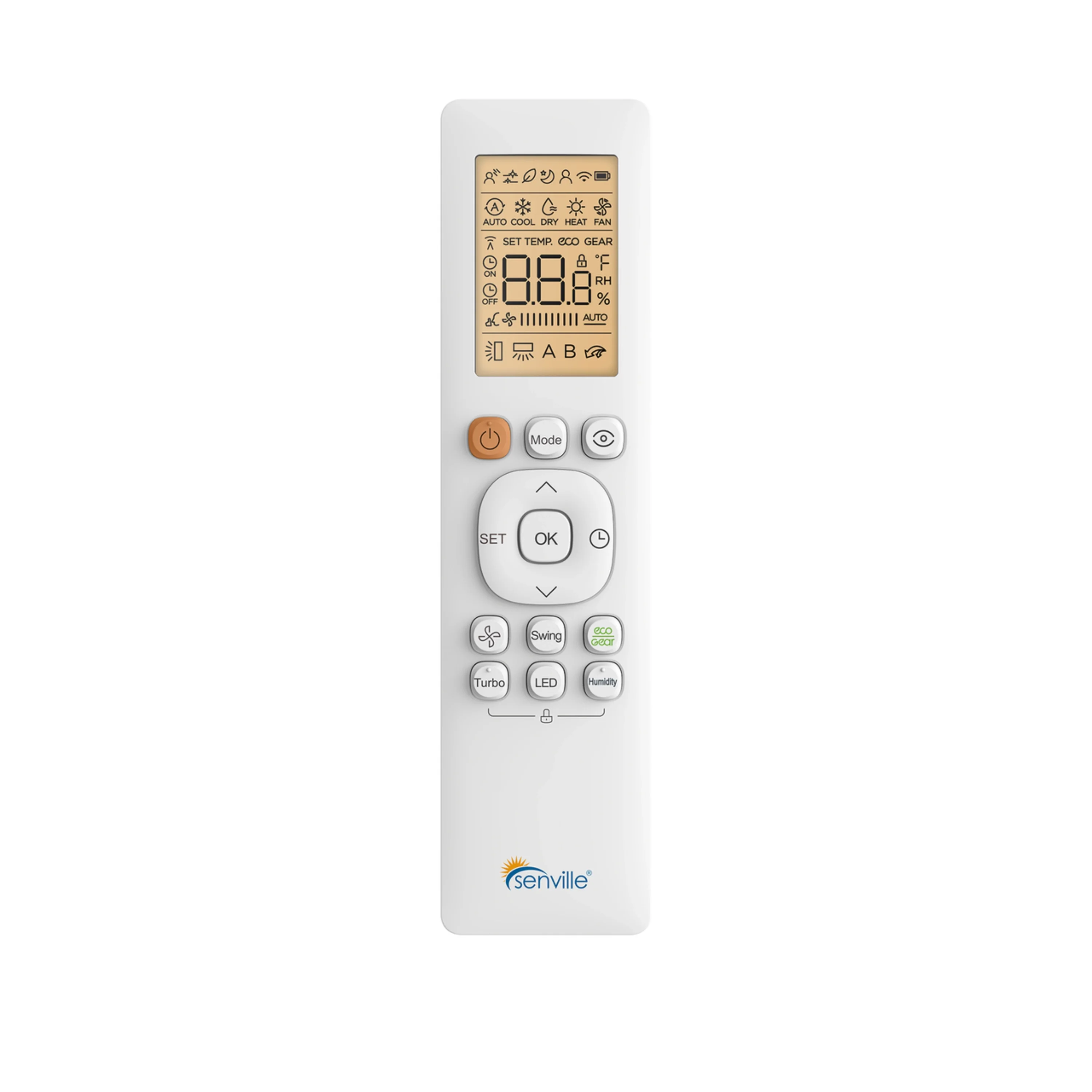

• Wireless Remote Controls

• Alexa USB Kit

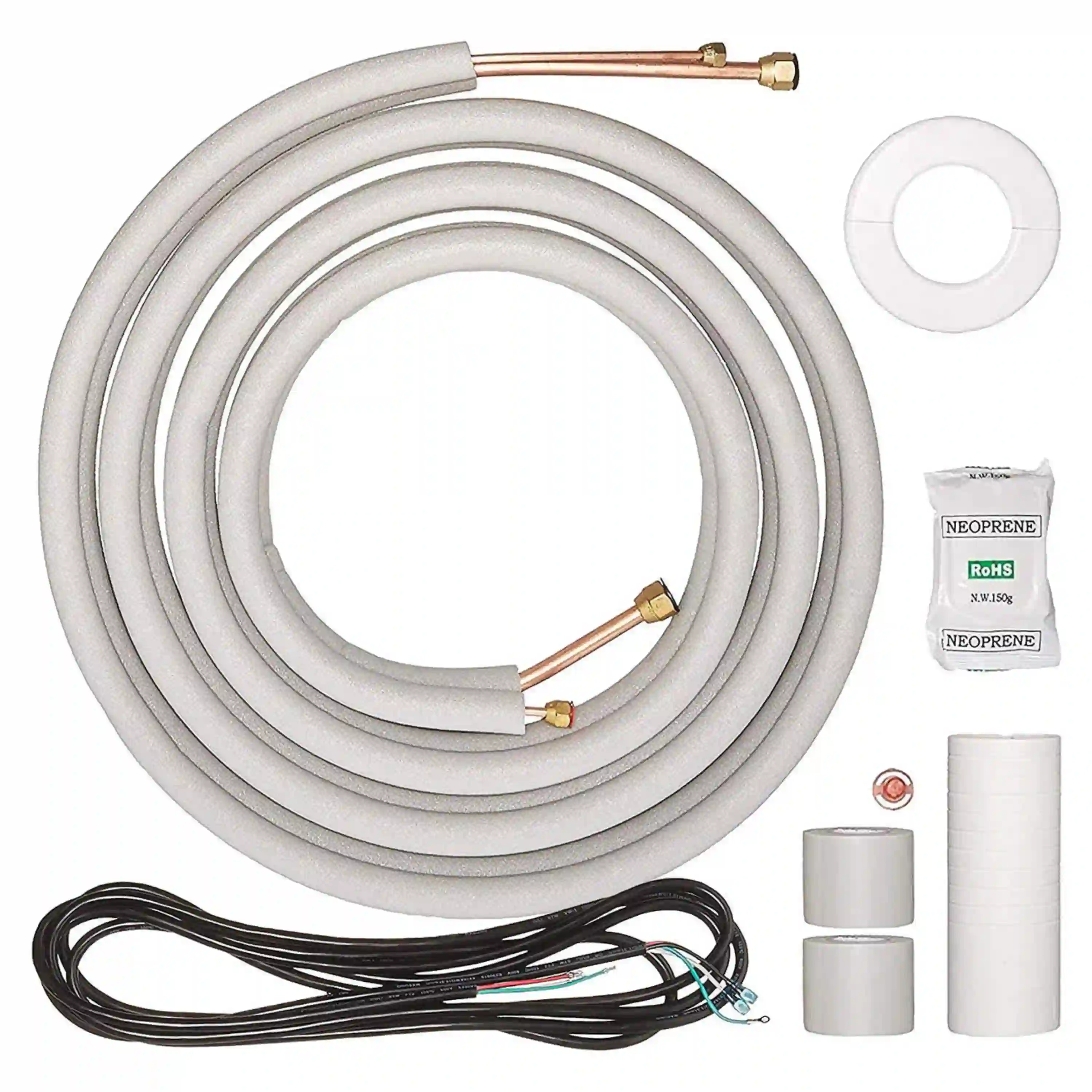

• 16 ft. Installation Kits (x2)

• Indoor-Outdoor Wiring Harness

• Installation Manual

• User’s Manual

• 10-Year Manufacturer Warranty

Condenser
Outdoor Dimensions (WxDxH) (in.)	37.24 x 16.14 x 31.89
Outdoor Weight	168.43 Lbs
Outdoor Air Flow (Max) CFM	2148.4
Outdoor Noise Level dB	61
Technical Specifications
Style	Ductless Mini Split AC With Heat Pump
Number of Zones	2–3
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187–253
SEER2	23
EER2	12.5
Cooling Capacity (BTU)	27000
Cooling Range (BTU)	7200~37000
Cooling Input Range (W)	500~3620
Cooling Current Range (A)	4~16
Heating Capacity (BTU)	27000
Heating Range (BTU)	8400~36000
Heating Input Range (W)	500~3400
Heating Current Range (A)	4~15
HSPF2-4	10.5
HSPF2-5	8.5
COP W/W	3.8
Minimum Circuit Ampacity (A)	30
Max. Fuse (A)	35
Minimum Outdoor Heating Temperature	-22°F / -30°C
Refrigerant Type / Charge	R454B / 120.61 oz
Refrigerant Pre-charge	75 Ft.
Warranty	10 Years Compressor / 5 Years Parts
