Senville Mini Split - 2-Zone 18,000 BTU Ductless Air Conditioner and Heat Pump Condenser with Wall Mount Air Handlers (SENA-18HF-D)

Senville SENA-18HF/D is a high-efficiency 18000 BTU dual zone ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

Features

• 25 SEER2 ENERGY STAR - Save up to 50% on energy costs annually.
• Heating down to -30°C (-22°F) - Reliable performance in extreme cold.

• WiFi Enabled Smart Control - Control via app anywhere.
• Ultra-Quiet Operation- Whisper-quiet for bedrooms & offices.

• Recommended for 750–1250 sq. ft. - Great for multiple zones or large spaces.
• Professional Installation - Required to maintain warranty coverage.
• WiFi Enabled Smart Control - Control your Senville system remotely via the app from anywhere. Create schedules, adjust settings, and enjoy convenience and energy savings remotely.
• ENERGY STAR Certified - Save up to 50% annually on energy costs with this ultra-efficient, ENERGY STAR certified system—ideal for eco-conscious homes and businesses.
• Cold Climate Heat Pump - Provides heating at -30°C (-22°F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
• Diagnostics & Leak Detection - Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
• 10-Year Warranty - Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
• Installation Kit + Accessories Included - Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 50 ft. Professional installation is required to maintain warranty coverage and optimal performance.

What's Included

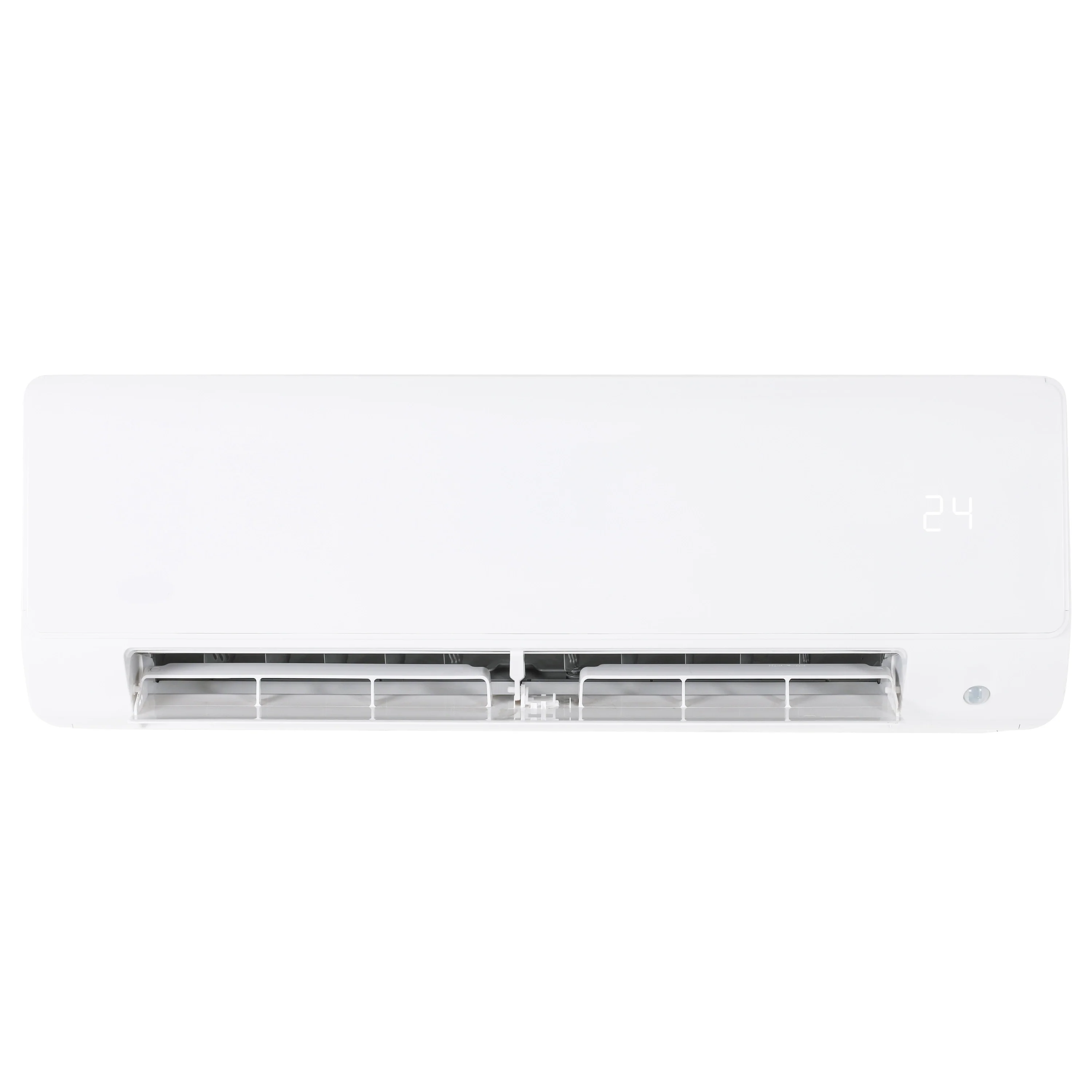

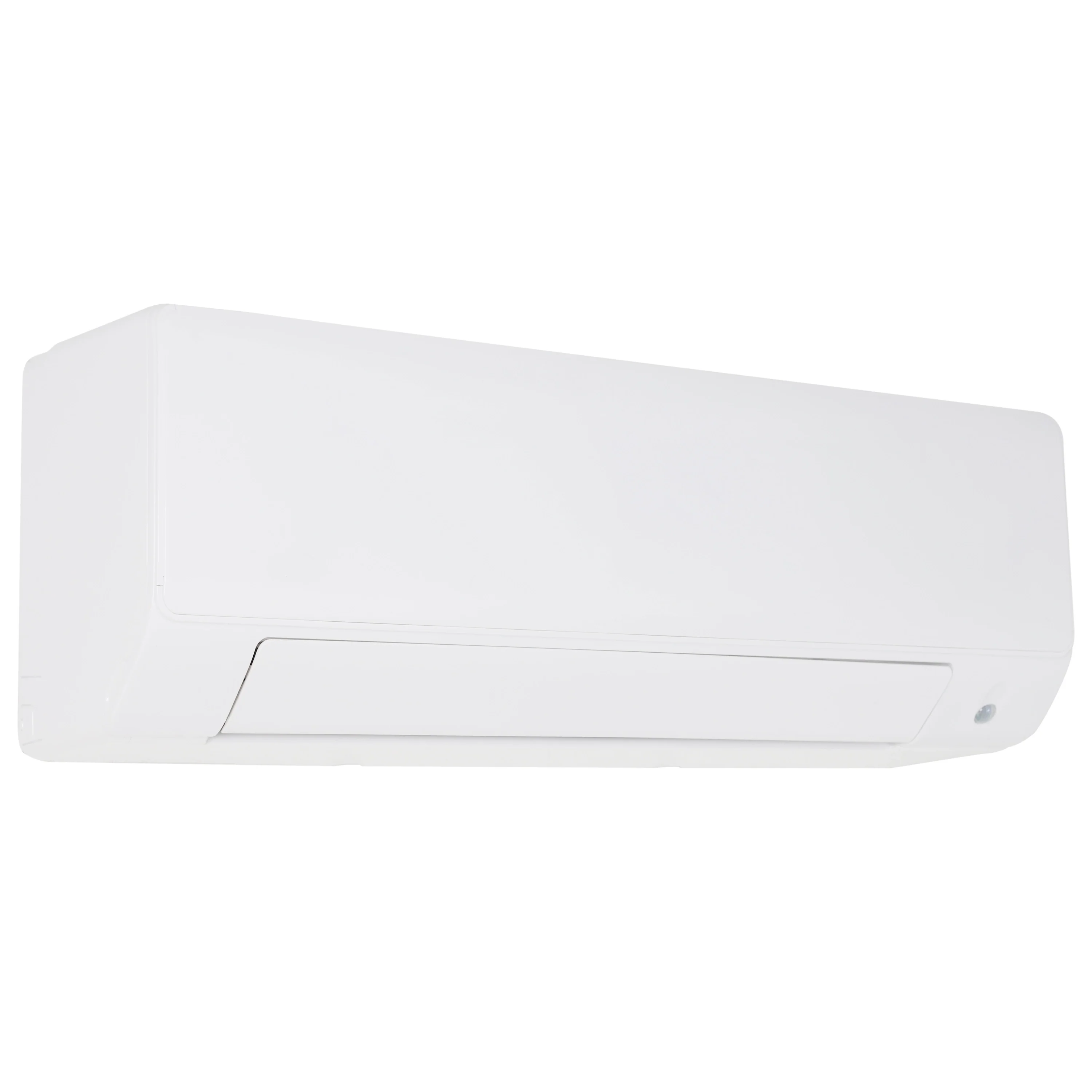

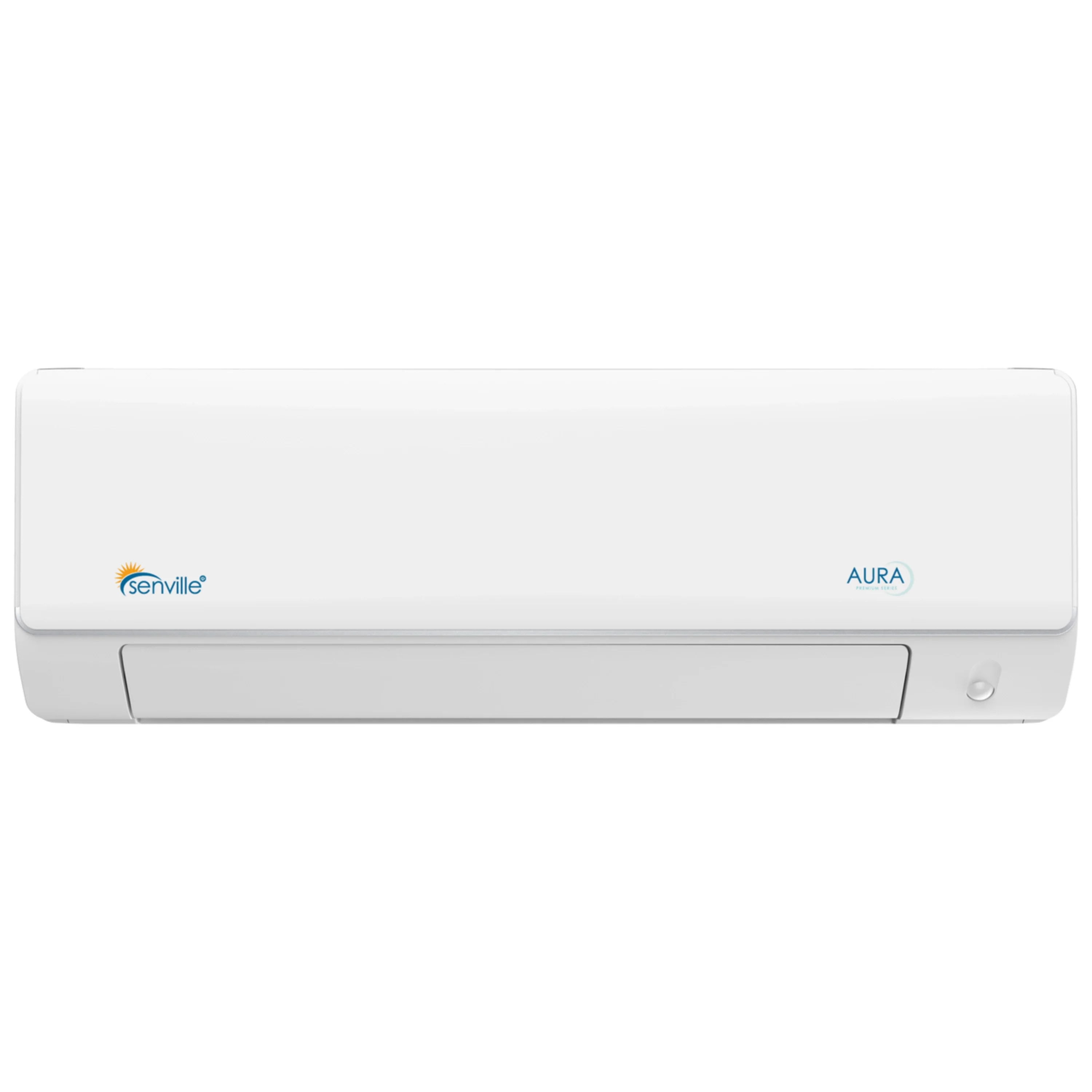

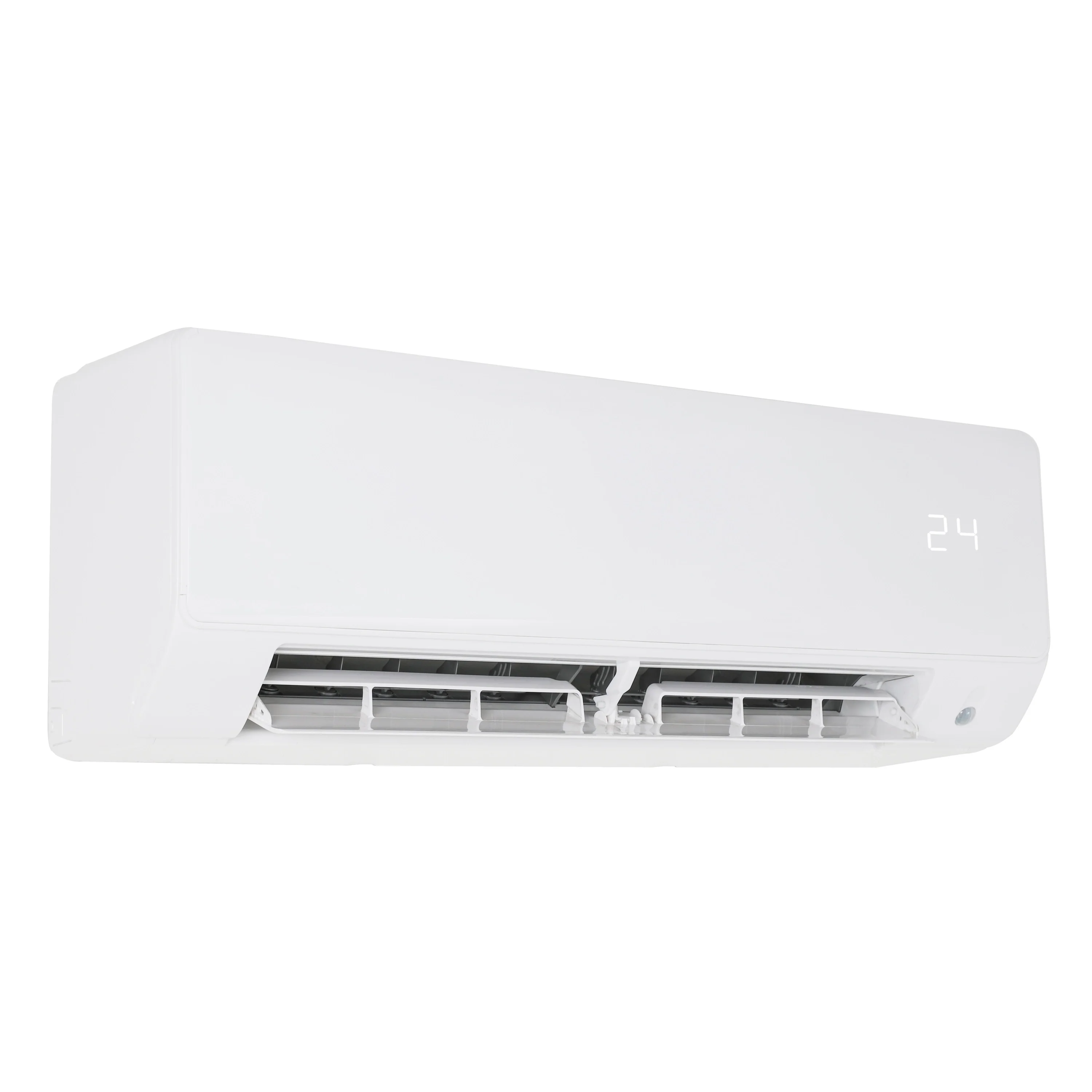

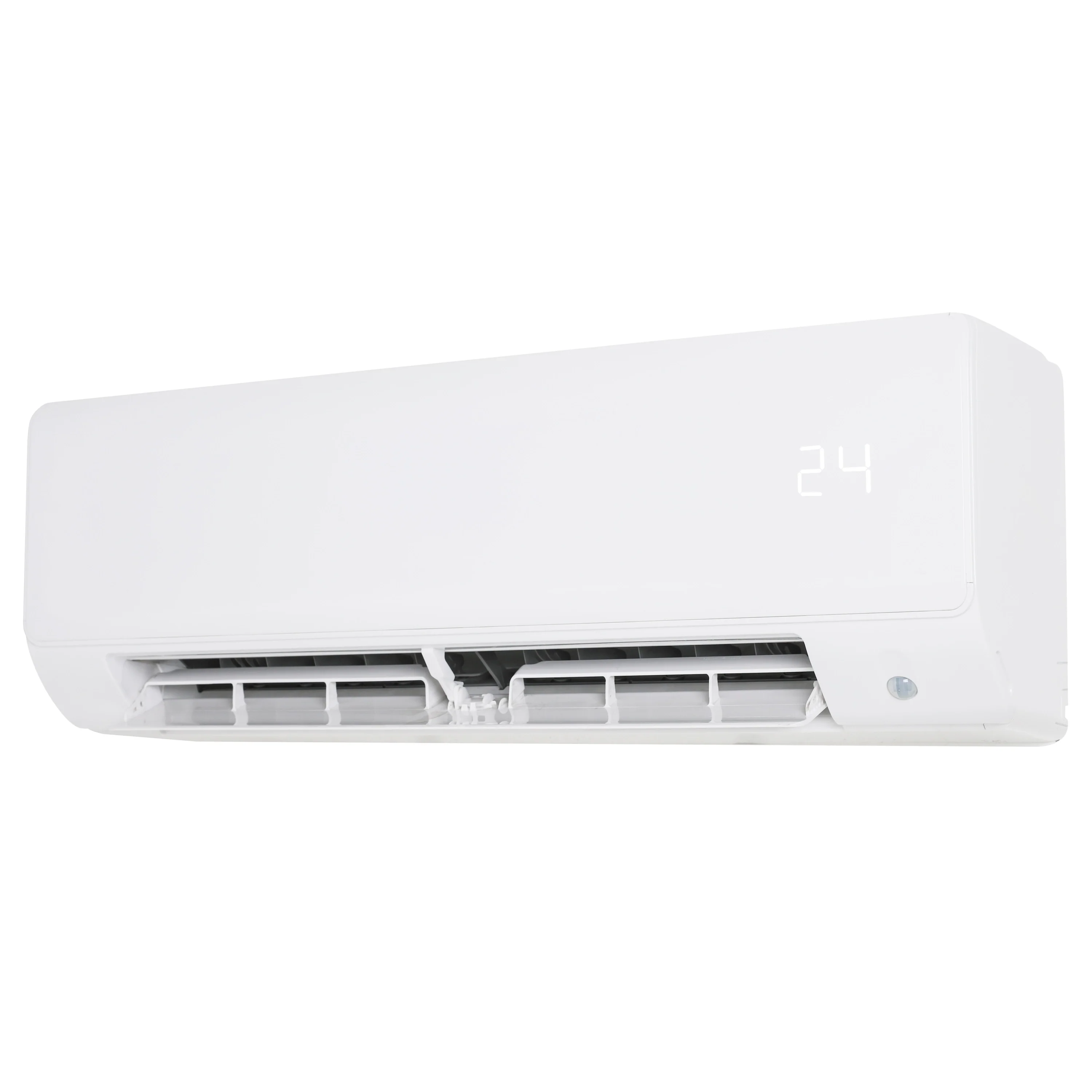

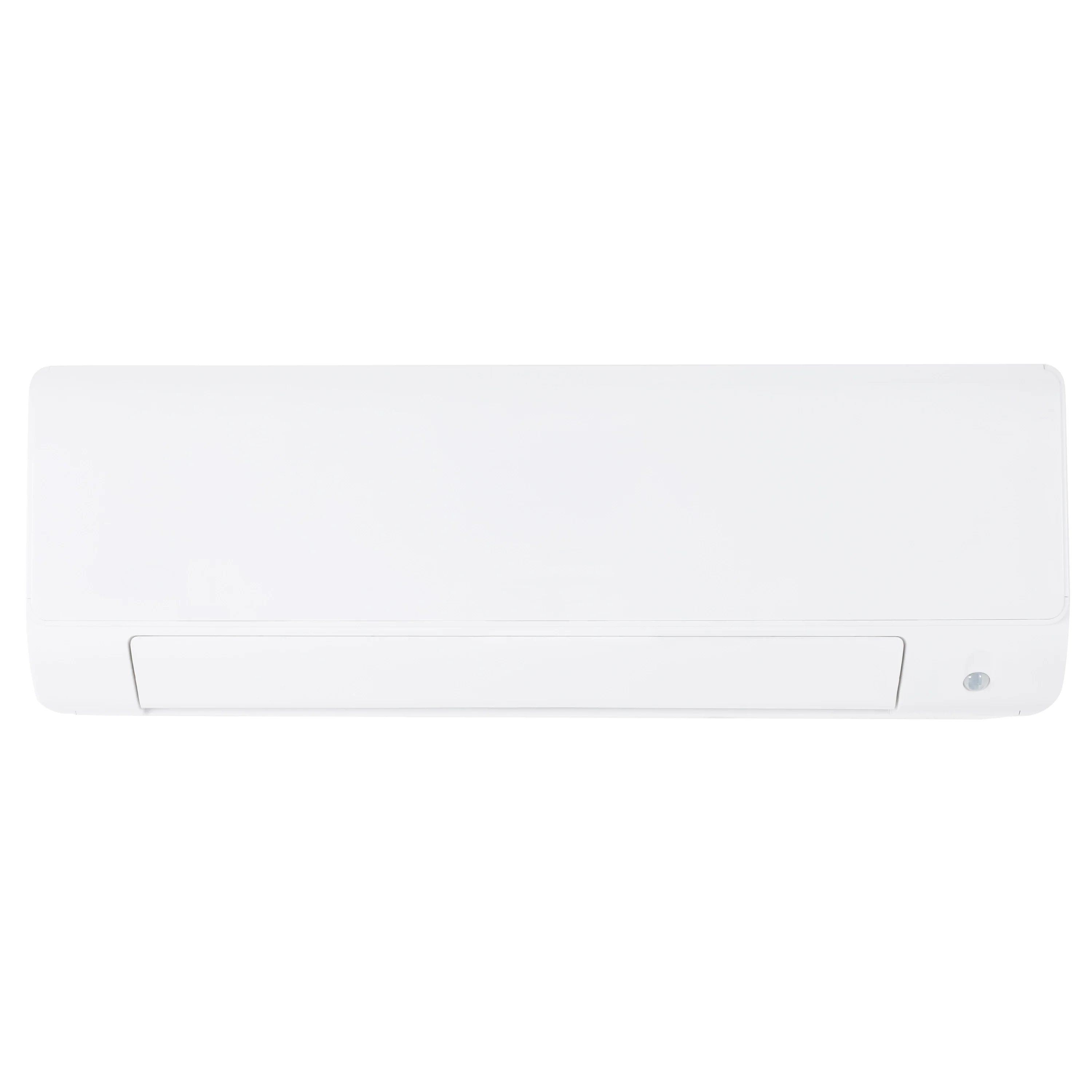

• 2 Indoor Units (9,000 BTU each)

• Outdoor Unit

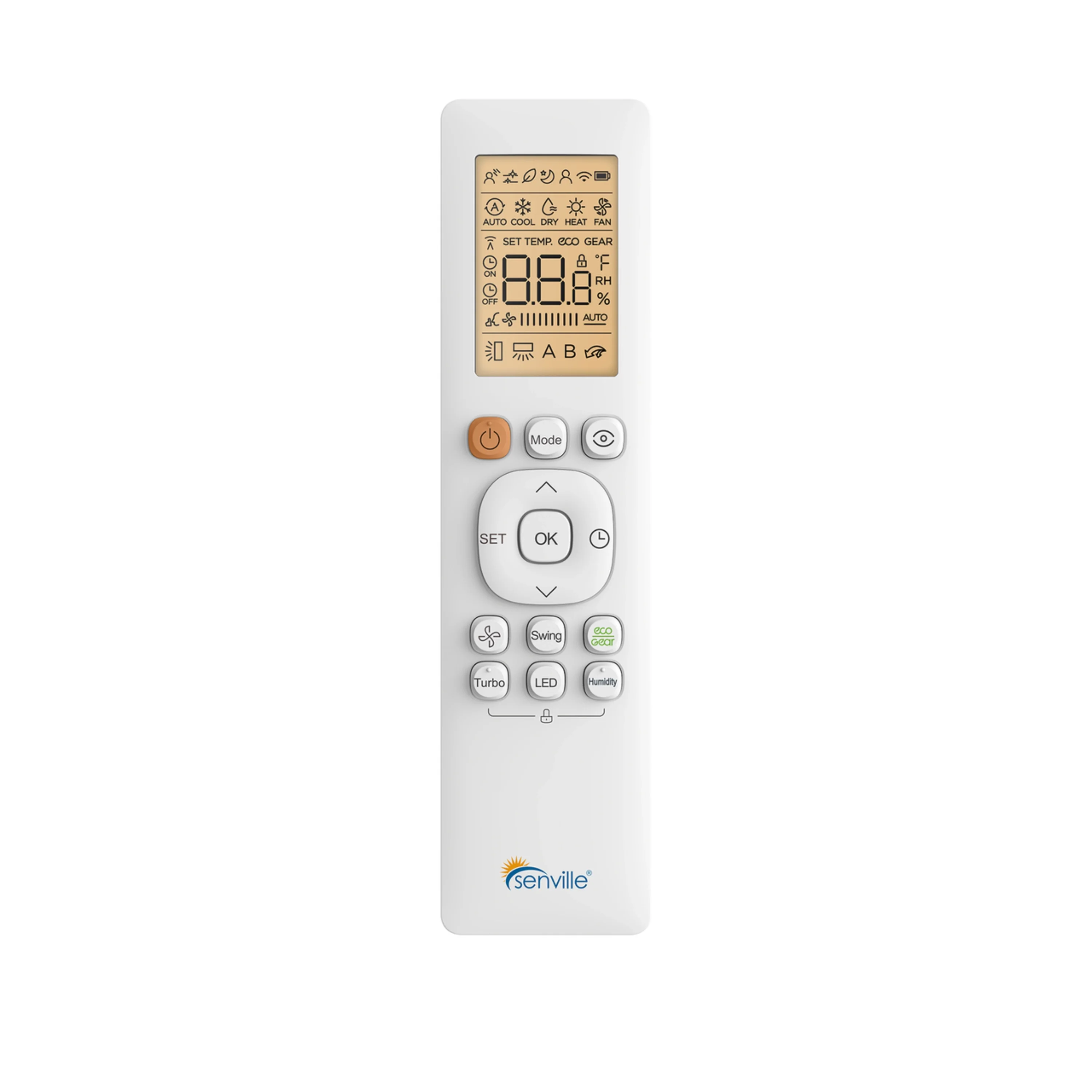

• Wireless Remote Controls

• WiFi USB Kit

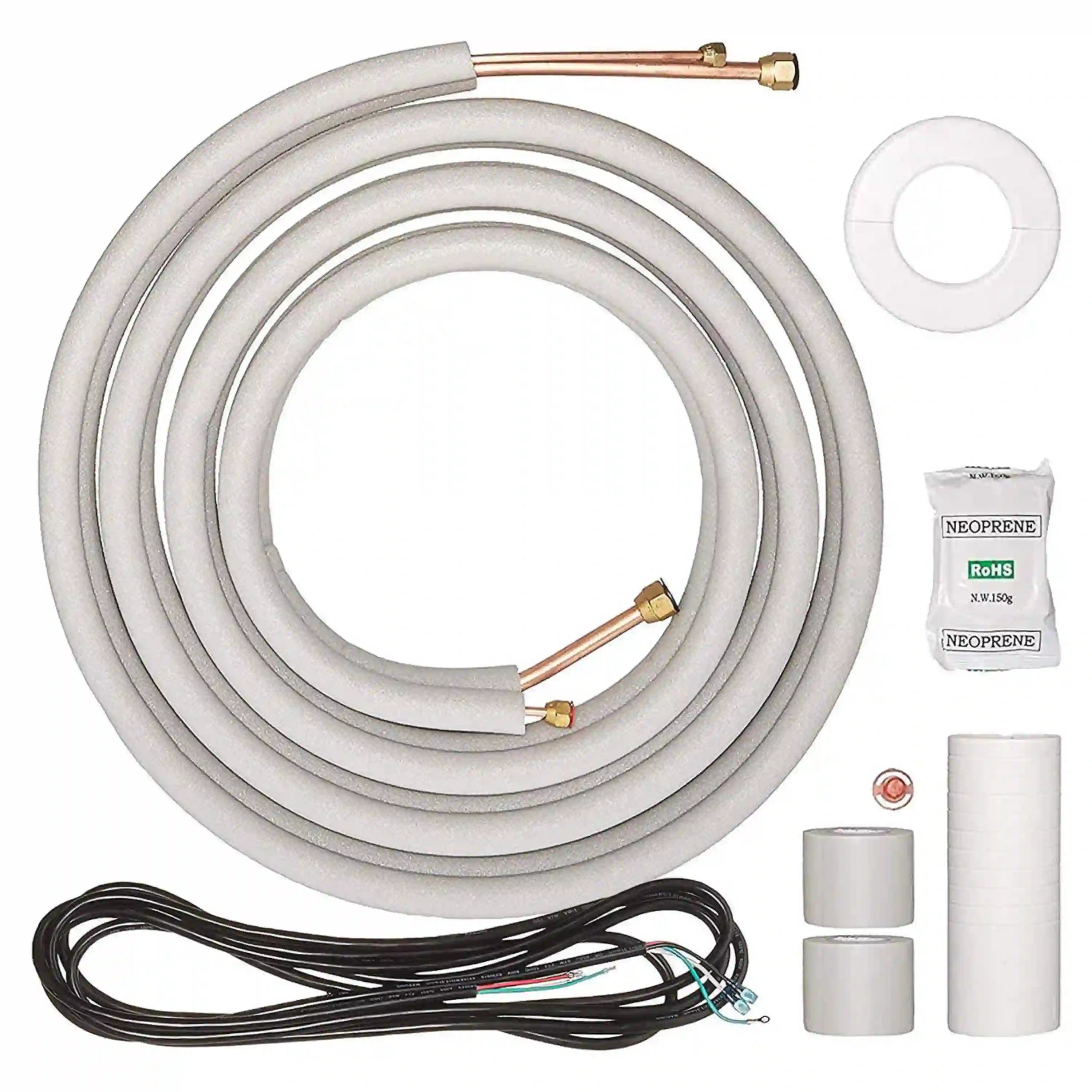

• 16 ft. Installation Kits (x2)

• Indoor-Outdoor Wiring Harness

• Installation Manual

Condenser
Outdoor Dimensions (WxDxH) (in.)	37.24 x 16.14 x 31.89
Outdoor Weight	137.35 Lbs
Outdoor Air Flow (Max) CFM	2130.7
Outdoor Noise Level dB	61.5
Technical Specification
Style	Ductless Mini Split AC With Heat Pump
Number of Zones	2
Power Supply (V-Ph-Hz)	208/230V, 1Ph, 60Hz
Voltage Range	187-253
SEER2	25
EER2	15
Cooling Capacity (BTU)	19000
Cooling Range (BTU)	5400~28000
Cooling Input Range (W)	400~2250
Cooling Current Range (A)	3.5~10.0
Heating Capacity (BTU)	20000
Heating Range (BTU)	5700~27000
Heating Input Range (W)	350~2300
Heating Current Range (A)	1.5~5.9
HSPF2-4	10.4
HSPF2-5	8.5
COP W/W	4
Minimum Circuit Ampacity (A)	17.5
Max. Fuse (A)	20
Minimum Outdoor Heating Temperature	-22°F / -30°C
Refrigerant Type / Charge	R454B / 78.31 oz
Refrigerant Pre-charge	50 Ft.
Warranty	10 Years Compressor / 5 Years Parts
